Caution: Please make sure you have all the parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more persons.
Assembly steps for headboard:
1. Choose the designed height you want on headboard.
2. Attach side posts (U)(golden color) to each side of headboard(A) back using bolts (K), lock
washers (R) and flat washers (S). Secure bolt (K) by Allen wrench (P) as shown in diagram 1.
3. Attach middle posts (T) (black color) to center of headboard(A) back using bolts (K), lock
washers (R) and flat washers (S). Secure bolt (K) by Allen wrench (P) as shown in diagram 1.
ASSEMBLY INSTRUCTION
ITEM# 3016-90951 5/0 Upholstered Headboard-Bling
3016-90952 5/0 Footboard & Rails-Bling
3016-90967 6/0-6/6 Headboard-Bling
3016-90968 6/6 Footboard & Rails-Bling

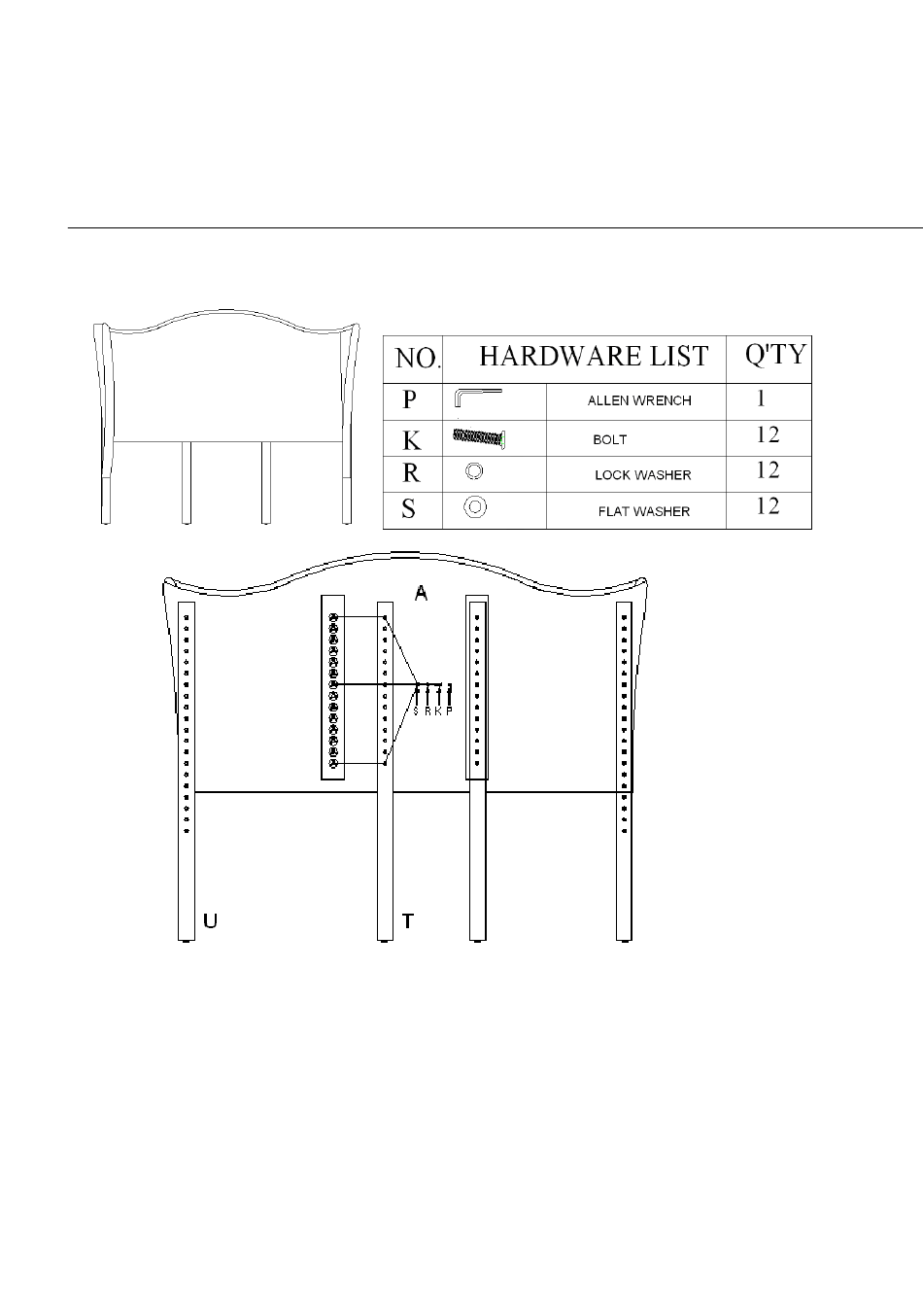

Diagram 1
1/4
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 3016-90951
Summary of Contents for Hooker Furniture 3016-90951
- Page 1 ASSEMBLY INSTRUCTION ITEM# 3016-90951 5/0 Upholstered Headboard-Bling 3016-90952 5/0 Footboard & Rails-Bling 3016-90967 6/0-6/6 Headboard-Bling 3016-90968 6/6 Footboard & Rails-Bling Caution: Please make sure you have all the parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more persons.
- Page 2 4. Adjust the headboard height by the reversed way as above loosing posts, adjust them and then secure them by the same way as above. Assembly steps for bed: 1. Insert 2 bolts (F) into holes of each post on headboard (A) and footboard (B), attach each end of side rails (C) to bolts (F) on posts using curved washers (G), 2 nuts (H) securely with spanner (I), see diagram 2.
- Page 3 Diagram 3 3. Attach slats (D) to side rails (C), align holes pre-drilled on slat with holes on the cleat of side rail (C). Tighten screws on it. See diagram 4. Diagram 4 Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 5, remove bolt (Q), lock washer (R) and flat washer (S) from cleat by turning bolt (Q) with Allen wrench (P) in anti-clockwise direction, adjust cleat to a desired position, and then secure lock washer(R), flat washer(S), bolt (Q) in a clockwise direction by...
- Page 4 Diagram 5 You can adjust the height as shown in diagram 6 to meet your need by the following steps. 1. Unscrew bolts on center support with Allen wrench (L). 2. Adjust the height of center support, align holes on 2pcs of woods and tighten them together with 2 bolts(M), 2 lock washers (N) and two flat washers（O）by using Allen wrench(L).
