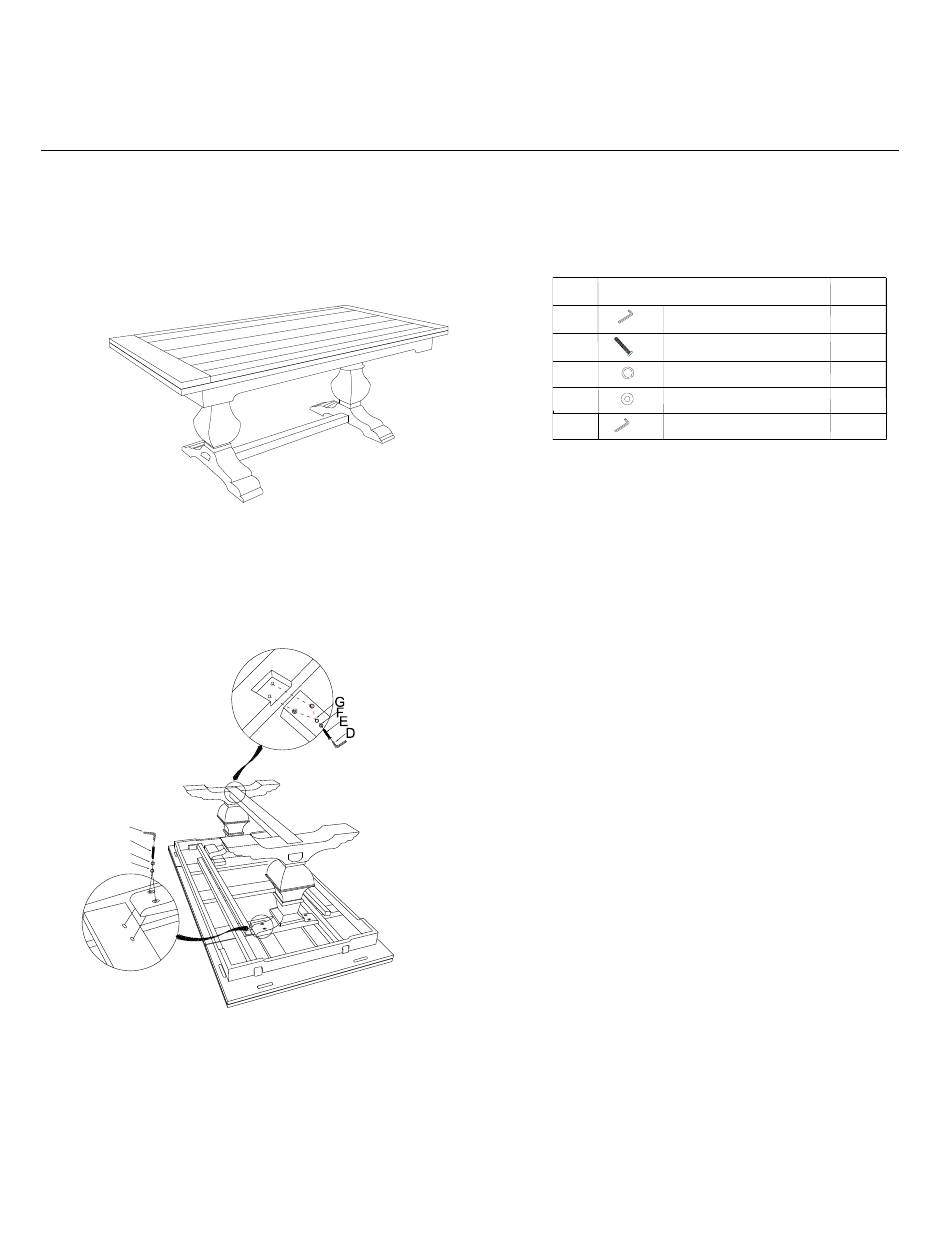

Hooker Furniture 3005-75005 Assembly Instruction

ASSEMBLY INSTRUCTION
***Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more people.
Diagram 2
D
E
F
G
Diagram 1

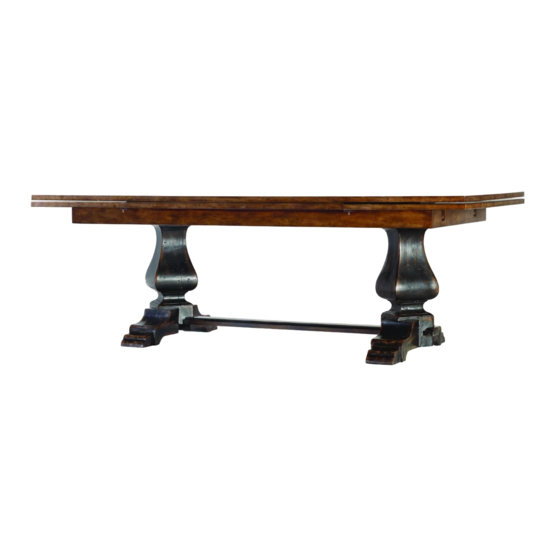

Item#: 3005-75005 Refectory Base-Dune
3005-75006 Refectory top-Drift
C
B
A

HARDWARE LIST

NO
D
73*29*5mm ALLEN WRENCH
E
50mm BOLT
F
LOCK WASHER
G
FLAT WASHER
H
69*27.2*4mm ALLEN WRENCH
1. Place the top (A) upside down on a soft surface;
2. Attach the pedestal (B) to the top (A), align holes
on the pedestal and the top ,insert 1pc bolt (E) with
1pc lock washer (F) and 1pc flat washer (G) into
each hole; Don't tighten them right now.(See
diagram 1)
3. Attach the other pedestal in the same way as step
2.
4. Place stretcher(C) onto two pedestals (B);
5. Insert 1pc bolt (E) with lock washer (F) and flat
washer (G) into holes in rail (C) and corresponding
holes in pedestal (B); (see diagram 2)
6. Tighten the bolts attached to stretcher(C) first with
allen wrench（D）.
7.
Secure the bolts (E) attached to table top with
allen wrench (D);
8. Turn the table upright
1/2
Q'TY
1
12
12
12
1
.
