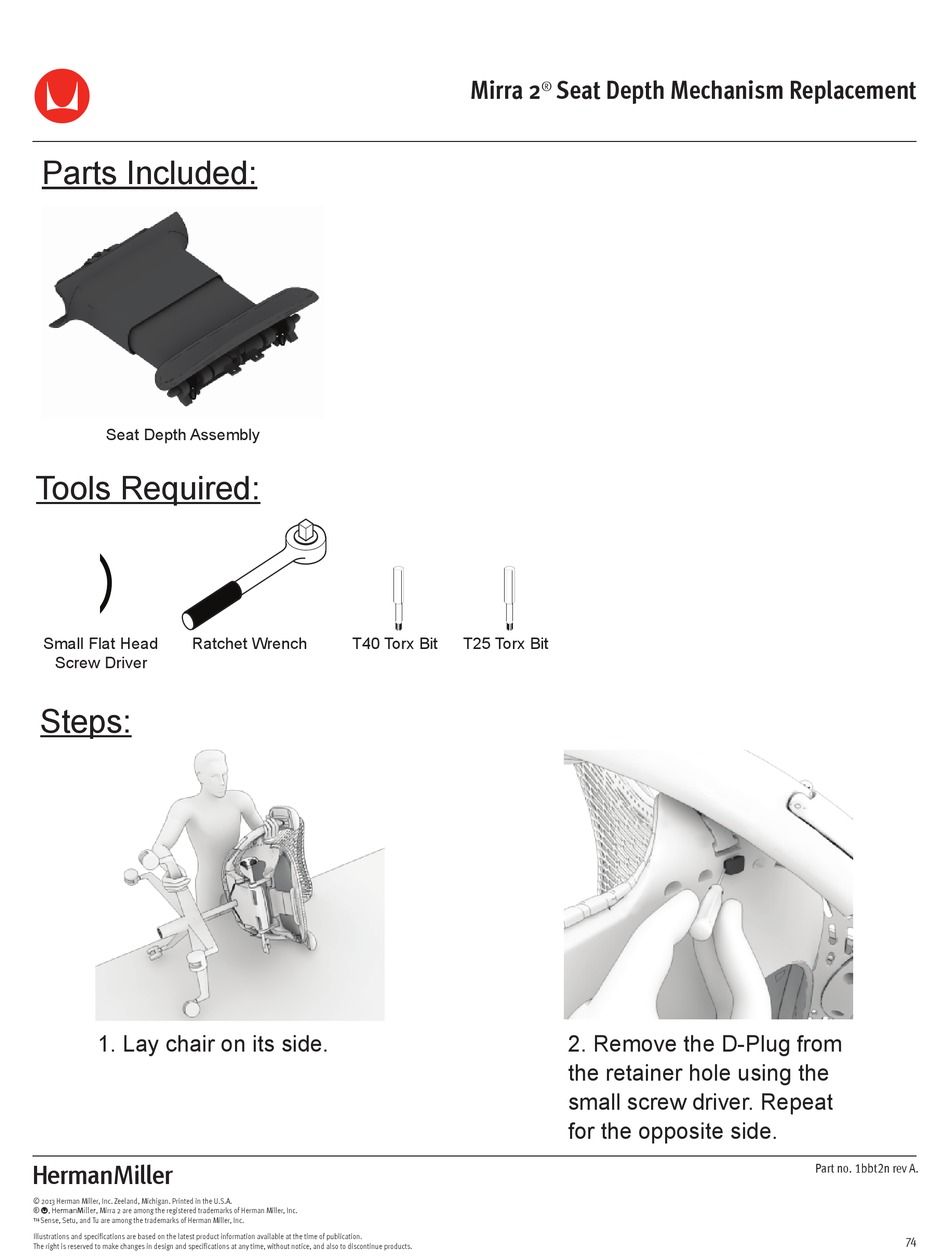

Mirra 2 ® Seat Depth Mechanism Replacement - HermanMiller Mirra 2 Manual

Y
Parts Included:
Seat Depth Assembly
Tools Required:
Small Flat Head Ratchet Wrench
Screw Driver
Steps:
1. Lay chair on its side.
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Mirra 2 are among the registered trademarks of Herman Miller, Inc.
Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Mirra 2
T40 Torx Bit T25 Torx Bit
Seat Depth Mechanism Replacement
®
2. Remove the D-Plug from
the retainer hole using the
small screw driver. Repeat
for the opposite side.
Part no. 1bbt2n rev A.
74
