HermanMiller
™
Mora
System Floating Shelf Installation and
Disassembly for Recycling Instructions

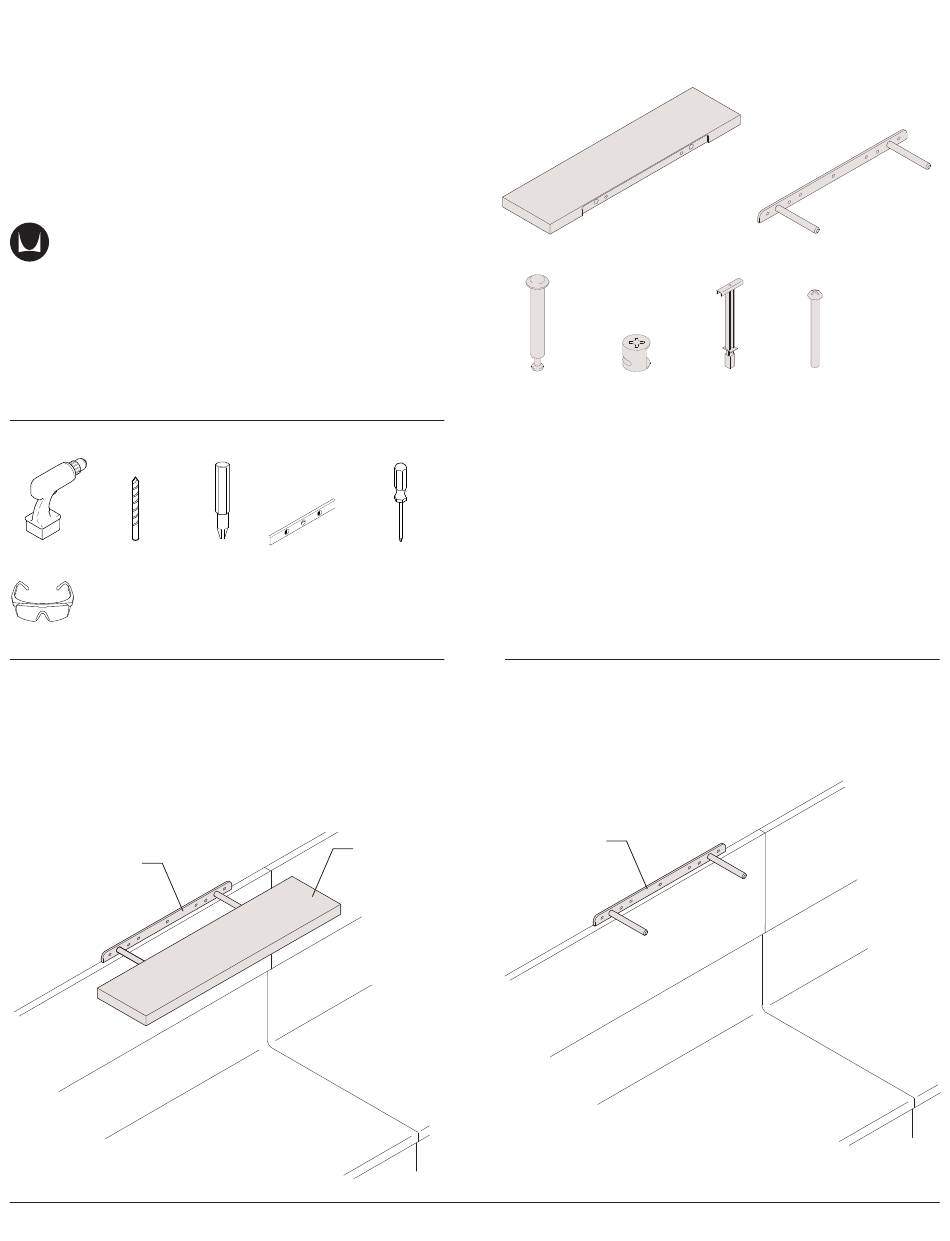

How to assemble your Floating Shelf.
Tools Required
Power Driver
1/2" Drill Bit
Safety Glass
Step 1
1.1 When installing shelf, refer to elevation from designer on location to be
installed.
1.2 Slide shelf part way onto Bayonet Bracket.
1.3 Place shelf in desired position on wall.
1.4 Mark profi le of bracket onto wall. Make sure bracket is level before
marking.
Bayonet Bracket
HermanMiller for Healthcare
Phillips Bit
Level
#2 Phillips Screwdriver
Shelf
Parts Included
Floating Shelf
Minifi x End Bolt
Minifi x Housing
Step 2
2.1 Remove shelf from Bayonet Bracket. Return Bayonet Bracket to position
on wall.
2.2 Using Bayonet Bracket as template, mark holes for toggles.
Bayonet Bracket
1BJ6KT rev A
1
Bayonet Bracket
Toggle
Toggle Screw
Assembly Instructions
Advertisement
Related Manuals for HermanMiller Mora
Summary of Contents for HermanMiller Mora
- Page 1 2.2 Using Bayonet Bracket as template, mark holes for toggles. 1.3 Place shelf in desired position on wall. 1.4 Mark profi le of bracket onto wall. Make sure bracket is level before marking. Bayonet Bracket Shelf Bayonet Bracket 1BJ6KT rev A HermanMiller for Healthcare Assembly Instructions...
- Page 2 Toggle Step 6 Step 5 6.1 Insert Minifi x Housings into bottom of Floating Shelf. 5.1 Secure Bayonet Bracket Assembly to wall with toggle screws. Minifi x Housing Toggle Screw Floating Shelf 1BJ6KT rev A HermanMiller for Healthcare Assembly Instructions...
- Page 3 Ferrous metals can be identifi ed using a small magnet for recycling. Non-ferrous metals should be separated and recycled separately. To disassemble product, reverse the above installation steps. 1BJ6KT rev A HermanMiller for Healthcare Assembly Instructions...
