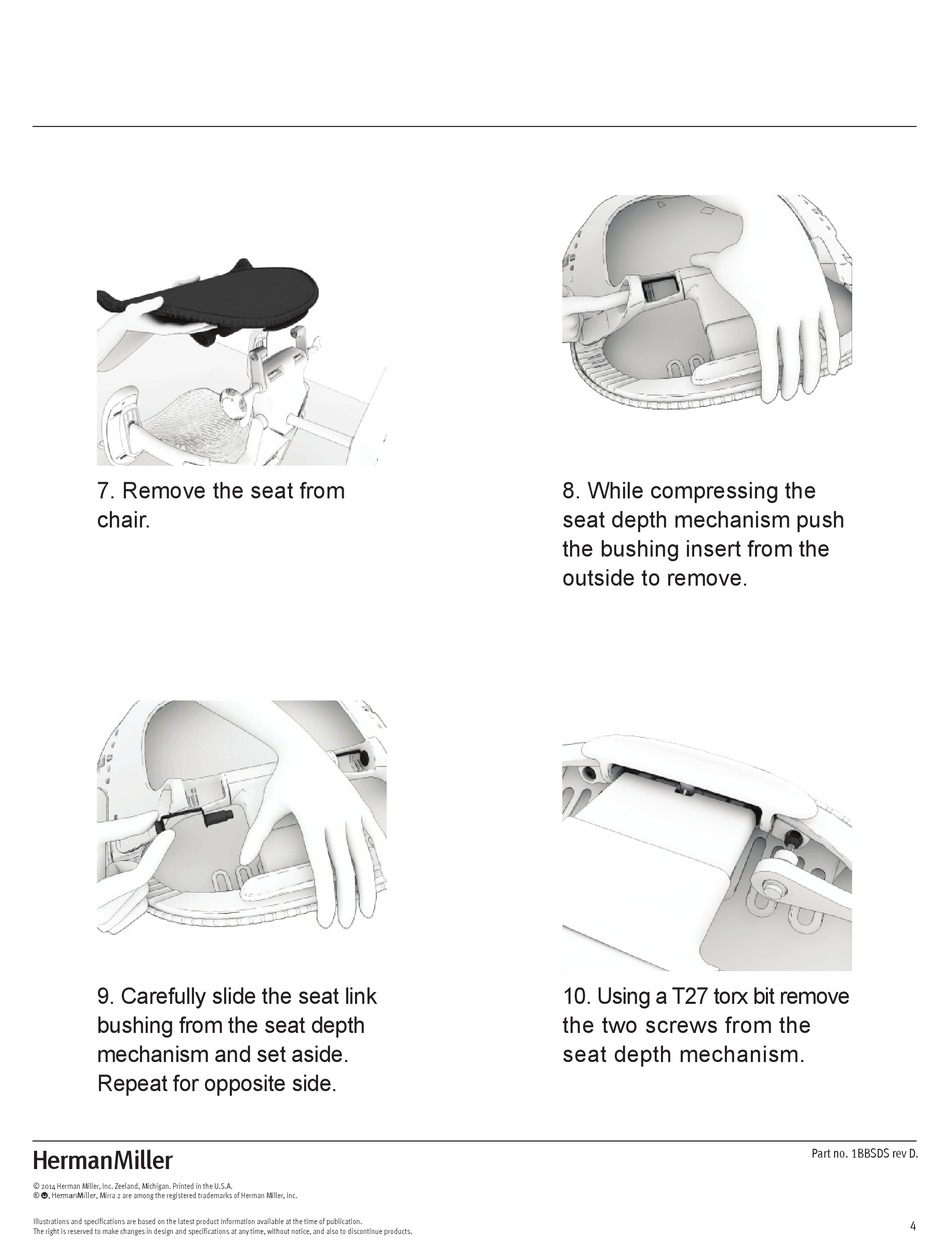

HermanMiller Mirra 2 Manual page 4

7. Remove the seat from
chair.
9. Carefully slide the seat link
bushing from the seat depth
mechanism and set aside.
Repeat for opposite side.
Z
© 2014 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Mirra 2 are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
8. While compressing the
seat depth mechanism push
the bushing insert from the
outside to remove.
10. Using a T27 torx bit remove
the two screws from the
seat depth mechanism.
Part no. 1BBSDS rev D.
4
