HermanMiller
Mora

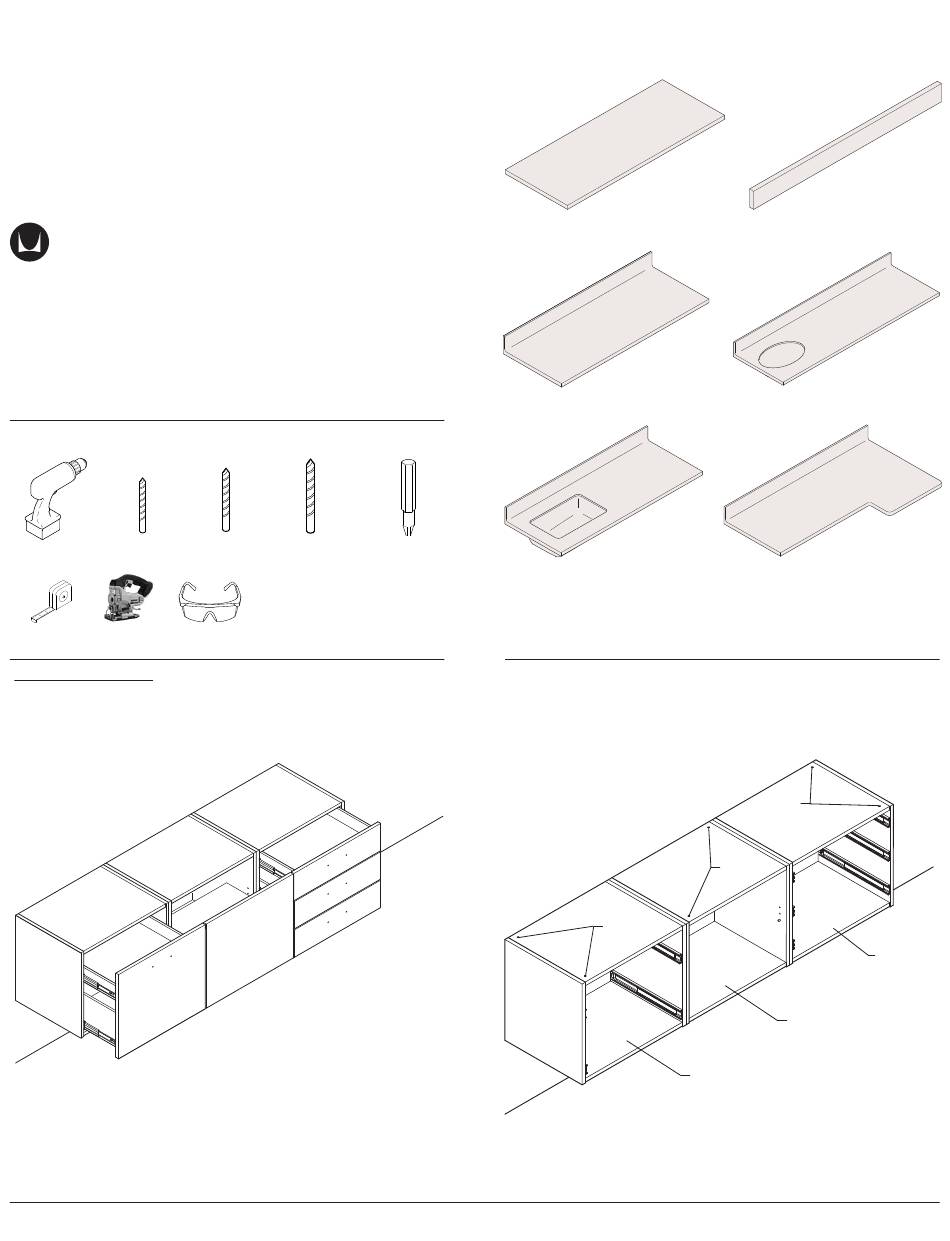

System Worksurface Installation and
™
Disassembly for Recycling Instructions
How to assemble your Worksurface
Tools Required
1/8" Drill Bit
Power Driver
Jig Saw
Safety Glass
Tape Measure
Straight Worksurface:
Step 1
1.1 Remove drawers and doors from cabinets where worksurface is to be
installed.
HermanMiller for Healthcare
1/4" Drill Bit
1/2" Drill Bit
Parts Included
Straight HPL Worksurface
Straight Worksurface
Phillips Bit
Straight Worksurface with Rectangle Sink
Step 2
2.1 Predrill two 1/8" holes through each cabinet top, as shown below.
1
Straight Worksurface with Oval Sink
1/8" Hole
1/8" Hole
1/8" Hole
End Cabinet
1BHWC1 rev C
Straight HPL Backsplash
Work End Worksurface
End Cabinet
Middle Cabinet
Assembly Instructions
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HermanMiller Mora
Summary of Contents for HermanMiller Mora
- Page 1 2.1 Predrill two 1/8” holes through each cabinet top, as shown below. 1.1 Remove drawers and doors from cabinets where worksurface is to be installed. 1/8” Hole 1/8” Hole 1/8” Hole End Cabinet Middle Cabinet End Cabinet 1BHWC1 rev C HermanMiller for Healthcare Assembly Instructions...
- Page 2 5.1 Return worksurface to cabinets. 5.2 Secure surface to cabinets with two #8-15 x 1-1/4’ long screws. 1/4” Hole 1/4” Hole #8-15 x 1-1/4” Screws 1/4” Hole #8-15 x 1-1/4” Screws #8-15 x 1-1/4” Screws 1BHWC1 rev C HermanMiller for Healthcare Assembly Instructions...
- Page 3 1.2 Apply construction adhevive (not provided) along back edge of worksurface and back of backsplash. Clear Sealant 1.3 Press backsplash down onto work surface and back against wall. Backsplash Construction Adhesive Worksurface Back of Backsplash Construction Adhesive 1BHWC1 rev C HermanMiller for Healthcare Assembly Instructions...
- Page 4 Drill 1/2” diameter holes. Toggle bolt 3.3 Install support using screws provided with bracket. Measure then mark template holes Surface Support 1/2” Drill Bit Screw Note: image shown without work surface for clarity. 1BHWC1 rev C HermanMiller for Healthcare Assembly Instructions...
- Page 5 2.1 Measure 2.00” from front and back of of cabinet. Then 2.00” from left and right hand side of cabinet. Connect lines as shown below. 1.1 Remove door to sink cabinet. 2.00” 2.00” 2.00” 2.00” 1BHWC1 rev C HermanMiller for Healthcare Assembly Instructions...
- Page 6 Step 5 Straight Worksurface with Oval Sink: 5.1 Install cabinets as described in product installation instructions. Step 1 5.2 Install worksurface as described above. 1.1 Remove door and shelf from sink cabinet. Worksurface 1BHWC1 rev C HermanMiller for Healthcare Assembly Instructions...
- Page 7 Ferrous metals can be Worksurface identified using a small magnet for recycling. Non-ferrous metals should be separated and recycled separately. To disassemble product, reverse the above installation steps. 1BHWC1 rev C HermanMiller for Healthcare Assembly Instructions...
