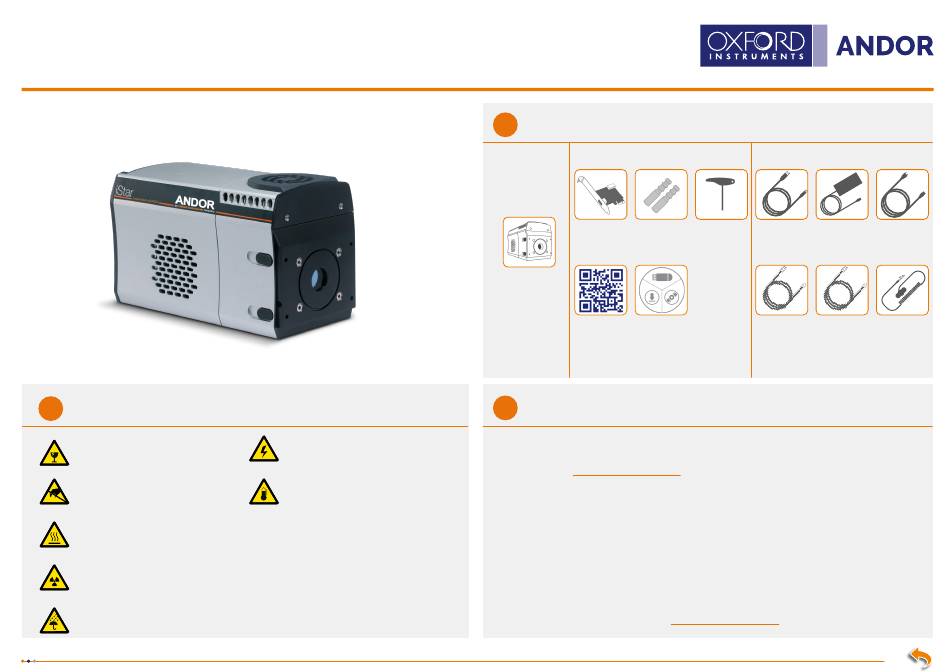

iStar sCMOS Quick Start Guide
1 Prepare your Facility
Handle the camera and accessories with
care.
Observe anti-static precautions when
installing the controller card and camera.
Ensure 100 mm clearance around camera
and power supply vents (Do not block vents
when operating on benchtop).
Operation of the camera close to intense
pulsed sources (e.g. plasma and X-ray
sources) may compromise performance.
Keep dry, <70% humidity non-condensing.
Use correct power supply and cables.
Operating Temperature 0°C to 40°C ambient
Storage Temperature -20°C to 55°C
Refer to the user manual for further information
2

Unpack the Camera

Camera Essentials
USB 3.0 Coolant Pipes
PCIe Card water cooled
models only

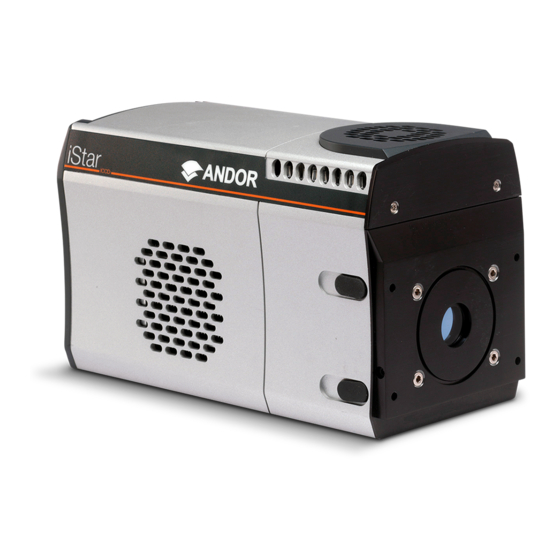

iStar sCMOS
Camera
Documentation Software
scan or visit: (copy supplied)
andor.oxinst.com/
welcome
3

Install Software (Solis or SDK)

You must have administrator access on your PC to perform this installation.
These instructions cover installation of both Andor Solis and Andor SDK if ordered. A copy of the software is provided
within the camera box. Additionally, the latest software files are available to download on request, please sign in or
create an account at andor.oxinst.com/downloads
Windows: Switch on the PC, run the setup exe from the supplied copy or the downloaded file: e.g. AndorSDK3Setup-
<version>.exe
1. Confirm the version of software (minimum is v3.14.x).
2. Follow the on screen prompts.
3. Select the installation directory when prompted.
4. If prompted for camera type select iStar sCMOS.
5. On the final window click on "Install". Continue to follow the on screen prompts.
6. To complete the installation, when prompted select "Yes, restart the computer now" and click on the finish button.
Linux:
For detailed instructions on how to install the SDK3 drivers on Linux please refer to Section 1.5.2 in the Andor
Software Development Kit Manual, available at andor.oxinst.com/downloads.
Cables
Hex Key Set USB 3.0 Cable Power Supply
(7/64, 3/32, Specific Power
3.0 & 2.5 mm)
Gate Monitor SMA- BNC
Cable Cable x2
Country
Cord
Anti-Static
Strap
