Oxford Instruments ANDOR iStarsCMOS Quick Start Manual

iStar Quick Start Guide
sCMOS
1
Preparing your Facility
Handle the camera and accessories with care.
iStar sCMOS weighs approx. 4.5kg [9 lb 15 oz].
Observe anti-static precautions when
installing the controller card and camera.
Ensure 100 mm clearance around camera
and power supply vents (Do not block
vents when operating on benchtop).
Operation of the camera close to intense
pulsed sources (e.g. plasma and X-ray
sources) may compromise performance.
Keep dry, <70% humidity non-condensing.
Use correct power supply and cables.
• Operating Temperature 0°C to 40°C ambient
• Storage Temperature -20°C to 55°C
Refer to the user manual for further information.
2
Unpacking your Camera and Accessories
1

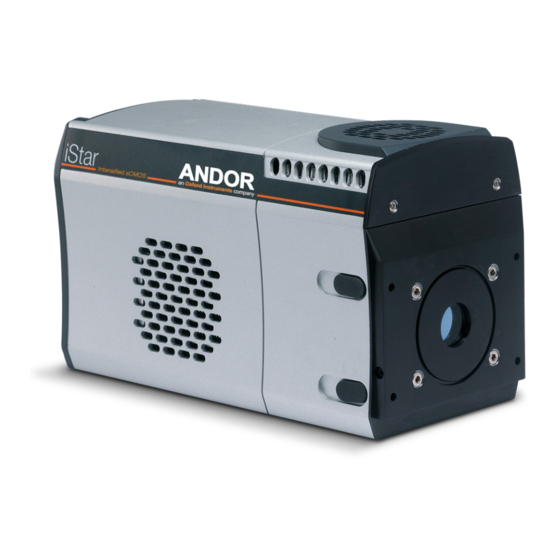

iStar sCMOS
Software or Driver
USB 3.0
Camera
CD and User PCIe Card x1
Manual on CD*
Anti-Static Strap Power Supply
x1
*Note: Software must be specified at time of ordering
3
Installing Software (Solis or SDK)
You must have administrator access on your PC to perform this installation.
The same instructions cover the installation procedure for Andor's Solis, SDK or iQ software, which is used in
conjunction with third party software. If you are planning to run your camera through a third party interface you will
require the Andor Drivers, called SDK3.
Switch on the PC, insert CD and run the Solis (or SDK) setup .exe file on
the CD or download location.
• Confirm the version of software.
• Follow the on screen prompts.
• Select the installation directory when prompted.
• If prompted for camera type select iStar sCMOS
• On the final window click on "Install". During the installation a number of
other windows will appear as various drivers are installed.
• To complete the installation, click the Finish button.
For more information go to: andor.com
2
USB 3.0 Cable
Gate Monitor
x1 (3m) Cable x1
Country SMA- BNC
x1
Specific Power Cable x2 (3m)
Cord x1
Please turn over
Water Connector
Stems x2
Hex Key Set
( 7/64, 3/32,
3.0mm & 2.5mm)
