Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible.
Page 3
● Only forward the HTTP and TCP ports that you need to use. Do not forward a huge range of numbers to the device. Do not DMZ the device's IP address. ● You do not need to forward any ports for individual cameras if they are all connected to a recorder on site;...
Page 4
Ideally, you want to prevent any unauthorized physical access to your system. The best way to achieve this is to install the recorder in a lockbox, locking server rack, or in a room that is behind a lock and key. 15.
Foreword General This Manual introduces the operation of the web interface. Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable CAUTION result.
Page 6
updates might cause some differences between the actual product and the Manual. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, please refer to our final explanation. Upgrade the reader software or try other mainstream reader software if the Manual (in PDF ...
Important Safeguards and Warnings The following description is the correct application method of the device. Please read the manual carefully before use, in order to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement Please don’t place and install the device in an area exposed to direct sunlight or near heat ...
Initialization For first time login or after the VTO being reset, you need to initialize the web interface. The default IP address of the VTO is 192.168.1.110, and make sure the PC is in the same network segment as the VTO. Connect the VTO to power source, and then boot it up.
Login Interface Logging In Before logging in, make sure that the PC is in the same network segment as the VTO. Open internet browser on the PC, then enter the VTO IP address in the address bar, and then press Enter. The login interface is displayed.
Page 12
Reset the password (2/3) Scan the QR code to obtain the security code in your mailbox, and then enter the security code in the input box. If you did not configure Email during initialization, contact the supplier or customer service for help.
Main Interface Log in the web interface of the VTO, and then the main interface is displayed. See Figure 3-1. Main interface For the introduction of the main interface, see Table 3-1. Table 3-1 Main interface introduction Function Description These buttons are displayed all the time Click to change the password and your Email address.
Local Setting This chapter introduces how to configure VTO type, VTO No., video and audio, access password, system time, and security function. General operations: After every configuration, click Confirm to save, and click Refresh to view the latest change. If you click Default, all the configurations in the current page would be restored to the ...
Parameter Description Call Centre Time period in which you are allowed to call the management Time centre. The VTO number can be used to differentiate each VTO, and it is VTO No. normally configured according to unit or building number. You can add VTO devices to the SIP server with their numbers.
Page 16
Video & Audio Configure parameters, and these configurations take effect immediately. See Table 4-2. Table 4-2 Video parameter description Parameter Description Video Format Select the video resolution from 720P, WVGA, and D1. Configure the number of frames in 1 second. You can select from 1 to 25 under PAL, and 1 to 30 under NTSC video Format Rate Main...
Parameter Description Mode Disabled: no back light. Backlight: the camera gets clearer image of the dark areas on the target when shooting against light. Wide dynamic: the system dims bright areas and compensates dark areas to ensure the clarity of all the area.
The Local interface is displayed. See Figure 4-3. Local Configure parameters, and for the detailed description, see Table 4-3. Table 4-3 Local access control parameter description Parameter Description Unlock Responding The time interval to unlock again after the previous unlock, and the Interval unit is second.
System Configure parameters, and for the detailed description, see Table 4-4. Table 4-4 System parameter description Parameter Description You can select from Year-Month-Day, Month-Day-Year, and Date format Day-Month-Year. Configure the time format, and you can select from 12-Hour or Time format 24-Hour.
Security Configure parameters, and for the detailed description, see Table 4-5. Table 4-5 Security parameter description Parameter Description CGI Enable Select the check box to enable, and then you can use CGI command. Select the check box to enable, and then the password resetting is Reset Password available.
Page 21
VTO No. management Click Add. The Add interface is displayed. See Figure 5-2. Add VTO Configure the parameters, and be sure to add the SIP server itself too. See Table 5-1. Table 5-1 Add VTO configuration Parameter Description The VTO number you configured for the target VTO. See the Rec No.
Click Save. 5.1.2 Modifying VTO Information The VTO that is currently at use cannot be modified or deleted. On the VTO No. Management interface (Figure 5-1), click The Modify interface is displayed. See Figure 5-3. Modify VTO You can modify the Rec No., Username, and Password. See Table 5-1 for the details. Click Save.
Page 23
Log in the web interface of the SIP server, and then select Household Setting > Room No. Management. The Room No. Management interface is displayed. See Figure 5-4. Room No. Management You can add single room number or do it in batch. Add single room number ...
Parameter Description Nick Name Room No. The room number you planned. Register Type Select public, and local is reserved for future use. Register Password Keep the default value. Click Save. The added room number is displayed. Click to modify room information, and click to delete a room.
Countdown notice Swipe the card that needs to be authorized on the VTO, and then the Issue Card dialogue box is displayed. See Figure 5-8. Issue card Enter the name you need, then click Save, and then click Confirm Send Card at the countdown notice (Figure 5-7).
VTS management Click Add. The Add interface is displayed. See Figure 5-11. Add VTS Configure the parameters, and for the detailed description, see Table 5-3. Table 5-3 Add VTS configuration Parameter Description VTS No. The VTS number you configured for the target VTS. Register Password Keep default value.
Page 27
IPC setting The total quantity of the device you can add is fixed. and you can click to add the device you need. The Modify interface is displayed. See Figure 5-13. Add IPC Configure the parameters, and for the detailed description, see Table 5-4. Table 5-4 Add IPC configuration Parameter Description...
Parameter Description Protocol Select from Local or Onvif. Select from Main or Extra1, and the main stream has better Stream image quality, but also costs more bandwidth. Channel Define a channel for the device. Device Type Select from IPC, NVR, HCVR, and XVR as needed. Click Save, and then the added device is displayed.
Send Info Enter the target VTO No. or select All device to send the message to all the devices in the network, and then the title and content of your message. The Period of validity is reserved for future use. Click Confirm.
Network Setting This chapter introduces how to configure IP address, FTP, SIP server, DDNS, and UPnP. Basic 6.1.1 TCP/IP You can modify the IP address and port number of the VTO. Select Network Setting > Basic. The TCP/IP information and port information are displayed. See Figure 6-1. TCP/IP and port Enter the network parameters and port number you planed, and then click Save.
Configure parameters. See Table 6-1. Table 6-1 FTP parameter description Parameter Description Enable Select the check box to enable FTP function. Name Enter the name of the FTP server as needed. IP Addr. The IP address of the FTP server. Port It is 21 by default.
If the VTO you are visiting does not work as SIP server, do not select the Enable check box at SIP Server, otherwise the connection will fail. If other VTO works as SIP server Select VTO in the Server Type list, and then configure the parameters. See Table 6-2.
Page 33
White list: only the IP addresses in the list can login the VTO. Black list: all the IP addresses in the list are prohibited from logging in the VTO. Select White List or Black List. If you need to use black list, select Black List, and then click Confirm. ...
Log Management You can view call history, alarm record, unlock record and various system logs. Call You can view the call type, room number, begin time, talk time, and end state. Select Log Management > Call. The Call interface is displayed. See Figure 7-1. Call Click Export Data to export the records to your PC.
Page 35
Click Export Data to export the records to your PC. Log Management 27...
Need help?

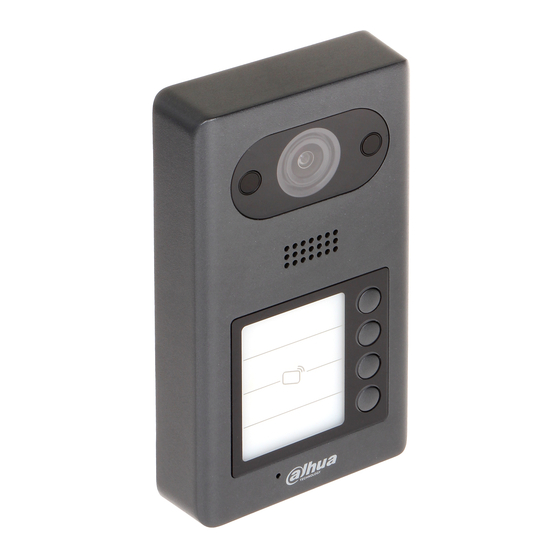

Do you have a question about the DHI-VTO3211D-P4-S1 and is the answer not in the manual?
