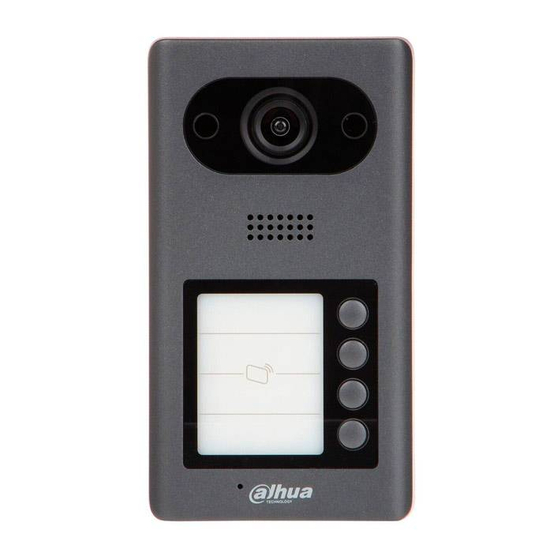

Foreword General This Manual introduces the operation of the villa station (VTO) web interface. Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result.
Important Safeguards and Warnings The following description is the correct application method of the device. Please read the manual carefully before use, in order to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement Do not place and install the device in an area exposed to direct sunlight or near heat ...
Initialization For first time login or after the VTO being reset, you need to initialize the web interface. The default IP address of the VTO is 192.168.1.108, and make sure the PC is in the same network segment as the VTO. Step 1 Connect the VTO to power source, and then boot it up.
Login Interface Login Before login, make sure that the PC and VTO are in the same network segment. Step 1 Enter the VTO IP address in the browser address bar, and then press Enter. Figure 2-1 Login interface Step 2 Enter "admin"...
Page 7
Figure 2-3 Reset the password (2/3) Step 3 Scan the QR code on the web interface to obtain the security code in your mailbox, and then enter the security code in the input box. If you did not configure email during initialization, contact the supplier or customer service for help.
Main Interface Log in to the web interface of the VTO, and then the main interface is displayed. Figure 3-1 Main interface Table 3-1 Main interface introduction Function Description Click to change the password and your email address. General function Click to go to the main interface.
Local Setting This chapter introduces how to configure VTO type, VTO No., video and audio, access password, system time, and security function. General operations: After configuration, click Confirm to save, and click Refresh to view the latest change. If you click Default, all the configurations in the current page would be restored to the default, and you need to click Confirm to save.
Parameter Description Fence station is normally used when other servers work as SIP server. Configure the number of the management centre, and you can call the Centre Call No. management centre on every VTO or VTH in the network. The default number is 888888.
Figure 4-2 Faç ade layout Video & Audio This section introduces how to configure the format and quality of video that captured by VTO, and the audio control settings. Step 1 On the main interface (Figure 3-1), select Local Setting > Video & Audio. Figure 4-3 Video &...
Page 12
Parameter Description standard. The larger the value is, the smoother the video will Configure the data amount that transmitted in 1 second. You Bitrate can select as needed. The larger the value is, the better the video quality will be. Select the video resolution from CIF, WVGA, QVGA, D1, and Video Format 1080P.
Parameter Description the brighter the picture will be, and the smaller the darker. Select On, and then the image is displayed with left and right Mirror side reversed. Flip Select On, and then the image is displayed upside down. Audio Select Enable or Disabled to turn on or off each sound.
Parameter Description until the door sensor contacts each other. If you do not select the Enable check box, the door will be locked after the Unlock Period finishes. First Unlock You can connect a third-party phone such as SIP phone to your Command VTO, and use the command to open the door remotely.
Table 4-4 System parameter description Parameter Description You can select from Year-Month-Day, Month-Day-Year, and Date Format Day-Month-Year. Time Format Configure the time format, and you can select from 12-Hour or 24-Hour. Time Zone Select a time zone as needed. Configure the VTO system date, time and time zone. System Time Do not change the system time arbitrarily;...
Step 2 Configure parameters. Table 4-5 Security parameter description Parameter Description CGI Enable Select the check box to enable, and then you can use CGI command. Mobile Push After you have enabled this, nitifications will be pushed to the app Notification installed on your phone.
Household Setting This chapter is about configurations to the door stations (VTO) that work as SIP servers (see 6.2 SIP Server). You will know how to add, modify, and delete VTO, VTH, VTS, and IPC devices, and how to send messages from the SIP server to other VTO and VTH devices. If you are using other servers as SIP server, see the corresponding manual for the detailed configuration.
Figure 5-2 Add VTO Step 3 Configure the parameters. Table 5-1 Add VTO configuration Parameter Description The VTO number you configured for the target VTO. See the details Rec No. in "Table 4-1." Register Password Keep default value. Build No. Available only when other servers work as SIP server.
Figure 5-3 Modify VTO Step 2 You can modify the Rec No., Username, and Password. Step 3 Click Save. 5.1.3 Deleting VTO The VTO that is in use cannot be modified or deleted. On the VTO No. Management interface (Figure 5-1), click to delete VTO one by one;...
Page 20
Figure 5-4 Room No. Management Step 2 Add room numbers. Click Add. Figure 5-5 Add room numbers Configure room information. Table 5-2 Room information Parameter Description First Name Last Name Enter the information that helps to differentiate each room. Nick Name The room number you planned.
5.2.2 Modifying Room Number Step 1 On the Room No. Management interface (Figure 5-4), click Figure 5-6 Modify room number Step 2 You can modify the names for the room. Step 3 Click Save. 5.2.3 Issuing Access Card You can issue card to a room, and can also set the card as the main card, or set the card to the lost state.
Step 3 Enter a username, click Save, and then click Confirm Send Card at the countdown notice (Figure 5-7). Figure 5-9 Issued access card Step 4 You can modify card information. Click to set it to the main card, and then the icon turns into .
Figure 5-11 Add VTS Step 3 Configure the parameters, and for the detailed description. Table 5-3 Add VTS configuration Parameter Description VTS No. The VTS number you configured for the target VTS. Register Password Keep default value. IP Address The IP address of the target VTS. Step 4 Click Save, and then the added VTS is displayed.
Network Setting This chapter introduces how to configure IP address, SIP server, DDNS, and UPnP. Basic 6.1.1 TCP/IP You can modify the IP address and port number of the VTO. Step 1 Select Network Setting > Basic. Figure 6-1 TCP/IP and port Step 2 Enter the network parameters and port number, and then click Save.
6.1.2.2 Downloading Root Certificate Step 1 Click Download Root Certificate. Step 2 Select a path to save the certificate on the Save File dialog box. Step 3 Double-click Root Certificate that you have downloaded to install the certificate. Install the certificate by following the onscreen instructions. 6.1.3 HTTPS Select the Enable check box at HTTPS Port, and then the VTO will reboot.
Figure 6-3 SIP server Step 2 Select the server type you need. If the VTO you are visiting works as SIP server Select the Enable check box at SIP Server, and then click Save. The VTO will reboot, and after rebooting, you can then add VTO and VTH devices to this VTO.
Log Management You can view call history, alarm records, unlock records and system logs. Call You can view call logs, including call types, room numbers, start time, talk time, and end state. Figure 7-1 Call Click Export Data to export the records to your PC. Alarm You can view and export alarm logs.
Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
Page 31
We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.
Page 32
suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect. Establish the 802.1x access authentication system to reduce the risk of unauthorized access to private networks. It is recommended that you enable your device's firewall or blacklist and whitelist feature to reduce the risk that your device might be attacked.
