  • Page 1 Villa VTO (Version 4.3) Quick Start Guide V1.0.0...
  • Page 2: Cybersecurity Recommendations

    Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible.
  • Page 3 ● Only forward the HTTP and TCP ports that you need to use. Do not forward a huge range of numbers to the device. Do not DMZ the device's IP address. ● You do not need to forward any ports for individual cameras if they are all connected to a recorder on site;...
  • Page 4 Ideally, you want to prevent any unauthorized physical access to your system. The best way to achieve this is to install the recorder in a lockbox, locking server rack, or in a room that is behind a lock and key. 15.
  • Page 5: Regulatory Information

    Regulatory Information The regulatory information herein might vary according to the model you purchased. Some information is only applicable for the country or region where the product is sold. FCC Information Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 6: Foreword

    Foreword General This Guide introduces the structure, mounting process, and basic configuration of the device. Safety Instructions The following categorized signal words with defined meaning might appear in the Guide. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
  • Page 7 All the designs and software are subject to change without prior written notice. The product  updates might cause some differences between the actual product and the Guide. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or ...
  • Page 8: Important Safeguards And Warnings

    Important Safeguards and Warnings The following description is the correct application method of the device. Please read the manual carefully before use, in order to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement Please don’t place and install the device in an area exposed to direct sunlight or near heat ...
  • Page 9: Table Of Contents

    Table of Contents Cybersecurity Recommendations ......................I Regulatory Information ........................... IV Foreword ..............................V Important Safeguards and Warnings ....................VII 1 Network Diagram ........................... 1 2 Appearance ............................2 VTO6210B/VTO6210BW ......................2 2.1.1 Front Panel ......................... 2 2.1.2 Rear Panel .......................... 3 VTO6000CM/VTO6100C ......................
  • Page 10 4.3.7 Adding Room Number ...................... 26 Verifying Configuration ........................ 27 4.4.1 Calling VTH from VTO ...................... 27 4.4.2 Monitoring from VTH......................28 5 Connecting Mobile Phone App ......................30 Table of Contents IX...
  • Page 11: Network Diagram

    Network Diagram 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 1...
  • Page 12: Appearance

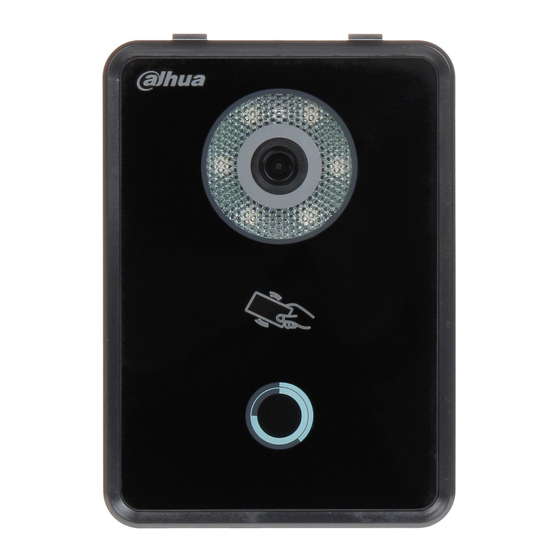

    Appearance VTO6210B/VTO6210BW 2.1.1 Front Panel VTO6210B/VTO6210BW Table 2-1 Front panel description Name Description Fill light Provides extra light for the camera. Camera Monitors door area. Recognizes access card and unlock. Access card reader Make sure that the access module is connected. Call button Press to call VTH or the management center.
  • Page 13: Rear Panel

    2.1.2 Rear Panel VTO6210B/VTO6210BW Table 2-2 Rear panel description Name Description The VTO would make alarm sound if it is being Tamper alarm removed from the wall by force, and the alarm will also be sent to the management center. Ethernet port Connects to the network with Ethernet cable.
  • Page 14: Vto6000Cm/Vto6100C

    Connecting cable (2) VTO6000CM/VTO6100C 2.2.1 Front Panel VTO6000CM VTO6100C Table 2-3 Front panel description 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 4...
  • Page 15: Rear Panel

    Name Description Fill light Provides extra light for the camera. Camera Monitors door area. Access card reader Recognizes access card and unlock. Call button Press to call VTH or the management center. 2.2.2 Rear Panel VTO6000CM/VTO6100C Table 2-4 Rear panel description Name Description Ethernet port...
  • Page 16: Vto2000A/Vto2000A-2

    Connecting cable (2) VTO2000A/VTO2000A-2 2.3.1 Front Panel VTO2000A/VTO2000A-2 Table 2-5 Front panel description Name Description Inputs audio. Camera Monitors door area. Fill light Provides extra light for the camera. Speaker Outputs audio. Tag slot Put on information as needed. Call button Press to call VTH or the management center.
  • Page 17: Rear Panel

    2.3.2 Rear Panel VTO2000A/VTO2000A-2 Table 2-6 Rear panel description Name Description Camera angle Adjusts camera angle. adjusting knob The VTO would make alarm sound if it is being Tamper alarm removed from the wall by force, and the alarm will also be sent to the management center.
  • Page 18: Vto2101E-P

    Connecting cable (2) VTO2101E-P 2.4.1 Front Panel VTO2101E-P Table 2-7 Front panel description Name Description Inputs audio. Camera Monitors door area. 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 8...
  • Page 19: Rear Panel

    Name Description Provides extra IR light for the camera when it IR Fill light is dark. Light sensor Detects ambient lighting condition. Call button Press to call VTH or the management center. Speaker Outputs audio. 2.4.2 Rear Panel VTO2101E-P Table 2-8 Rear panel description Name Description Ethernet port...
  • Page 20: Vto3211D-P

    Name Description +12V 12V DC power port Door sensor feedback RS-485A RS485 communication port RS-485B VTO3211D-P 2.5.1 Front Panel Number of buttons on the front panel varies on different models. VTO3211D-P2 has two buttons; VTO3211D-P4 has four buttons. The following figures use VTO3211D-P4 as example. VTO3211D-P Table 2-10 Front panel description Name...
  • Page 21: Rear Panel

    2.5.2 Rear Panel VTO3211D-P Table 2-11 Rear panel description Name Description Cable ports See Figure 2-19 and Table 2-12. Cable tray You can pull the cable through the cable tray. Connecting cable Table 2-12 Port description Name Description DC 12V 12V DC power port Ground DOOR-NO...
  • Page 22 Name Description DOOR-OPEN Door lock unlock button RS485A RS-485 communication RS485B ALM-IN Alarm input ALM-NO Alarm output RS-485B 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 12...
  • Page 23: Installation

    Installation Installation Requirement 3.1.1 Notice Do not install the VTO to places with condensation, high temperature, grease or dust,  chemical corrosion, direct sunlight, or zero shelter. The installation and adjustment must be finished by professional crew, and do not ...
  • Page 24: Installing Vto

    Installing VTO 3.2.1 VTO6210B/VTO6210BW VTO6210B/VTO6210BW installation Table 3-1 Item list No. Item No. Item Mounting bracket M4 screw ST3.0 screw Fix the mounting bracket on the wall with the M4 screws, and then strengthen it with the ST3.0 screws. Connect the ports on the rear panel to those in the wall through the mounting bracket. See "2.1.2 Rear Panel."...
  • Page 25: Vto2000A/Vto2000A-2

    VTO6000CM/VTO6100C installation Table 3-2 Item list No. Item No. Item No. Item Decorative cap Mounting box Wall M4 screw ST3.0 screw M3 screw – – Dismantle M3 screws at the bottom of VTO and take off the decorative cap. Connect the ports on the rear panel to those in the wall through the mounting box. See "2.2.2 Rear Panel."...
  • Page 26 VTO2000A/VTO2000A-2 wall mounted (1) Fix the VTO on the mounting bracket with M3×6 screws. See Figure 3-5. VTO2000A/VTO2000A-2 wall mounted (2) 3.2.3.2 Installing with Mounting Box Cut an opening with the size of the mounting box on the wall, and then put the mounting box in.
  • Page 27 VTO2000A/VTO2000A-2 with mounting box (1) Connect the ports on the rear panel to those in the wall through the mounting box. See "2.3.2 Rear Panel." Fix the VTO in the mounting box with the M3×8 screws. See Figure 3-7. VTO2000A/VTO2000A-2 with mounting box (2) 错误!使用“开始”选项卡将...
  • Page 28: Vto2101E-P

    3.2.4 VTO2101E-P VTO2101E-P installation Table 3-3 Item list No. Item No. Item No. Item M4×30 screw ST3×18 screw Mounting bracket Expansion bolt – Drill screw holes on the wall according to those on the mounting bracket, and then put the expansion bolts in. Connect the ports on the rear panel to those in the wall through the mounting bracket.
  • Page 29: Vto3211D-P

    3.2.5 VTO3211D-P VTO3211D-P installation Table 3-4 Item list No. Item No. Item No. Item Wall Expansion bolt ST3×20 screw VTO cover M3×6 screw – Drill screw holes on the wall according to those on the VTO, and then put the expansion bolts in.
  • Page 30: Configuration

    Configuration This chapter introduces how to initialize, connect, and make primary configurations to the VTO and VTH devices to realize basic functions, including device management, calling, and monitoring. For more detailed configuration, see the user's Manual. Configuration Process Before configuration, check every device and make sure there is no short circuit or open circuit in the circuits.
  • Page 31: Configuring Vto Number

    Device initialization Enter and confirm the password, and then click Next. The Email setting interface is displayed. Select the Email check box, and then enter your Email address. This Email address can be used to reset the password, and it is recommended to finish this setting. Click Next.
  • Page 32: Configuring Network Parameters

    Main interface Select Local Setting > Basic. The device properties are displayed. See Figure 4-4. Device properties In the VTO No. input box, enter the VTO number you planned for this VTO, and then click Confirm to save. 4.3.3 Configuring Network Parameters Select Network Setting >...
  • Page 33: Configuring Sip Server

    The VTO will reboot, and you need to modify the IP address of your PC to the same network segment as the VTO to log in again. 4.3.4 Configuring SIP Server The SIP server is required in the network to transmit intercom protocol, and then all the VTO and VTH devices connected to the same SIP server can make video call between each other.
  • Page 34: Configuring Call No. And Group Call

    If other servers work as SIP server  Select the server type you need in the Server Type list, and then see the corresponding manual for the detailed configuration. 4.3.5 Configuring Call No. and Group Call You need to configure call No. on every VTO, and then all the VTO will call the defined room when you press the call button.
  • Page 35 which a VTO device works as SIP server, and if you are using other servers as SIP server, see the corresponding manual for the detailed configuration. Log in the web interface of the SIP server, and then select Household Setting > VTO No.
  • Page 36: Adding Room Number

    Parameter Description Register Keep default value. Password Build No. Available only when other servers work as SIP server. Unit No. IP Address The IP address of the target VTO. Username The user name and password for the web interface of the Password target VTO.
  • Page 37: Verifying Configuration

    Add single room number Configure room information. See Table 4-3. Table 4-3 Room information Parameter Description First Name Last Name Enter the information you need to differentiate each room. Nick Name The room number you planned. If you use multiple VTH devices, the room number of the ...
  • Page 38: Monitoring From Vth

    The VTO is calling the defined VTH. See Figure 4-13. Call screen on the VTH to answer the call. 4.4.2 Monitoring from VTH In the main interface of the VTH, select Monitor > Door. The Door interface is displayed. See Figure 4-14. Door Select the VTO you need to do monitor.
  • Page 39 Monitor screen 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 29...
  • Page 40: Connecting Mobile Phone App

    Connecting Mobile Phone App You can download the mobile phone app, and then add your villa VTO to the app. When someone is calling you from the villa VTO, there will be push message on your phone, and you can talk to the visitor or unlock the door remotely on your phone. Scan the following QR code to download and install the app.
  • Page 41 Give a name to your target VTO, and then tap the sign. The mobile phone starts to scan. Log in the web interface of the VTO you need to add, and then select Network. The P2P interface is displayed. See Figure 5-4. For VTO3211D, select Household Setting >...
  • Page 42 Live Tap Alarm Manager > Subscribe, and then subscribe the VTO you need. See Figure 5-6. Subscribe When someone is calling you from the subscribed villa VTO, there will be push message on your phone. See Figure 5-7. 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 32...
  • Page 43 Push 错误!使用“开始”选项卡将 Heading 1 应用于要在此处显示的文字。 33...
