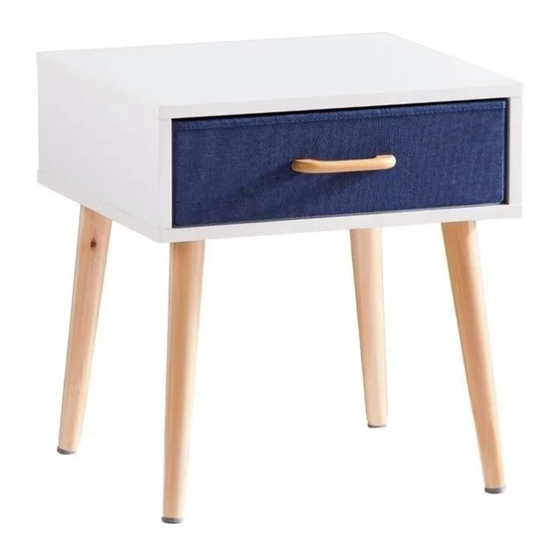

- Page 1 HZ636100TX Maydell Single -Drawer Storage For assistance with assembly, contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com Assembly Instructions www.seidal.com PO:13778 Support loading capacities Top: max 25 lbs...
- Page 2 HZ636100TX Maydell Single-Drawer Storage Parts List Please review all parts and hardware before disposing of any packaging. Before beginning assembly, separate each type of hardware. Carefully study the diagrams below and check that you have all parts indicated. Call Customer Service if missing hardware. Using the incorrect hardware will cause damage.
- Page 3 HZ636100TX Maydell Single-Drawer Storage Step 1 Unit assembly should begin with parts turned upside down for Step Screw Cam Bolts (1) into the threaded holes and insert Wood Dowels (4) into the hollow holes on Top Board (A). Attach Right/Left Side Boards (B/C)
- Page 4 Step 3 Attach Legs (F) onto the bottom board and turn clockwise by hand to tighten. Turn the assembled unit upright. Figure 3 Step 4 Attach Wood Handle (H) onto the drawer and use the supplied screws to secure. Insert the drawer bottom (E) into the drawer.
- Page 5 Step 5 Put the drawer inside the shelf. Now your unit is complete. Figure5 Customer Service 1-800-633-5096 service@seidal.com Southern Enterprises, Inc. 600 Freeport Parkway, Suite 200 Coppell, Texas 75019...
- Page 6 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
