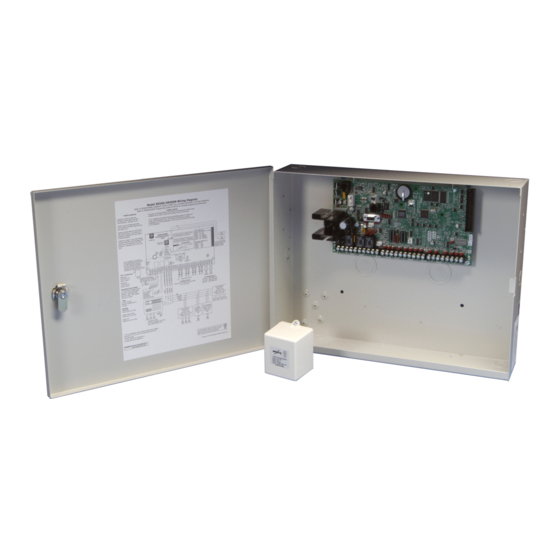

DMP Electronics XR500 Series Manual

Version 108 Software
Effective March 2005, all XR500 Series panels are being manufactured with version 108 (3/1/05)
software. This version is an update from the 106 (1/4/05) software previously shipped and contains
new features.
New Features

Multi-Lingual Option

The XR500 Series panel now provides the option in System Options to view the Programming and User
menus in multiple languages. When more than one language is programmed, the installer or user is
prompted to choose the language to display.
PROG LANGUAGE
PRI LANG: ENGLSH
ENG SPN
SEC LANG: NONE
NONE ENG SPN
USER LANGUAGE
PRI LANG: ENGLSH
ENG SPN
XR500 Series Update
March 2005

Programming Menu Language

Press the COMMAND key to select the programming language(s). Any changes
in PROG LANGUAGE do not take effect until the STOP routine completes.
The current primary programming language is displayed. The default language
is English. Press a Select key to change the primary programming language.
Select the primary programming language.
ENG = English
SPN = Spanish
The current secondary programming language is displayed. Selecting a
secondary language allows the installer to view programming in English or
Spanish. When the Programming Menu is accessed, the installer is prompted to
choose the programming display language. If SEC LANG: is set to NONE, the
option to choose a language does not display. To select a secondary language,
press the Select key below the language. Default is NONE.
Select the secondary programming language.
NONE = No secondary language options are displayed
ENG = English
SPN = Spanish

User Menu and Status List Language

Press the COMMAND key to select User language(s).
The current primary user language is displayed. The default language is
English.
Press a Select key to change the primary User language.
Select the primary user language.
ENG = English
SPN = Spanish
