WIRELESS OPTIONS

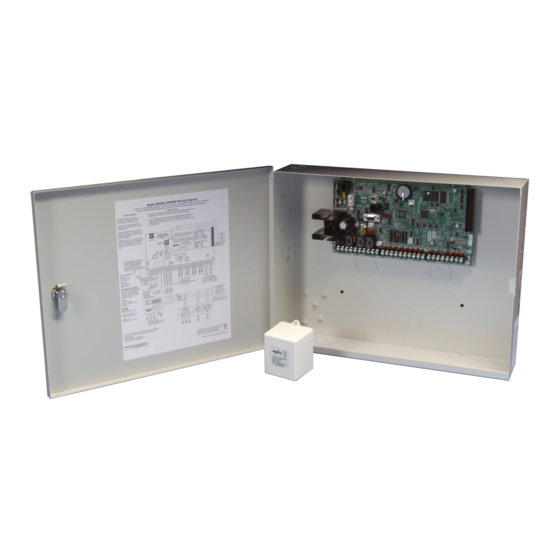

XR500 Series
PROGRAMMING OPTIONS
FOR WIRELESS OPERATION
XR500 SERIES
COMMAND PROCESSOR™ PANELS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics XR500 Series

Summary of Contents for DMP Electronics XR500 Series

  • Page 1 WIRELESS OPTIONS XR500 Series PROGRAMMING OPTIONS FOR WIRELESS OPERATION XR500 SERIES COMMAND PROCESSOR™ PANELS...
  • Page 2 New Wireless Prompt WIRELESS PROMPT Text to describe the prompt. MODEL XR500 SERIES COMMAND PROCESSOR PROGRAMMING GUIDE - SELECTED PAGES © 2003 - 2006 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable.

  • Page 3: System Options

    SYSTEM OPTIONS 8.14 Bypass Limit BYPASS LIMIT Enter the maximum number of zones (0 to 8) that can be bypassed in any single area when that area is being armed at a keypad. If more zones than the limit are in a non-normal state or already bypassed at arming, arming does not occur and Arming Stopped displays.

  • Page 4: Zone Informa Tion

    For a DMP 1100X Wireless Receiver set the House Code from 1 to 50. See House Code programming in System Options. Zones 500 through 999 can be programmed as Wireless zones. Set the XR500 Series panel J23 jumper to X to enable on-board DMP Wireless operation. Briefly reset the panel using the J16 jumper to activate Wireless operation.

  • Page 5: Supervision Time

    ZONE INFORMA TION 16.10.3 Supervision Time TRANSMITTER SUPRVSN TIME: XXX Press any top row key to select the supervision time required for the wireless zone. Press COMMAND to accept the default time. Default is 60 minutes. Press the Select key under the required number of minutes. The transmitter SELECT MINUTES: must check in at least once during this time or a missing condition is indicated for that zone.

  • Page 6: Key Fob Button Selection (Four Buttons)

    ZONE INFORMA TION 16.11.5 Key Fob Button Selection (Four Buttons) BUTTON: This prompt only displays if the key fob being programmed is a four-button TOP BTM LFT RGT model. Press the Select key under the key fob button to program. The following list identifies the default button assignments: TOP Arming with no areas assigned BTM Disarming with no areas assigned...

  • Page 7: Arm/Disarm Area Selection

    User Profile without requiring additional panel programming to select Arm/Disarm Areas. See User Profiles in the Appendix or refer to the XR500 Series User’s Guide (LT-0683). After selecting the area numbers, for one-button key fobs the Zone No.: prompt displays.

  • Page 8: Check-In Time

    Select YES to return to the ZONE NO: - prompt to program a new zone. Select NO to display the Alarm Action option. Note: All wireless programming is stored in the XR500 Series panel. The 1100X Wireless Receiver obtains the necessary programming information from the panel each time the receiver powers up, when the programmer STOP routine is selected or the panel is reset.
  • Page 9 APPENDIX 20.12.2 LX-Bus Zone Type Defaults These are complete spellings of the abbreviations used for the zone types, such as Night and Exit. Type - These are the abbreviations used for the zone types, such as NT and EX. Area - 1 to 32 for NT, DY, EX, A1, A2, and AR. Fire Bell Out - Only available for FI, FV, and SV zones.
  • Page 10 800-641-4282 INT RUSI ON • FIRE • AC C ESS • NETWO RKS www.dmp.com 2500 North Partnership Boulevard Made in the USA Springfield, Missouri 65803-8877...
