INST ALLA TION GUIDE
734W Wiegand Interface Module
Description
The 734W Wiegand Interface Module allows you to add WiFi network access control capability to XR100/XR500 panels using
proximity or mag-stripe card readers. The 734W provides a fast, safe and secure connection to your local WiFi network
for AES encrypted TCP communication with the control panel and allows fast verification of user codes presented at the
reader for door access. The 734W operates at 12/24 Vdc from the power supply supporting the magnetic lock or door-
strike at the door and provides a 10 Amp Form C relay contact for lock control. Four input zones are provided to allow
connection of nearby burglary devices. For local annunciation, a programmable speaker and a variety of switched ground
annunciators are provided to connect to
sounders. In addition, the 734W provides LEDs
to indicate door strike, Wiegand inputs, and
power to the module.
The 734W provides a keypad programming
connection to use a standard DMP LCD keypad
for initial WiFi network setup. Programming
can be completed using the keypad or from the
XR100/XR500 panel.
Mounting the 734W
The 734W ships installed in a decorative, high-
impact plastic housing that mounts directly
to walls, backboards, or other flat surfaces.
For easy installation, the 734W housing back
and ends have wire entrances. The bottom
contains multiple screw holes for mounting on
single-gang switch boxes. It is recommended
to mount the 734W near the protected door.

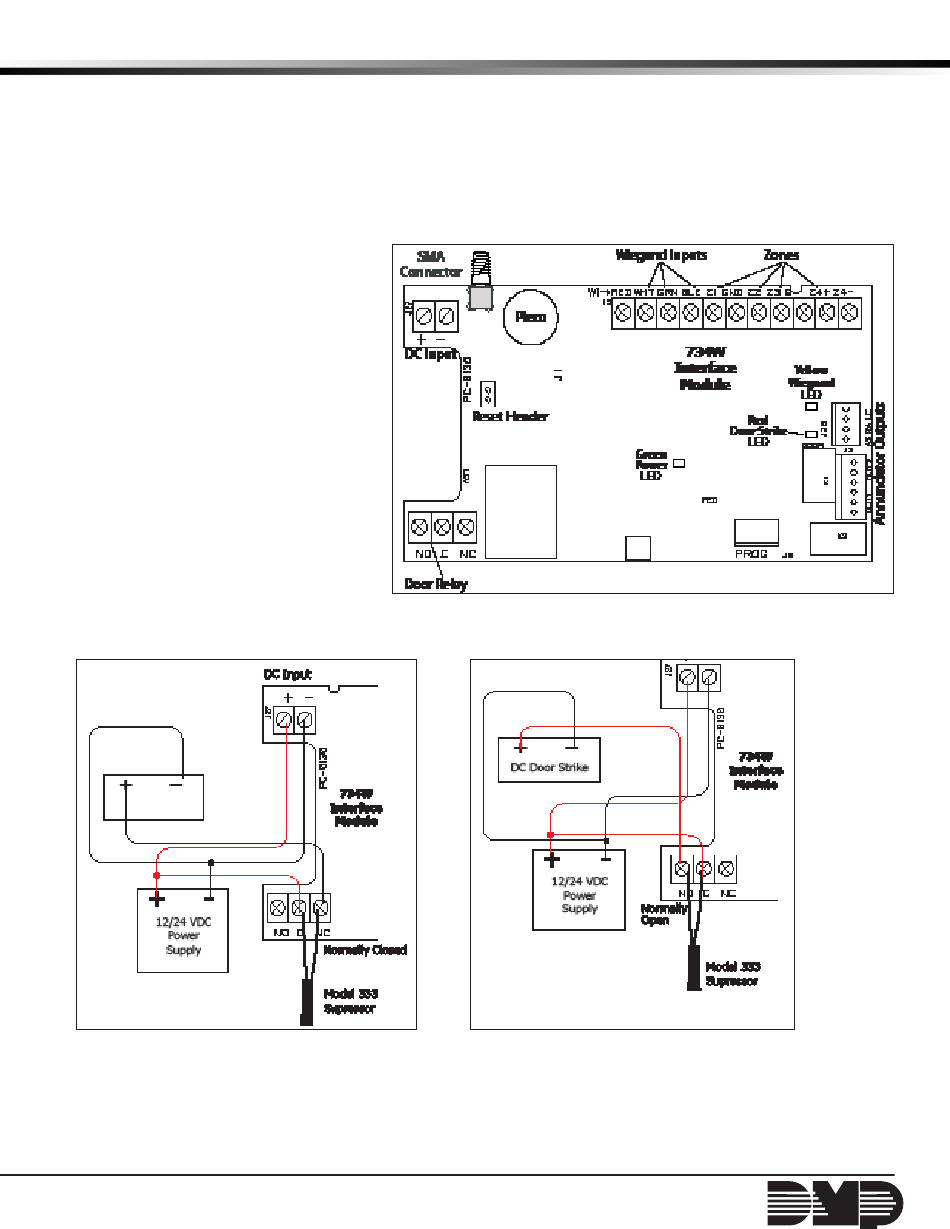

Figure 1: 734W Wiegand Interface Module
Magnetic Lock and Door Strike Wiring
You can control door strikes and magnetic locks by using the Form C relay on the 734W module. Use an additional power
supply to power door strikes and magnetic locks. Refer to Figures 2 and 3 for wiring information.
Figure 3: 734W Door Strike Wiring
Figure 2: 734W Magnetic Lock Wiring
12/24 VDC Power
Power to the 734W module can be provided by a Listed 12 or 24 VDC power source connected to the J27 terminal block.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DMP Electronics XR100

  • Page 1 734W Wiegand Interface Module Description The 734W Wiegand Interface Module allows you to add WiFi network access control capability to XR100/XR500 panels using proximity or mag-stripe card readers. The 734W provides a fast, safe and secure connection to your local WiFi network for AES encrypted TCP communication with the control panel and allows fast verification of user codes presented at the reader for door access.
  • Page 2: Install The 333 Suppressor

    NO/C/NC (Dry Contact Relay) The 734W provides a Form C (SPDT) relay for controlling door strikes or magnetic locks. The three relay terminals marked NO C NC allow you to connect the device wiring to the relay for module control. See Figures 2 and 3 for proper door strike and magnetic lock wiring.
  • Page 3: Zone Terminals

    Zone Terminals Terminals 5-11 on J9 connect grounded zones 1 through 3. These zones have a grounded side and cannot be used for fire-initiating devices. Zones 2 and 3 can also be used for access control with Zone 2 providing a bypass option and Zone 3 providing Request to Exit functionality.
  • Page 4: Zone Status Display

    Version Display 734W When you connect the keypad to the 734W module, the version number and release VER vvv mm/dd/yy date display. • Press keys 1, 2, 3, or 4 then the CMD key to show zone status of that zone. •...
  • Page 5 734W Device Number 734W DEVICE NO: Enter a device number from 2-16 for the 734W. The device number must also be programmed as a device in the panel. Default is 7. 734W 734W DHCP DHCP? Select YES (fourth select key) to use dynamic IP address information for the 734W IP Address, Subnet Mask, and Gateway Address.
  • Page 6 Relock on Zone 2 Change? RELOCK ON ZONE 2 CHANGE? NO Selecting YES turns the relay off when Zone 2 returns to normal during the bypass. Selecting NO leaves the relay on when Zone 2 faults to an open or short condition during bypass. Turning off the relay at Door Closed allows a long strike time to be automatically ended and relocks the door.
  • Page 7: Fcc Information

    Site Code Length SITE CODE LENGTH: Enter the number of Site Code bits used. Press any Select Key to enter a number between 1-16. Default is 8. Press the COMMAND key to save the entry. User Code Position USER CODE POSITION: 9 Define the User Code start bit position.
  • Page 8: Industry Canada Information

    ProxCard II® Card 1346 ProxKey II® Access Device Compatibility 1351 ProxPass® XR100/XR500 Series panels 1386 ISOProx II® Card Listings and Approvals FCC Part 15 ID: CCKPC0110 Industry Canada ID: 5251A-PC0110 8 0 0 - 6 4 1 - 4 2 8 2 I N T R U S I O N •...
