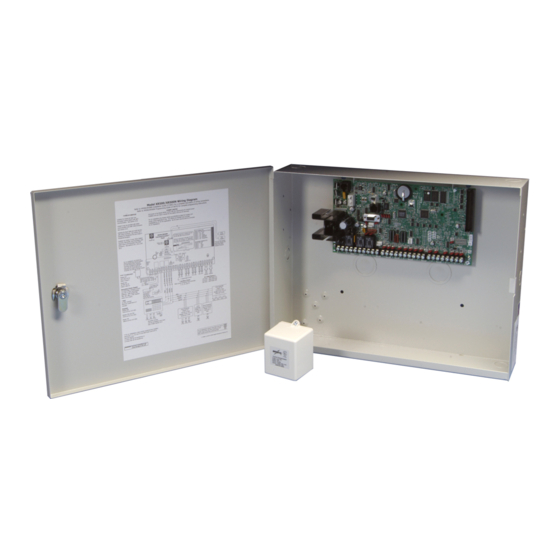

DMP Electronics XR500 SERIES Programming Manual
Xr500 series canadian access control command processor panel
Hide thumbs
Also See for XR500 SERIES:
- User manual (80 pages) ,
- Programming options (11 pages) ,
- Manual (4 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DMP Electronics XR500 SERIES
Summary of Contents for DMP Electronics XR500 SERIES
-
Page 1: Programming Guide

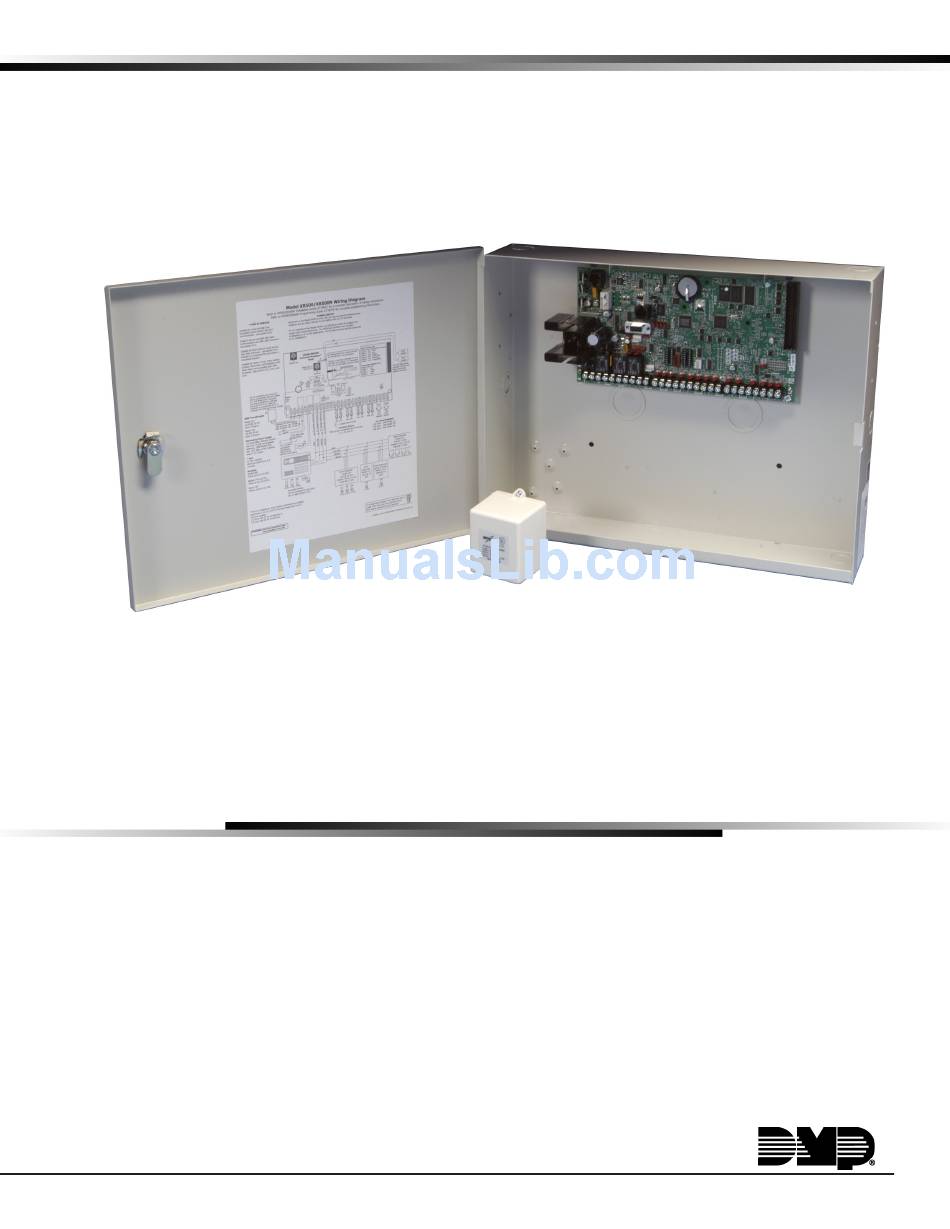

PROGRAMMING GUIDE XR500 SERIES CANADIAN COMMAND PROCESSOR™ PANEL... - Page 2 MODEL XR500 SERIES CANADIAN ACCESS CONTROL COMMAND PROCESSOR™ PANEL PROGRAMMING GUIDE Contains programming Instructions for use with the Model XR500, XR500N, XR500E Canadian Access Control Command Processor™ Panels. When using the XR500 Series Canadian panel for any ULC other listing organization’s approved methods, refer to this manual and the XR500 Series Canadian Installation Guide (LT-0681CAN).
-
Page 3: Table Of Contents
T ABLE OF CONTENTS Before you Begin ..............1 Programming Information Sheet ........... 1 Getting Started ..............1 Encrypted Communications (XR500N/XR500E only) ....2 Programmer Operation ............2 Programmer Lockout Codes ..........2 Reset Timeout ..............2 Power Up ................3 Keypads ................ - Page 4 T ABLE OF CONTENTS Gateway Address ..............13 Subnet Mask ..............13 DNS Server ................13 Passphrase (XR500E only) ...........13 734N Listen Port ..............13 734N Passphrase ..............13 Messaging Setup .............14 Messaging Setup ..............14 Enable Messaging ...............14 System Name ..............14 Destination 1 ..............14 Destination 1 User Number ..........14 Destination 2 ..............14 Destination 2 User Number ..........14 Destination 3 ..............14...
- Page 5 T ABLE OF CONTENTS Armed Answer Rings ............22 Disarmed Answer Rings ............22 PC Modem ................22 Alarm Receiver Authorization ........... 22 Service Receiver Authorization ..........22 Manufacturer Authorization ............23 7.10 Allow Network Remote ............23 7.10.1 Network Programming Port ............23 7.10.2 Encrypt Network Remote ............
- Page 6 T ABLE OF CONTENTS 10.4 Bell Output .................32 10.5 Bell Action ................32 10.5.1 Fire Bell Action ..............32 10.5.2 Burglary Bell Action .............32 10.5.3 Supervisory Bell Action ............32 10.5.4 Panic Bell Action ..............32 10.5.5 Emergency Bell Action ............32 10.5.6 Auxiliary 1 Bell Action ............32 10.5.7 Auxiliary 2 Bell Action ............32 Output Options..............33...
- Page 7 T ABLE OF CONTENTS PC Log Reports ..............42 17.1 PC Log Reports ..............42 17.2 Communication Type ............42 17.3 Net IP Address ..............42 17.4 Net Port ................42 17.5 232 Communication Port .............42 17.6 232 Setup ................42 17.7 Arm and Disarm Reports .............42 17.8 Zone Reports ..............42 17.9...
- Page 8 T ABLE OF CONTENTS 19.11.11 Output Action ..............55 19.11.12 Next Zone ................55 FA Series Wireless ................56 19.12 Wireless ................56 19.12.1 Check-in Time ..............56 19.12.2 Internal Contact ..............56 19.12.3 End-of-Line ................56 19.12.4 Normally Open ..............56 19.12.5 Next Zone ................56 19.13 Alarm Action...............56 19.14 Disarmed Open ..............56 19.15...
- Page 9 This page intentionally left blank. Digital Monitoring Products XR500 Series Canadian Programming Guide...
-
Page 10: Before You Begin
INTRODUCTION Introduction Before you Begin This guide provides programming information for the DMP XR500, XR500N, and XR500E Command Processor™ Panel. After this Introduction, the remaining sections describe the functions of each programming menu item along with the available options. Before starting to program, we recommend that you read through the contents of this guide. -
Page 11: Encrypted Communications (Xr500N/Xr500E Only)
INTRODUCTION Encrypted Communications (XR500N/XR500E only) Some installations require secure data communications. DMP offers NIST approved AES encrypted communication. Use a unique passphrase to enable encrypted communications and provide a secure means for data communications. See Network Options. An XR500E panel communicates using AES encryption. If you currently have an XR500N panel installed, you may purchase a separate feature key to activate encrypted communications using the Feature Upgrade process. -
Page 12: Keypads
INTRODUCTION Keypads DMP offers multiple keypads in a variety of styles. All DMP keypads provide the same programming capabilities. Each keypad and its operation are shown and described in the following sections. 32-Character Display 32-Character Display Power LED SMITH RESIDENCE JONES RESIDENCE 12:51 PM 12:51 PM... -
Page 13: Entering Non-Alpha Characters
INTRODUCTION 1.11 Entering Non-Alpha Characters To enter a space in an alpha entry, press the 9 digit key followed by the third Select key/area. The three characters on the 9 digit key are Y, Z, and space. You can also enter the following characters: – (dash), . (period), * (asterisk), and # (pound sign) using the 0 (zero) key and the four Select keys/areas from left to right. For example, to enter a – (dash), press the 0 (zero) key and then the left Select key/area. A dash now appears in the keypad display. The table below shows the character locations for DMP keypads. Key Number Select Key 1 Select Key 2 Select Key 3 Select Key 4 &... -
Page 14: Asterisks In Programming
INTRODUCTION 1.14 Asterisks in Programming Asterisks display next to a programming option that is already selected. As shown in the example, options that are selected to display the current programming selection have an asterisk next to the number. Those that are not selected simply display the number. In the Devices example, keypads 3, 8, 9, and 15 are not selected. In the Areas example, areas 3, 8, 9, 15, 19, 23, 25, and 31 are not selected. In both examples the numbers with asterisks are selected. -
Page 15: Initialization
INITIALIZA TION Initialization NOTE: WHEN ANY PANEL PROGRAMMING IS CHANGED, THE STOP ROUTINE MUST BE RUN AND ‘SAVING PROGRAM’ MUST DISPLAY ON THE KEYPAD IN ORDER TO SAVE THE PROGRAMMING CHANGES. SEE SECTION 17.1. Initialization INITIALIZATION This function allows you to clear selected parts of the panel program back to the factory defaults in preparation for system programming. -
Page 16: Clear Communication And Remote Options
INITIALIZA TION Clear Communication and Remote Options COM/RMT? NO YES SURE? YES NO NO - Leaves existing communication and remote options intact. YES - Clears communication and remote options programming to factory defaults. 2.10 Set to Factory Defaults DEFAULTS NO YES SURE? YES NO NO - Leaves existing panel programming intact. YES - Sets the remainder of the panel programming back to the factory defaults. -
Page 17: Communication
COMMUNICA TION Communication Communication COMMUNICATION Configure the communication options for the panel. The information you program varies with the Communication Type you select. Account Number ACCOUNT NO: 12345 The Account Number is a 1 to 5 digit number used to identify which panel is sending a message. Enter the account number sent to the SCS-1R Receiver. Messages may be sent to a central station or via PC Log Reports to a PC. The default is 12345. NET, CELL, 232 and DD - The range of valid account numbers for a panel is 1 to 65535. For accounts of four digits or less, do not enter leading zeros. -
Page 18: Path Type
COMMUNICA TION Path Type PATH TYPE: BACKUP The Path Type defines if the path is Primary or Backup. Because Path 1 is Primary, PRIMARY BACKUP this prompt only displays for paths 2-8. Default is Backup. Note: If the Primary Communication Type is CELL, then the backup Communication Type can only be NET or 232. Test Report TEST RPT: YES Test Report determines if test reports are sent on this path. Reports are sent NO YES DEFER according to the programming in Test Frequency and Test Time. -
Page 19: Receiver Port
COMMUNICA TION 3.15 Receiver Port RECEIVER PORT - 2001 Enter the receiver port number. Valid range is 1 to 65,535. Default is 2001. 3.16 First Telephone Number FIRST PHONE NO. This option displays only if the Communication Type is DD or CID. This is the first number the panel dials when sending reports to the receiver. Phone numbers can have two lines of 16 characters each to equal up to 32 characters. Enter P to program a three-second pause in the dialing sequence. The P character counts as part of the 32 allowable characters. Enter R as the first character for rotary (pulse) phone function. The R character counts as part of the 32 allowable characters. -
Page 20: Retry Seconds
COMMUNICA TION 3.22 Retry Seconds RETRY SECONDS: 6 This option displays for NET or 232 Communication Types. Enter the number of seconds (between 6 and 15) the panel should wait before retrying to send a message to the receiver if an acknowledgment was not received. The panel retries as many times as possible for a period of one minute before sending a network trouble message. -
Page 21: Alarm Reports
COMMUNICA TION 3.29 Alarm Reports ALARM This prompt displays when the Path Type is Primary. All backup paths within the group follow the same programming for Alarm Reports. Default is Yes. When YES is selected, the following reports are sent to the receiver for all zone NO YES FIRE types: ... -
Page 22: Network Options (Xr500N/Xr500E Only)
NETWORK OPTIONS Network Options (XR500N/XR500E only) Network Options are provided to define the network configuration for the panel. This information will be used during communication of messages via network or email. Note: IP addresses and port numbers may need to be assigned by the network administrator. When entering an IP, Gateway, or Subnet Mask address be sure to enter all 12 digits and leave out the periods. For example, IP address 192.168.000.250 is entered as 192168000250. NO YES DHCP Mode Enabled DHCP If the panel uses a dynamic IP address select YES. -
Page 23: Messaging Setup
MESSAGING SETUP Messaging Setup Messaging Setup MESSAGING SETUP This section allows you to enter the information needed to receive messages directly from the panel via email and In Touch™ SMS Text using Network or Cellular communication. All of the name and password options below allow up to 32 lowercase characters to be entered. The Destination addresses allow up to 48 characters to be entered. -
Page 24: Destination 3 User Number
MESSAGING SETUP Destination 3 User Number DESTINATION 3 USER NUMBER: If Destination 3 is a cellular number, enter the user’s User Number for arming/disarming authorization. 5.10 Email Communication Type EMAIL COMM TYPE NET CELL Choosing NET sends email messages over the network. Choosing CELL sends email messages via cellular communication. Default is NET. This prompt appears only if any destination above is an e-mail address and the panel is a network panel (has an Ethernet connector). -
Page 25: Device Setup
DEVICE SETUP Device Setup Device Setup DEVICE SETUP This section allows you to define the XR500 Series Canadian panel physical configuration. You can install and address up to sixteen supervised devices on the keypad data bus. Device Number DEVICE NO:- Enter the device number of the keypad you are programming. The valid range is 1-16. If using a wireless keypad, program the device number in the Status List Auxiliary 1 Zones programming option to display wireless keypad troubles. Note: After you program each option for the first keypad, repeat these programming steps for each additional keypad. -
Page 26: Egress Areas
DEVICE SETUP If you do not enter any area numbers, all users with Door Access authority receives a door access without regard to schedules. If the user code is programmed for Anti-Pass YES, then the user is logged into all matching areas. This user is not allowed to access these areas again until they have egressed the area. See Egress Areas. When all areas accessed by a door are armed, the door is locked by the panel. -
Page 27: Strike Time
DEVICE SETUP • Door Schedules changes are allowed for devices that have a matching area(s) as defined in Device Access Areas • Door On/Off Menu operation is allowed for devices that have a matching area(s) as defined in Device Access Areas Note: The previous user actions also require the matching area(s) be programmed in User Profile: Arm/Disarm area(s). Status Display Allowed When an area(s) is chosen, the following displays are allowed: • Armed Status of the selected area(s) • Zone Alarms and troubles for burglary (NT, DY, EX, A1, A2) type zones assigned to the selected area(s) • Late to Close status of the selected area(s) • Zone Status (normal/fault) of zones that are assigned to the selected area(s) Options and Actions Not Affected The following options are not affected by the Display Areas operation. The User Code authority level controls access to these items. -
Page 28: Schedule Override
DEVICE SETUP 6.13 Schedule Override OVERRIDE NO YES Use this option to allow door ON/OFF schedules to be overridden by the armed condition of the system. Selecting YES causes the on time for a door schedule to be ignored when all areas assigned to Access Areas for this device are armed. Should any area become disarmed after the door schedule on time, the device output turns on. -
Page 29: Relock On Zone 2 Change
DEVICE SETUP 6.18.3 Relock on Zone 2 Change? RELOCK ON ZONE 2 NO YES CHANGE? Selecting NO leaves the relay on for the door access time when Zone 2 restores. Selecting YES turns the 734/734N/734N-WiFi relay off and relocks the door when Zone 2 changes state. The default is NO. 6.18.4 Activate Zone 3 Request to Exit ACTIVATE ZONE 3... -
Page 30: Site Code Position
DEVICE SETUP 0 1 1 1 0 1 0 1 1 0 1 1 0 1 0 1 0 0 0 1 1 0 0 1 1 1 First Bit Site Code User Code Last Bit Received Position = 1 Position = 9 Received Position = 0... -
Page 31: No Communication With Panel
REMOTE OPTIONS 6.18.15 No Communication with Panel NO COMM WITH PNL OFF SITE ANY ON This option defines the relay action when communication with the panel has not occurred for five seconds. Press any top row Select key to display relay action options. Press the Back Arrow key to return to the NO OF USER CODE DIGITS:. Choose the action required: Press the first Select key to choose OFF [Default] (Relay Always Off) — The relay does not NO COMM WITH PNL turn on when any Wiegand string is received. Off does not affect any REX operation. Press the second Select key to choose SITE (Accept Site Code) —... -
Page 32: Pc Modem
REMOTE OPTIONS PC Modem PC MODEM NO YES YES allows the panel to answer the telco link and connect with Remote Link through the PC Modem at 2400 baud. NO disables PC Modem communication. Alarm Receiver Authorization NO YES ALR RCVR Select YES to enable remote commands and programming to be accepted from the alarm SCS-1R Receiver. The Remote Key option can also be required. -
Page 33: Encrypt Cellular Remote
REMOTE OPTIONS 7.11.2 Encrypt Cellular Remote ENCRYPT CELL NO YES YES encrypts data sent over a cellular connection. Default is NO. REMOTE? 7.12 Allow RS-232 Remote ALLOW 232 REMOTE? NO YES YES allows remote programming over the on-board RS-232 port. Default is YES. 7.13 Entré Connection ENTRE This option displays only if the panel has network capability. Select NET to allow CONNECTION: NONE a dedicated network connection with Entré. Options are NONE or NET. Default is NONE. -
Page 34: Remote Change Ip
SYSTEM REPORTS 7.14.1 Remote Change IP REMOTE CHANGE IP This option displays when NET is selected for Send Local Changes. Enter the IP address containing up to 12 digits. The Net IP Address must be unique and cannot be duplicated on the network. Enter all 12 digits and leave out the periods. For example, enter IP address 192.168.0.250 as 192168000250. The periods display 000.000.000.000 automatically. -
Page 35: Code Change Reports
SYSTEM REPORTS CODE CHG NO YES Code Change Reports YES allows the panel to send all code additions, changes, and deletions to the receiver. The code change report includes the user name and number added or deleted and the user name and number of the individual making the change. Code changes made through Remote Link™ are not sent to the printer or Display Events. -
Page 36: System Options
SYSTEM OPTIONS System Options System Options SYSTEM OPTIONS This section allows you to select system-wide parameters. System This option allows you to program how the areas operate for arming and disarming. SYSTEM: AREA The options you can choose are listed below: AREA - All 32 areas can be programmed and operated independently. AREA A/P H/A GST ALL/PERIMETER - Area 1 is the Perimeter and Area 2 is the Interior. -
Page 37: Cross Zone Time
SYSTEM OPTIONS Cross Zone Time CRS ZONE TM: Enter the time allowed between zone faults. When zones are cross zoned, the same zone or a second cross zoned zone must fault within this time in order for an alarm report for both zones to be sent to the receiver. If the cross zone time expires without the second zone faulting, only a zone fault from the first zone is reported. -
Page 38: Latch Supervisory Zones
SYSTEM OPTIONS 9.12 Latch Supervisory Zones LATCH SV NO YES Selecting YES latches supervisory zone alarms on the keypad display until the sensor reset operation is performed. Selecting NO automatically clears the alarm from the keypad display when the supervisory zone restores to a normal condition. Default is YES. 9.13 PROG LANGUAGE Programming Menu Language... -
Page 39: Card Plus Pin (Xr500E Only)
SYSTEM OPTIONS 9.16 Card Plus PIN (XR500E only) CARD PLUS PIN: Select YES to require all users to present a proximity credential and enter a PIN NO YES number wherever user code entry is required for system functions accessed from a keypad. -
Page 40: Enhanced Zone Test
SYSTEM OPTIONS 9.22 Enhanced Zone Test ENHANCED ZONE Select YES to allow enhanced zone test operation. The default is NO. TEST: NO YES Enhanced operation allows: • Panic Test and Walk Test functions can be restricted to operate only during an Area 32, Shift 4 schedule if programmed. If no schedule is entered, the walk test always operates. - Page 41 SYSTEM OPTIONS 9.27 Panic Supervision PANIC SUPERVISION: NO YES Select YES to enable a 30 day supervision of the Model 1145-1-B-PSV key fob. Default is NO. This option allows a key fob that is lost or has a dead battery to be identified at the Central Station host automation system as a missing transmitter, without the need to apply a supervision time in zone information programming. SCS-VR Version 1.3.6 or higher is required to receive 1145-1-B-PSV supervision messages through the XR500 panel. The 1145-1-B-PSV key fob supervision message is communicated to SCS-VR using all XR500 communication paths where Panic Test is YES within Advanced Communication programming. A supervision message is automatically sent from the key fob to SVS-VR every four hours, resetting the 30 day countdown timer for that key fob serial number.
-
Page 42: Bell Options
BELL OPTIONS Bell Options 10.1 Bell Options This section allows you to program the panel bell output functions. BELL OPTIONS 10.2 Bell Cutoff Time BELL CUTOFF: Enter the maximum time from 1 to 99 minutes the Bell Output remains on. If the area is disarmed, the cutoff time resets. Enter 0 (zero) to provide continuous bell output. -
Page 43: Output Options
OUTPUT OPTIONS Output Options 11.1 Output Options This section allows you to program panel output options. The panel provides two OUTPUT OPTIONS Form C relays (1 and 2) and four switched ground (open collector) outputs numbered 3 to 6. Expand the system up to 500 additional relay outputs using J22 LX-Bus on the panel, multiple 716 Output Expander Modules, and up to five interface cards. In addition, 45 wireless outputs are available when using the 1100X wireless receiver. Refer to the XR500 Series Canadian Installation Guide (LT-0681) for complete information. Select from the following output numbers: • 1 to 6 • 450 to 474 — Slow response time* wireless outputs (activates within 15 seconds) • 480 to 499 — Fast response time* wireless outputs (activates within 1 second) -
Page 44: Panic Alarm Output
OUTPUT OPTIONS 11.6 Panic Alarm Output Enter the output number to turn on when any Panic type zone is placed in an alarm PANIC ALM OUT: condition. The output is turned off after all Panic zones are restored from an alarm condition and a Sensor Reset is performed. Enter 0 (zero) to disable. -
Page 45: Closing Wait Output
OUTPUT OPTIONS 11.15 Closing Wait Output Enter the output number to turn on for approximately four (4) seconds when Closing CLS WAIT OUT: Wait is programmed as YES and the panel successfully communicates the closing message at arming. If the closing message does not communicate successfully, this output does not turn on. 11.16 Arm-Alarm Output ARM-ALARM OUT: 0 Enter the output number to turn on steady when any area of the system is armed. -
Page 46: Output Information
OUTPUT INFORMA TION Output Information 12.1 Output Information This section allows you to program wireless outputs and name wired outputs. OUTPUT INFO 12.2 Output Number OUTPUT NO. X X X Enter an output number. Entry range is 1 to 6, 450 to 474, 480 to 499, 500 to 999. In order for wireless output troubles to display at a keypad, the keypad address must be specified at the Auxiliary 1 Zones prompt in the Status List programming. -
Page 47: Output Groups
OUTPUT GROUPS Output Groups 13.1 Output Groups OUTPUT GROUPS This function allows you to assign outputs to groups. Output groups can be assigned to other areas of programming such as Output Options or Alarm Action of Zone Information, just like single outputs are assigned. This allows the entire group of outputs to turn on and off as required by the programming option. -
Page 48: Menu Display
MENU DISPLA Y Menu Display 14.1 Menu Display MENU DISPLAY Menu Display allows you to select at which keypad addresses the user can access the following functions. To select a keypad, enter the device number (keypad address) using the digit keys on the keypad. When a keypad is selected, an asterisk appears next to the keypad address. -
Page 49: Status List
ST A TUS LIST Status List 15.1 Status List STATUS LIST This function allows you to select the zone alarms and troubles, and system monitor troubles displayed at the keypads. The Status List function operates automatically when the keypad is not performing any other function. The keypad stays in the Status List until the user arms or disarms or selects a menu option. Status List al t ernates with the Armed Status on keypad addresses selected in the Menu Display - Armed Status section. You can choose to have Sys tem Monitor troubles placed in the list, the differ ent zone types placed in the list, and at which keypad addresses they dis play. -
Page 50: Burglary Zones
ST A TUS LIST 15.5 Burglary Zones BURGLARY ZONES: Specifies the keypad addresses (1 through 16) where all burglary zone alarms and troubles display. Bur glary zones in clude Night, Day, and Exit type zones. Burglary zone troubles remain in the list until the zone restores. All keypads are selected by default. For zone alarms, only the last burglary zone tripped re mains in the list. -
Page 51: Printer Reports
PRINTER REPORTS Printer Reports 16.1 Printer Reports PRINTER REPORTS This section allows you to define the operation of a local printer connected to the panel through the use of a DMP 462P Printer Interface Card. The 462P allows you to connect the DMP SCS-PTR or other compatible 40-character or 80-character serial printer to the panel. Printing the panel event buffer The Display Events option in the User Menu contains a PRINT command that allows the user to send the contents of the panel event buffer to a local printer. The PRINT option is visible whether or not a 462P Printer Interface Card is attached to the panel. -
Page 52: Pc Log Reports
PC LOG REPORTS PC Log Reports 17.1 PC Log Reports PC LOG REPORTS This section allows you to program the types of PC Log Reports the panel sends through the 462N Network Interface Card or through the J21 Serial Connector directly on the XR500 Series Canadian panel. The reports include information such as the type of activity, time and date of the activity, and user name and number. These data reports can be accessed from a PC using the Advanced Reporting Module. -
Page 53: Door Access Reports
PC LOG REPORTS 17.10 Door Access Reports DOOR ACS NO YES Sends door access activity: door number, user number and name, and time and date. 17.11 Supervisory Reports SUPV MSG NO YES Sends system monitor reports, such as AC and battery, and system event reports. Supervisory Reports also sends the following reports: • Abort • Exit Error... -
Page 54: Area Information
AREA INFORMA TION Area Information 18.1 Area Information AREA INFORMATION Allows you to assign functions to the different areas in the system. All non-24-hour zones must be assigned to an active area. See Zone Information. You activate an area by assigning it a name. See Area Name. A name is given to each active area in place of a number to assist the user during arming and disarming. When only areas one to eight are used, the Armed Status display is 1 2 3 4 5 6 7 8. -
Page 55: Closing Check
AREA INFORMA TION 18.5 Closing Check NO YES CLS CHK Select YES to enable the panel to verify that all areas in the system are armed after permanent or extended sched u les ex p ire. If the Clos i ng Check finds any areas disarmed past the sched uled time, the keypads selected to display System Trouble Status displays CLOSING TIME! and emits a steady beep. -
Page 56: Entering Alpha Characters
AREA INFORMA TION 18.10.1 All/Perimeter Programming When All/Perimeter is selected as the system type, program the Interior and PERIM Perimeter areas as needed. 18.10.2 Home/Sleep/Away Programming When Home/Sleep/Away is selected as the system type, program the Interior, BDRM PERIM Bedroom, and Perimeter areas as needed. 18.11 Area Name * UNUSED * The area name can be up to 32 alphanumeric characters. To add an area name to the system, press any Select key and then enter up to 32 characters for the new area name. -
Page 57: Armed Output Number
AREA INFORMA TION 18.16 Armed Output Number ARMED OUTPUT: Enter the output to turn on when this area is armed. If an exit delay is used for this area, the Armed Output turns on at the start of the exit delay. The output is turned off when this area is disarmed. -
Page 58: Zone Information
ZONE INFORMA TION Zone Information 19.1 Zone Information ZONE INFORMATION Zone Information allows you to define the operation of each protection zone used in the system. All protection zones, whether located on a command processor panel, Security Command keypad, or zone expander are programmed the same way. 19.2 Zone Number ZONE NO: - Enter the number of the zone you intend to program. -
Page 59: Zone Type
ZONE INFORMA TION 19.4 Zone Type ZONE TYPE: BLANK The Zone Type defines the panel response to the zone being opened or shorted. This is called the Alarm Action. There are up to 13 possible alarm action responses depending on the zone type and any restrictions it may have. See the Zone Type chart in the Appendix. -
Page 60: Arming Zone Area Assignment
ZONE INFORMA TION When the zone changes from normal to shorted, the programmed areas toggle between the armed or disarmed condition using the Style programming below. When restored to normal, no action occurs. When the zone is opened from a normal (disarmed) state, a trouble is reported. When opened from a shorted (armed) state, an alarm is reported and the zone is disabled until you disarm the area(s) from either a keypad or Remote Link™ computer. To visually indicate the armed state of the area(s), you can assign an Armed Output to individual areas and use remote LEDs at the keyswitch. The LED turns on or off to indicate to the user the armed state of the area(s). In an All/Perimeter or Home/Sleep/Away system, this option specifies the areas to ARM AREAS: PERIM be armed by the Arming Type zone. For All/Perimeter systems, choose PERIM or ALL, for Home/Sleep/Away or Home/Away systems, choose HOME, SLEEP, or AWAY. -
Page 61: Next Zone
ZONE INFORMA TION 19.9 Next Zone NEXT ZN? NO YES Select YES to terminate zone programming. The display returns to Zone Number, allowing you to enter a new zone number. Select NO to make alter ations to the Alarm Action for a zone. Alarm Action is defined beginning with section 16.12. To program zones for wireless operation, select NO at the NEXT ZONE - NO YES option. The WIRELESS NO YES option displays. If the zone you are programming is intended for wireless devices, select YES. -
Page 62: Supervision Time
ZONE INFORMA TION consecutive zone numbers. Default is Contact 1. For example, use serial number 08345678 to program Contact 1 for Zone 561, Contact 2 for Zone 562, Contact 3 for zone 563, and Contact 4 for zone 564. A tamper on the 1114 is transmitted as the zone number assigned to Contact 1. ALREADY IN USE This message displays when the Contact is already programmed for another ZONE NUMBER: XXX zone. -
Page 63: Key Fob User Number
ZONE INFORMA TION 1100 Series Key Fobs For an 1100 Series Key Fob set the House Code from 1 to 50. See House Code programming in System Options. Only zones 400 to 449 can be programmed as 1100 Series Key Fob zones. Refer to the 1100 Series Key Fob Programming Sheet (LT-0706) supplied with the 1100X Wireless Receiver and the 1100 Series Key Fob Install Guide (LT-0703) as needed. -
Page 64: Button Action
ZONE INFORMA TION 19.11.7 Button Action BUTTON ACTION This option specifies the Button Action for an individual key fob button. The yyy: XXXXXXXX default action for the button selected is displayed. Press any Select key to display the Button Action options. To view more options press COMMAND. yyy = the name of the button being programmed (TOP, BTM, LFT, RGT). ARM (Arm) - Arms selected areas and force arms bad zones. BUTTON ACTION ARM DIS TGL STA DIS (Disarm) - Disarms selected areas. -
Page 65: Output Number
ZONE INFORMA TION In an All/Perimeter or Home/Sleep/Away system, this specifies the area to be armed by the Key Fob button being programmed. For All/Perimeter systems, ARM AREAS: PERIM choose PERIM or ALL, for Home/Sleep/Away or Home/Away systems, choose HOME, SLEEP, or AWAY. Note: Areas 3 and higher in an All/Perimeter system, and areas 4 and higher in a Home/Sleep/Away system are not available for use. After selecting the areas, for one-button key fobs the Zone No.: prompt displays. For two-button or four-button key fobs, the Key Fob Button Selection option displays to program additional buttons. 19.11.10 Output Number OUTPUT NO: XXX You can specify a relay output to operate when OUT (Output), PN (Panic), PN2 (Panic 2), EM (Emergency), or EM2 (Emergency 2) is selected for a key fob Button Action and the button is pressed. Valid range is 1 to 6, 500 to 999, D1 to D16, or G1 to G20. For an output turned on by a PN, PN2, EM, or EM2 button action, the output turns off when any area is disarmed. To enter an output number, press a top row Select key followed by the output number. -
Page 66: Fa Series Wireless
ZONE INFORMA TION FA Series Wireless For an FA Series Remote Wireless Receiver set the House Code to 99. See House Code programming in System Options. Only zones 500 to 699 can be programmed as FA Series Wireless zones for maximum of 200 Wireless Zones. For a DMP 1100X Wireless Receiver see section 16.10. 19.12 Wireless ZONE INFORMATION WIRELESS? NO YES Select YES to program a wireless zone connected to an FA Series FA400-DMP Remote Wireless Receiver. -
Page 67: Report To Transmit
ZONE INFORMA TION 19.15 Report to Transmit MSG: TROUBLE Press any Select key to display the following report options: A, T, L, S, C, and - (dash). - ALARM - Select A to send an alarm report to the receiver and activate the bell output according to zone type. The zone name appears in the panel alarmed zones and status lists. -
Page 68: Swinger Bypass
ZONE INFORMA TION FOLLOW - The output is turned on and remains on while the zone is in an off normal, or bad condition. When the zone restores, the output is turned off. Note: For Day Zone types, when an output is turned on, a user code with silence authority can turn the output off. -
Page 69: Cross Zone
ZONE INFORMA TION 19.24 Cross Zone CRS ZONE NO YES Select YES to enable cross zoning for this zone. Cross zoning requires one or more armed zones to fault within a programmed time before an alarm report is sent to the receiver. When the first cross zoned zone trips, the cross zone time specified in System Options begins to count down. When a second cross zoned zone trips or the first zone trips a second time before the end of the count down, the bell action assigned... -
Page 70: Stop
STOP Stop 20.1 Stop STOP Save Programming WHEN ANY PANEL PROGRAMMING IS CHANGED, THE STOP ROUTINE MUST BE RUN AND ‘SAVING PROGRAM’ MUST DISPLAY ON THE KEYPAD IN ORDER TO SAVE THE PROGRAMMING CHANGES. At the STOP prompt, pressing any Select key allows you to exit the Programmer function of the panel. -
Page 71: Feature Upgrade
FEA TURE UPGRADE Feature Upgrade 22.1 Feature Upgrade FEATURE UPGRADE In the Programming Menu, pressing COMMAND at the SET LOCKOUT CODE prompt displays FEATURE UPGRADE. This allows you to enable additional features in the panel. Press any top row Select key to display the first available feature. ENABLED or DISABLED displays indicating whether this feature is currently used in this panel. Press the COMMAND key to display additional feature(s). ENTER KEY To enable a feature, press any top row Select key anywhere in the features list to display the ENTER KEY prompt. Enter the factory-supplied feature key for the specific panel and press the COMMAND key. The feature specific to the key displays as ENABLED. Note: XR500 Series version 106 or higher panels require a six (6) character feature key. Version 105 panels require a 16-character feature key. -
Page 72: Appendix
APPENDIX Appendix 23.1 False Alarm Reduction System Recently Armed report The System Recently Armed report (S78) is sent to the receiver when a burglary zone goes into alarm within two minutes of the system being armed. 23.2 Diagnostics function The XR500 Series Canadian panel contains a Diagnostics function that allows you to test the communication integrity of the LX-Bus™, identify individual zones, and also display the present electrical state of any zone. The Diagnostics function also allows you to test the integrity of the cellular communication, cellular signal, and email communication. - Page 73 APPENDIX Serial Number This number is the network communicator serial number. Reference this number for communicator date- of-manufacture, hardware version, etc. Press any top row Select key to display the Serial Number. Press the COMMAND key to view the next prompt. Current Flash This option displays Flash 1 or Flash 2 indicating which physical flash chip the panel is currently using. Press any top row Select key to display the current flash information. Press the COMMAND key to view the next prompt. Communication Status This option tests the individual components of cellular or network communication. The displayed results are shown below. Cellular Results: Successful Display Failure Display MODEM OPERATING NO MODEM FOUND...
-
Page 74: Using The 984 Command Function
APPENDIX Exiting the Diagnostics program Press the COMMAND key until STOP displays. Press any Select key. The keypad returns to the Status List display. 23.3 Using the 984 Command Function This feature allows you to connect to a service receiver, is used primarily to bring a new account on-line and upload panel programming completed in Remote Link™. Note: When not in the Programming Menu, the function 984 + COMMAND can be entered at the keypad, and a remote options menu appears. This menu contains the following options: NUMBER: The panel allows you to enter into the keypad a phone number you want the panel to dial. Enter any required prefixes and area codes. After completing panel programming in Remote Link, set a trap to seize the panel when it calls. Traps are set by selecting Panel > Trap. Refer to the Remote Link User’s Guide (LT-0565), or the Remote Link Help File. -
Page 75: Using The Walk Test
APPENDIX Note: If the Panic Supervision option is enabled in SYSTEM OPTIONS, the panic button on any programmed key fob can be tested during the Walk Test. When the panic button is pressed a verification message is sent by the receiver. Walk Test WALK TEST To conduct the Walk Test, reset the control panel by momentarily placing a jumper on J16. From the keypad, enter the code 8144. The keypad displays WALK TEST for four seconds. -
Page 76: Trip Counter For Dmp Wireless Check-In Test (Wls)
APPENDIX END - Select END to stop the Walk Test. When the Walk Test ends or a 20-minute time-out expires, a final Sensor Reset occurs. The System Test End message is sent to the receiver along with Verify and Fail messages for each zone under test. Faulted zones then display on the keypad. Trip Counter For DMP Wireless Check-in Test (WLS) CKIN:XXX/ZZZ Displays the number of wireless zones that automatically communicate a supervision check-in message. -
Page 77: Cross Zoning
APPENDIX 23.6 Cross Zoning Report Type Immediately Delayed Caution must be taken when cross zoning devices Alarm to ensure that the Cross Zone Time is long enough Trouble to allow an intruder to trip both devices before it Restore expires. A Cross Zone Time that is too short may Opening allow an intruder to trip the devices and allow Closing... -
Page 78: 23.10 Fa Series Transmitter Information
APPENDIX 23.9 User Profiles Record This User Profiles Record can be used as a tool when programming Devices, Profiles, Areas, and Output Groups. Because these programming options are interrelated, use this sheet to plan the system before you begin the installation and programming process. Profile Arm/Disarm Output Profile Name Areas Access Areas Group 1 2 3 4 A 1 2 3 4 A 1 2 3 4 A 1 2 3 4 A 1 2 3 4 A 1 2 3 4 A 1 2 3 4 A 1 2 3 4 A... -
Page 79: 23.10.1 W Ireless Check-In And Supervision Definitions
APPENDIX 23.10.1 W ireless Check-in and Supervision Definitions FA Series Check-in Time Explained The check-in time programmed for FA Series wireless transmitters is the number of seconds between each message sent from the transmitter to the FA Series receiver for supervision purposes. This time is programmable for each transmitter from 10, 30, or 60 seconds. Selecting 0 (zero) disables check-in. If no messages are received from a transmitter in any four-hour period, a transmitter missing is generated by the FA Series receiver and communicated to the panel. DMP 1100 Series Supervision Time Explained The supervision time programmed for DMP 1100 Series wireless is the number of minutes that must elapse before a transmitter missing message is generated for a transmitter that is not sending its automatically generated supervision message. The supervision time is programmable to 3, 60, 240 minutes. Selecting 0... -
Page 80: 23.12.1 Keypad Bus Zone Type Defaults
APPENDIX 23.12 Zone Type Specifications The XR500 Series Canadian panel contains multiple default zone types for use in configuring the system. These zone types provide the most commonly selected functions for their applications. All zone types can be customized by changing the variable options listed below. The Keypad Bus Zone Information table below reflects the zone types for Keypad Bus Zones. The XR500 Series LX-Bus Zone Information table on the next page reflects the zone types for LX-Bus Zones. Keypad Bus Zone Type Area Fire... - Page 81 APPENDIX 23.12.2 LX-Bus Zone Type Defaults Style These are complete spellings of the abbreviations used for the Number Door zone types, such as Night and Exit. Real-Time Reports Type - These are the abbreviations used for the zone types, Area Follow such as NT and EX. Priority Area - For an Area or Home/Sleep/Away with Guest system Zone Cross this is 1 to 32. For an All/Perimeter or Home/Sleep/Away Response Fast...
-
Page 82: Common Keypad Messages
APPENDIX 23.13 Common Keypad Messages There are several common keypad messages that the keypad displays to inform the technician and end-user. The common messages are described below. Possible solutions are also provided. Message Meaning Possible Solutions Change the user access areas if access to The user has attempted a door access for an INVALID AREA the area is needed. -
Page 83: 23.14 Area Account Number Messages
APPENDIX 23.14 Area Account Number Messages XR500 systems send an area account number instead of the system account number with the following panel messages/events based on the area assigned to the zone that initiated the alarm: • WARNING: Alarm Bell Silenced (S34) • Abort Signal Received (S45) • Cancel Signal Received (S49) • ALERT: System Recently Armed (S78) • ALERT: Exit Error (S80) • ALARM: Verify Signal Received (S96) (not currently sent on area arming systems) The XR500 has always sent the area account number for the following messages: • Zone event messages for all non-24 hour zones assigned to an area • Arming • Disarming... -
Page 84: Revisions To This Document
REVISIONS Revisions to This Document This section explains the changes made to this document during this revision. It lists the version, identifies the change(s) made, the related section number and heading, and a summary of the change. Guide Version Section Number and Heading Quick Explanation of Changes 1.14 3.5 Communication Type Added 463C reference 3.19 First GPRS APN Added 463C reference 23.2 Diagnostics Function Added Activate Cell information 1.13 3.33 Panic Test Moved from System Reports section 9.26 Change Own User Code Added section 9.27 Panic Supervision Added section 1.12... -
Page 85: Listings And Approvals
Listings and Approvals This Class A digital apparatus complies with Canadian ICES-003 NIST Validated XR500E Encrypted Command Processor Panel Certificate #130 ANSI/SIA CP-01-2010 False Alarm Reduction Underwriters Laboratories Canada (ULC) Listed ULC S545 Household Fire ULC Subject-C1023 Household Burglar ULC/ORD-C1076 Proprietary Burglar ULC S304-06 Central Station Burglar 800-641-4282 IN TRU SIO N • F IRE • AC C ESS • NET WOR KS www.dmp.com 2500 North Partnership Boulevard Made in the USA...
