Woodstock M1042 Owner's Manual

Woodstock M1042 Owner's Manual

3-in-1 sheet metal machine

Advertisement

Quick Links

MODEL M1042/M1045
3-IN-1 SHEET METAL
MACHINE

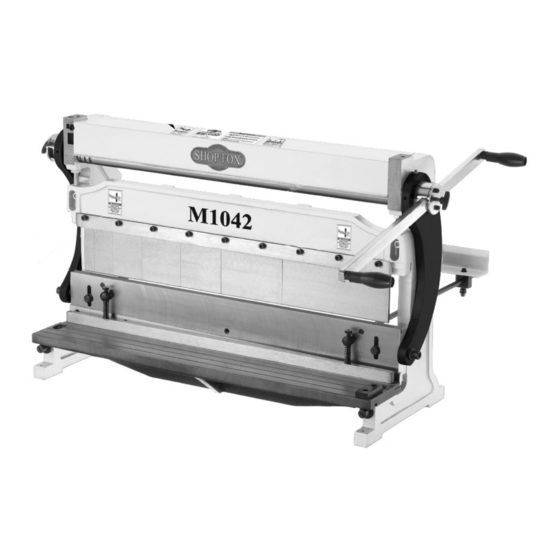

M1042
M1045
OWNER'S MANUAL
Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz
COPYRIGHT © MAY, 2006 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in China
#8141PC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1042 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Woodstock M1042

  • Page 1 OWNER'S MANUAL Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz COPYRIGHT © MAY, 2006 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
  • Page 2 ����������������������������������������������������������������������� �������������������������������������������������������������� ���������������������������������������������������������������������� �������������������������������������������������������������������� ������������������������ ����������������������������������������������������������������������� ������������������������������������������������������������������������ ������������������������������������������������������������������� ����������������������������������������������������������������� ���������������������������������������������������������������������� ����������������������������������������������� ���������������������������������������������������������������� �������������������������������������������������������������������� ������� �������������������������������������������������������������������� ����������������������������������������������������������������������� ���������������������������������������������������������������������� ������������������������������������� �� ���������������������������� �� ������������������������������������������������������������������ �� ���������������������������������������������������� ������������������������������������������������������������������ ������������������������������������������������������������������ �������������������������������������������������������������������� ��������������������������������������������������������������������� ��������������������������...
  • Page 3: Table Of Contents

    Contents INTRODUCTION ....................2 Woodstock Technical Support ................2 M1042 Specifications ..................3 M1045 Specifications ..................3 SAFETY ......................5 Standard Safety Instructions ................5 SET UP ......................8 Unpacking ....................8 Inventory ....................8 Machine Placement ..................9 Mounting to Workbench ................... 9 Cleaning Machine ..................
  • Page 4: Introduction

    Close attention to detail, ruggedly built parts and a rigid quality con- trol program assure safe and reliable operation. Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.
  • Page 5: M1042 Specifications

    M1042/M1045 3-in-1 Sheet Metal Machine Specifications M1042 Specifications Height (With Handle in Center Position) ............30" Footprint ................14 ⁄ " x 32 ⁄ " Crate Size ..............39" L x 18" W x 26" H Box Finger Size ............10", 4"(x2), 3", 2", & 1"...
  • Page 6 M1042/M1045 3-in-1 Sheet Metal Machine Controls and Features Figure 1. The M1042. A. Stop Assembly D. Handle Assembly B. Brake Fingers E. Handle Adjustment Knob C. Slip Roll Cover F. Work Table Figure 2. The M1045. G. Pressure Plate Slip Roll Adjustment Knob H.
  • Page 7: Safety

    M1042/M1045 3-in-1 Sheet Metal Machine SAFETY READ MANUAL BEFORE OPERATING MACHINE. FAILURE TO FOLLOW INSTRUCTIONS BELOW WILL RESULT IN PERSONAL INJURY. Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
  • Page 8 M1042/M1045 3-in-1 Sheet Metal Machine 10. NEVER LEAVE WHEN MACHINE IS RUNNING. Turn power off and allow all moving parts to come to a complete stop before leaving machine unattended. 11. DO NOT USE IN DANGEROUS ENVIRONMENTS. DO NOT use machinery in damp, wet locations, or where any flammable or noxious fumes may exist.
  • Page 9 M1042/M1045 3-in-1 Sheet Metal Machine Additional Safety Instructions for 3-in-1 Sheet Metal Machines READ and understand this USE this and other machinery with caution entire instruction manual and respect. Always consider safety first, before using this machine. as it applies to your individual working Serious personal injury conditions.
  • Page 10: Set Up

    Cap Screw M6-1 x 16 ........4 If any parts are missing, examine the packaging for the missing parts. For any missing parts, find the part num- ber in the back of this manual and contact Woodstock International, Inc. at (360) 734-3482 or at tech- support@shopfox.biz...
  • Page 11: Machine Placement

    M1042/M1045 3-in-1 Sheet Metal Machine Machine Placement NEVER use gasoline or • Workbench Load: During use this machine other petroleum-based distributes a heavy load in a small solvents to clean with. footprint. Make sure the workbench is Most have flash strong enough to support this tool.
  • Page 12: Operations

    M1042/M1045 3-in-1 Sheet Metal Machine OPERATIONS General The Model M1042/M1045 will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous if performed incorrectly. The instructions in this section are written with the under- standing that the operator has the necessary knowledge and skills to operate this machine.
  • Page 13: Shearing

    M1042/M1045 3-in-1 Sheet Metal Machine Shearing The Model M1042/M1045 has the capacity to shear up to 28 gage (0.019") mild steel. Cross beam To use the shearing feature, do these steps: 1. Install the stop assembly in the holes in the cross beam die as shown in Figure 5.
  • Page 14: Shear Adjustments

    M1042/M1045 3-in-1 Sheet Metal Machine Shear Adjustments To obtain optimum results, shear alignment and shear bow are two conditions which may need to be adjusted depending on the gauge and type of material you want to shear. Shears that are out of adjustment may lead to uneven or ragged cuts.
  • Page 15: Shearing Tips

    M1042/M1045 3-in-1 Sheet Metal Machine Shearing Tips NOTICE DO NOT cut wire or cable on this shear. DO NOT exceed the rated capacity for sheet metal. Damage to the blades or other parts will occur! • Keep the blade gap to the smallest distance possible.
  • Page 16: Bending Brake

    M1042/M1045 3-in-1 Sheet Metal Machine Bending Brake The Model M1042/M1045 has adjustable and removable fingers to offer a wide variety of bending brake options. It has the capacity to bend up to 22 gage (0.034") mild steel. To use the brake, do these steps: 1.
  • Page 17: Slip Roll

    M1042/M1045 3-in-1 Sheet Metal Machine Slip Roll The Model M1042/M1045 has the capacity to shear up to 22 gage (0.034") mild steel. To use the slip roll, do these steps: 1. Open the cover to expose the roll cylinders. 2. Lower the rear roll cylinder by simultaneously loos- ening the slip roll adjustment knobs (see Figure 12).
  • Page 18: Maintenance

    MAINTENANCE General SHOP FOX Regular periodic maintenance on your ® Model M1042/M1045 will ensure its optimum perfor- Grease Fitting mance. Make a habit of inspecting your machine each time you use it. Check for the following conditions and repair or replace when necessary: •...
  • Page 19: Service

    This section covers the most common service adjustments or procedures that may need to be made dur- ing the life of your machine. If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-support@shopfox.biz.
  • Page 20: M1042 Parts Diagram

    M1042/M1045 3-in-1 Sheet Metal Machine M1042 Parts Diagram -18-...
  • Page 21: M1042 Parts List

    M1042/M1045 3-in-1 Sheet Metal Machine M1042 Parts List PART # DESCRIPTION PART # DESCRIPTION XM1042001 MODEL NUMBER LABEL XM1042038 UPPER ROLL CYLINDER XM1042002 SHEARED FINGERS LABEL XM1042039 LOWER ROLL CYLINDER XM1042003 READ MANUAL LABEL XM1042040 GEAR XM1042004 SAFETY GLASSES LABEL...
  • Page 22: M1045 Parts Diagram

    M1042/M1045 3-in-1 Sheet Metal Machine M1045 Parts Diagram -20-...
  • Page 23: M1045 Parts List

    M1042/M1045 3-in-1 Sheet Metal Machine M1045 Parts List PART # DESCRIPTION PART # DESCRIPTION XM1045001 MODEL NUMBER LABEL XM1045038 UPPER ROLL CYLINDER XM1045002 SHEARED FINGERS LABEL XM1045039 LOWER ROLL CYLINDER XM1045003 READ MANUAL LABEL XM1045040 GEAR XM1045004 SAFETY GLASSES LABEL...
  • Page 24: Notes

    Notes...
  • Page 25 ® with the provisions of any law or acts. In no event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of our products.
  • Page 27 M1042/M1045 3-in-1 Sheet Metal Machine Warranty Registration Name ___________________________________________________________________________________ Street __________________________________________________________________________________ City _________________________ State ___________________________Zip ________________________ Phone # ______________________ Email __________________________Invoice # ___________________ Model #_________Serial #______________Dealer Name__________________Purchase Date___________ The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services.
  • Page 28 FOLD ALONG DOTTED LINE Place Stamp Here WOODSTOCK INTERNATIONAL INC. P.O. BOX 2309 BELLINGHAM, WA 98227-2309 FOLD ALONG DOTTED LINE TAPE ALONG EDGES--PLEASE DO NOT STAPLE...
