Summary of Contents for Milesight UG65

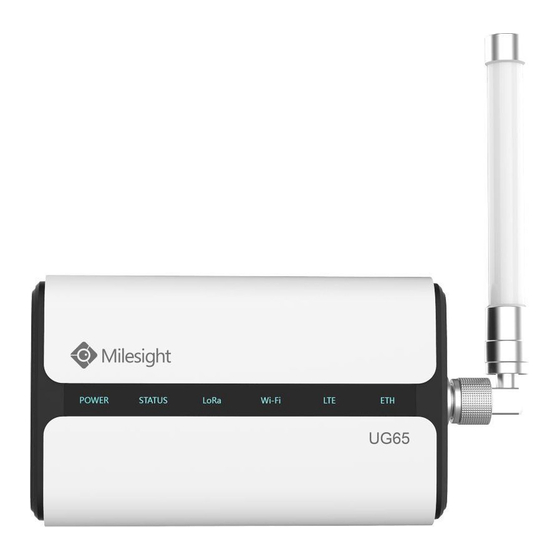

- Page 1 Semi-industrial LoRaWAN Hotspot ® UG65 User Guide Milesight IoT...
- Page 2 Hotspot. The related documents are available on the Milesight website: https://www.milesight-iot.com Declaration of Conformity UG65 conforms with the essential requirements and other relevant provisions of the CE, FCC, and RoHS. For assistance, please contact Milesight technical support: Email: iot.support@milesight.com Tel: 86-592-5085280...
-
Page 3: Table Of Contents
Contents 1. Packing List..............................4 2. Hardware Introduction..........................4 2.1 Overview...............................4 2.2 Dimensions............................5 2.3 LED Indicators............................. 5 2.4 Reset Button............................6 3. Hardware Installation........................... 6 3.1 SIM Card Installation.......................... 6 3.2 Ethernet Cable & Power Cable Installation..................6 3.3 Antenna Installation........................... 7 3.4 Hotspot Installation.......................... -
Page 4: Packing List
1. Packing List Before you begin to install the UG65 LoRaWAN ® hotspot, please check the package contents to verify that you have received the items below. 1 × UG65 1 × Ethernet Cable 1 × DC Jack Power Adapter 1 ×... -
Page 5: Dimensions
B. Rear Panel Bracket Mounting Screws SIM Slot Type-C Port Ethernet Port (PoE) Power Connector Reset Button Waterproof Silicone Cable Groove 2.2 Dimensions (mm) 2.3 LED Indicators Indication Status Description The power is switched off POWER Power Status The power is switched on Blue Light Static: the system is running properly STATUS... -
Page 6: Reset Button
The hotspot resets to factory default. 3. Hardware Installation 3.1 SIM Card Installation A. Use a screwdriver to open the protective cover on the back panel of UG65. B. Insert the SIM card into the device according to the direction icon on the device. Note: If you need to take out the SIM card, press into the SIM card and it will pop up automatically. -
Page 7: Antenna Installation
LoRa antennas. 3.4 Hotspot Installation UG65 can be mounted to a wall or a pole. Before you start, make sure that your SIM card has been inserted, your antennas have been attached and all cables have been installed. -
Page 8: Pole Mounting
E. Screw the bracket fixing screws to the back panel of the device, then hang the device to the mounting bracket on the wall. 3.4.2 Pole Mounting Preparation: mounting bracket, bracket fixing screws, hose clamp and other required tools. A. Loosen the hose clamp by turning the locking mechanism counter-clockwise. B. -
Page 9: Login The Web Gui
4. Login the Web GUI UG65 provides a web-based configuration interface for management. If this is the first time you configure the hotspot, please use the default settings below: ETH IP Address: 192.168.23.150 Wi-Fi IP Address: 192.168.1.1 Wi-Fi SSID: Gateway_******... - Page 10 After the guide completed, you can view system information and perform more advanced settings. Disable WLAN feature or add password after you completed all hotspot settings!
-
Page 11: Wired Access
4.2 Wired Access Connect PC to UG65 ETH port directly. The following steps are based on Windows 10 operating system for your reference. A. Go to “Control Panel” → “Network and Internet” → “Network and Sharing Center”, then click “Ethernet” (May have different names). - Page 12 D. After logging, select the correct antenna type according to your antenna installation and change the default password following the guide. After the guide completed, you can view system information and perform more advanced settings.
-
Page 13: Network Connection
5. Network Connection This section explains how to connect the hotspot to the network via WAN connection, Wi-Fi or cellular. 5.1 Configure the Ethernet Connection A. Go to “Network” → “Interface” → “Port” page to select the connection type and configure Ethernet port information, click “Save &... - Page 14 C. Type the key of Wi-Fi. D. Go to “Status” → ”WLAN” to check Wi-Fi status. If it shows “Connected”, it means that the hotspot has connected to Wi-Fi successfully.
-
Page 15: Configure The Cellular Connection
5.3 Configure the Cellular Connection A. Go to “Network” → “Interface” → “Cellular” → “Cellular Setting” page to enable cellular settings. B. Choose relevant network type and fill in SIM card information like APN or PIN code, click “Save” and “Apply”... -
Page 16: Helium Hotspot Setup
B. Log in the web GUI, click “QR Code for Onboarding” at the top right corner. C. Fill in the wallet address in hotspot web GUI and click “Generate” to generate the QR code. D. Open Helium App, click “+Add Hotspot” and choose “Milesight Hotspot UG65” from the list. - Page 17 E. Scan the QR code on the hotspot login web GUI, then App will get the hotspot information. Click “Next”.
- Page 18 F. Click “Ask for Permissions” to set hotspot location, then click “Set Location”. G. Set hotspot antenna gain and height according to your external antenna type, it’s 1dBi by default. Click “Next” and “Register Hotspot”. This registration requires $10 and it’s already paid by Milesight.
-
Page 19: Antenna And Frequency Configuration
H. It will submit all hotspot information and add it to the Helium network. 7. Antenna and Frequency Configuration A. Go to “Packet Forwarder” → “Radio” page to configure correct antenna type according to your antenna installation mode. B. Center frequency and channels can also be configured here. Usually, the channels should be the same as LoRaWAN nodes and network server. - Page 20 [END]...
