- Page 1 UR35 Quick Start Guide Xiamen Milesight IoT Co., Ltd.
- Page 2 Thank you for choosing Milesight UR35 industrial cellular router. This guide describes how to install the UR35 and how to log in the Web GUI to configure the device. Once you complete the installation, refer to the Milesight UR35 User Guide for instructions on how to perform configurations on the device.
-
Page 3: Packing List
UR35 Quick Start Guide 1. Packing List Before you begin to install the UR35 router, please check the package contents to verify that you have received the items below. 2 × Magnetic Cellular 1 × UR35 1 × Ethernet Cable 1 ×... -
Page 4: Hardware Introduction

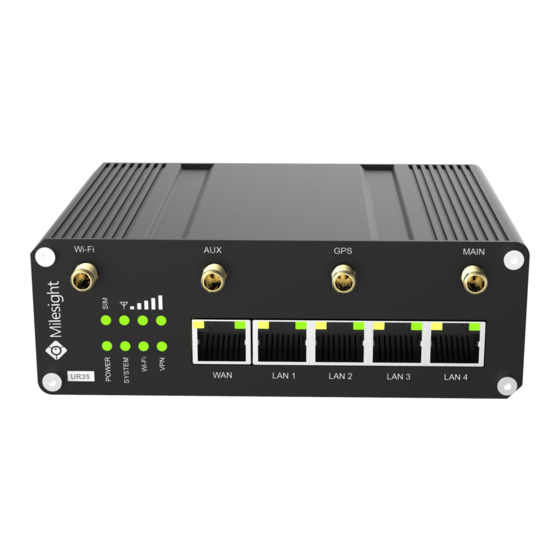

UR35 Quick Start Guide 2. Hardware Introduction 2.1 Overview A. Front Panel Wi-Fi Antenna Connector AUX Antenna Cellular Connector GPS Antenna Connector MAIN Cellular Antenna Connector LED Indicator Area POWER: Power Indicator SYSTEM: Status Indicator Wi-Fi: Wi-Fi Indicator VPN: VPN Indicator... -
Page 5: Led Indicators
UR35 Quick Start Guide 2.3 Connectors RS232 RS485 Description Digital Input Ground Data - Transmit Data Common Ground Digital Output Data + Receive Data Note: For -RS485 model, RXD--->A, TXD--->B. Description Positive Negative 2.4 LED Indicators Indication Status Description The power is switched off... -
Page 6: Reset Button
UR35 Quick Start Guide Static: SIM2 (as primary SIM) has been registered and dialed up successfully No signal Static/Off/Off: weak signals with 1-10 ASU (please check if the antenna is installed correctly, or move the Signal antenna to a suitable location to get better signal) -
Page 7: Antenna Installation
- Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F 3.1 SIM Card/Micro SD Card Installation UR35 do not support hot-plug. Please cut off the power before insert or take off cards. A. Unscrew the cover of the SIM card/Micro SD B. -
Page 8: Protective Grounding Installation
UR35 Quick Start Guide 3.4.1 Wall Mounting (Measured in mm) Use 2 pcs of M3 × 6 flat head Phillips screws to fix the wall mounting kit to the router, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall. - Page 9 4. Log in the Web GUI of Router 4.1 PC Configuration Please connect PC to any port among LAN1-LAN4 of UR35 router. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference.
- Page 10 UR35 Quick Start Guide Method 2: click “Use the ⑤ Double Click “Internet ⑥ Method 1: click “Obtain an IP following IP address” to assign Protocol Version 4 (TCP/IPv4)” address automatically”; a static IP manually within the to configure IP address and same subnet of the router.
- Page 11 UR35 Quick Start Guide If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes. C. When you log in with the default username and password, you will be asked to modify the password.
-
Page 12: Network Configuration
B. Connect WAN port to another router or modem. C. Log in UR35 web GUI via WAN port IP address and go to “Status > Network” to check if status is “up”. D. Go to “Network > Interface > Link Failover” to rise the WAN priority to 1. - Page 13 UR35 Quick Start Guide E. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR35 router. 5.2 Cellular Connection Configuration Take inserting SIM card into SIM1 slot as an example; please refer to the following detailed operations.
- Page 14 On the other hand, you can check the status of SIM indicator. If it keeps on green light statically, it means SIM1 has dialed up successfully. F. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR35 router. [END] www.milesight-iot.com...
