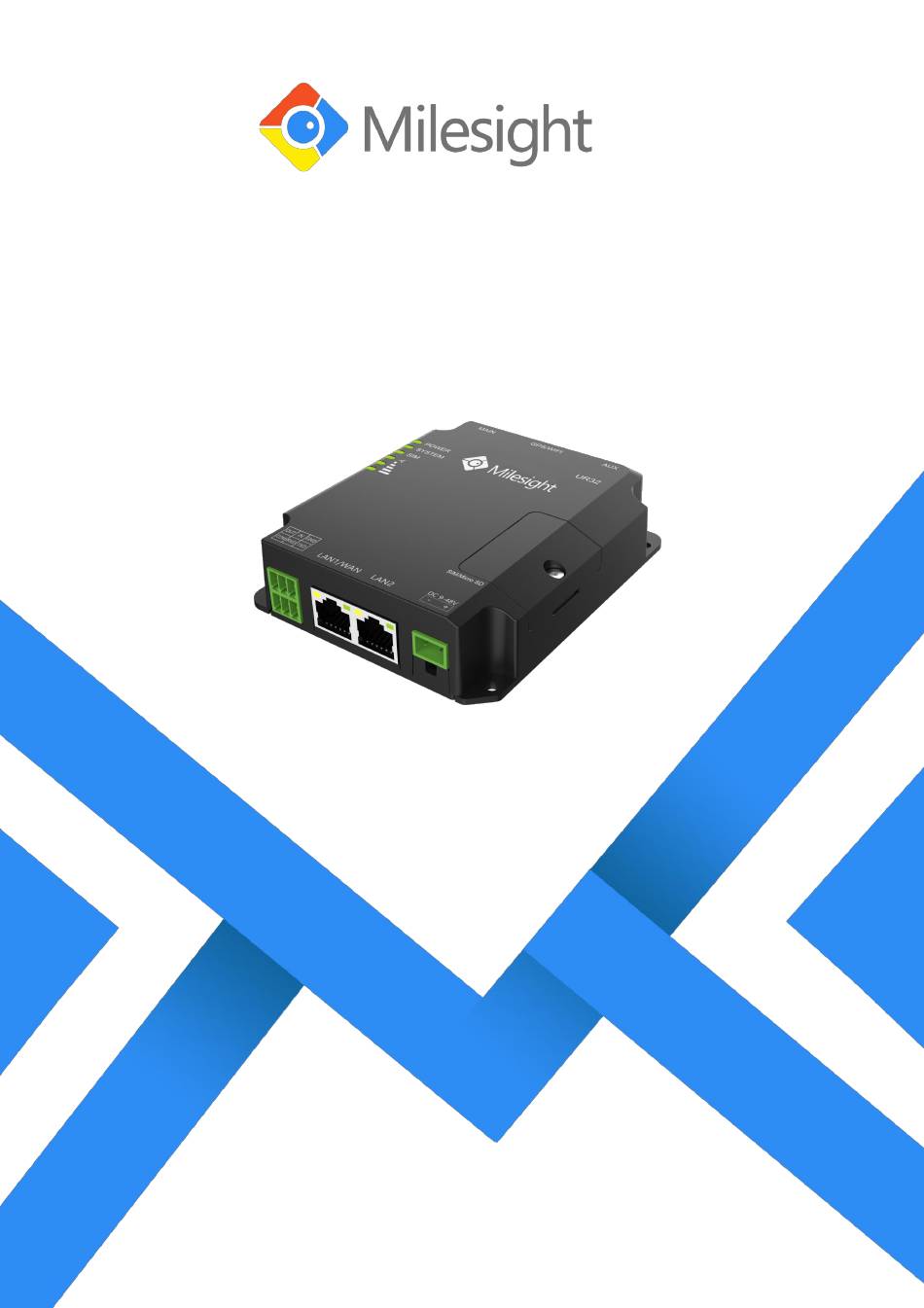

- Page 1 UR32 Quick Start Guide Xiamen Milesight IoT Co., Ltd.
- Page 2 Thank you for choosing Milesight UR32 industrial cellular router. This guide describes how to install the UR32 and how to log in the Web GUI to configure the device. Once you complete the installation, refer to the Milesight UR32 User Guide for instructions on how to perform configurations on the device.
- Page 3 UR32 Quick Start Guide 1. Packing List Before you begin to install the UR32 router, please check the package contents to verify that you have received the items below. 2 × Magnetic Cellular 1 × UR32 1 × Ethernet Cable 1 ×...

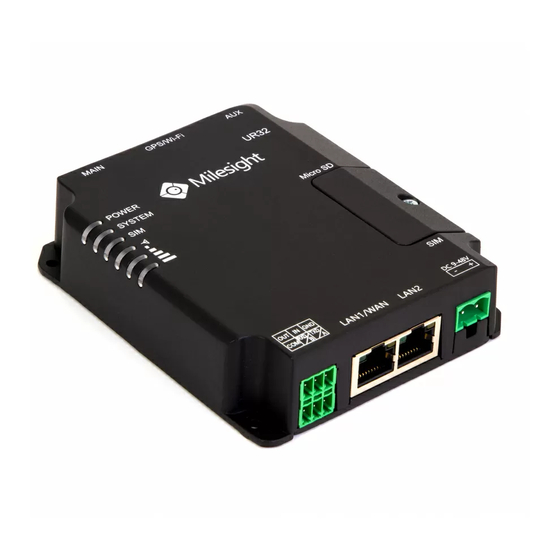

- Page 4 UR32 Quick Start Guide 2. Hardware Introduction 2.1 Overview Main Cellular Antenna Connector GPS/WIFI Antenna Connector AUX Cellular Antenna LED Indicator Area POWER: Power Indicator SYSTEM: Status Indicator SIM : Status Indicator : Signal Strength Indicator Serial Port & I/O...
- Page 5 UR32 Quick Start Guide 2.3 Connectors RS232 RS485* Description Digital Output Digital Input Ground Common Ground Receive Data Transmit Data Description Positive Negative *: Only for -485 model. 2.4 LED Indicators Indication Status Description The power is switched off POWER...
- Page 6 UR32 Quick Start Guide Static/Static/Off: normal signals with 11-20 ASU (average signal strength) Static/Static/Static: strong signals with 21-31 ASU (signal is good) 2.5 Reset Button Reset button is under the SIM slots. Description Function SYSTEM LED Action Blinking Press and hold the reset button for more than 5 seconds.
- Page 7 UR32 Quick Start Guide 3. Hardware Installation Environmental Requirements - Power Input: 9-48 VDC - Power Consumption: Typical 1.9W (Max 2.4 W) - Operating Temperature: -40°C to 70°C (-40°F -158°F) - Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F 3.1 SIM Card/Micro SD Card Installation A.
- Page 8 UR32 Quick Start Guide 3.4.2 DIN Rail Mounting (Measured in mm) Use 2 pcs of M3 × 6 flat head Phillips screws to fix the DIN rail to the router, and then hang the DIN rail on the mounting bracket. It is necessary to choose a standard bracket.
- Page 9 4. Log in the Web GUI of Router 4.1 PC Configuration Please connect PC to LAN port of UR32 router. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference.
- Page 10 UR32 Quick Start Guide Method 2: click “Use the ⑤ Double Click “Internet ⑥ Method 1: click “Obtain an IP following IP address” to assign Protocol Version 4 (TCP/IPv4)” address automatically”; a static IP manually within the to configure IP address and same subnet of the router.
- Page 11 UR32 Quick Start Guide If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes. C. When you log in with the default username and password, you will be asked to modify the password.
- Page 12 Click “Save & Apply” button to make the changes take effect. C. Connect WAN port to another router or modem. D. Log in UR32 web GUI via WAN port IP address and go to “Status > Network” to check if status is “up”. www.milesight-iot.com...
- Page 13 E. Go to “Network > Interface > Link Failover” to rise the WAN priority to 1. F. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR32 router. 5.2 Cellular Connection Configuration Take inserting SIM card into SIM1 slot as an example;...
- Page 14 UR32 Quick Start Guide D. Click to configure ICMP ping detection information. E. Click “Status > Cellular” to view the status of the cellular connection. If it shows “Connected”, it means SIM1 has dialed up successfully. On the other hand, you can check the status of SIM indicator. If it keeps on green light statically, it means SIM1 has dialed up successfully.
- Page 15 UR32 Quick Start Guide F. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR32 router. [END] www.milesight-iot.com...
