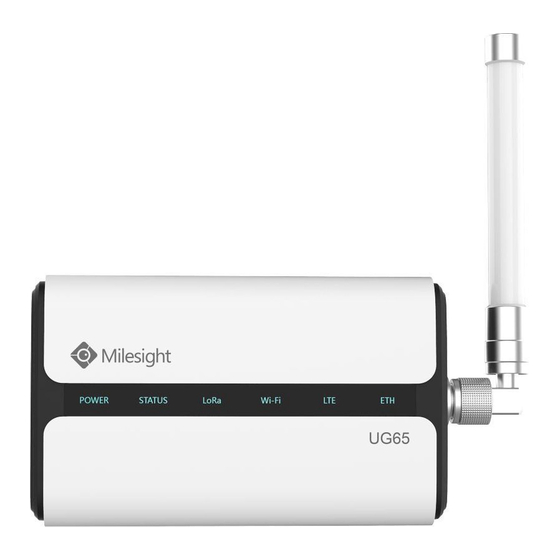

UG65 Gateway
User Guide
X i a m e n M i l e s i g h t I o T Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UG65 and is the answer not in the manual?

Questions and answers

Related Manuals for Milesight UG65

Summary of Contents for Milesight UG65

  • Page 1 UG65 Gateway User Guide X i a m e n M i l e s i g h t I o T Co., Ltd.
  • Page 2 Ethernet and beyond. This guide is applicable for following models: UG65-868M, UG65-868M-EA, UG65-L00E-868M, UG65-L00E-868M-EA, UG65-L04EU-868M, UG65-L04EU-868M-EA, UG65-915M, UG65-915M-EA, UG65-L00AF-915M, UG65-L00AF-915M-EA, UG65-L04AF-915M, UG65-L04AF-915M-EA This guide shows you how to configure and operate the UG65 LoRaWAN gateway. You ® can refer to it for detailed functionality and gateway configuration.
  • Page 3 UG65 User Guide Declaration of Conformity UG65 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS. For assistance, please contact Milesight technical support: Email: iot.support@milesight.com Tel: 86-592-5085280 Fax: 86-592-5023065 Address: 4/F, No.63-2 Wanghai Road,...

  • Page 4: Table Of Contents

    UG65 User Guide Contents Chapter 1 Product Introduction......................7 1.1 Overview..........................7 1.2 Advantages..........................7 1.3 Specifications........................8 1.4 Dimensions (mm).......................10 Chapter 2 Access to Web GUI......................11 2.1 Wireless Access......................... 11 2.2 Wired Access........................12 Chapter 3 Web Configuration......................15 3.1 Status........................... 15 3.1.1 Overview........................15...
  • Page 5 UG65 User Guide 3.3.2.5 MAC Binding....................56 3.3.3 DHCP.........................57 3.3.4 DDNS.........................58 3.3.5 Link Failover......................59 3.3.5.1 SLA........................ 59 3.3.5.2 Track......................60 3.3.5.3 WAN Failover....................61 3.3.6 VPN........................... 62 3.3.6.1 DMVPN......................62 3.3.6.2 IPSec......................63 3.3.6.3 GRE........................ 66 3.3.6.4 L2TP......................67 3.3.6.5 PPTP......................69 3.3.6.6 OpenVPN Client...................71...
  • Page 6 UG65 User Guide 3.5.4 Upgrade........................92 3.5.5 Backup and Restore....................93 3.5.6 Reboot........................93 3.6 APP............................94 3.6.1 Python........................94 3.6.1.1 Python......................95 3.6.1.2 App Manager Configuration..............95 3.6.1.3 Python App....................96 Chapter 4 Application Examples....................97 4.1 Packet Forwarder Configuration..................97 4.2 Application Configuration....................98 4.3 Device Configuration.......................100...

  • Page 7: Chapter 1 Product Introduction

    CPU, UG65 supports connection with more than 2000 nodes. UG65 has line of sight up to 10km and can cover about 2km in urbanized environment, which is ideally suited to smart office, smart building and many other indoor applications.

  • Page 8: Specifications

    UG65 User Guide Easy Maintenance Milesight DeviceHub provides easy setup, mass configuration, and centralized management of remote devices The user-friendly web interface design and various upgrading options help administrator to manage the device as easy as pie WEB GUI and CLI enable the admin to achieve quick configuration and simple...
  • Page 9 UG65 User Guide Interface Auto MDI/MDIX Mode Full or half duplex (auto-sensing) Wi-Fi Interfaces Antenna Fully Integrated and Internal Antenna Standards IEEE 802.11 b/g/n Frequency Band 2412-2472MHz/2422-2462MHz(TX/RX for CE) 2412-2462MHz/2422-2452MHz(TX/RX for FCC) 12.16dBm(for CE) Tx Power 17.80dBm(802.11b),16.69dBm(802.11g) 16.81dBm(802.11n-HT20),16.90dBm(802.11n-HT40)(for FCC) Cellular Interfaces (Optional)

  • Page 10: Dimensions (Mm)

    UG65 User Guide Software PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, Network Protocols HTTPS, DNS, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2 Firewall ACL/DMZ/Port Mapping/MAC Binding Management Web, CLI, SMS, On-demand dial up Power Supply and Consumption 1.

  • Page 11: Chapter 2 Access To Web Gui

    UG65 User Guide Chapter 2 Access to Web GUI This chapter explains how to access to Web GUI of the UG65. 2.1 Wireless Access 1. Enable Wireless Network Connection on your computer and search for access point “Gateway_******” to connect it.

  • Page 12: Wired Access

    UG65 User Guide 2.2 Wired Access Connect PC to UG65 ETH port directly or through PoE injector to access the web GUI of gateway. The following steps are based on Windows 10 system for your reference. 1. Go to “Control Panel” → “Network and Internet” → “Network and Sharing Center”, then click “Ethernet”...
  • Page 13 UG65 User Guide 3. Open a Web browser on your PC (Chrome is recommended) and type in the IP address 192.168.23.150 to access the web GUI. 4. Enter the username and password, click “Login”. If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes.
  • Page 14 UG65 User Guide 6. After guide complete, you can view system information and perform configuration of the gateway. www.milesight-iot.com...

  • Page 15: Chapter 3 Web Configuration

    UG65 User Guide Chapter 3 Web Configuration 3.1 Status 3.1.1 Overview You can view the system information of the gateway on this page. Figure 3-1-1-1 System Information Item Description Model Show the model name of gateway. Region Show the LoRaWAN frequency region of gateway.
  • Page 16 UG65 User Guide Figure 3-1-2-1 Packet Forwarder Status Item Description Basic Version Show the version of packet forwarder software. Status Show the status of packet forwarder. Gateway ID Show the ID of the gateway. Show the LoRa region code which is based on the Region Code gateway’s variant.

  • Page 17: Cellular

    UG65 User Guide NO_CRC: Percentage of abnormal packets without CRC Packets Forwarded Packets that CRC verified are sent from gateway to server. Push Data Datagrams The total quantity of packets sent from gateway to server, Sent including the RF packets forwarded and statistics packets.

  • Page 18: Network

    UG65 User Guide Modem Information Item Description Status Show corresponding detection status of module and SIM card. Model Show the model name of cellular module. Version Show the version of cellular module. Signal Level Show the cellular signal level. Register Status Show the registration status of SIM card.

  • Page 19: Wlan

    UG65 User Guide Figure 3-1-4-1 Network Item Description Port Show the name of the Ethernet port. Show the status of the Ethernet port. "Up" refers to a status that WAN Status is enabled and Ethernet cable is connected. "Down" means Ethernet cable is disconnected or WAN function is disabled.

  • Page 20: Vpn

    UG65 User Guide WLAN Status Item Description Wireless Status Show the wireless status. MAC Address Show the MAC address. Interface Type Show the interface type, such as "AP" or “Client". SSID Show the SSID. Channel Show the wireless channel. Encryption Type Show the encryption type.

  • Page 21: Host List

    UG65 User Guide Figure 3-1-6-1 Figure 3-1-6-2 Figure 3-1-6-3 VPN Status Item Description Name Show the name of the VPN tunnel. Status Show the status of the VPN tunnel. Local IP Show the local tunnel IP of VPN tunnel. Remote IP Show the remote tunnel IP of VPN tunnel.

  • Page 22: Lorawan

    UG65 User Guide Figure 3-1-7-1 Host List Item Description DHCP Leases IP Address Show IP address of DHCP client MAC Address Show MAC address of DHCP client Lease Time Remaining Show the remaining lease time of DHCP client. MAC Binding Show the IP address and MAC address set in the Static IP IP &...

  • Page 23: Packet Forwarder

    UG65 User Guide 3.2.1 Packet Forwarder 3.2.1.1 General Figure 3-2-1-1 General Settings Item Description Default Generated from MAC address of the Gateway EUI Show the identifier of the gateway. gateway and cannot be changed. Fill in the corresponding ID which you’ve used...

  • Page 24: Radios

    UG65 User Guide 3.2.1.2 Radios Figure 3-2-1-2 Figure 3-2-1-3 Radios-Radio Channel Setting Item Description Default Antenna Select the transmission type of antennas. Internal Antenna Type Choose the LoRaWAN ® frequency plan used for the upstream and downlink frequencies and datarates.
  • Page 25 UG65 User Guide Figure 3-2-1-4 Radios-Multi Channel Setting Item Description Default Click to enable this channel to transmit Enable Enabled packets. Index Indicate the ordinal of the list. Choose Radio 0 or Radio 1 as center Radio Radio 0 frequency.

  • Page 26: Advanced

    UG65 User Guide Figure 3-2-1-6 Radios-FSK Channel Setting Item Description Default Click to enable this channel to transmit Enable Disabled packets. Choose Radio 0 or Radio 1 as center Radio Radio 0 frequency. Based on the Enter the frequency of this channel.

  • Page 27: Custom

    UG65 User Guide Range: 1-3600. Enter the interval to update the network server with Stat Interval gateway statistics. Range: 1-3600. Enter the timeout to wait for the response from Push Timeout server after the gateway sends data of node. Rang: 1-1999.

  • Page 28: Traffic

    UG65 User Guide 3.2.1.5 Traffic When navigating to the traffic page, any recent traffic received by the gateway will display. To watch live traffic, click Start. Figure 3-2-1-9 Item Description Refresh Click to obtain the latest data. Clear Click to clear all data.

  • Page 29: Network Server

    Item Description Default General Setting Enable Click to enable Network Server mode. Enabled Milesight IoT Enabled to connect gateway to Milesight IoT Disabled Cloud Cloud. NetID Enter the network identifier. 010203 Enter the interval time between when the end-device sends a Join_request_message to...
  • Page 30 UG65 User Guide exceeds the lease time. Log level Choose the log level. Info Channel Plan Setting Choose LoRaWAN ® channel plan used for the upstream and downlink frequencies and Depend on the Channel Plan datarates. Available channel plans depend on gateway’s model...

  • Page 31: Application

    UG65 User Guide The range is based on what is specified in LoRaWAN ® regional parameters document. Table 3-2-2-2 Additional Plan Parameters 3.2.2.2 Application An application is a collection of devices with the same purpose/of the same type. All devices with the same “Payload Codec” and data transmission destination can be added under the same application.
  • Page 32 UG65 User Guide Figure 3-2-2-4 Figure 3-2-2-5 www.milesight-iot.com...
  • Page 33 UG65 User Guide MQTT Settings Item Description Default General Broker MQTT broker address to receive data. Address Broker Port MQTT broker port to receive data. Client ID is the unique identity of the client to the server. Client ID It must be unique when all clients are connected to the same server, and it is the key to handle message at QoS 1 and 2.

  • Page 34: Profiles

    UG65 User Guide Figure 3-2-2-6 HTTP/HTTPS Settings Item Description HTTP Header Header Name A core set of fields in HTTP header. Header Value Value of the HTTP header. Data Type Data type sent to HTTP/HTTPS server. Topic Topic name of the data type using for publish.
  • Page 35 UG65 User Guide Figure 3-2-2-7 Figure 3-2-2-8 Device Profiles Settings Item Description Default Enter the name of the device profile. Name Null E.g. Smoker-sensor-app. Enter the maximum transmit power. The TXPower indicates power levels relative to the Max EIRP level of the end-device.
  • Page 36 UG65 User Guide be activated by personalization. Activation by personalization directly ties an end-device to a specific network bypassing the join request - join accept procedure. Select from: “Class A” and “Class C”. Class A: Class A operation has the lowest...

  • Page 37: Device

    UG65 User Guide specified in the LoRaWAN ® regional parameters document. Enter the RX2 channel frequency which used for RX2 Channel the RX2 receive-window. The range is based on Frequency what is specified in the LoRaWAN regional ® parameters document.
  • Page 38 UG65 User Guide Figure 3-2-2-11 Device Configuration Item Description Default Device Name Enter the name of this device. Null Description Enter the description of this device. Null Device EUI Enter the EUI of this device. Null Device-Profile Choose the device profile.
  • Page 39 UG65 User Guide Note: this value must be the same as the Milesight LoRaWAN ® controller’s Fport. Enter the TCP port for data transmission between the TCP Port TCP Client and UG65 (as TCP Server). Null Range: 1-65535. If disable the frame-counter validation, it will...

  • Page 40: Packets

    UG65 User Guide 3.2.2.5 Packets Figure 3-2-2-12 Send Data To Device Item Description Default Enter the EUI of the device to receive Device EUI Null the payload. Choose from: “ASCII”, “hex”, “base64”. Type ASCII Choose the payload type to enter in the payload Input box.
  • Page 41 UG65 User Guide JnAcc - Join Accept Packet JnReq - Join Request Packet UpUnc - Uplink Unconfirmed Packet UpCnf - Uplink Confirmed Packet - ACK response from network requested DnUnc - Downlink Unconfirmed Packet DnCnf - Downlink Confirmed Packet- ACK response from...
  • Page 42 UG65 User Guide Show the type of the packet: JnAcc - Join Accept Packet JnReq - Join Request Packet UpUnc - Uplink Unconfirmed Packet Type UpCnf - Uplink Confirmed Packet - ACK response from network requested DnUnc - Downlink Unconfirmed Packet...

  • Page 43: Network

    UG65 User Guide 3.3 Network 3.3.1 Interface 3.3.1.1 Port The Ethernet port can be connected with Ethernet cable to get Internet access. It supports 3 connection types. - Static IP: configure IP address, netmask and gateway for Ethernet WAN interface.
  • Page 44 UG65 User Guide 1. Static IP Configuration If the external network assigns a fixed IP for the Ethernet port, user can select “Static IP” mode. Figure 3-3-1-2 Static IP Item Description Default IP Address Set the IP address which can access Internet.
  • Page 45 UG65 User Guide Figure 3-3-1-3 DHCP Client Item Description Obtain peer DNS automatically during PPP dialing. DNS is Use Peer DNS necessary when user visits domain name. Table 3-3-1-3 DHCP Client Parameters 3. PPPoE PPPoE refers to a point to point protocol over Ethernet. User has to install a PPPoE client on the basis of original connection way.

  • Page 46: Wlan

    Obtain peer DNS automatically during PPP dialing. DNS is necessary Use Peer DNS when user visits domain name. Table 3-3-1-4 PPOE Parameters 3.3.1.2 WLAN This section explains how to set the related parameters for Wi-Fi network. UG65 supports 802.11 b/g/n, as AP or client mode. Figure 3-3-1-5 www.milesight-iot.com...
  • Page 47 UG65 User Guide Figure 3-3-1-6 WLAN Settings Item Description Enable Enable/disable WLAN. Work Mode Select gateway's work mode. The options are "Client" or "AP". Fill in the MAC address of the access point. Either SSID or BSSID BSSID can be filled to joint the network.
  • Page 48 UG65 User Guide access to the wireless network. When AP isolation is enabled, all users which access to the AP AP Isolation are isolated without communication with each other. Select Radio type. The options are “802.11b (2.4 GHz)", “802.11g Radio Type (2.4 GHz)", “802.11n (2.4 GHz)””.

  • Page 49: Cellular

    UG65 User Guide Security Show the encryption mode. Frequency Show the frequency of radio. Join Network Click the button to join the wireless network. Table 3-3-1-6 WLAN Scan Parameters Related Topic Wi-Fi Application Example 3.3.1.3 Cellular This section explains how to set the related parameters for cellular network.
  • Page 50 UG65 User Guide Figure 3-3-1-9 General Settings Item Description Default Check the option to enable the corresponding SIM Enable Enable card. Select from "Auto”, "Auto 3G/4G”, "4G Only" and "3G Only". Auto: connect to the network with the strongest signal...
  • Page 51 UG65 User Guide Dial-up failed automatically if the dial-up fails several times. ICMP Server Set the ICMP detection server's IP address. 8.8.8.8 Secondary ICMP Set the secondary ICMP detection server's IP address. 114.114.114.114 Server ICMP Detection Set max number of retries when ICMP detection fails.

  • Page 52: Loopback

    UG65 User Guide Phone Group 3.3.1.4 Loopback Loopback interface is used for replacing gateway's ID as long as it is activated. When the interface is DOWN, the ID of the gateway has to be selected again which leads to long convergence time of OSPF.

  • Page 53: Security

    UG65 User Guide 3.3.2.1 Security Figure 3-3-2-1 Website Blocking URL Address Enter the HTTP address which you want to block. You can block specific website by entering keyword. The Keyword maximum number of character allowed is 64. Table 3-2-2-1 Security Parameters 3.3.2.2 ACL...
  • Page 54 UG65 User Guide Figure 3-3-2-2 Item Description ACL Setting Select from "Accept" and "Deny". Default Filter Policy The packets which are not included in the access control list will be processed by the default filter policy. Access Control List Type Select type from "Extended"...

  • Page 55: Dmz

    UG65 User Guide Destination Port Select destination port type, such as specified port, port range, Type etc. Destination Port Set destination port number. Range: 1-65535. Start Destination Set start destination port number. Range: 1-65535. Port End Destination Port Set end destination port number. Range: 1-65535.

  • Page 56: Mac Binding

    UG65 User Guide Figure 3-3-2-4 Port Mapping Item Description Specify the host or network which can access local IP address. Source IP 0.0.0.0/0 means all. Enter the TCP or UDP port from which incoming packets are Source Port forwarded. Range: 1-65535.

  • Page 57: Dhcp

    Fill in a description for convenience of recording the meaning of the Description binding rule for each piece of MAC-IP. Table 3-3-2-5 MAC Binding Parameters 3.3.3 DHCP UG65 can be set as a DHCP server to distribute IP address when Wi-Fi work as AP mode. Figure 3-3-3-1 DHCP Server Item Description...

  • Page 58: Ddns

    UG65 User Guide DNS Server Secondary Set the secondary DNS server. Null DNS Server Windows Define the Windows Internet Naming Service obtained Name by DHCP clients from DHCP sever. Generally you can Null Server leave it blank. Static IP Set a static and specific MAC address for the DHCP...

  • Page 59: Link Failover

    UG65 User Guide 3.3.5 Link Failover This section describes how to configure link failover strategies, such as VRRP strategies. Configuration Steps Define one or more SLA operations (ICMP probe). Define one or more track objects to track the status of SLA operation.

  • Page 60: Track

    UG65 User Guide 3.3.5.2 Track Track setting is designed for achieving linkage among SLA module, Track module and Application module. Track setting is located between application module and SLA module with main function of shielding the differences of various SLA modules and providing unified interfaces for application module.

  • Page 61: Wan Failover

    UG65 User Guide When failure recovery occurs, it will wait according to the time set here before actually changing its Positive Delay (s) status to Up. Range: 0-180 (0 refers to immediate switching). Table 3-3-5-2 Track Parameters 3.3.5.3 WAN Failover WAN failover refers to failover between Ethernet WAN interface and cellular interface.

  • Page 62: Vpn

    Virtual Private Networks, also called VPNs, are used to securely connect two private networks together so that devices can connect from one network to the other network via secure channels. UG65 supports DMVPN, IPsec, GRE, L2TP, PPTP, OpenVPN, as well as GRE over IPsec and L2TP over IPsec. 3.3.6.1 DMVPN...

  • Page 63: Ipsec

    UG65 User Guide GRE Hub IP Address GRE Hub tunnel IP address. GRE Local IP Address GRE local tunnel IP address. GRE Netmask GRE local tunnel netmask. GRE Key GRE tunnel key. Negotiation Mode Select from "Main" and "Aggressive". Authentication Select from "DES", "3DES", "AES128", "AES192"...
  • Page 64 UG65 User Guide Figure 3-3-6-3 IPsec Item Description Enable Enable IPsec tunnel. A maximum of 3 tunnels is allowed. Enter the IP address or domain name of remote IPsec IPsec Gateway Address server. IPsec Mode Select from "Tunnel" and "Transport".
  • Page 65 UG65 User Guide Figure 3-3-6-4 IKE Parameter Item Description IKE Version Select from "IKEv1" and "IKEv2". Negotiation Mode Select from "Main" and "Aggressive". Encryption Algorithm Select from "DES", "3DES", "AES128", "AES192" and "AES256". Authentication Select from "MD5" and " SHA1"...

  • Page 66: Gre

    UG65 User Guide DPD Interval Time(s) Set DPD interval time to detect if the remote side fails. DPD Timeout(s) Set DPD timeout. Range: 10-3600. IPsec Advanced Enable Compression The head of IP packet will be compressed after it's enabled. Select from "NONE", "GRE" and "L2TP" to enable VPN over VPN Over IPsec Type IPsec function.

  • Page 67: L2Tp

    UG65 User Guide Remote IP Address Enter the real remote IP address of GRE tunnel. Local IP Address Set the local IP address. Local Virtual IP Set the local tunnel IP address of GRE tunnel. Address Netmask Set the local netmask.
  • Page 68 UG65 User Guide Select from "Auto", "PAP", "CHAP", "MS-CHAPv1" and Authentication "MS-CHAPv2". Global Traffic All of the data traffic will be sent out via L2TP tunnel after Forwarding this function is enabled. Remote Subnet Enter the remote IP address that L2TP protects.

  • Page 69: Pptp

    UG65 User Guide connection. Range: 0-600. Set the maximum times of retry to detect the L2TP Max Retries connection failure. Range: 0-10. User can enter some other PPP initialization strings in this Expert Options field and separate the strings with blank space.
  • Page 70 UG65 User Guide Figure 3-3-6-9 PPTP Advanced Settings Item Description Local IP Address Set IP address of PPTP client. Peer IP Address Enter tunnel IP address of PPTP server. Enable NAT Enable the NAT faction of PPTP. Enable MPPE Enable MPPE encryption.

  • Page 71: Openvpn Client

    UG65 User Guide 3.3.6.6 OpenVPN Client OpenVPN is an open source virtual private network (VPN) product that offers a simplified security framework, modular network design, and cross-platform portability. Advantages of OpenVPN include: Security provisions that function against both active and passive attacks.

  • Page 72: Openvpn Server

    Set the local route's IP address. Subnet Mask Set the local route's netmask. Table 3-3-6-9 OpenVPN Client Parameters 3.3.6.7 OpenVPN Server UG65 supports OpenVPN server to create secure point-to-point or site-to-site connections in routed or bridged configurations and remote access facilities. www.milesight-iot.com...
  • Page 73 UG65 User Guide Figure 3-3-6-11 Figure 3-3-6-12 OpenVPN Server Item Description Enable Enable/disable OpenVPN server. Protocol Select from TCP and UDP. Port Fill in listening port number. Range: 1-65535. Enter WAN IP address or LAN IP address. Leaving it blank Listening IP refers to all active WAN IP and LAN IP address.

  • Page 74: Certifications

    UG65 User Guide Remote Virtual IP The remote tunnel address of OpenVPN's tunnel. Client Subnet Local subnet IP address of OpenVPN client. Client Netmask Local netmask of OpenVPN client. Renegotiation Interval(s) Set interval for renegotiation. Range: 0-86400. Max Clients Maximum OpenVPN client number. Range: 1-128.
  • Page 75 UG65 User Guide Public Key Import/Export public key file. Private Key Import/Export private key file. Import/Export TA key file. Preshared Key Import/Export static key file. PKCS12 Import/Export PKCS12 certificate file. Table 3-3-6-11 OpenVPN Client Certification Parameters Figure 3-3-6-14 OpenVPN Server...

  • Page 76: System

    UG65 User Guide IPsec Item Description Import/Export CA certificate. Client Key Import/Export client key. Server Key Import/Export server key. Private Key Import/Export private key. Import/Export certificate recovery list. Table 3-3-6-13 IPsec Parameters 3.4 System This section describes how to configure general settings, such as administration account, access service, system time, common user management, SNMP, event alarms, etc.

  • Page 77: System Time

    UG65 User Guide letter. Web Login You need to log in again if it times out. Range: 1800 Timeout (s) 100-3600. Access Service Port Set port number of the services. Range: 1-65535. Users can log in the device locally via HTTP to access HTTP and control it through Web after the option is checked.
  • Page 78 UG65 User Guide Figure 3-4-1-3 Figure 3-4-1-4 System Time Item Description Current Time Show the current system time. Time Zone Click the drop down list to select the time zone you are in. Click the drop down list to select the time synchronization Sync Type type.

  • Page 79: Smtp

    UG65 User Guide 3.4.1.3 SMTP SMTP, short for Simple Mail Transfer Protocol, is a TCP/IP protocol used in sending and receiving e-mail. This section describes how to configure email settings. Figure 3-4-1-5 SMTP Item Description SMTP Client Settings Enable Enable or disable SMTP client function.

  • Page 80: Email

    UG65 User Guide Figure 3-4-1-6 Phone Item Description Phone Number List Number Enter the telephone number. Digits, "+" and "-" are allowed. Description The description of the telephone number. Phone Group List Group ID Set number for phone group. Range: 1-100.

  • Page 81: User Management

    UG65 User Guide Figure 3-4-1-7 Email Item Description Email List Email Address Enter the Email address. Description The description of the Email address. Email Group List Group ID Set number for email group. Range: 1-100. Description The description of the Email group.

  • Page 82: User Management

    UG65 User Guide Figure 3-4-2-1 Account Item Description Enter a new username. You can use characters such as a-z, Username 0-9, "_", "-", "$". The first character can't be a digit. Old Password Enter the old password. New Password Enter a new password.

  • Page 83: Snmp

    Download MIB file and load it into NMS. Configure MIB View. Configure VCAM. 3.4.3.1 SNMP UG65 supports SNMPv1, SNMPv2c and SNMPv3 version. SNMPv1 and SNMPv2c employ community name authentication. SNMPv3 employs authentication encryption by username and password. Figure 3-4-3-1 SNMP Settings...

  • Page 84: Vacm

    UG65 User Guide Figure 3-4-3-2 MIB View Item Description View Name Set MIB view's name. View Filter Select from "Included" and "Excluded". View OID Enter the OID number. Included You can query all nodes within the specified MIB node. Excluded You can query all nodes except for the specified MIB node.

  • Page 85: Trap

    UG65 User Guide Read-Write The permission of the specified MIB node is read and write. Read-Only The permission of the specified MIB node is read only. SNMP v3 User List Group Name Set the name of SNMPv3 group. Security Level Select from "NoAuth/NoPriv", "Auth/NoPriv", and "...

  • Page 86: Device Management

    UG65 User Guide Figure 3-4-3-5 Item Description MIB File Select the MIB file you need. Download Click "Download" button to download the MIB file to PC. Table 3-4-3-5 MIB Download 3.4.5 Device Management You can connect the device to the DeviceHub on this page so as to manage the gateway centrally and remotely.

  • Page 87: Events

    UG65 User Guide DeviceHub server, options are "By Authentication ID" and "By ID". Authentication Code Fill in the authentication code generated from the DeviceHub. Fill in the registered DeviceHub account (email) and password. Password Table 3-4-5-1 3.4.6 Events Event feature is capable of sending alerts by Email when certain system events occur.

  • Page 88: Events Settings

    UG65 User Guide 3.4.6.2 Events Settings In this section, you can decide what events to record and whether you want to receive email and SMS notifications when any change occurs. Figure 3-4-6-2 Event Settings Item Description Enable Check to enable "Events Settings".

  • Page 89: Maintenance

    UG65 User Guide Phone Group List Select phone group to receive SMS alarm. Email Group List Select Email group to receive Email alarm. Table 3-4-6-2 Events Parameters Related Topics Email Setting Phone Setting 3.5 Maintenance This section describes system maintenance tools and management.

  • Page 90: Schedule

    UG65 User Guide Traceroute Item Description Host Address of the destination host to be detected. Table 3-5-1-2 Traceroute Parameters 3.5.2 Schedule This section explains how to configure scheduled reboot on the gateway. Figure 3-5-2-1 Schedule Item Description Schedule Select schedule type.

  • Page 91: Log Settings

    UG65 User Guide Figure 3-5-3-1 System Log Item Description Download Download log file. View recent (lines) View the specified lines of system log. Clear Log Clear the current system log. Table 3-5-3-1 System Log Parameters 3.5.3.2 Log Settings This section explains how to enable remote log server and local log setting.

  • Page 92: Upgrade

    UG65 User Guide Log Settings Item Description Remote Log Server With “Remote Log Server” enabled, gateway will send all Enable system logs to the remote server. Fill in the remote system log server address (IP/domain Syslog Server Address name). Port Fill in the remote system log server port.

  • Page 93: Backup And Restore

    UG65 User Guide 3.5.5 Backup and Restore This section explains how to create a complete backup of the system configurations to a file, restore the config file to the gateway and reset to factory defaults. Figure 3-5-5-1 Backup and Restore...

  • Page 94: App

    UG65 User Guide Figure 3-5-6-1 3.6 APP 3.6.1 Python Python is an object-oriented programming language that has gained popularity because of its clear syntax and readability. As an interpreted language, Python has a design philosophy that emphasizes code readability, notably using whitespace indentation to delimit code blocks rather than curly brackets or keywords, and a syntax that allows programmers to express concepts in fewer lines of code than it’s used in other languages such as C++ or Java.

  • Page 95: Python

    UG65 User Guide 3.6.1.1 Python Figure 3-6-1-1 Python Item Description Show AppManager's running status, like "Uninstalled", AppManager Status "Running" or "Stopped". SDK Version Show the version of the installed SDK. SDK Path Show the SDK installation path. Available Storage Select available storage to install SDK.

  • Page 96: Python App

    UG65 User Guide AppManager Configuration Item Description After enabling Python AppManager, user can click "View" button on Enable the "Python" webpage to view the application status managed by AppManager. App Management Show the ID of the imported App. App Command Show the name of the imported App.

  • Page 97: Chapter 4 Application Examples

    4.1 Packet Forwarder Configuration 1. Go to “Packet Forwarder” > “General”. 2. Click to add a new network server. “Milesight” type indicates the gateway network server. 3. Add the gateway on network server page. Take TTN for example, type and save the gateway EUI and other information when you connect it via Semtech packet forwarder.

  • Page 98: Application Configuration

    UG65 User Guide 4. Go to “Traffic” page to view the data communication of UG65. 4.2 Application Configuration You can create a new application on this page, which is mainly used to define the method of decoding the data sent from end-device and choosing the data transport protocol to send data to another server address.
  • Page 99 UG65 User Guide Headers are name/value pairs that appear in both request and response messages. The name of the header is separated from the value by a single colon. For example, this request message provides a header called User-Agent whose value is Mozilla/5.0 (Windows NT 6.3;...

  • Page 100: Device Configuration

    UG65 User Guide Step 3: Select the authentication method required by the server. If you select user credentials for authentication, you need to enter the username and password for authentication. If certificate is necessary for verification, please select mode and import CA certificate, client certificate and client key file for authentication.

  • Page 101: Send Data To Device

    UG65 User Guide You can also click “Bulk Import” if you want to add many nodes all at once. Click “Template Download” to download template file and add device information to this file. Application and device profile should be the same as you created on web page.
  • Page 102 UG65 User Guide Step 1: Please check the packet in the network server list to make sure that the device has joined the network successful. Step 2: Fill these input box. Step 3: Click “Send”. Step 4: Check the packet in the network server list to make sure that the device has received this message successful.
  • Page 103 UG65 User Guide Ack is “true” means that the device has received this packet. If the device’s class type is Class A, Only after the device sends out an uplink packet will the network server sends out data to the device.

  • Page 104: Restore Factory Defaults

    UG65 User Guide Related Topic Packets 4.5 Restore Factory Defaults 4.5.1 Via Web Interface Log in web interface, and go to “Maintenance > Backup and Restore”. Click “Reset” button under the “Restore Factory Defaults”. You will be asked to confirm if you’d like to reset it to factory defaults. Then click “Reset”...
  • Page 105 UG65 User Guide Then the gateway will reboot and restore to factory settings immediately. Please wait till STATUS light staticly and the login page pops up again, which means the gateway has already been reset to factory defaults successfully. Related Topic Restore Factory Defaults www.milesight-iot.com...

  • Page 106: Via Hardware

    The gateway is now reset to factory defaults. 4.6 Firmware Upgrade It is suggested that you contact Milesight technical support first before you upgrade gateway firmware. Gateway firmware file suffix is “.bin”. After getting firmware file please refer to the following steps to complete the upgrade.

  • Page 107: Cellular Connection

    UG65 User Guide 4.7 Cellular Connection Go to “Network > Interface > Cellular > Cellular Setting” and configure the cellular info. Choose relevant network type. Click “Save” and “Apply” for configuration to take effect. Check the cellular connection status by WEB GUI of gateway.

  • Page 108: Wi-Fi Application Example

    Check out if network works properly by browser on PC. Open your preferred browser on PC, type any available web address into address bar and see if it is able to visit Internet via the UG65. Related Topic Cellular Setting Cellular Status 4.8 Wi-Fi Application Example...

  • Page 109: Client Mode

    AP settings and information of the connected client/user. 4.8.2 Client Mode Application Example Configure UG65 as Wi-Fi client to connect to an access point to have Internet access. Configuration Steps 1. Go to “Network > Interface > WLAN” and click “Scan” to search for WiFi access point.
  • Page 110 UG65 User Guide Click “Save” and “Apply” buttons after all configurations are done. 3. Go to “Status > WLAN”, and you can check the connection status of the client. Related Topic WLAN Setting WLAN Status [END] www.milesight-iot.com...
  • Page 111 UG65 User Guide FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
