UG65
Quick Start Guide
Xiamen Milesight IoT Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UG65 and is the answer not in the manual?

Questions and answers

Related Manuals for Milesight UG65

Summary of Contents for Milesight UG65

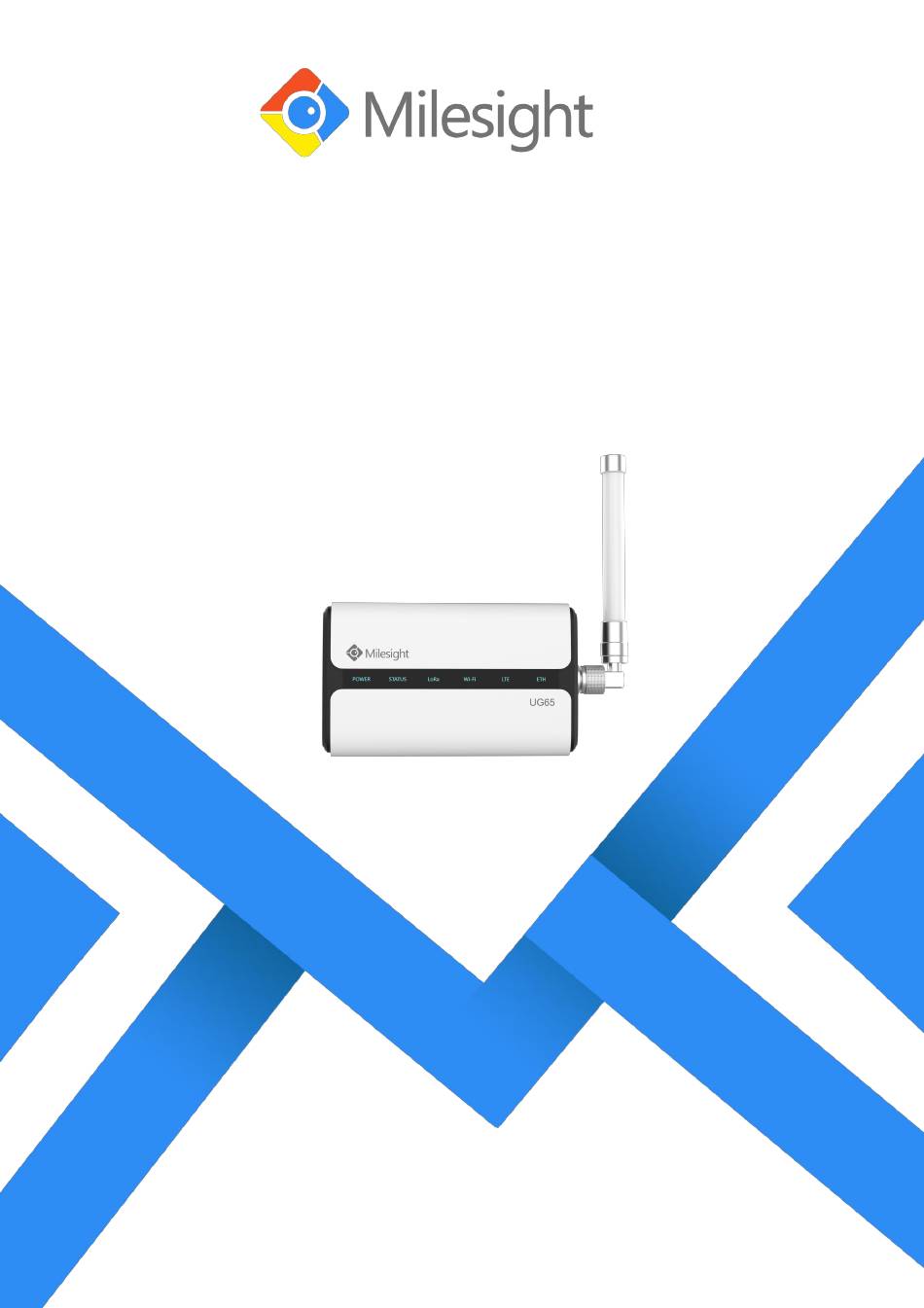

  • Page 1 UG65 Quick Start Guide Xiamen Milesight IoT Co., Ltd.
  • Page 2 GUI, and how to configure all the settings. The related documents are available on Milesight website: https://www.milesight-iot.com Declaration of Conformity UG65 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS. For assistance, please contact Milesight technical support: Email: iot.support@milesight.com...

  • Page 3: Table Of Contents

    5. Network Configuration..........................13 5.1 Ethernet WAN Configuration......................13 5.2 Wi-Fi Connection Configuration......................14 5.3 Cellular Connection Configuration....................15 6. Packet Forwarder Configuration.......................16 7. Network Server Configuration........................18 7.1 Connect UG65 to Milesight IoT Cloud................... 18 7.2 Connect UG65 to MQTT/HTTP Server...................20 www.milesight-iot.com...

  • Page 4: Packing List

    UG65 Quick Start Guide 1. Packing List Before you begin to install the UG65 gateway, please check the package contents to verify that you have received the items below. 1 × UG65 1 × Ethernet Cable 1 × DC Jack Power 1 ×...

  • Page 5: Hardware Introduction

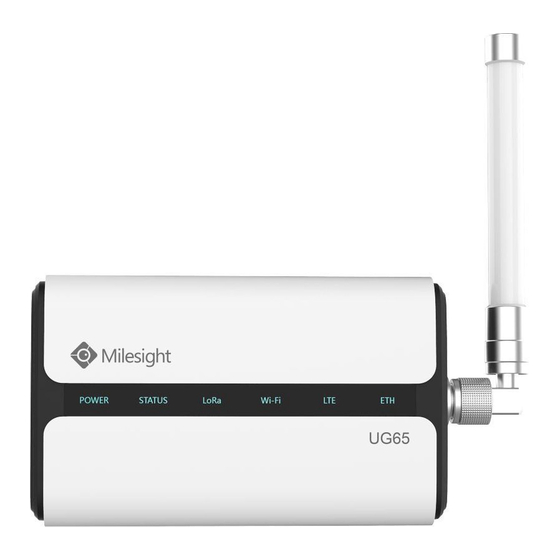

    UG65 Quick Start Guide 2. Hardware Introduction 2.1 Overview A. Front Panel LED Area POWER: Power Indicator STATUS: System Indicator LoRa: LoRa Indicator Wi-Fi: Wi-Fi Indicator LTE: Cellular Indicator ETH: Ethernet Port Indicator LoRa Antenna Connector (only for external antenna version) B.

  • Page 6: Led Indicators

    UG65 Quick Start Guide 2.3 LED Indicators Indication Status Description The power is switched off POWER Power Status The power is switched on Blue Light Static: the system is running properly STATUS System Status Red Light The system goes wrong...

  • Page 7: Hardware Installation

    If you need to take out the SIM card, press into the SIM card and it will pop up automatically.  UG65 does not support hot plugging (also called hot swapping). please turn off the power before  you insert or take off cards.

  • Page 8: Gateway Installation

    Please do not let the front panel of products faces to walls if using embedded LoRa antennas. 3.4 Gateway Installation UG65 can be mounted to a wall or a pole. Before you start, make sure that your SIM card has been inserted, your antennas have been attached and all cables have been installed.

  • Page 9: Pole Mounting

    UG65 Quick Start Guide 3.4.2 Pole Mounting Preparation: mounting bracket, bracket fixing screws, hose clamp and other required tools. 1. Loosen the hose clamp by turning the locking mechanism counter-clockwise. 2. Straighten out the hose clamp and slide it through the rectangular rings in the mounting bracket, wrap the hose clamp around the pole.

  • Page 10: Log In The Web Gui Of Gateway

    UG65 Quick Start Guide 4. Log in the Web GUI of Gateway UG65 provides web-based configuration interface for management. If this is the first time you configure the gateway, please use the default settings below: ETH IP Address: 192.168.23.150 Wi-Fi IP Address: 192.168.1.1...

  • Page 11: Wired Access

    E. You can view system information and perform configuration of the gateway. 4.2 Wired Access Connect PC to UG65 ETH port directly or through PoE injector. The following steps are based on Windows 10 operating system for your reference. A. Go to “Control Panel” → “Network and Internet” → “Network and Sharing Center”, then click “Ethernet”...
  • Page 12 UG65 Quick Start Guide C. Open a Web browser on your PC (Chrome is recommended) and type in the IP address 192.168.23.1 50 to access the web GUI. D. Enter the username and password, click “Login”. If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes.

  • Page 13: Network Configuration

    UG65 Quick Start Guide 5. Network Configuration This section explains how to connect the gateway to network via WAN connection, Wi-Fi or cellular. 5.1 Ethernet WAN Configuration A. Go to “Network”→ “Interface” → “Port” page to select the connection type and configure Ethernet port information.

  • Page 14: Wi-Fi Connection Configuration

    UG65 Quick Start Guide 5.2 Wi-Fi Connection Configuration A. Go to “Network” → “Interface” → “WLAN” and select “Client” mode. B. Click “Scan” to search for Wi-Fi access point. Select the available one and click “Join Network”. C. Type the key of Wi-Fi.

  • Page 15: Cellular Connection Configuration

    UG65 Quick Start Guide 5.3 Cellular Connection Configuration A. Go to “Network” → “Interface” → “Cellular” → “Cellular Setting” page to enable cellular settings. B. Choose relevant network type and fill in SIM card information like APN or PIN code.

  • Page 16: Packet Forwarder Configuration

    UG65 Quick Start Guide 6. Packet Forwarder Configuration UG65 has embedded multiple packet forwarders like Semtech and Chirpstack Generic MQTT broker. This section explains how to connect the gateway to third-party network servers. Make sure the gateway connects to the network as shown in Section A.
  • Page 17 D. Add the gateway on network server page. Take TTN for example, type and save the gateway EUI and other information when you connect it via Semtech packet forwarder. After you add the gateway, TTN will show connection status. E. Go to “Traffic” page to view the data communication of UG65. www.milesight-iot.com...

  • Page 18: Network Server Configuration

    UG65 Quick Start Guide 7. Network Server Configuration UG65 can work as network server and transmit data to Milesight IoT Cloud or other platform via MQTT/HTTP/HTTPS. Make sure the gateway connects to the network as shown in Section 7.1 Connect UG65 to Milesight IoT Cloud A.
  • Page 19 UG65 Quick Start Guide D. Log in the Milesight IoT Cloud. Then go to “My Devices” page and click “+New Devices” to add gateway to Milesight IoT Cloud via SN. Gateway will be added under “Gateways” menu. E. The gateway is online on Milesight IoT Cloud.

  • Page 20: Connect Ug65 To Mqtt/Http Server

    UG65 Quick Start Guide 7.2 Connect UG65 to MQTT/HTTP Server A. Go to “Packet Forwarder” → “General” page to enable the “Milesight” type server. B. Go to “Packet Forwarder” → “Radio” page to select the antenna type, center frequency and channels.
  • Page 21 UG65 Quick Start Guide D. Go to “Network Server”→”Application” to add a new application. After saving the application, you can select HTTP, HTTPS or MQTT protocol and fill in correspond server information to send data to another server. E. Go to “Profiles” page to add a new profile for the device.
  • Page 22 UG65 Quick Start Guide F. Go to “Device” page and click “Add” to add LoRaWAN node devices. ® You can also click “Bulk Import” if you want to add many nodes all at once. Click “Template Download” to download template file and add device information to this file. Application and device profile should be the same as you created on web page.
  • Page 23 UG65 Quick Start Guide F. Go to “Packets” page to check the packets from LoRaWAN ® node devices. The type starts from “Up” means uplinks and “Dn” means downlinks. Click “Details” to check the properties and payload contents of packets.
