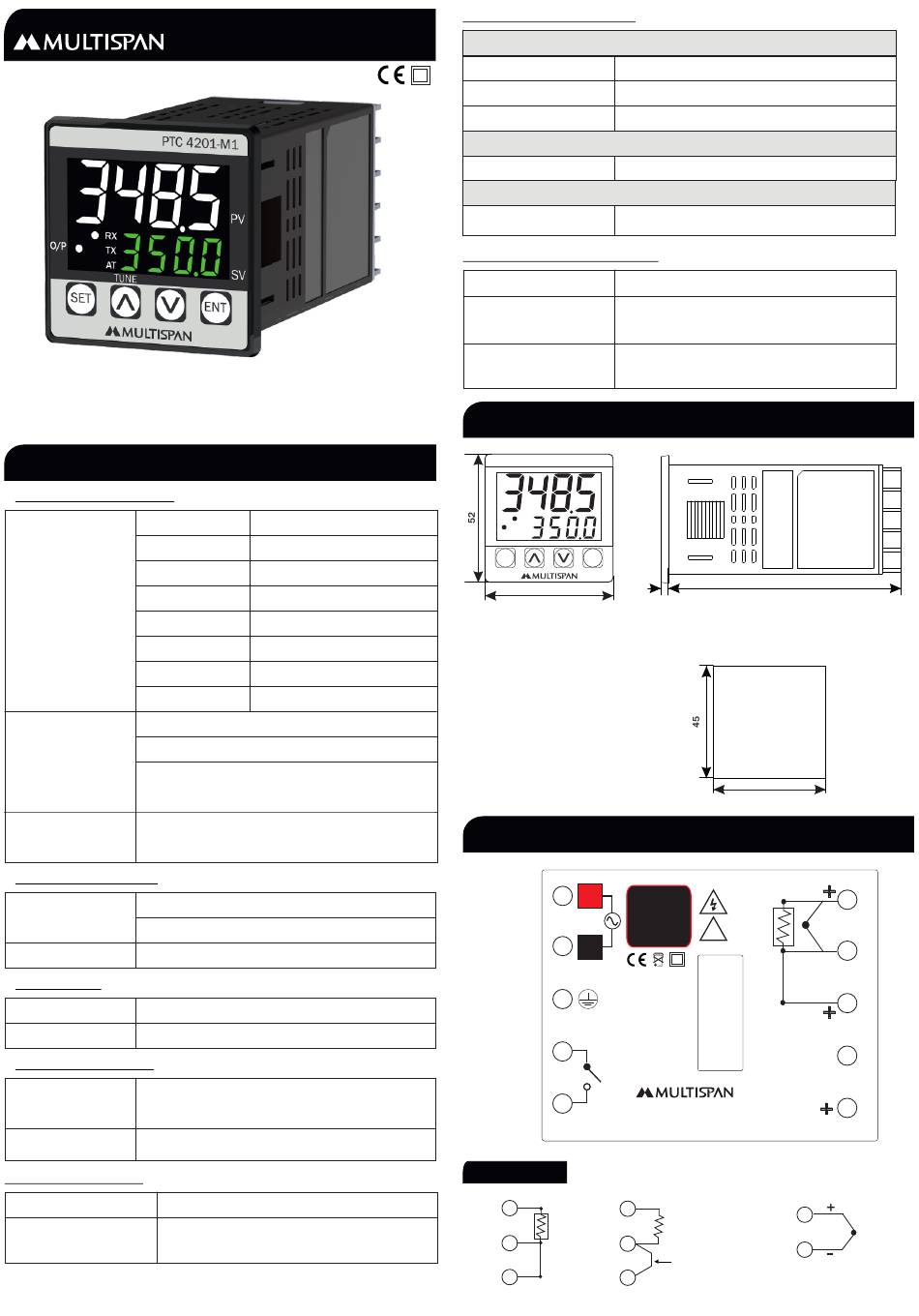

MULTISPAN PTC-4201-M1 Manual

PROCESS TEMPERATURE CONTROLLER
PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION
Input
J
K
PT-100
Input Types
PT.1
0-10V DC
0-20mA DC
4-20mA DC
J,K,PT-100 = 1°C
PT.1 = 0.1°C
Resolution
0-10V DC,0-20mA DC,4-20mA DC
= 0.1,0.01,0.001,0001
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- full scale deflection)
DISPLAY AND KEYS
Upper: 4 digit, 7 segment, 0.56"
Display
Lower: 4 digit, 7 segment, 0.33"
Keys
SET, INC, DEC, ENT
DIMENSION
Size
52 (H) x 52 (W) x 95 (D) mm
Panel Cutout 45 (H) x 45 (W) mm
CONTROL METHOD
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
Cooling 1) ON-OFF control
AUXILIARY SUPPLY
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption
Approx 5 VA @ 230V AC MAX
(VA RATING)
PTC-4201-M1
Display Color:
Upper : White Or Red
Lower : Green
Range
0 to 600°C,
0 to 1200°C,
-99 to 400°C,
-99.9 to 400.0°C,
-999 to 9999
-999 to 9999
-999 to 9999
OUTPUT SPECIFICATION
Relay Output
Relay 1 nos.
Relay Type (NO-C)
Rating 5A, 230V AC/30 V DC
Transmitter Supply
Supply Voltage 24V DC
MODBUS COMMUNICATION
RS-485
Output
ENVIRONMENT CONDITION
Operating Temp.
Relative Humidity
Protection
Level
MECHANICAL INSTALLATION
PTC 4201-M1
PV
RX
O/P
TX
AT
SV
TUNE
SET ENT
52
FRONT VIEW
All dimensions are in mm
TERMINAL CONNECTION
L
100
1
270V AC
50/60 Hz
5VA
N
2
Made in India
3
4
C
R1
NO
5
PTC 4201-M1-WG
Sensor Input
6 6
7
7
8 8
3-Wire RTD 2-Wire RTD
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
3 95
RIGHT SIDE VIEW
Panel Cutout
45
0-10V DC
~
!
B+
0/4-20
MOD
mA DC
BUS
RTD
O/P
-
A
24V DC
Trans. O/P
www.multispanindia.com
6
7
Install jumper
Thermocouple
when using
2 Wire RTD
6
T/C
7
-
8
-
9
10
