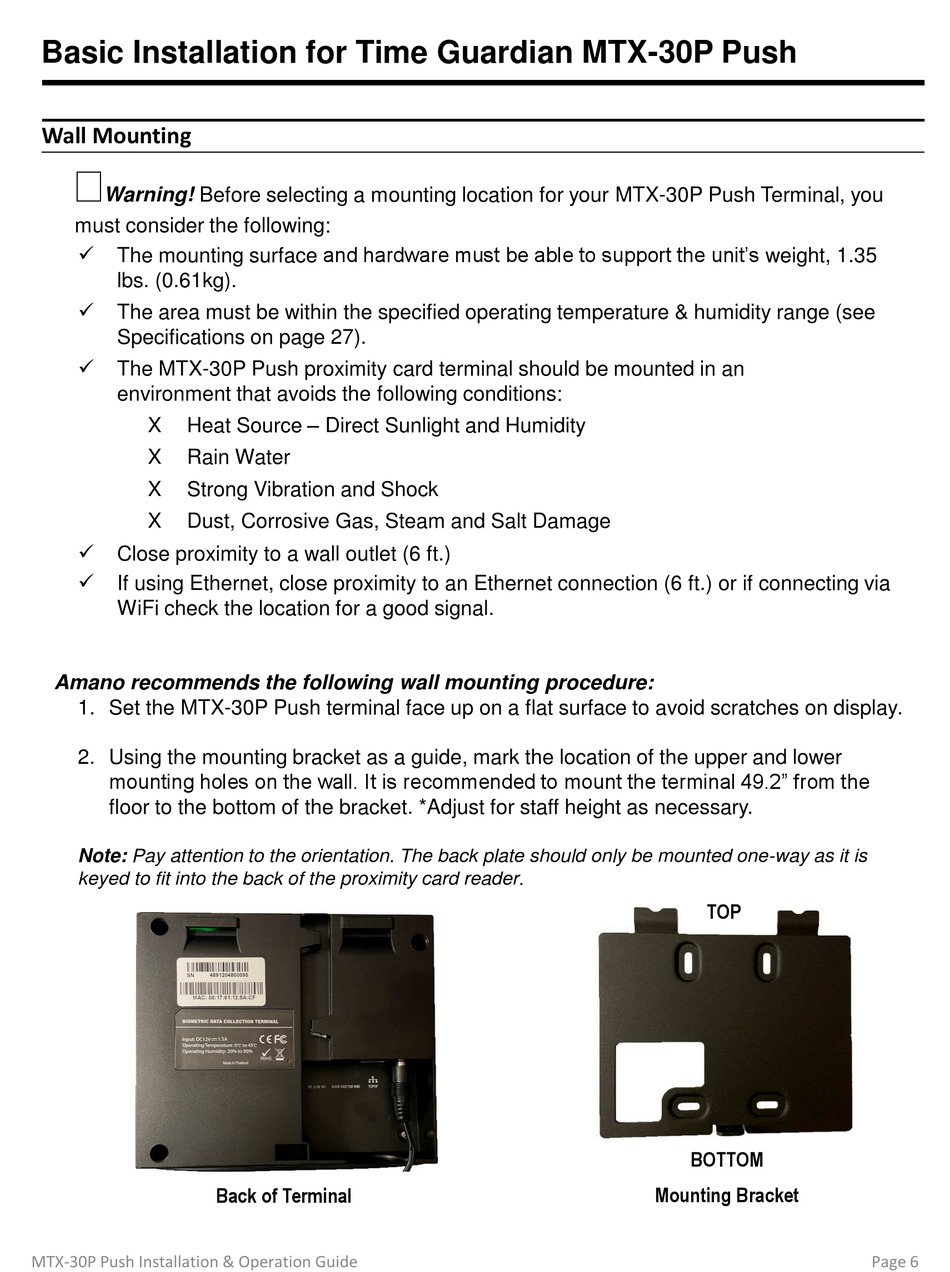

Basic Installation for Time Guardian MTX-30P Push

Wall Mounting

Warning! Before selecting a mounting location for your MTX-30P Push Terminal, you
must consider the following:
The mounting surface and hardware must be able to support the unit's weight, 1.35

lbs. (0.61kg).

The area must be within the specified operating temperature & humidity range (see
Specifications on page 27).

The MTX-30P Push proximity card terminal should be mounted in an
environment that avoids the following conditions:
Heat Source – Direct Sunlight and Humidity
X
X Rain Water
X Strong Vibration and Shock
X Dust, Corrosive Gas, Steam and Salt Damage

Close proximity to a wall outlet (6 ft.)

If using Ethernet, close proximity to an Ethernet connection (6 ft.) or if connecting via
WiFi check the location for a good signal.
Amano recommends the following wall mounting procedure:
1. Set the MTX-30P Push terminal face up on a flat surface to avoid scratches on display.
2. Using the mounting bracket as a guide, mark the location of the upper and lower
mounting holes on the wall. It is recommended to mount the terminal 49.2" from the
floor to the bottom of the bracket. *Adjust for staff height as necessary.
Note: Pay attention to the orientation. The back plate should only be mounted one-way as it is
keyed to fit into the back of the proximity card reader.
MTX-30P Push Installation & Operation Guide
Back of Terminal
TOP
BOTTOM
Mounting Bracket
Page 6
