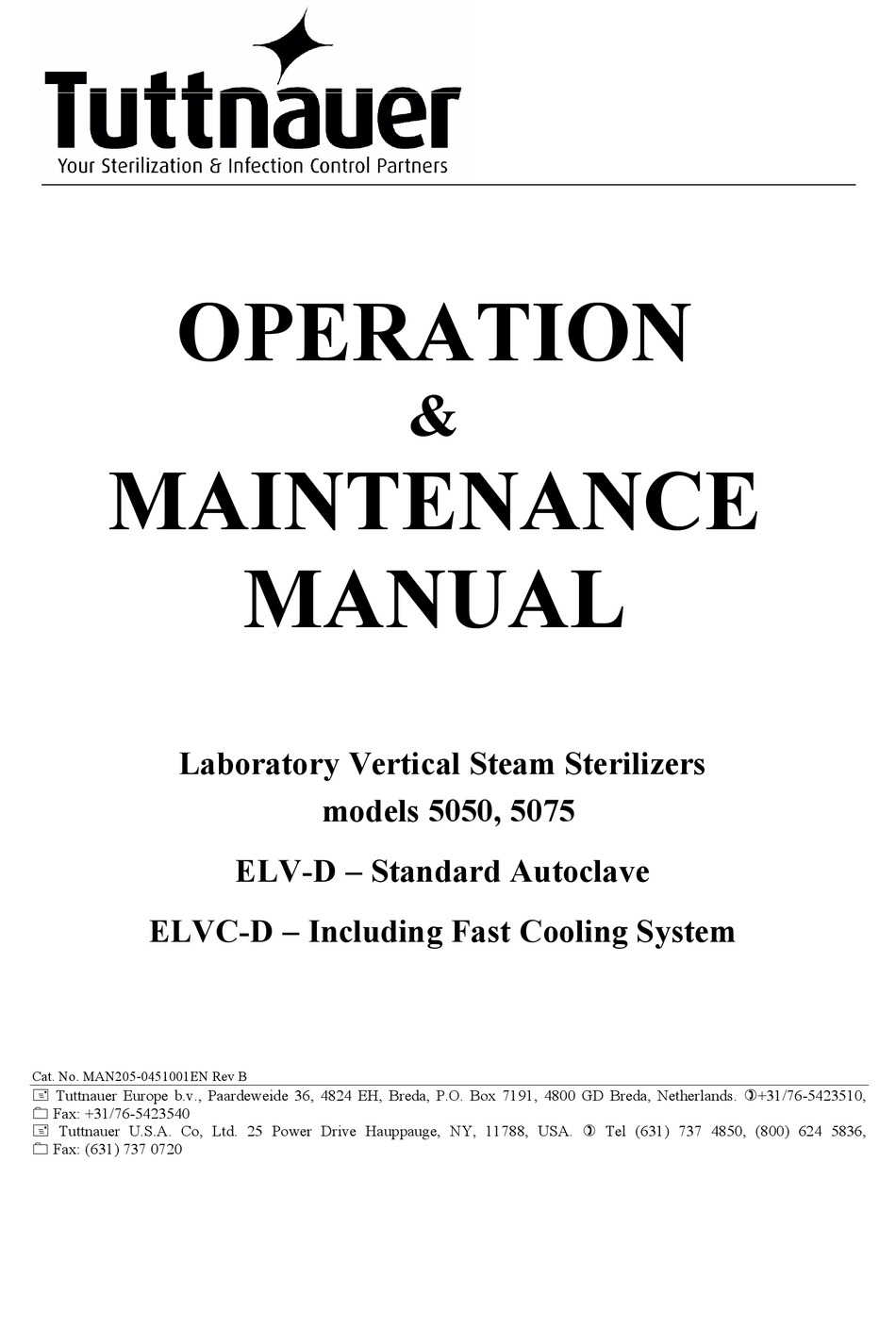

OPERATION
&
MAINTENANCE
MANUAL

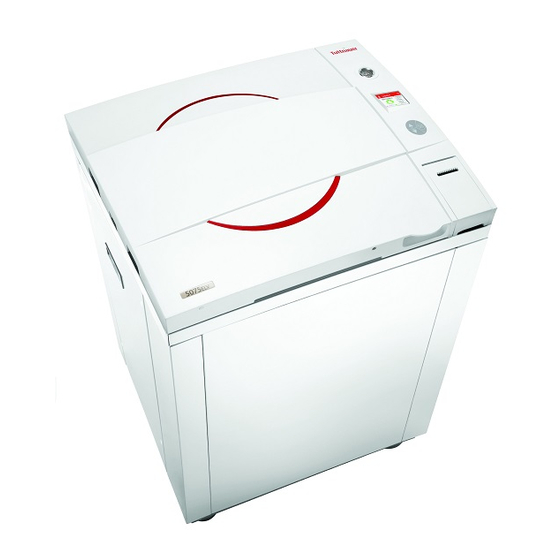

Laboratory Vertical Steam Sterilizers
models 5050, 5075
ELV-D  Standard Autoclave
ELVC-D  Including Fast Cooling System
Cat. No. MAN205-0451001EN Rev B
 Tuttnauer Europe b.v., Paardeweide 36, 4824 EH, Breda, P.O. Box 7191, 4800 GD Breda, Netherlands. +31/76-5423510,
 Fax: +31/76-5423540
 Tuttnauer U.S.A. Co, Ltd. 25 Power Drive Hauppauge, NY, 11788, USA.  Tel (631) 737 4850, (800) 624 5836,
 Fax: (631) 737 0720
