Tuttnauer 5050 Operation & Maintenance Manual

Tuttnauer 5050 Operation & Maintenance Manual

Laboratory vertical steam sterilizers
Hide thumbs Also See for 5050:
Table of Contents

Advertisement

Quick Links

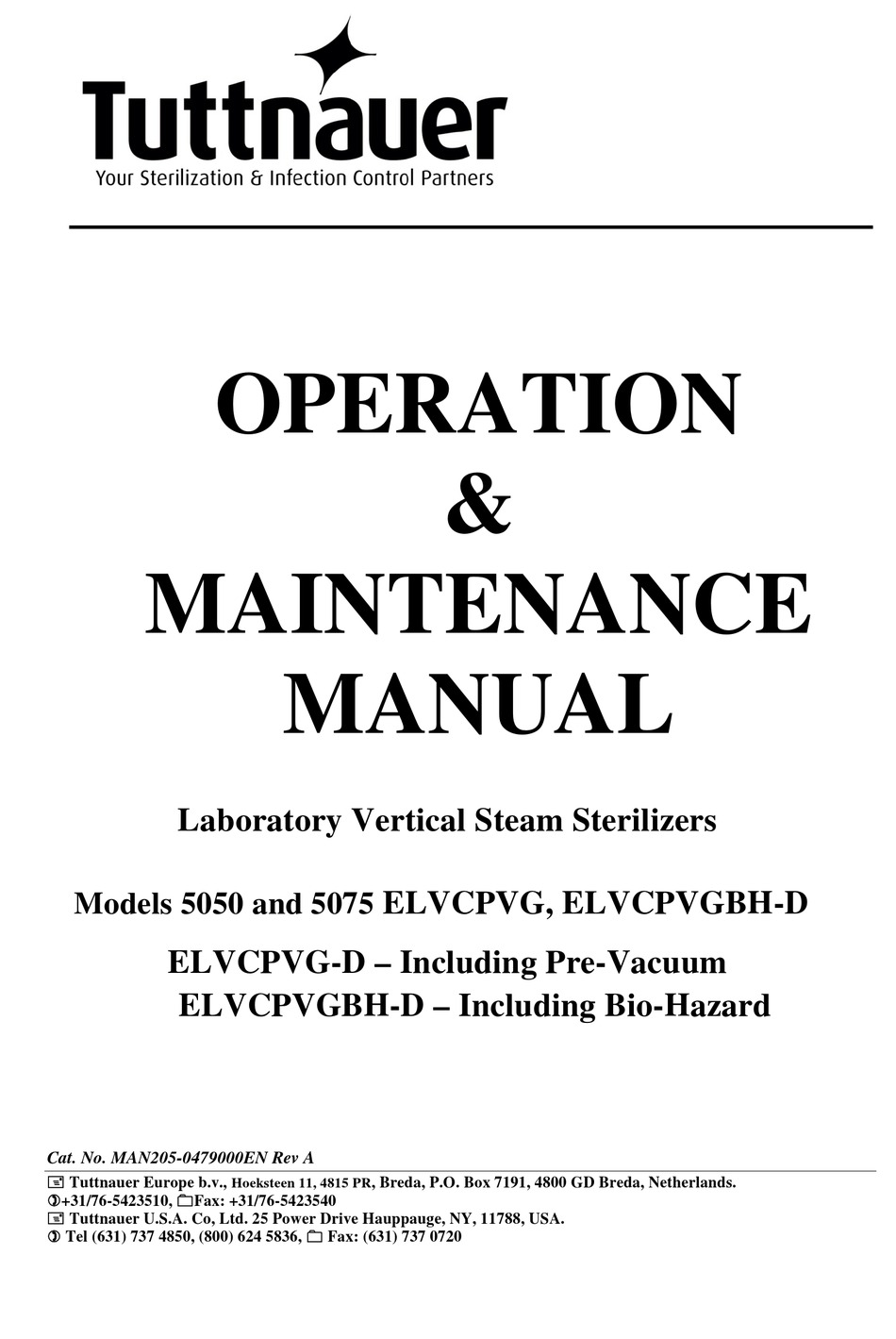

OPERATION
&
MAINTENANCE
MANUAL
Laboratory Vertical Steam Sterilizers
ELVCPVG, ELVCPVGBH-D
Models 5050 and 5075
ELVCPVG-D – Including Pre-Vacuum
ELVCPVGBH-D – Including Bio-Hazard
Cat. No. MAN205-0479000EN Rev A
 Tuttnauer Europe b.v.,
, Breda, P.O. Box 7191, 4800 GD Breda, Netherlands.
Hoeksteen 11, 4815 PR
+31/76-5423510, Fax: +31/76-5423540
 Tuttnauer U.S.A. Co, Ltd. 25 Power Drive Hauppauge, NY, 11788, USA.
 Tel (631) 737 4850, (800) 624 5836,  Fax: (631) 737 0720

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tuttnauer 5050

Summary of Contents for Tuttnauer 5050

  • Page 1 , Breda, P.O. Box 7191, 4800 GD Breda, Netherlands. Hoeksteen 11, 4815 PR +31/76-5423510, Fax: +31/76-5423540  Tuttnauer U.S.A. Co, Ltd. 25 Power Drive Hauppauge, NY, 11788, USA.  Tel (631) 737 4850, (800) 624 5836,  Fax: (631) 737 0720...

  • Page 3: Table Of Contents

    Operating Conditions.................10 Utilities.......................10 Construction ....................11 Environment Emission Information ............11 Directives and Standards ................11 Electrical Data ...................12 Overall Dimensions Models 5050, 5075 EL ..........13 3.10 Symbol Description..................14 3.11 Water quality....................15 3.12 Safety Features ..................16 CONTROL PANEL ....................19 CONTROL PANEL DRAWING..............19 Description and Functions of the Front Panel Keyboard ......20...
  • Page 4 Program 9: Vacuum Test (PV, pre-vacuum model only) ........35 Program 10: Bio Hazard Liquid Cooling (BH, bio-hazard models only) ..36 Program 11: Bio Hazard Liquid (BH, bio-hazard models only) ......37 Program 12: Bio Hazard (BH, bio-hazard models only)........38 Program 13: Warm-Up ..................39 Program 14: Isothermal ..................40 CHECKING AND CHANGING PARAMETERS AND OTHER DATA ...41 Directories and subdirectories ..............41...
  • Page 5 11.3 Moving the Autoclave ................79 TROUBLESHOOTING ..................80 BASKETS AND CONTAINERS ................84 SPARE PARTS LIST – 5075 ................85 ACCESORIES LIST ...................85 Page 3 of 85 Pages...
  • Page 6 TABLE OF CONTENT (Cont.) DRAWINGS PAGE NO. FRONT VIEW ......................17 REAR VIEW ........................18 Page 4 of 85 Pages...

  • Page 7: General

    GENERAL Introduction Model 3870 ELVCPVGBH-D is a laboratory sterilizer designed especially for the sterilization of instruments, liquids, and other materials in hospital laboratories, medical laboratories (including the medical waste), research institutes, food laboratories, and pharmaceutical facilities. The PV (pre-vacuum) models are equipped with a vacuum pump. The advantages of the pre-vacuum sterilizer in comparison to the regular gravity displacement steam sterilizer are as follows: —...

  • Page 8: Incoming Inspection

    If damage is apparent, contact your dealer or point of purchase, so that they may notify the manufacturer and file a claim with the appropriate carrier. All Tuttnauer products are carefully inspected prior to shipment and all reasonable precautions are taken in preparing them for shipment to assure safe arrival at their destination.

  • Page 9: Warranty Statement

     Tuttnauer Europe b.v., Hoeksteen 11, 4815 PR, Breda, P.O. Box 7191, 4800 GD Breda, Netherlands. +31/76-5423510, Fax: +31/76-5423540, E-mail: info@tuttnauer.nl  Tuttnauer USA Co., Ltd., 25 Power Drive Hauppauge, NY 11788, USA : (800) 624 5836, (631) 737 4850, Fax: (631) 737 0720 e-mail:info@tuttnauerUSA.com.

  • Page 10: Safety Instructions

    SAFETY INSTRUCTIONS The autoclave has unique characteristics. Please read and understand the operation instructions before first operation of the autoclave. The following issues may require instructions guidance provided by the manufacturer: how to operate the autoclave, the door safety mechanism, the dangers involved in circumventing safety means, how to ensure that the door is closed, and how to select a correct sterilization program.
  • Page 11 Open the door slowly to allow steam to escape and wait 5 minutes before you remove the load. When sterilizing liquids, wait 10 minutes. Once a month, ensure that the safety valves are functioning, and once annually a certified tester must conduct pressure chamber safety tests. Once annually, or more frequently, effective tests must be performed, i.e., calibration and validation.

  • Page 12: Technical Data

    TECHNICAL DATA Stand – by heating mode The autoclave provides an option of heating the chamber in stand-by mode between cycles with a very low power in order to reduce total cycle time (1.6% of the total power only). The autoclave turns off automatically if the interval between the sterilization cycles is more than 2 hours.

  • Page 13: Construction

    3.4.2 Other utilities Compressed Air (ELVC only) 1/2" 3-4 Bar (44-58 psi) Tap water 1/2", 2-3 Bar (29-44 psi) Mineral free water 1/2", 2-3 Bar (29-44 psi) 2" Minimum Withstanding temp. Drain of 80°C (176°F) Attention: The electrical net must be protected with a current leakage safety relay. The electrical network must comply with local rules or regulations.

  • Page 14: Electrical Data

    Electrical Data Line Protection against Power Supply Voltage Model current electrical shock consumption Class I 6 x 1100W 3 Ph, 400V/50Hz 5075 (IEC 60601-1) Class I 4 x 1100W 3 Ph, 400V/50Hz 5050 (IEC 60601-1) Page 12 of 85 Pages...

  • Page 15: Overall Dimensions Models 5050, 5075 El

    Overall Dimensions Models 5050, 5075 EL FRONT VIEW SIDE VIEW Model 5050 5075 Dimensions EU units US units EU Units US Units Height 1090mm 42.9” 1090mm 42.9” Overall dimensions Width 870mm 34.3” 870mm 34.3” Length 770mm 30.3” 770mm 30.3” Maximum...

  • Page 16: Symbol Description

    diameter 500mm 19.7” 500mm 19.7” Chamber Depth 500mm 19.7” 750mm 29.5” Chamber volume 110 lit. 29.1 US gal 160 lit. 42.3 US gal Max. Allowable Working Pressure 2.76 bar (40 psi) (MAWP) Load No. counter Counting from 0 to 3000 and nullifies. Tray dimensions 32.0 x 55.0 32.0 x 78.0...

  • Page 17: Water Quality

    3.11 Water quality The distilled or mineral by two water systems: to the sterilizer shall be according the table below. Tap water for the vacuum pump:  Hardness should not exceed 0.7:2 mmol/l S  Pressure should be in the range of 2–5. bar (30–70 psi) ...

  • Page 18: Safety Features

    Attention: We recommend testing the water quality once a month. The use of water for autoclaves that do not comply with the table above may have severe impact on the working life of the sterilizer and can invalidate the manufacturer’s guarantee. 3.11.2 Reverse Osmosis A Reverse Osmosis (RO) system may be used to improve the...
  • Page 19 FRONT VIEW Description Autoclave cover Keyboard Door Closing Handle Main switch (under the printer cover) Door Closing Grip Right Service Door Grip Front Leg Service Door Chamber Pressure Gauge Rear Leg Display Page 17 of 85 Pages...
  • Page 20 REAR VIEW Description Generator Safety Valve Mineral-Free Water Inlet Air Supply Pressure Gauge Air Supply Pressure Regulator Drain Chamber Safety Valve Cavitation Circuit breaker Power Supply Tap Water Inlet Air Inlet Page 18 of 85 Pages...

  • Page 21: Control Panel

    CONTROL PANEL CONTROL PANEL DRAWING Description Display Keypad: Up Button Keypad: Start/Stop Button Keypad: Down Button Printer Page 19 of 85 Pages...

  • Page 22: Description And Functions Of The Front Panel Keyboard

    Description and Functions of the Front Panel Keyboard The front panel is composed of 3 sections: 1. Display screen. 2. Keypad. 3. Printer 4.2.1 Display screen The display is a LCD panel used to display the current status of the autoclave while using Operational Messages and Error Messages.
  • Page 23 4.2.2 Keypad The keypad consists of three keys as described below: UP key This key has the following functions:  In the menu directories: o This key enables the operator to browse through the cycles.  In the directories available: o When the cursor is blinking on a number, the UP ▲...

  • Page 24: Displayed Error Messages / Symbols

    4.2.3 Printer The printer is an optional device. It prints the detailed history of each cycle performed by the autoclave. The printing is on thermal paper with 24 characters per line and records the sterilization cycle information for subsequent consideration. Displayed Error Messages / Symbols The failures are divided into two categories: Failure that occur before completing the sterilization stage, which in...

  • Page 25: Description Of Operation

    Critical settings have been updated, If a change of the autoclave Restart the autoclave in Please restart setting was made, a restart order for changes to be machine in operation is required. updated. order for changes to be updated Description of Operation 4.5.1 Air removal The autoclave is equipped with a vacuum pump for performing...

  • Page 26: Leakage Test

    Unsealed bottles (cooling without compressed air) On completion of sterilization, steam is exhausted from the chamber at a slow rate. When chamber pressure goes down to atmospheric pressure, water starts flowing through the cooling coil mounted around the outer side of the chamber. On conclusion of the cycle the water flow is stopped automatically, process is completed and it is possible to open the door and take out the sterilized goods from the...

  • Page 27: Sterilization Programs

    the test, the printer records the results. The pressure at the end of the test is referred to as P . The rate of change of P shall not exceed 0.13 kPa/min.). If P exceed 0.13 kPa/min the printer will print “FAIL”. If is within the required value, the cycle will end normally.
  • Page 28 Bio Hazard Liquid Cooling Bio Hazard Liquid Bio Hazard Warm-Up: 95°C Isohtermal: 60 °C Note: The sterility of instruments processed in unwrapped cycles cannot be maintained if exposed to non-sterile environment. During the process, the stages of the cycle will be displayed on the screen: The stages names are as follows: Start Pulse L (PV model only)

  • Page 29: Program 1: Glass

    Program 1: Glass For glass instruments, when the manufacturer recommends autoclaving at temperatures of 134C (273F). Nominal parameters default settings  Sterilization temperature: 134C (273F).  Sterilization time: 3 minutes.  Drying time: 1 minute. Operations sequence:  (PV, pre-vacuum model only) Air removal stage; four vacuum pulses removes air by drawing the chamber down to 20kPa.

  • Page 30: Program 2: Plastic

    Program 2: Plastic For plastic and other delicate instruments, when the manufacturer recommends autoclaving at temperatures of 121C (250F). Nominal parameters default settings  Sterilization temperature: 121C (250F)  Sterilization time: 15 minutes Operations sequence:  (PV, pre-vacuum model only) Air removal stage; four vacuum pulses removes air by drawing the chamber down to 20kPa.

  • Page 31: Program 3: Liquid A

    Program 3: Liquid A For liquids when the manufacturer recommends autoclaving at temperatures of 121C (250F) for 15 minutes. Note: both PT100 temperature sensors must be inside the bottles For proper sterilization, fill the bottles with approximately the same amount of liquid. Nominal parameters default settings ...

  • Page 32: Program 4: Liquid B - Waste

    Program 4: Liquid B – Waste For liquids when the manufacturer recommends autoclaving at temperatures of 121C (250F) for 30 minutes, such as liquid waste. Note: both PT100 temperature sensors must be inside the bottles For proper sterilization, fill the bottles with approximately the same amount of liquid.

  • Page 33: Program 5: Liquid A - Cooling (Elc - Cooling Models Only)

    Program 5: Liquid A – Cooling (ELC – cooling models only) For liquids when the manufacturer recommends autoclaving at temperatures of 121ºC. for 15 minutes. Nominal parameters default settings  Sterilization temperature:121C (250F).  Sterilization time: 15 minutes. Operations sequence: ...

  • Page 34: Program 6: Liquid B - Waste Cooling (Elc - Cooling Models Only)

    Program 6: Liquid B – Waste Cooling (ELC – cooling models only) For liquids when the manufacturer recommends autoclaving at temperatures of 121ºC.for 30 minutes, such as liquid waste. Nominal parameters default settings  Sterilization temperature: 121C (150F).  Sterilization time: 30 minutes. Operations sequence: ...

  • Page 35: Program 7: Waste

    Program 7: Waste For waste products, when the manufacturer recommends autoclaving at temperatures of 134C (273F). Nominal parameters default settings  Sterilization temperature: 134C (273F)  Sterilization time: 7 minutes  Drying time: 15 minutes Operations sequence:  (PV, pre-vacuum model only) Air removal stage; four vacuum pulses removes air by drawing the chamber down to 20kPa.

  • Page 36: Program 8: Hollow Load

    Program 8: Hollow Load For Wrapped delicate instruments, when the manufacturer recommends autoclaving at temperatures of 121C (250F). Nominal parameters default settings  Sterilization temperature: 121C (250F)  Sterilization time: 15 minutes  Drying time: 15 minutes Operations sequence:  (PV, pre-vacuum model only) Air removal stage; four vacuum pulses removes air by drawing the chamber down to 20 kPa.

  • Page 37: Program 9: Vacuum Test (Pv, Pre-Vacuum Model Only)

    Program 9: Vacuum Test (PV, pre-vacuum model only)  Vacuum is produced in the chamber down to P1=15 kPa. At this stage all the valves close. The autoclave remains in this stage for 5 minutes. This period enables the condition in the chamber to reach equilibrium. ...

  • Page 38: Program 10: Bio Hazard Liquid Cooling (Bh, Bio-Hazard Models Only)

    Program 10: Bio Hazard Liquid Cooling (BH, bio-hazard models only) For liquids when the manufacturer recommends autoclaving at temperatures of 121ºC. for 45 minutes. All exhaust from the chamber before completion of the Sterilization phase is performed through the bio-hazard filter. Nominal parameters default settings ...

  • Page 39: Program 11: Bio Hazard Liquid (Bh, Bio-Hazard Models Only)

    Program 11: Bio Hazard Liquid (BH, bio-hazard models only) For liquids when the manufacturer recommends autoclaving at temperatures of 121ºC. for 45 minutes. All exhaust from the chamber before completion of the Sterilization phase is performed through the bio-hazard filter. Nominal parameters default settings ...

  • Page 40: Program 12: Bio Hazard (Bh, Bio-Hazard Models Only)

    Program 12: Bio Hazard (BH, bio-hazard models only) For instruments, when the manufacturer recommends autoclaving at temperatures of 134C (273F) for 30 minutes. All exhaust from the chamber before completion of the Sterilization phase is performed through the bio-hazard filter. Nominal parameters default settings ...

  • Page 41: Program 13: Warm-Up

    Program 13: Warm-Up Pre-warming the chamber at 95C (194F) with no drying. Caution Validation of the sterility when using this program is the responsibility of the user. Nominal parameters default settings  Sterilization temperature: 95C (194F).  Sterilization time: 5 minutes. Operations sequence: ...

  • Page 42: Program 14: Isothermal

    Program 14: Isothermal For liquids when the manufacturer recommends autoclaving at 60C (140F) with no drying. Recommending for melting of agar, pausterization etc. Caution: This is not a sterilization program! Nominal parameters default settings  Heating temperature: 60C (140F).  Heating time: 20 minutes. Operations sequence: ...

  • Page 43: Checking And Changing Parameters And Other Data

    6 CHECKING AND CHANGING PARAMETERS AND OTHER DATA The control system prevents changing programs if the door is closed. This protection is intended to avoid program changes if the autoclave is loaded. If the operator for example inserts the load into the chamber, closes the door and leaves the room and another operator/user tries to change the program, the operator/user will not be able to do this unless the door is opened and the load inside the chamber can be seen.
  • Page 44 Move the cursor to Admin and press START/STOP key. The following screen will be displayed: 0000 is displayed on the screen with the cursor blinking on the right digit. To increase or decrease the digits, press the UP or DOWN keys. After changing the code to 0001 move the cursor to Set by pressing the START/STOP key.

  • Page 45: System Parameters

    System Parameters This directory includes three subdirectories The following screen will be displayed when entering SYSTEM PARAMETERS directory: In order to enter to the sub directories move the cursor by pressing UP or DOWN keys to the required item and press START/STOP In order to exit this screen follows one of the next: ...
  • Page 46  Press the UP and DOWN keys simultaneously. 7.3.2 Print Rate Sterilization This subdirectory enables to change the printing rate during sterilization stage. 1. To increase or decrease the digits, press the UP or DOWN keys. 2. After changing the value move the cursor to Set by pressing the START/STOP.

  • Page 47: History

    The time is displayed in the form “0000” min. 1. To increase or decrease the digits, press the UP or DOWN keys. 2. After changing the value move the cursor to Set by pressing the START/STOP. 3. When Set is blinking, press the UP or DOWN keys in order to confirm changes and return to the previous screen.
  • Page 48 7.3.4 View old cycle history This subdirectory enables to print the 100 previous cycles. The following screen will be displayed when entering View old cycle history subdirectory: 1. Choose the required cycle according to cycle number, date and time with the UP or DOWN keys 2.

  • Page 49: Maintenance

    5. Move the cursor to the required item and press START/STOP key 6. The following screen will be displayed: 7. Remove the USB device from the USB Socket 8. In order to exit this screen and return to HISTORY OPTIONS screen press START/STOP key. 9.
  • Page 50 7.3.6 Set date and time This subdirectory enables the operator to set the date and time. This SET DATE AND TIME screen will be displayed when entering the subdirectory: When entering the SET DATE AND TIME screen, the time and date are displayed. The cursor is blinking on the "second" digit.
  • Page 51 5. Remove the USB device from the USB Socket 6. In order to exit this screen and return to MAINTENANCE directory press START/STOP key. 7. In order to exit the MAINTENANCE directory follows one of the next:  Move the cursor to Exit with the UP or DOWN keys and select it by pressing the START/STOP key.
  • Page 52 And the following screen will be displayed. In order to exit this screen and return to MAINTENANCE directory press START/STOP key. In order to exit the MAINTENANCE directory follows one of the next:  Move the cursor to Exit with the UP or DOWN keys and select it by pressing the START/STOP key.

  • Page 53: Advanced Options

    In order to exit this screen and return to MAINTENANCE directory press START/STOP key. In order to exit the MAINTENANCE directory follows one of the next:  Move the cursor to Exit with the UP or DOWN keys and select it by pressing the START/STOP key. ...
  • Page 54 When entering the START CYCLE BY CLOCK screen, the time is displayed. The cursor is blinking on the "minute" digit. The time is displayed in the form “HH:MM”. The hour range is 24 hours (i.e. from "0" to "24"). Enabling the START CYCLE BY CLOCK To increase or decrease the time use the UP or DOWN keys.
  • Page 55 7.3.11 Export all settings to USB device This subdirectory enables the operator to export all settings to USB device. 1. Insert the USB device into the USB Socket 2. Move the cursor to Export all settings to USB device 3. Press the START/STOP key. 4.

  • Page 56: Version Information

    Version information This directory includes two subdirectories The following screen will be displayed when entering VERSION INFORMATION directory: 1. In order to enter to the sub directories move the cursor by pressing UP or DOWN keys to the required item and press START/STOP 2.
  • Page 57 Software DLL size Major Minor Bugs Automatic update date change change repair builder  Major change Concept change eg: changing the operating system, Changed by the programmer in accordance with the change sequence.  Minor change Feature change or function change, changed by the programmer in accordance with the change sequence.
  • Page 58 7.3.13 View factory default version information This subdirectory enables the operator to see the factory default version information. In order to see this subdirectory press START/STOP key on the View factory default version information item. The following screen will be displayed: Software DLL size Major...

  • Page 59: Screens

    SCREENS Screens following a completely successful cycle – "Cycle Ended" 1. System Ready 2. Pulse Low (PV, pre- 3. Pulse High 1/1 (PV, vacuum model only) pre-vacuum model only) 4. Heating 5. Sterilization 6. Exhaust 7. Drying (PV, pre- 8. Ending 9.

  • Page 60: Screens Following Aborted Cycles After Complete Sterilization Stage

    Screens following aborted cycles after complete sterilization stage The sterilization phase ended successfully – cycle ended and the reason of failure is displayed For example the next two scenarios: 7.2.1 Canceled by user after complete sterilization stage The cycle ended successfully, the reason for aborted cycle is displayed.
  • Page 61 7.3.16 Failure according to Cancellation by user before complete sterilization stage When "Cycle Failed" appears on the screen, the user shall press START/STOP key in order to delete the "Cycle Failed" message An example for all displayed warnings according to Cycle Failed: Cycle Failed message Reason of failure The screen colour changed...

  • Page 62: Printer

    PRINTER Printer Output The printing is on thermal paper with 24 characters per line and contains the following information:  Date:  Time:  Ser. Num:  Model:  Version:  Cycle Num:  Cycle:  Dry Time:  Ster Temp: ...
  • Page 63 PRINTER OUTPUT DESCRIPTION Operator: To be filled in manually by operator ____________ Time: 12:14:47 Time sterilization cycle ended Status: Cycle Ended 00:24:43 101.3 099.7 Cycle finished time D 00:27:40 107.0 107.4 The time, temperature and pressure during Drying Stage D 00:35:12 107.0 107.4 The time, temperature and pressure during Drying Stage...

  • Page 64: Printer Handling

    Legend Air removal stage CLK 2 Software clock Heating stage Exhaust stage Sterilization stage Drain Stage CLK 1 Real Time Clock Printer Handling 8.2.1 Maintenance Wipe off the soiling on the printer surface with a dry soft cloth with a weak neutral detergent. After that, wipe the printer with a dry cloth.
  • Page 65 Press the OPEN key to open the printer cover as shown (see Fig. 2/1). Handle the paper cutter carefully not to cut your hand. Fig. 2 Place the paper roll making sure it unrolls in the proper direction as shown (see Fig. 2/2). Take out the paper and re-close the cover as shown (see Fig.

  • Page 66: Treating The Thermal Papers

    Treating the thermal papers:  Store the papers in a dry, cool and dark place.  Do not rub the papers with hard substance.  Keep the papers away from organic solvent. Cautions Never disassemble the printer. Failure to follow this instruction may cause overheating or burning of the printer or the AC adapter.

  • Page 67: Preparation Before Sterilization

    PREPARATION BEFORE STERILIZATION The purpose of packaging and wrapping of items for sterilization is to provide an effective barrier against sources of potential contamination in order to maintain sterility and to permit aseptic removal of the contents of the pack. Packaging and wrapping materials should permit the removal of air from the pack, penetration of the sterilizing water vapor into the pack and removal of the sterilizing vapor.

  • Page 68: Liquids

    All instruments must be sterilized in an open position. Use single-use wraps once only and discard after use. Place a sterilization indicator strip in each basket. Place instruments with ratchets opened and unlocked or clipped on the first ratchet position. Disassemble or sufficiently loosen multiple-part instruments prior to packaging to permit the sterilizing agent to come into contact with all parts of the instrument.

  • Page 69: Tubing

    Empty canisters should be placed upside-down, in order to prevent accumulation of water. Tubing  When placing tubing on the tray, make sure that both ends are open, without sharp bends or twists. Right Wrong Loading The loading of goods and instruments is done by means of two stacked baskets.

  • Page 70: 10 Operating Instructions

    10 OPERATING INSTRUCTIONS 10.1 Turning on the autoclave  To start the system, turn on the main switch (1), located under the printer cover. 10.2 Opening the door  Move the door handle (1) from position "locked" (2) to position "unlocked"...

  • Page 71: Safety

    10.3 Safety Protective equipment and clothes and other safety instructions should be implemented in accordance with local and national regulations and/or rules! For proper sterilization, do not overload the chamber. Only autoclavable products shall be used; please refer to the manufacturer instructions for sterilization of unknown materials or instruments.
  • Page 72 Enter the Enter Code screen by moving the cursor to your username (Use Down keys) pressing START/STOP key. The following screen will be displayed: 0000 is displayed on the screen with the cursor blinking on the right digit. To increase or decrease the digits, press the UP or DOWN keys.

  • Page 73: Unloading

    10.8 Unloading 1. When the cycle ended, press START/STOP key to verify the status. Message "Cycle Ended" (and the relevant failure message, if applicable) is displayed on the screen. 2. Verify that there is no pressure in the chamber, according to the reading on the display.

  • Page 74: 10.10 Start Cycle By Clock Mode

    are displayed on the screen. Refer to "Displayed Error Messages/Symbols".  Pressing the START/STOP key cancels the displayed message and enables opening the door. If the door is not opened, the vacuum pump will stop automatically after 30 minutes. Warning The load has not completed a sterilization cycle, therefore it is not sterile.

  • Page 75: 11 Service And Maintenance Instructions

    11 SERVICE AND MAINTENANCE INSTRUCTIONS 11.1 Preventive and Scheduled Maintenance The maintenance operations described in this chapter have to be fulfilled periodically to keep the device in good condition and to reduce the breakdown time to a minimum. The user maintenance personnel can easily execute these operations in accordance with further instructions.

  • Page 76: Checking The Safety Valve

    6. Once a year check and tighten all screw connections in the control box, heaters and valves and instrumentation. (to be done by an authorized technician). 7. Once a month clean the strainer as per para. 9.3. Cleaning frequency may be reduced according to experience. 8.
  • Page 77 Pressure-Regulating Nut Rear Wall 7.3.17 ASME-approved type safety valve For the autoclave safety valve, operate the sterilization cycle; for the generator safety valve, operate the generator. Allow a pressure of approximately 200 kPa (29-psi) to build up in the chamber. Operate the safety valve by pulling the ring of the safety valve using a tool, i.e.
  • Page 78 Pressure Relief Nut 5. Press the STOP key to interrupt the operation, and exhaust steam from the chamber. 6. Wait until the pressure decreases to zero, only then can the door be opened. 11.2.2 ASME-approved type safety valve 1. Operate the sterilization cycle according to the manual. 2.
  • Page 79 Attention: Use protective gloves in order not to burn your hands with the hot steam. 8. Press the STOP key to interrupt the operation, and exhaust steam from the chamber. 9. Wait until the pressure decreases to zero, only then can the door be opened.
  • Page 80 At the end of the circular movement of the arms holder, the pin of the locking solenoid slides to its locking position. When the arms moves the last radial 15 mm, one arm activate the microswitch, while another arm (on which there is the angular bracket) pushes the piston of the 3/2 valve to a position that the venting port of the door is blocked.

  • Page 81: Moving The Autoclave

    11.3 Moving the Autoclave 1. Disconnect the power supply cord. 2. Disconnect the water and drain hoses. 3. Disconnect the compressed air hoses (if applicable). 4. Drain the water from the chamber. To avoid injuries, mMoving the autoclave should be done by using a forklift.

  • Page 82: 12 Troubleshooting

    12 TROUBLESHOOTING This troubleshooting chart enables the user to solve minor malfunctions, prior to contacting our service department. Only technical personnel having proper qualifications and holding technical documentation (including a technician manual) and adequate information are authorized to service the apparatus. Message / Symbol / Failure Description...
  • Page 83 Message / Symbol / Failure Description Corrective Action Problem temperature during sterilization cycle. This message is displayed if the temperature raises 7°F (4°C) above High Temp sterilization temperature during the Perform a new cycle. sterilization stage for 2 seconds during sterilization stage.
  • Page 84 Message / Symbol / Failure Description Corrective Action Problem pressure conditions in the chamber, after preset time, during the air removal stage. RTC Error - Set Current Date And Time. Please Set This message is displayed in order If the problem persists, call the Current Date to set the date and the time.
  • Page 85 Message / Symbol / Failure Description Corrective Action Problem Supply water This message is displayed in case of Check and fix the city (tap) error (digitat a city (tap) water supply water supply. input option) malfunction. Compressed This message is displayed in case of air supply a compressed air supply Check and fix the air supply.

  • Page 86: 13 Baskets And Containers

    Model Dia. x Height (mm) Capacity Dia. x Height (mm) Capacity 465 x 235 474 x 350 5050 465 x 350 474 x 235 465 x 350 474 x 350 5075 465 x 235 474 x 235...

  • Page 87: Spare Parts List - 5075

    Cap for ¼” strainer FIL175-0027 Screen, 400 Micron, For Strainer 1/4" FIL175-0046 Gasket, Silicon, 4mm, OD=28mm, GAS082-0008 ID=20mm for 1/4" strainer 15 ACCESORIES LIST Cat. No. Description 5050 5075 Printer (DPU30) THE002-0022 THE002-0022 Printer paper (DPU30) THE002-0025 THE002-0025 Tray TRY505-0001...
