Summary of Contents for Woodpecker UDS-K
-
Page 2: Table Of Contents
Contents 1. The installation and components of equipment ..........1 2. Product function and operation .................4 3. Sterilization and maintenance ................5 4. Precaution ......................9 5. After service ....................10 6. Symbol instruction ..................10 7. Environmental protection ................11 8. Manufacturer’s right ..................11 9. European authorized representative ..............11 10. -
Page 3: The Installation And Components Of Equipment

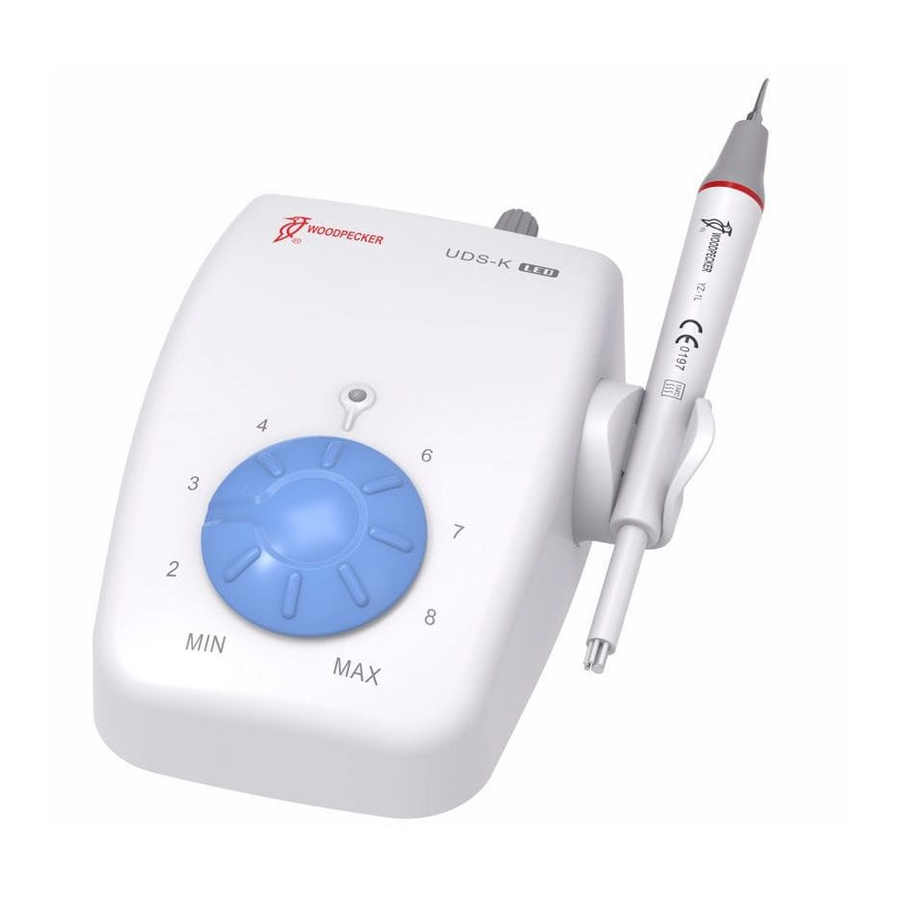

Ultrasonic scaler is composed of electrocircuit, water way and ultrasonic transducer. 1.2.3 Scope of application Ultrasonic scaler UDS-K is used for the dental calculus elimination . 1.3 The main technical specifications 1.3.1 Power supply input: 220-240V ～ 50Hz/60Hz 150mA 1.3.2 Main unit input: 24V~ l.3A 1.3.3 Output primary tip Vibration excursion: ≤100μm... - Page 4 Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide 1.3.18 Working condition: a) Environment temperature: +5°Cto +40°C b) Relative humidity: 30% ~75% c) Atmosphere pressure: 70kPa to 106kPa d) A temperature of the water at the inlet ：...
- Page 5 Instruction for main components of detachable handpiece: Nipple: the nipple can be removed. You can screw out the nipple and clean the pole with alcohol termly. Decorative ring: can be disassembled and cleaned with alcohol regularly, can be autoclaved under the high temperature and pressure. Handpiece: the main part of ultrasonic scaler, can be autoclaved under the high temperature and pressure.
-
Page 6: Product Function And Operation
④ Sterilize after each operation; ⑤ The torque wrench must be cooled naturally after sterilization to avoid scalding when using next time ; ⑥ Keep in a cool ,dry and ventilative place and keep it clean . d) Notice Forbidden sterilization way as following: ①... -
Page 7: Sterilization And Maintenance
intensity should be adjusted during the clinical treatment. 2.2.5 Water adjustment: Step on the foot swtich, the tip begins to vibrate, then turn the water control switch to form fine spray to cool down the handpiece and clean the teeth. 2.2.6 The handpiece can be handled in the same gesture as a pen in hand. - Page 8 3.4 The cleaning of the torque wrench and scaling tip Both of them can be cleaned with an ultrasonic cleaner. 3.5 Troubleshooting and notes Fault Possible causes Solutions The power pipe plug is in Make the plug insert to the The scaling tip doesn’t loose contact.
- Page 9 Fault Possible causes Solutions The water control switch Turn on the water control The scaling tip vibrates is turned off. switch [note 1]. but there is no water There is impurity in the Contact our dealers or us. flowing out when electric-magnetic valve.
- Page 10 Fault Possible causes Solutions The tip hasn't been Screw on the tip to the screwed on to the handpiece tightly (as handpiece tightly. showed in picture 4). The vibration of the tip The tip is loose by because Screw on the tip tightly (as becomes weak.
-
Page 11: Precaution
4.1.14 The power supply is considered as a part of ME equipment.This device can only be equipped with the special power supply of Guilin Woodpecker Medical Instrument Co., Ltd. 4.1.15 The power supply is NOT waterproof. Please keep it dry and away from the water. -
Page 12: After Service
, this will damage the screw thread of the handpiece irretrievably. Please use “Woodpecker”brand scaling tip. 4.1.19 Please select a suitable power when using different type of tips (refer to "TABLE OF OPERATING POWER OF THE TIPS"). -
Page 13: Environmental Protection
Adjustment for the water S o c k e t f o r t h e f o o t switch flow Atmospheric pressure Humidity limitation for for storage storage Date of manufacture Manufacturer Follow Instructions for Used indoor only Can be autoclaved 24VAC power supply socket Water entrance pressure... -
Page 14: Emc-Declaration Of Conformity
10. EMC-Declaration of conformity... -
Page 17: Statement
The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. -
Page 18: Table Of Operating Power Of The Tips
TABLE OF OPERATING POWER OF THE TIPS Scaling Endodontics Tip Model Power Tip Model Power G 10 G 11 E10D Periodontics Tip Model Power E11D P2LD Cavity Preparation P2RD Tip Model Power... - Page 19 ZMN/WI-09-066 V3.4- 20190910...
