64.2ST E/HY
Electric/Hydraulic Two-Speed Self-Tailing Winch

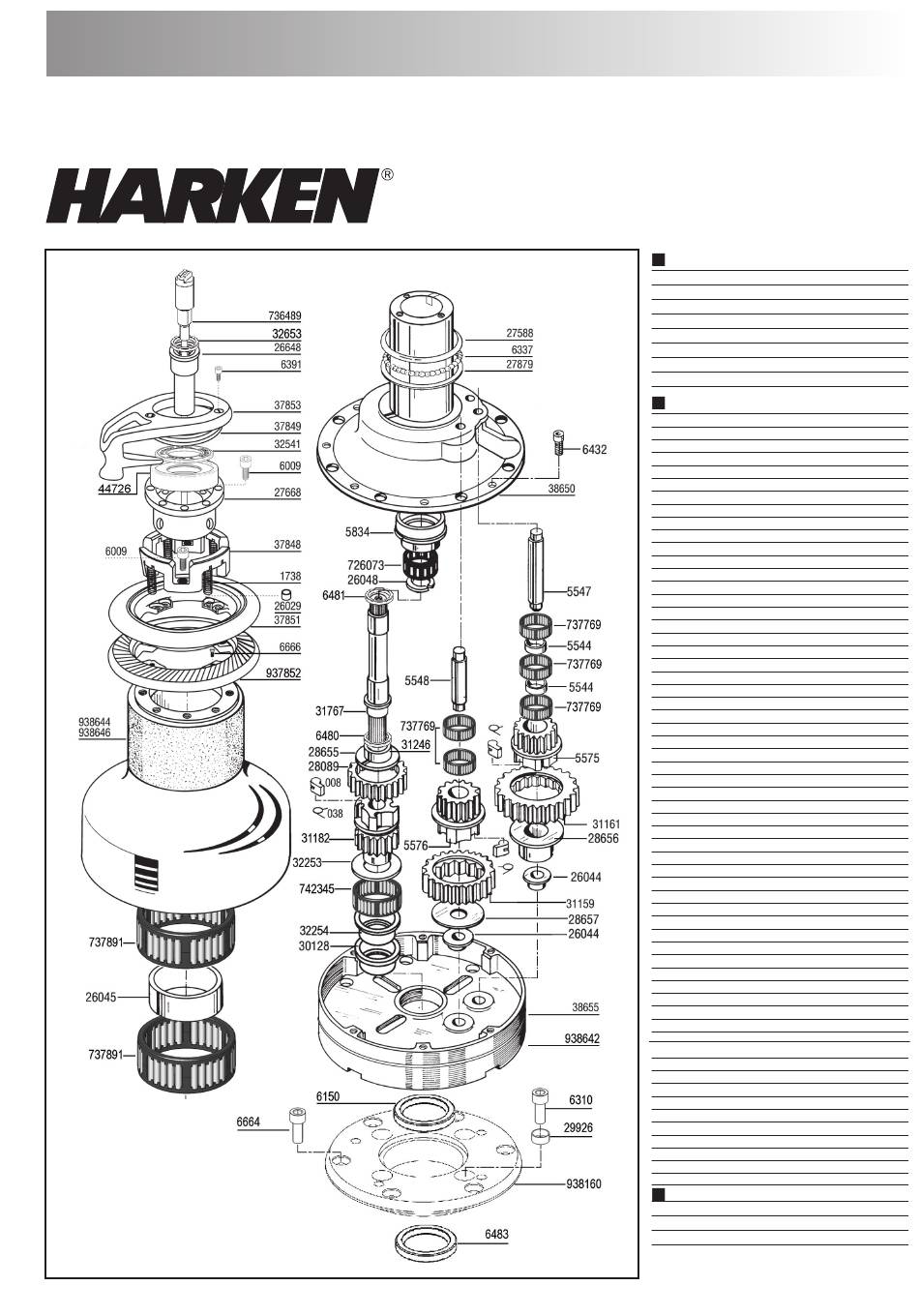

Winch Parts
Installation
Service
Required Tools
Screwdriver
Plastic Head Hammer or Mallet
Small Knife
Brush
Rags
Solvent
Oil
Grease
008
Pawl
038
Pawl spring
1738
Spring
5544
Spacer
5547
Gear Shaft
5548
Gear Shaft
5575
Pawl Gear
5576
Pawl Gear
5834
Bushing
6009
Screw
6150
Base Ring
6310
Screw
6337
Stainless Steel Ball
6391
Screw
6432
Screw
6480
Washer
6481
Washer
6483
Seal
6664
Screw
6666
Screw
26029
Plastic Washer
26044
Bushing
26045
Spacer
26048
Split Washer
26648
Handle Socket
27588
Thrust Bearing
27668
Stripper Arm Support
27879
Thrust Washer
28089
Ratchet Gear
28655
Washer
28656
Bushing
28657
Washer
29926
Plastic Bushing
30128
Bushing
31159
Ratchet Gear
31161
Ratchet Gear
31182
Pawl Gear
31246
Bushing
31767
Spindle
32254
Bushing
32541
Top Cap
32653
Plastic Washer
37848
Spring Support
37849
Cover
37851
Upper Jaw ST
37853
Stripper Arm
38650
Center Stem
38655
Red Line Ring
44726
Logo Support
726073
Bearing
737769
Bearing
737891
Bearing
739711
Chrome Drum
736489
Disconnet Rod Assy
742345
Bearing
937852
Lower Jaw ST
938160
Mounting Plate
938642
Base
938644
Aluminum Drum
Suggested Service Kits
BK4512
10
008 Pawls
10
038 Springs
BK4513
100 ml Grease
When ordering parts, please include a "B"
before each number (i.e. B008).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harken 64.2ST E
Summary of Contents for Harken 64.2ST E
- Page 1 64.2ST E/HY Electric/Hydraulic Two-Speed Self-Tailing Winch Winch Parts Installation Service Required Tools Screwdriver Plastic Head Hammer or Mallet Small Knife Brush Rags Solvent Grease Parts List Pawl Pawl spring 1738 Spring 5544 Spacer 5547 Gear Shaft 5548 Gear Shaft 5575...
- Page 2 Remove Disconnect Rot and Handle Socket Remove Housing Loosen disconnect rod using flethead screw driver as shown Loosen the six (6) allen screws holding the housing to the below alluminium base Remove Disconnect Rod and handle cocket. Lift off housing. Remove Stripper Arm and name Ring Loosen the three (3) allen screws Remove stripper arm...
- Page 3 Disconnect rod must disconnect gearbox when lock-in winch handle is inserted in Handle Socket. Service winch before the sailing season begins and once during Minimum/Maximum Line Diameter Harken winches feature spring-loaded self-tailing jaws which adjust automatically to the following line sizes: Minimum /16" (8 mm) 1 /2"...
- Page 4 1251 E. Wisconsin Ave., Pewaukee, WI 53072 USA • Tel: (262) 691-3320 • Fax: (262) 691-3008 • Web: www.harken.com • Email: harken@harken.com Via della Cerca, 12/14, 22070 Lurago Marinone (CO) Italy • Tel: (39) 031.3523511 • Fax: (39) 031.3520031 • Web: www.harken.it • Email: info@harken.it...
