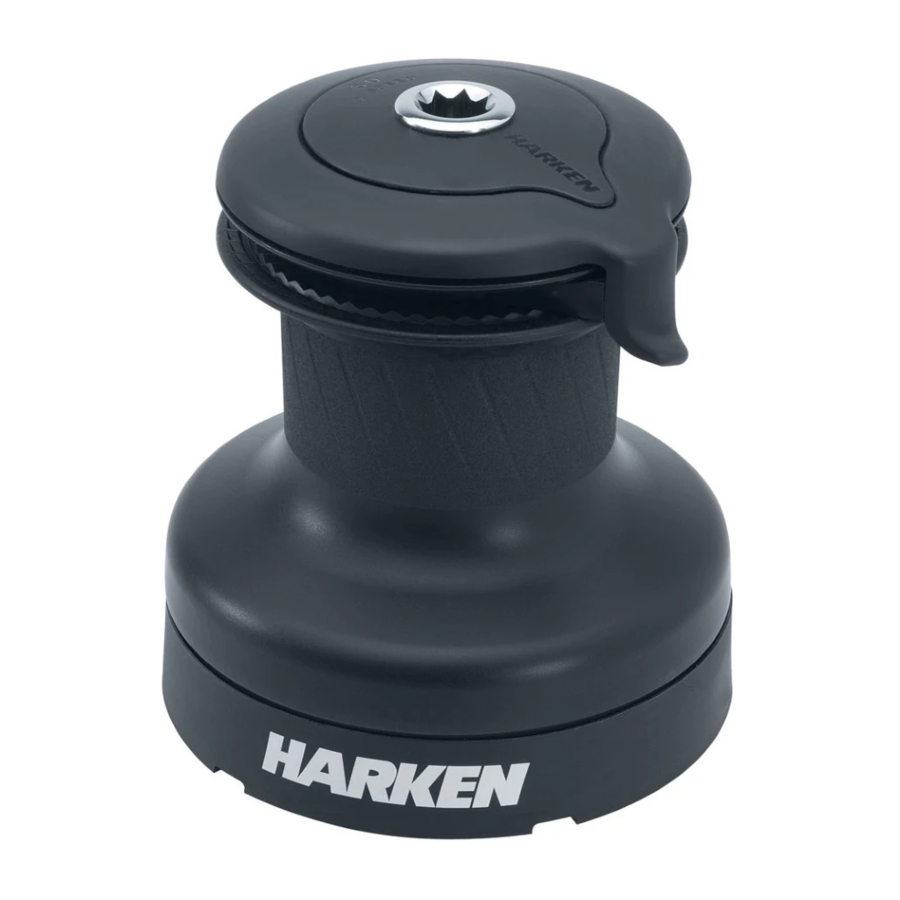

Harken 60.3 ST EL Installation And Maintenance Manual

Powered radial winch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Maintenance Manual
MRW-E
Powered Radial Winch
60.3 ST EL/HY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60.3 ST EL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harken 60.3 ST EL

Summary of Contents for Harken 60.3 ST EL

  • Page 1 Installation and Maintenance Manual MRW-E Powered Radial Winch 60.3 ST EL/HY...
  • Page 2 Radial Winch 60.3 STBBB, STCCC EL/HY Parts List Radial Winch 60.3 STBBB EL/HY Radial Winch 60.3 STCCC EL/HY Exploded view and parts list Horizontal electric motor 12V/24V Vertical electric motor 12V/24V Hydraulic motor 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

  • Page 3: Technical Characteristics

    ® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it ® This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4 Subjecting the winch to loads above the maximum working load can cause the winch to fail or pull off the deck suddenly and unexpectedly during high loads causing severe injury or death. 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E...
  • Page 5 Outline Winch 60.3 ST EL/HY Horizontal electric motor (12 V / 24 V) Vertical electric motor (12 V / 24 V) Hydraulic motor 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

  • Page 6: Installation

    60° from each other. Once you have decided the correct mounting position for the winch on the deck and checked the space available below deck, proceed with the installation. 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

  • Page 7: Installation Procedure

    Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 4 and using socket head (SH) bolts. 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 8 Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 4 and using hexagonal headed (HH) M8 bolts. 11. Remove the drum support n°16 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 9 60° Ø204 B. Remove the winch and drill the six 8.5 mm and a 80 mm diameter holes. C. Bolt the base of the winch to the deck using six M8 bolts (not supplied by Harken ) correctly ® chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
  • Page 10 2. Tighten six M6 precote coated screws ( 8 Nm/ 71 in-lb) 3. Position the reduction gear and motor 4. Tighten the two screws ( 8 Nm/ 71in-lb). Be sure to align the flange. 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

  • Page 11: Electric Equipment

    Dual Function Control Box manual. WARNING! Before installing and using the device, read carefully the Dual Function Control Box manual available on web site www.harken.com Refer to the following chart for wire size: Total distance between winch and battery Winch Current Under 16.4 ft...
  • Page 12 10 Nm (88 in-lb). NOTICE Note that correct electrical contact sequence is: Nut – Cable Terminal – Self-Locking Washer – Lock 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 13 Input/output pipe thread: G 1/2 – depth 15 mm Drainage pipe thread: G 1/4 – depth 12 mm WARNING! Refer to the Hydraulic Power Unit and Control Box manual. WARNING! Refer to the Digital System Switch manual. 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

  • Page 14: Maintenance Table

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken Tech Service at techservice@harken.it ®...
  • Page 15 13. Remove the gear n°6, pawls carrier n°3 the bearings n°34 and 36 and the and the washer n°7 spring n°35 Important: washer n°7 may remain inside the drum support! 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 16 14. Remove the idler and pinion n°14 15. Remove the pawl carrier n°11 16. Remove gear n°10 17. Remove the gear n°2 18. Remove the roller bearing n°12 18. Remove roller bearings n°15 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 17 Use a brush to lightly lubricate all gears, gear pins, teeth and all moving parts with grease. Lightly lubricate the pawls and springs with oil. Do not use grease on the pawls! 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E...
  • Page 18 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
  • Page 19 Before screw the central screw, check the correct position of the o-ring in the assy socket and apply Harken grease. ® In case of doubt concerning the assembly procedure contact Harken® Tech Service: techservice@harken.it 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

  • Page 20: Ordering Spare Parts

    Limited Worldwide Warranty in the Harken Catalogue and on the website ® ® www.harken.com Ordering spare parts Spare parts can be requested from Harken ® described in the Harken Limited Worldwide ® Warranty, indicating the part number in the W XXXXX...

  • Page 21: Exploded View

    Exploded view Exploded view Radial Winch 60.3 STA, STC, STCW EL/HY 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 22 Radial Winch 60.3 STA, STC, STCW EL/HY 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 23 Stripper arm support S414540080 Washer 3 speed S281700097 Red line M0604003 Screw M6x12 UNI 5933 S419020002 Disconnect rod W60.3 *Available with service kit; see website www.harken.com **Winch product sticker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 24 S4155700A0 Stripper arm support S414540080 Washer 3 speed S281700097 Red line M0604003 Screw M6x12 UNI 5933 S419020002 Disconnect rod W60.3 *Available with service kit; see website www.harken.com **Winch product sticker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 25 Washer 3 Speed Winch Serial Number Sticker M0604003 Screw M6x12 UNI 5933 S4155700A0 Stripper arm support S419020002 Disconnect rod W60.3 *Available with service kit; see website www.harken.com **Winch product sticker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 26 Radial Winch 60.3 STBBB, STCCC EL/HY 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 27 Radial Winch 60.3 STBBB, STCCC EL/HY 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 28 S414550081 Bushing Ø22/Ø25x15.5 S281700097 Red line S414540080 Washer 3 Speed M0604003 Screw M6x12 UNI 5933 S419020002 Disconnect rod W60.3 *Available with service kit; see website www.harken.com **Winch product sticker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 29 Stripper arm Housing S414540080 Washer 3 speed S281700097 Red line M0604003 Screw M6x12 UNI 5933 S419020002 Disconnect rod W60.3 *Available with service kit; see website www.harken.com **Winch product sticker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 30 Dowel UNI EN ISO 8752- Ø4x24 M6020097 O-ring 19.1x1.6 S418620001 Disconnect spring S414050080 Flange GearMotor Shaft HO M6010303 Key 8x5x40 UNI 7511 Polarity motor sticker Identification motor sticker Anti-seize Harken ® Grease Axial Threadlocker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...
  • Page 31 Toothed coupling M0620401 Spring pin 5x40 DIN1481 S326490001 Spring S415040080 Bushing S329360082 Washer M0666603 Screw M6x16 UNI 5933 Identification motor sticker Polarity motor sticker Anti-seize Harken ® Grease Axial Threadlocker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

  • Page 32: Hydraulic Motor

    M6007297 Lip seal Ø17xØ30x7 S415010080 Bushing M0621503 Washer D.13 U1751 DIN127 S326490001 Spring M0667103 Screw M12x35 UNI5931 S329360082 Washer M0635303 Screw M8x16 UNI6109 Anti-seize ® Harken Grease Axial Threadlocker 60.3 ST EL/HY Installation and Maintenance Manual - Mod.E Radial Winch...

This manual is also suitable for:

60.3 st hyPerforma 70.3 stp elPerforma 70.3 stp hy60.3 st60.3 sta60.3 stc ... Show all
