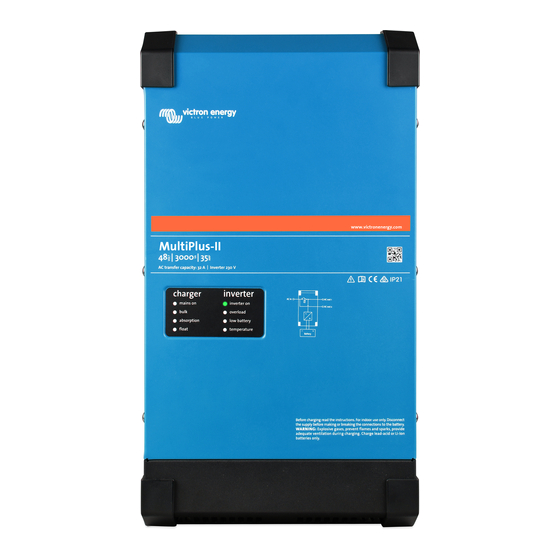

- Page 1 ENGLISH MultiPlus-II 48V 3kVA 120V Rev 02 06/2021...
-
Page 2: Table Of Contents
MultiPlus-II 48V 3kVA 120V Table of Contents 1. IMPORTANT SAFETY INSTRUCTIONS - Save these instructions! ............1 2. Description ..........................2 2.1. Boats, vehicles and other stand-alone applications ..............2 2.2. On-grid and off-grid systems combined with PV ................. 2 2.3. - Page 3 MultiPlus-II 48V 3kVA 120V D. APPENDIX D: Three phase connection ..................30 E. APPENDIX E: Charge algorithm ....................31 F. APPENDIX F: Temperature compensation ..................32 G. APPENDIX G: Dimensions ....................... 33...
-
Page 4: Important Safety Instructions - Save These Instructions
MultiPlus-II 48V 3kVA 120V 1. IMPORTANT SAFETY INSTRUCTIONS - Save these instructions! In general Please read the documentation supplied with this product first, so that you are familiar with the safety signs en directions before using the product. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. -
Page 5: Description
MultiPlus-II 48V 3kVA 120V 2. Description 2.1. Boats, vehicles and other stand-alone applications The basis of the MultiPlus-II is an extremely powerful sine inverter, battery charger and transfer switch in a compact casing. Important features: Automatic and uninterruptible switching In the event of a supply failure or when the generating set is switched off, the MultiPlus-II will switch over to inverter operation and take over the supply of the connected devices. -
Page 6: Battery Charger
MultiPlus-II 48V 3kVA 120V - Stop at a preset battery voltage, or - stop (with a preset delay) after the bulk charge phase has been completed, and/or - stop (with a preset delay) at a preset load level. Autonomous operation when the grid fails... -
Page 7: More On Batteries And Battery Charging
MultiPlus-II 48V 3kVA 120V 2.3.4. More on batteries and battery charging Our book ‘Energy Unlimited’ offers further information on batteries and battery charging, and is available free of charge on our website (see www.victronenergy.com → Support & Downloads → Technical Information). For more information on adaptive charging, please also refer to the Technical Information on our website. -
Page 8: Operation
MultiPlus-II 48V 3kVA 120V 3. Operation 3.1. On/Off/Charger Only Switch When switched to ‘on’, the product is fully functional. The inverter will come into operation and the LED ‘inverter on’ will light up. An AC voltage connected to the ‘AC in’ terminal will be switched through to the ‘AC out’ terminal, if within specifications. The inverter will switch off, the ‘mains on’... -
Page 9: Led Indications
MultiPlus-II 48V 3kVA 120V c. Switch once more rapidly from ‘on’ to ‘charger only’ and leave the switch in this position. 4. On the MultiPlus-II (and, if connected, on the MultiControl panel) the three LEDs ‘Bulk’, ‘Absorption’ and ‘Float’ will now flash 5 times. - Page 10 MultiPlus-II 48V 3kVA 120V Low battery alarm The inverter has switched off due to low battery voltage. The "low battery" LED is blinking. Temperature pre-alarm The internal temperature is reaching a critical level. The "temperature" LED is blinking. Temperature alarm The inverter has switched off due it's internal temperature being too high.
- Page 11 MultiPlus-II 48V 3kVA 120V Bulk charging The AC input voltage is switched through and the charger operates in bulk mode. The "bulk" LED is on. BatterySafe The mains voltage is switched through and the charger is on. However, the set absorption voltage has not yet been reached. The "bulk"...
- Page 12 MultiPlus-II 48V 3kVA 120V PowerAssist The AC input is switched through, but the load requires more current than the preset maximum input current. The inverter is switched on to supply the required additional current. The "mains on" LED is on and the "inverter" LED is blinking.
-
Page 13: Installation
MultiPlus-II 48V 3kVA 120V 4. Installation This product may only be installed by a qualified electrical engineer. 4.1. Location The product must be installed in a dry and well-ventilated area, as close as possible to the batteries. There should be a clear space of at least 10 cm around the appliance for cooling. -
Page 14: Connection Of Battery Cables
MultiPlus-II 48V 3kVA 120V WARNING – RISK OF EXPLOSIVE GASES) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE SERVICING THE UNIT IN THE VICINITY OF THEBATTERY, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY. -
Page 15: Connection Of The Ac Cabling
MultiPlus-II 48V 3kVA 120V Recommended cable lugs Size AWG 2/0 Molex part no. 19221-0243 AWG 2 Molex part no. 19221-0233 * Follow local installation rules. ** Do not locate battery cables in a closed conduit *** “2x” means two positive and two negative cables. -
Page 16: Optional Connections
An earth leakage circuit breaker and a fuse or circuit breaker rated to support the expected load must be included in series with the output, and cable cross-section must be sized accordingly. Victron Energy recommends to use the Blue Sea systems GFCI circuit breakersPN. -
Page 17: Temperature Sensor (Connection Terminal J, See
MultiPlus-II 48V 3kVA 120V 4.4.5. Temperature sensor (connection terminal J, see appendix A) For temperature-compensated charging, the temperature sensor (supplied with the MultiPlus-II) can be connected. The sensor is isolated and must be fitted to the negative terminal of the battery. -
Page 18: Configuration
On delivery, the MultiPlus-II is set to standard factory values. In general, these settings are suitable for single-unit operation. Possibly, the standard battery charging voltage is not suitable for your batteries! Refer to the manufacturer's documentation, or to your battery supplier! MultiPlus-II 48V 3kVA 120V factory settings Inverter frequency 60 Hz Input frequency range 45 –... - Page 19 MultiPlus-II 48V 3kVA 120V Input frequency range Input frequency range accepted by the MultiPlus-II. The MultiPlus-II synchronises within this range with the AC input frequency. The output frequency is then equal to the input frequency. Adjustability: 45 – 65 Hz; 45 – 55 Hz; 55 – 65 Hz Input voltage range Voltage range accepted by the MultiPlus-II.
- Page 20 MultiPlus-II 48V 3kVA 120V The standard setting is the most suitable for Victron Gel Deep Discharge, Gel Exide A200, and tubular plate stationary batteries (OPzS). This setting can also be used for many other batteries: e.g. Victron AGM Deep Discharge and other AGM batteries, and many types of flat-plate flooded batteries.
-
Page 21: Configuring The Multiplus-Ii
When WeakAC is on, the maximum charge current is reduced by approximately 20%. BoostFactor Change this setting only after consulting with Victron Energy or with an engineer trained by Victron Energy! Programmable relay The relay can be programmed for all kinds of other applications, for example as a starter relay for a generator. -
Page 22: Maintenance
MultiPlus-II 48V 3kVA 120V 6. Maintenance The MultiPlus-II does not require specific maintenance. It will suffice to check all connections once a year. Avoid moisture and oil/ soot/vapours, and keep the device clean. Page 19 Maintenance... -
Page 23: Error Indications
MultiPlus-II 48V 3kVA 120V 7. Error Indications With the procedures below, most errors can be quickly identified. If an error cannot be resolved, please refer to your Victron Energy supplier. We recommend to use the toolkit app to link LED alarm codes to a description of the problem/alarm, see https:// www.victronenergy.com/support-and-downloads/software#victron-toolkit-app... -
Page 24: Special Led Indications
MultiPlus-II 48V 3kVA 120V Problem Cause Solution The charger does not MultiPlus-II is in ‘Bulk protection’ Check your batteries. operate. mode thus, the maximum bulk You can reset the error mode by charging time of 10 hours is ‘Bulk’ LED flashes and switching off and back on the exceeded. -
Page 25: Ve.bus Led Indications
MultiPlus-II 48V 3kVA 120V Absorption and float LEDs The battery temperature as measured has an extremely unlikely value. The sensor is flash synchronously probably defective or has been incorrectly connected. The device will remain in normal (simultaneously). operation. If the "inverter on" LED flashes in phase opposition, this a VE.Bus error code (see further on). - Page 26 MultiPlus-II 48V 3kVA 120V All of the conditions below must be met!: 1. The device is in error! (No AC output) 2. Inverter LED flashes (in opposition to any flashing of the Bulk, Absorption or Float LED) 3. At least one of the LEDs Bulk, Absorption and Float is on or flashing...
- Page 27 4. Update the firmware in the last device that was switched on. Internal error. Should not occur. Switch all equipment off, and then on again. Contact Victron Energy if the problem persists. Page 24 Error Indications...
-
Page 28: Technical Specifications
MultiPlus-II 48V 3kVA 120V 8. Technical Specifications MultiPlus-II 48V 3kVA 120V PowerControl & PowerAssist Transfer switch 50 A Maximum AC input current 50 A INVERTER DC Input voltage range 38 - 66 V Output when in inverter mode Output voltage: 120 VAC ± 2% Frequency: 60 Hz ±... - Page 29 MultiPlus-II 48V 3kVA 120V MultiPlus-II 48V 3kVA 120V Weight 19 kg (42 lb) Dimensions (hxwxd) mm 536 x 275 x 147 (21 x 11 x 6 inch) STANDARDS Safety EN-IEC 60335-1, EN-IEC 60335-2-29 Emission, Immunity EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 1.
-
Page 30: Appendix A: Connection Overview
MultiPlus-II 48V 3kVA 120V Appendix A. APPENDIX A: Connection overview Load connection. AC out1. Left to right: N (neutral), PE (earth/ground), L (phase) Load connection. AC out2. Left to right: N (neutral), PE (earth/ground), L (phase) AC input: Left to right: N (neutral), PE (earth/ground), L (phase) Alarm contact: (left to right) NO, NC, COM. -
Page 31: Appendix B: Block Diagram
MultiPlus-II 48V 3kVA 120V Appendix B. APPENDIX B: Block diagram * See table in Chapter 4.2 ‘Recommended DC fuse’ Page 28 APPENDIX B: Block diagram... -
Page 32: Appendix C: Parallel Connection
MultiPlus-II 48V 3kVA 120V Appendix C. APPENDIX C: Parallel connection Page 29 APPENDIX C: Parallel connection... -
Page 33: Appendix D: Three Phase Connection
MultiPlus-II 48V 3kVA 120V Appendix D. APPENDIX D: Three phase connection Page 30 APPENDIX D: Three phase connection... -
Page 34: Appendix E: Charge Algorithm
MultiPlus-II 48V 3kVA 120V Appendix E. APPENDIX E: Charge algorithm 4-stage charging: Bulk Entered when charger is started. Constant current is applied until nominal battery voltage is reached, depending on temperature and input voltage, after which constant power is applied up to the point where excessive gassing is starting (14.4 V resp. 28.8 V, temperature compensated). -
Page 35: Appendix F: Temperature Compensation
MultiPlus-II 48V 3kVA 120V Appendix F. APPENDIX F: Temperature compensation EN Default output voltages for Float and Absorption are at 25 °C. Reduced Float voltage follows Float voltage and Raised Absorption voltage follows Absorption voltage. In adjust mode temperature compensation does not apply. -
Page 36: Appendix G: Dimensions
MultiPlus-II 48V 3kVA 120V Appendix G. APPENDIX G: Dimensions Dimension Drawing - MultiPlus-II PMP482305100 MultiPlus-II 48/3000/35-50 120V 6.2(3x) 32.5 6(4x) 87.5 87.5 49.4 Dimensions in mm Page 33 APPENDIX G: Dimensions...
