Manual

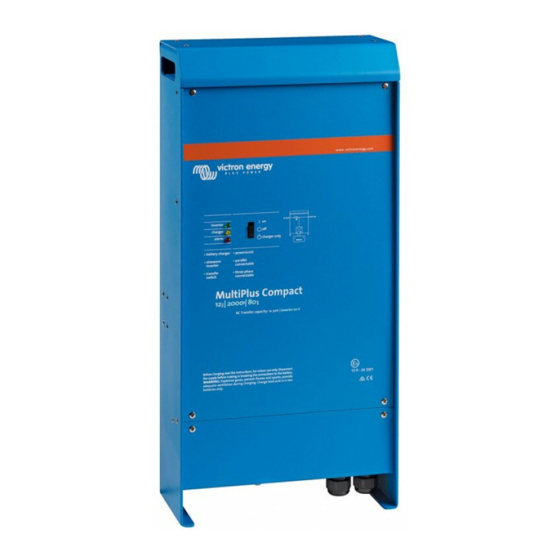

MultiPlus Compact
12 | 2000 | 80-50 120V
24 | 2000 | 50-50 120V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiPlus Compact 12/2000/80-50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Victron energy MultiPlus Compact 12/2000/80-50

  • Page 1 Manual MultiPlus Compact 12 | 2000 | 80-50 120V 24 | 2000 | 50-50 120V...
  • Page 4 1. IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS! WARNING– These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that specified in the operating instructions unless you are qualified to do so. General Please familiarize yourself with the safety features and instructions by first reading the documentation supplied with this product before using the equipment.
  • Page 5 The installation shall be in accordance with the Canadian Electrical Code, Part 1. The wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70. Before applying power, ensure that the available power source matches the configuration settings of the product as described in the manual.
  • Page 6: Transport And Storage

    Ensure that the equipment is used under the correct ambient conditions. Never operate the product in a wet or dusty environment. Ensure there is adequate free space for ventilation around the product and check that the ventilation vents are not blocked. Ensure that the required system voltage does not exceed the product's capacity.
  • Page 7: Battery Charger

    2. DESCRIPTION 2.1 General Multi Compact -functional The MultiPlus Compact gets its name from the multiple functions it can perform. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
  • Page 8 If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, damage due to excessive gassing will be prevented by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
  • Page 9: Operation

    3. OPERATION 3.1 On/Off/Charger Only Switch When switched to "on", the product is fully functional. The inverter will come into operation and the LED "inverter on" will light up. An AC voltage connected to the "AC in" terminal will be switched through to the "AC out"...
  • Page 10 3.3.3 Activating equalisation or forced absorption The MultiPlus can be put into both these states from the remote panel as well as with the front panel switch, provided that all switches (front, remote and panel) are set to “on” and no switches are set to “charger only”.
  • Page 11: Led Indications

    3.4 LED Indications LED off LED flashes LED illuminated Inverter inverter The inverter is switched on and supplies charger power to the load. Battery operation. alarm charger only The inverter is switched on and supplies inverter power to the load. charger Pre alarm: overload, or battery voltage low, or...
  • Page 12 inverter The AC input voltage is switched charger through and the charger operates in bulk or absorption mode. alarm charger only inverter The AC input voltage is switched charger through and the charger operates in float mode. alarm charger only Remote Control panel (optional) Power Control and PowerAssist indication inverter on...
  • Page 13: Installation

    4. INSTALLATION This product should be installed by a qualified electrician. 4.2 Location The product must be installed in a dry and well-ventilated area, as close as possible to the batteries. There should be a clear space of at least 10cm around the appliance for cooling. The product is suitable for wall mounting.
  • Page 14 Each system requires a method of disconnecting the AC and DC circuits. If the overcurrent protection device is a circuit breaker, it will also serve as the disconnect. If fuses are used, separate disconnect switches will be needed between the source and the fuses.
  • Page 15 PERSONAL PRECAUTIONS i. Someone should be within range of your voice or close enough to come to your aid when you work near a lead-acid battery. ii. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. iii.
  • Page 16: Connection Of Battery Cables

    • Locate marine unit away from battery in a separate, well ventilated compartment. • Never place marine unit directly above battery; gases from battery will corrode and damage marine unit. • Never allow battery acid to drip on marine unit when reading gravity or filling battery.
  • Page 17 Remark: Internal resistance is the important factor when working with low capacity batteries. Please consult your supplier or the relevant sections of our book “electricity on board”, downloadable from our website. Procedure Proceed as follows to connect the battery cables: Use an insulated box spanner in order to avoid shorting the battery.
  • Page 18 An earth leakage circuit breaker and a fuse or circuit breaker rated to support the expected load must be included in series with the output, and cable cross-section must be sized accordingly. Victron Energy recommends to use the Blue Sea systems GFCI circuit breakersPN. 309X or 310X...
  • Page 19: Optional Connections

    4.4 Optional Connections A number of optional connections are possible: Undo the four screws at the front of the enclosure and remove the front panel. 4.4.1 Second Battery The MultiPlus Compact has a connection (+) for charging a starter battery. For connection see appendix A.
  • Page 20 4.4.5 Parallel Connection The MultiPlus can be connected in parallel with several identical devices. To this end, a connection is established between the devices by means of standard RJ45 UTP cables. The system (one or more Multis plus optional control panel) will require subsequent configuration (see Section 5).
  • Page 21 5. CONFIGURATION Settings may only be changed by a qualified engineer Carefully read the instructions before changes are made. Batteries should be placed in a dry and well-ventilated area during charging. 5.1 Standard settings: ready for use On delivery, the MultiPlus is set to standard factory values. In general, these settings are suitable for single-unit operation.
  • Page 22 5.2 Explanation of settings Settings that are not self-explanatory are described briefly below. For further information, please refer to the help files in the software configuration programs (see Section 5.3). Inverter frequency Output frequency if no AC is present at the input. Adjustability: 50Hz;...
  • Page 23 AES (Automatic Economy Switch) Instead of the search mode, the AES can also be chosen (with help of VEConfigure only). If this setting is turned ‘on’, the power consumption in no-load operation and with low loads is decreased by approx. 20%, by slightly 'narrowing' the sinusoidal voltage.
  • Page 24 Bulk Protection When this setting is ‘on’, the bulk charging time is limited to 10 hours. A longer charging time could indicate a system error (e.g. a battery cell short-circuit). Not adjustable with DIP switches. AC input current limit These are the current limit settings at which PowerControl and PowerAssist come into operation.
  • Page 25 Not adjustable with DIP switches. BoostFactor Change this setting only after consulting with Victron Energy or with an engineer trained by Victron Energy! Not adjustable with DIP switches. Programmable relay By default, the programmable relay is set as an alarm relay, i.e.
  • Page 26: Configuration By Computer

    5.3 Configuration by computer All settings can be changed by means of a computer or with a VE.Net panel (except for the multi-functional relay and the VirtualSwitch when using VE.Net). Some settings can be changed with DIP switches (see Section 5.2). For changing settings with the computer, the following is required: •...
  • Page 27 5.5 Configuration with DIP switches Some settings can be changed with DIP switches Procedure: a) Turn the Compact on, preferably without load and without AC voltage on the inputs. The Compact will then operate in inverter mode. b) Set the dipswitches as required. c) Store the settings by moving Dip switch 8 to “on”...
  • Page 28 ds3-ds4: Setting charge voltages Absorption Absorption Float Storage ds3-ds4 Time Suitable for voltage voltage Voltage (hours) Gel Victron Deep dS3=off 14.4 13.8 13.2 Discharge dS4=off 28.8 27.6 26.4 Gel Exide A200 (default) 57.6 55.2 52.8 AGM Victron Deep Discharge Gel Victron Long dS3=on 14.1 13.8...
  • Page 29: Maintenance

    5.5.3 Exemplary settings Example 1 is the factory setting ds-1 ds-1 ds-1 ds-2 Panel option ds-2 ds-2 ds-3 Ch. voltage ds-3 ds-3 ds-4 Ch. voltage ds-4 ds-4 ds-5 Frequency ds-5 ds-5 ds-6 Search mode ds-6 ds-6 ds-7 AC-in Limit ds-7 ds-7 →...
  • Page 30: Troubleshooting Table

    DC loads must be disconnected from the batteries and the AC loads must be disconnected from the inverter before the inverter and/ or battery charger is tested. Consult your Victron Energy dealer if the fault cannot be resolved. Problem Cause...
  • Page 31 Problem Cause Solution The charger is The AC input voltage or Ensure that the input voltage not functioning frequency is out of range. is between 95 Vac and 140 Vac, and that the frequency matches the setting. The battery is not Incorrect charging current.
  • Page 32: Technical Data

    8. TECHNICAL DATA 12/2000/80-50 24/2000/50-50 MultiPlus 120V 120V PowerControl / PowerAssist Transfer switch (A) Minimum PowerAssist current (A) INVERTER 9,5 – 17 19 – 33 Input voltage range (V DC) Output voltage: 120 VAC ± 2% Output Frequency: 60 Hz ± 0,1% (1) Cont.
  • Page 33 1) Can be adjusted to 50Hz 2) Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Temperature too high f. 120VAC on inverter output g. Input voltage ripple too high 3) Non linear load, crest factor 3:1 4) At 25 °C ambient 5) Programmable relay which can be set for general alarm, DC undervoltage or genset start signal function...
  • Page 35: Appendix A: Connection Overview

    www.victronenergy.com APPENDIX A: Connection overview...
  • Page 36 APPENDIX A: Connection overview A AC input line L1 and neutral (N) B 2x RJ45 connector for remote panel and/or parallel and 3-phase operation. C AC output line L1 and neutral (N). M8 battery minus connection. G Starter battery positive (TR CHARGE). (starter battery minus: use battery minus cable for connection).
  • Page 37: Installation Information

    www.victronenergy.com Installation information APPENDIX B...
  • Page 38: Appendix C: Parallel Connection

    APPENDIX C: Parallel connection APPENDIX D: Three-phase connection...
  • Page 39 www.victronenergy.com APPENDIX E: split phase connection...
  • Page 40: Appendix F: Charge Curve

    APPENDIX F: Charge curve Bulk-mode: Entered when charger is started. Constant current is applied until the gassing voltage is reached (14.4V resp. 28.8V, temperature compensated). Battery Safe Mode: If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Multi Compact / MultiPlus Compact will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.The Battery Safe Mode is part of the calculated absorption time.
  • Page 41: Appendix G: Temperature Compensation

    www.victronenergy.com APPENDIX G: Temperature compensation Default output voltages for Float and Absorption are at 25°C. Reduced Float voltage follows Float voltage and Raised Absorption voltage follows Absorption voltage. In adjust mode temperature compensation does not apply.
  • Page 43 www.victronenergy.com 255m 125m 520m 95mm...
  • Page 44 Serial number: Version : 07 Date : November 9 , 2021 Victron Energy B.V. De Paal 35 | 1351 JG Almere PO Box 50016 | 1305 AA Almere | The Netherlands General phone : +31 (0)36 535 97 00 E-mail : sales@victronenergy.com...
