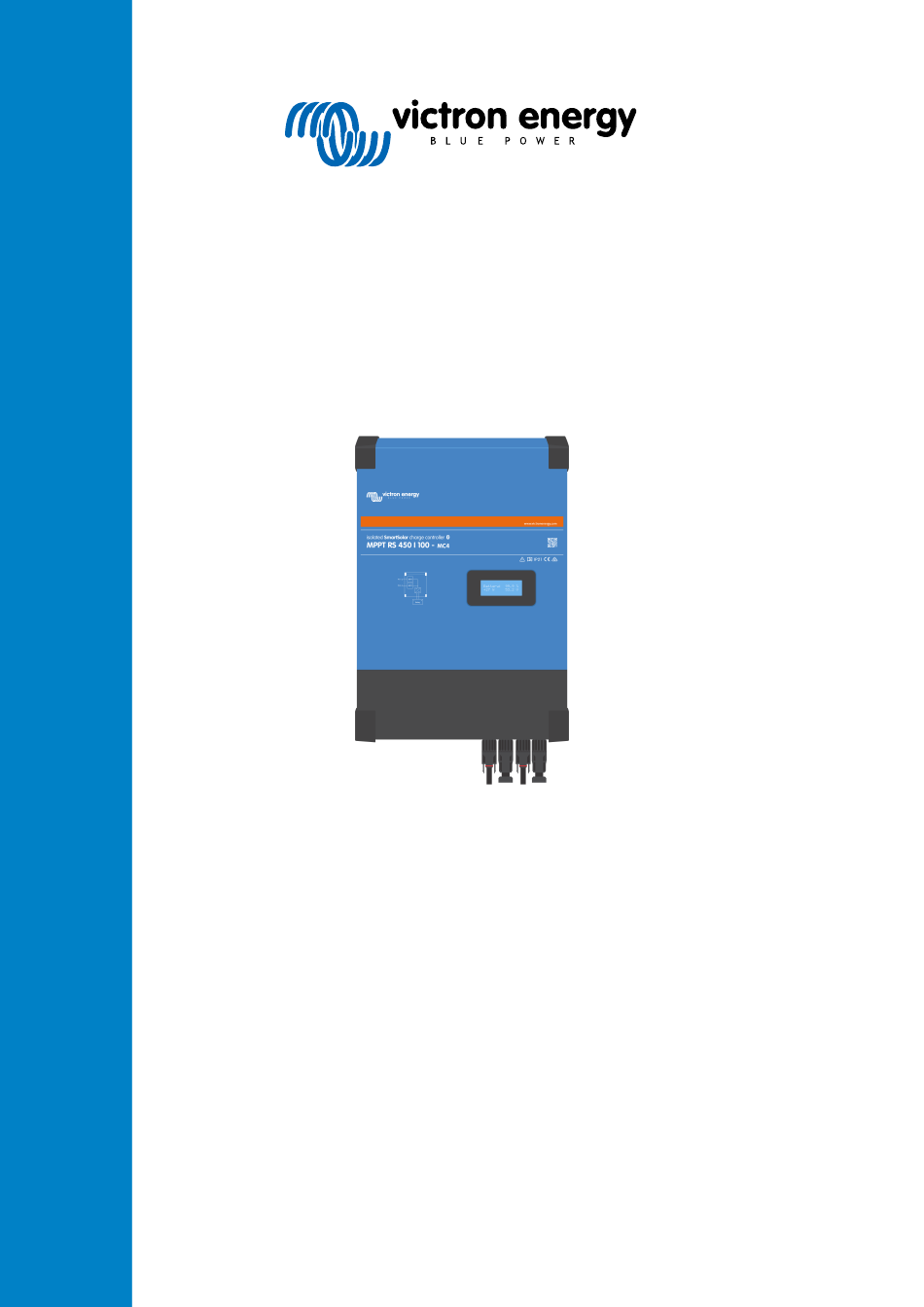

- Page 1 ENGLISH Isolated SmartSolar MPPT RS SmartSolar MPPT RS 450|100 & 450|200 Rev 15 - 03/2025 This manual is also available in HTML5.
-
Page 2: Table Of Contents
Isolated SmartSolar MPPT RS Table of Contents 1. Safety Instructions ........................1 1.1. Meaning of icons ......................2 2. General Description ......................... 3 2.1. Features ........................3 2.2. Interfacing and Communications ..................4 2.3. Setup options ........................ 4 3. Installation ..........................5 3.1. - Page 3 Isolated SmartSolar MPPT RS 6.5.5. Reverse PV polarity ..................... 35 6.6. Batteries are undercharged ....................35 6.6.1. Insufficient solar ....................36 6.6.2. Too much DC load ....................36 6.6.3. Battery cable voltage drop ..................36 6.6.4. Wrong temperature compensation setting ..............37 6.7.
-
Page 4: Safety Instructions
Isolated SmartSolar MPPT RS 1. Safety Instructions ELECTRIC SHOCK HAZARD Please read this manual carefully before the product is installed and put into use. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. -
Page 5: Meaning Of Icons
Isolated SmartSolar MPPT RS If the maximum AC mains operating voltage is higher than the PV array maximum system voltage, then the instructions shall require PV modules that have a maximum system voltage rating based upon the AC mains voltage. Environment and Access Ensure that the equipment is used under the correct ambient conditions. -
Page 6: General Description
Isolated SmartSolar MPPT RS 2. General Description The MPPT RS is a solar charge controller intended to operate with a PV voltage of between 65-450V and designed to charge a 48V battery bank. 2.1. Features Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, a fast MPPT algorithm will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. -
Page 7: Interfacing And Communications
Isolated SmartSolar MPPT RS 2.2. Interfacing and Communications VE.Direct port and two VE.Can ports Either communications port type can be used for a wired data connection to a GX device (e.g. Cerbo GX, Color Control GX) PC or other devices. Note that only one port can be used at a time. Device Display A 4 line LCD back-lit display shows operational information including battery levels, solar yield, and system icons. -
Page 8: Installation
This product contains potentially dangerous voltages. It should only be installed under the supervision of a suitable qualified installer with the appropriate training, and subject to local requirements. Please contact Victron Energy for further information or necessary training. Excessively high ambient temperature will result in the following: ·... - Page 9 Isolated SmartSolar MPPT RS For safety purposes, this product should be installed in a heat-resistant environment. You should prevent the presence of e.g. chemicals, synthetic components, curtains or other textiles, etc., in the immediate vicinity. Try and keep the distance between the product and the battery to a minimum in order to minimise cable voltage losses Page 6 Installation...
-
Page 10: Mppt Grounding, Detection Of Pv Array Insulation Faults & Earth Fault Alarm Notification
Isolated SmartSolar MPPT RS 3.2. MPPT grounding, detection of PV array insulation faults & Earth fault alarm notification The SmartSolar MPPT RS will test for sufficient resistive isolation between PV+ and GND, as well as PV- and GND. If the resistance falls below the threshold, the unit will report an error and send an error signal to the GX device (if connected) for audible and email notifications. -
Page 11: Battery And Battery Lead Requirements
Isolated SmartSolar MPPT RS 3.3. Battery and battery lead requirements In order to utilize the full capacity of the product, batteries with sufficient capacity and battery cables with sufficient cross section should be used. The use of undersized batteries or battery cables will lead to: •... -
Page 12: Solar Input Wiring
Isolated SmartSolar MPPT RS 3.4. Solar input wiring The SmartSolar MPPT RS is not fitted with a PV disconnect switch. An appropriately rated DC disconnection swich must be installed between the PV array and the SmartSolar MPPT RS. Mount the PV disconnection switch in a readily accessible location. Ensure that the DC disconnection switch is properly rated for at least 450V DC. -
Page 13: Solar Array Configuration
Isolated SmartSolar MPPT RS 3.5. Solar array configuration The MPPT RS must keep the individual tracker inputs isolated from each other. That means one solar PV array per input, do not attempt to connect the same array to multiple tracker inputs. Always use genuine Staubli MC4 connectors for the PV connections to the SmartSolar MPPT RS. - Page 14 Isolated SmartSolar MPPT RS Figure 2. MPPT RS PV example diagram Page 11 Installation...
-
Page 15: Cable Connection Sequence
Isolated SmartSolar MPPT RS 3.6. Cable connection sequence First: Confirm correct battery polarity, connect the battery. Second: if required, connect the remote on-off, and programmable relay, and communications cables Third: Confirm correct PV polarity, and then connect the solar array (if incorrectly connected with reverse polarity, the PV voltage will drop, the controller will heat up but will not charge the the battery). -
Page 16: Programmable Relay
Isolated SmartSolar MPPT RS 3.9.2. Programmable relay Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4A up to 35VDC and 1A up to 70VDC 3.9.3. Voltage sense For compensating possible cable losses during charging, two sense wires can be connected directly to the battery or to the positive and negative distribution points. -
Page 17: User I/O Terminal Diagram
Isolated SmartSolar MPPT RS 3.9.6. User I/O terminal diagram Figure 3. User I/O Connector is located on bottom left side of connection area, diagram shows 3 perspectives. Left Side - Top - Right Side 3.9.7. User I/O functions Table 2. User I/O Functions - See Installation Section for more details. Numbe Connection Description... -
Page 18: Victronconnect Setup, Configuration And Operation
Isolated SmartSolar MPPT RS 4. VictronConnect setup, configuration and operation 4.1. Setup The following steps are necessary to successfully connect the SmartSolar MPPT RS via Bluetooth and the VictronConnect app: Make sure that Bluetooth is enabled on your SmartSolar MPPT RS. Bluetooth is enabled by default. -
Page 19: Overview Page
Isolated SmartSolar MPPT RS 4.2. Overview page The main overview page provides at-a-glance information of the SmartSolar MPPT RS. It is divided into three tabs: • Status: Instant readout of the basic state of the MPPT charger. • History: View up to the last 30 days of solar and battery data. •... - Page 20 Isolated SmartSolar MPPT RS History tab: • Up to 30 days of historic data is displayed. • Bar graphs show the solar yield in kWh. The shaded areas highlight the time spend in the different charging stages. • The "Solar panel" area records the total solar yield in kWh, maximum PV power and voltage.
-
Page 21: Settings Page
Isolated SmartSolar MPPT RS 4.3. Settings page The Settings menu is accessible by pressing the cog wheel from the top right of the Overview page. The following menu options are available: • Battery: Adjust the charging parameters for the battery. •... -
Page 22: Product Info
Isolated SmartSolar MPPT RS 4.4. Product info To get to the Product info page, tap the 3 vertical dots icon from the Settings page. • Product: Shows the product name and the model number. • Serial number: Shows the serial number of the SmartSolar MPPT RS. •... -
Page 23: Battery
Isolated SmartSolar MPPT RS 4.5. Battery The Battery settings page allows adjustment of all of the parameters related to the battery which is connected to the SmartSolar MPPT RS. Some options will be greyed out if a fixed battery preset is selected. A "User defined"... - Page 24 Isolated SmartSolar MPPT RS Charge voltages: • Absorbtion voltage: Set the absorbtion voltage. • Float voltage: Set the float voltage. • Equalization voltage: Set the equalization voltage. Equalization: • Automatic equalization: Set-up the frequency of the auto equalize function. Available options are between 1 and 250 days. Equalization is typically used to balance the cells in a lead battery, and also to prevent stratification of the electrolyte in flooded batteries.
- Page 25 Isolated SmartSolar MPPT RS When "Expert mode" is enabled, the following additional settings will become available: Bulk: • Re-bulk voltage offset: Set the voltage offset that will be used over the float voltage setting that will determine the threshold that the charge cycle will restart.
-
Page 26: Solar
Isolated SmartSolar MPPT RS 4.6. Solar This page allows setting the Partial shading detection algorithm and giving each tracker a custom name. PV optimisation: • Partial shading detection: The default setting is enabled. It is recommended to leave this setting enabled. In some specific solar installations it may need to be disabled. - Page 27 Isolated SmartSolar MPPT RS Relay mode One of several relay modes can be selected from the list: • Relay always off: The relay is always off and will not operate under any condition, there are no other configurable options. Use this option if you don't plan to use the relay.
-
Page 28: Display
Isolated SmartSolar MPPT RS 4.8. Display These settings define the behaviour of the front panel LCD backlight and the temperature unit that it will display. • Display backlight: Set up whether the front panel LCD backlight will be on or off. •... -
Page 29: Operation
Isolated SmartSolar MPPT RS 5. Operation 5.1. Startup and shutdown procedure Note: This assumes that the correct installation procedures have been followed, and that the battery and PV polarity were tested and confirmed by the installer. These polarity tests are a critical part of the installation process but are not required during normal start-up or shut-down procedures. -
Page 30: Protections And Automatic Restarts
Isolated SmartSolar MPPT RS The system will display code notifications as required. See troubleshooting section for additional information. In the top right of the display are other system information icons. Communicating on any interface (e.g., Bluetooth, VE.Can, etc.) Bluetooth Enabled, Icon colour changes when connected MPPT Active (Blinking) Error or Warning Battery, fill corresponds with voltage, blinks when empty... -
Page 31: Troubleshooting
Start by checking the common issues described here. If the problem persists, contact the point of purchase (Victron dealer or distributor) for technical support. If you're unsure who to contact or if the point of purchase is unknown, refer to the Victron Energy Support webpage. 6.2. The solar charger is unresponsive The solar charger is unresponsive (inactive) if the display is not illuminated, there is no charging activity, and it is not communicating with the VictronConnect app via Bluetooth or the VE.Direct port. -
Page 32: Pv Voltage Is Too Low
Isolated SmartSolar MPPT RS To find out the reason why the solar charger is off, click on the "Why is the charger off?" text. A pop-up window will appear with some of the explanations and possible remedies. Reasons why the solar charger is off: •... -
Page 33: Disabled In The Settings
Isolated SmartSolar MPPT RS • Night. • Cloud cover or bad weather. • Shading. • Dirty solar panels. • Seasonal differences. • Wrong orientation and/or inclination. • Problems with a panel or panel wiring: • Mechanical or electrical issue with an individual panel (or multiple panels). •... -
Page 34: Pv Input Fuses Blown
Isolated SmartSolar MPPT RS Under normal operating conditions, the small black flag on top of the relay should be in the "OK" position. Additionally, a green LED on the PCB will be lit, indicating that the safety circuits are actively monitoring for hazardous situations. If the SmartSolar MPPT RS is powered on and active, but the green LED is not lit, it indicates that the safety circuits have been triggered. -
Page 35: Solar Charger Externally Controlled
Isolated SmartSolar MPPT RS 6.4. Solar charger externally controlled The solar charger can be controlled by an external device. The external device can stop or reduce the charge current to the battery. This is not a fault but expected behaviour. Managed batteries or an inverter/charger with an external control system like, for example, an ESS system, can control the solar charger via a GX device. -
Page 36: Batteries Are Not Being Charged
Isolated SmartSolar MPPT RS 6.5. Batteries are not being charged This chapter describes situations where the charger is active, but the batteries are not being charged. The VictronConnect app indicates that the charger is active and the charge voltage is correct, but the charge current is zero, or close to zero. There are a number of reasons why this can happen, namely: •... -
Page 37: Battery Not Connected
Isolated SmartSolar MPPT RS 6.5.2. Battery not connected For the solar charger to be able to charge the battery it needs to be connected to the battery. It might look like the battery is connected because the solar charger is able to operate without a battery connected and the VictronConnect app will show a battery voltage and a charge stage, but the charge current is zero or close to zero. -
Page 38: Battery Settings Too Low
Isolated SmartSolar MPPT RS 6.5.3. Battery settings too low • In the VictronConnect app, navigate to the solar charger "Settings" menu and select the "Battery" menu. • Check if the "Max. charge current" value is set correctly and corresponds with the battery manufacturer's recommendation. •... -
Page 39: Insufficient Solar
Isolated SmartSolar MPPT RS 6.6.1. Insufficient solar Check if the solar charger reaches the float charge stage each day. To investigate look at the history tab in the VictronConnect app. The histogram displays how long the batteries have been charged in the Bulk, Absorption and Float stage each day, for the last 30 days. -
Page 40: Wrong Temperature Compensation Setting
Isolated SmartSolar MPPT RS Measure the battery voltage on the terminals of the battery using a multimeter. Compare the two voltages to see if there is a voltage difference. 6.6.4. Wrong temperature compensation setting If the temperature compensation coefficient is set incorrectly, the batteries can be undercharged or be overcharged. The temperature compensation can be set via VictronConnect or via a display. -
Page 41: Pv Problems
Isolated SmartSolar MPPT RS A battery contains a number of cells that are connected in series. When a battery is old or has been damaged, a likely scenario is that one of these cells is not operational anymore. When the faulty battery is charged, the damaged cell will not accept charge and the remaining cells will receive the broken cell’s charge voltage and thus will be overcharged. -
Page 42: Full Rated Output Not Reached
Isolated SmartSolar MPPT RS The VictronConnect App can be used to see what the maximum PV power was for any of the last thirty days. This information could be used to diagnose problems with less than expected PV power or daily yield. 6.8.2. -
Page 43: Pv Voltage Too High
Isolated SmartSolar MPPT RS For more information on system grounding, see the "System grounding" chapter in the Wiring Unlimited book. The SmartSolar MPPT RS connection between PV DC and battery DC is fully galvanically isolated. 6.8.8. PV voltage too high The PV voltage should never exceed the maximum rated PV voltage of the solar charger. -
Page 44: Ve.direct Port
Isolated SmartSolar MPPT RS If still unresolved, refer to the VictronConnect app manual. • PIN code lost If you have lost the PIN code, you will need to reset the PIN code to its default PIN code. This is done in the VictronConnect app: Navigate to the device list of the VictronConnect app. -
Page 45: Error Code Overview
Isolated SmartSolar MPPT RS 6.10. Error code overview The error codes are displayed on the VictronConnect app, display or connected GX device. For the most up-to-date version of this list see this link: https://www.victronenergy.com/live/mppt-error-codes. Note that not all of these errors might apply to your product. Some error types only apply to solar chargers, DC-DC chargers or AC chargers or are specific only to certain models within a charger group. - Page 46 Isolated SmartSolar MPPT RS Error 21 - Current sensor issue • The current measurement is out of range. Disconnect all wires, and then reconnect all wires, to make the charger restart. Also, make sure the minus on the MPPT charge controller (PV minus/Battery minus) is not bypassing the charge controller.
- Page 47 Isolated SmartSolar MPPT RS Multi (connected to the grid): • The ground wire in the installation is not present or not connected properly. • Line and Neutral are swapped in the installation. This error will not auto-reset. Check the installation and restart the unit using the power-switch. Error 50, Error 52 - Inverter overload, Inverter peak current •...
- Page 48 Isolated SmartSolar MPPT RS Our Chargers and Solar Chargers automatically configure themselves to be BMS-controlled when they are connected to one; either direct or via a GX Device. And that setting is semi-permanent: power cycling the charger will not reset it. When removing charger from such system, and reusing it in a system without BMS, that setting needs to be cleared.
- Page 49 Isolated SmartSolar MPPT RS Error 119 - Settings data lost • The charger cannot read its configuration, and stopped. This error will not auto-reset. To get it working again: First, restore it to factory defaults. (top right in Victron Connect, click on the three dots) Disconnect the charge controller from all power-sources Wait 3 minutes, and power up again.
-
Page 50: Technical Specifications
Isolated SmartSolar MPPT RS 7. Technical Specifications Isolated SmartSolar MPPT 450/100-MC4 450/200-MC4 CHARGER Programmable charge voltage Minimum: 36 V range Maximum: 60 V Charge voltage'absorption' Default : 57.6 V (adjustable) Charge voltage 'float' Default : 55.2 V (adjustable) Maximum charge current 100 A 200 A Battery temperature sensor... -
Page 51: Compliance
Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://ve3.nl/7R. UK PSTI STATEMENT OF COMPLIANCE: We, Victron Energy B.V., confirm that our product SmartSolar MPPT RS complies with the security requirements outlined in Schedule 1 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023. -
Page 52: Appendix
Isolated SmartSolar MPPT RS 8. Appendix Page 49 Appendix... -
Page 53: Appendix B : Block Diagram
Isolated SmartSolar MPPT RS 8.1. Appendix B : Block Diagram Page 50 Appendix... -
Page 54: Appendix C : Example System Schematic And Wiring Diagram
Isolated SmartSolar MPPT RS 8.2. Appendix C : Example system schematic and wiring diagram 8 x 270W 60 cell panels in 11 x 270W 60 cell panels in series – 304 Voc series – 418 Voc AC Input Supply - Either Grid Generator Critical AC Loads... -
Page 55: Appendix D : Dimensions
Isolated SmartSolar MPPT RS 8.3. Appendix D : Dimensions Dimension Drawing - SS MPPT 450/100 SCC145110510 SmartSolar MPPT RS 450/100-MC4 310.4 6.2(3x) 32.5 43.4 98.3 87.5 87.5 442.3 103.5 26.3 119.2 Dimensions in mm Dimension Drawing - SmartSolar MPPT RS SCC145120510 SmartSolar MPPT RS 450/200-MC4 435.3...
