PROAIM Astra Assembly Manual

4ft camera jib crane

Astra 4ft Camera Jib Crane

(JB-AS04-00)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything

that is listed below.

Vertical Counterweight Bar

LCD Mounting Bracket

Tightening knob

4ft Jib – comes with Camera Mount Plate

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable

Table of Contents

Need help?

Do you have a question about the Astra and is the answer not in the manual?

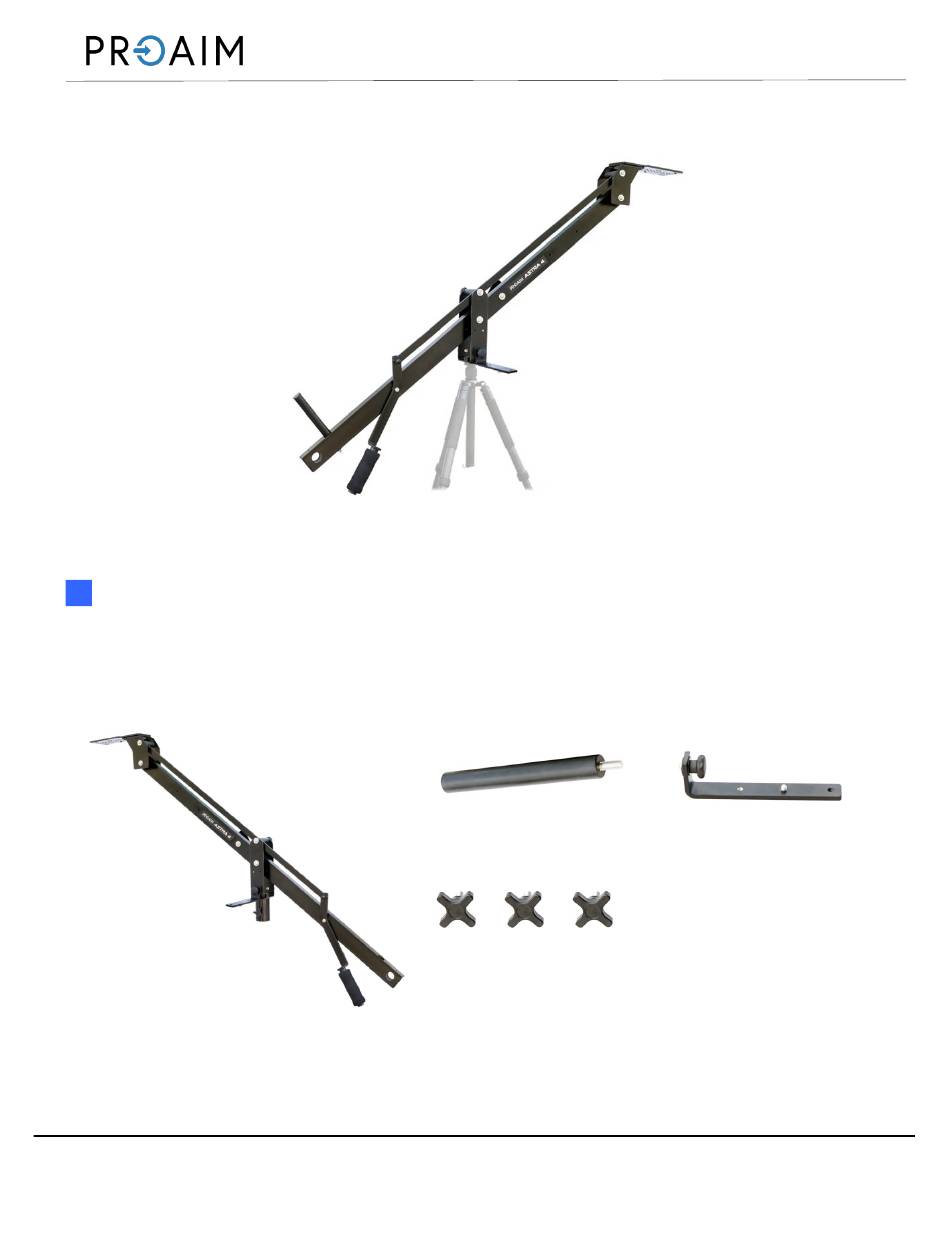

Page 1 Astra 4ft Camera Jib Crane (JB-AS04-00) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Astra Jib Setup 1. Using tripod head  Remove the quick release plate from the tripod head. Screw into the crane’s mount, located on the rear section.1/4”-20 &3/8”-16 threads available. Do not attempt to use the tilt function on the fluid head with the crane attached.
Page 3 Mounting Counterweights  After the camera is mounted, it is safe to add counterweights to bring the crane into balance. First, attach the bar that the counterweights will be placed on. Connect the vertical counterweight bar to the bolt. NOTE: When the proper amount of counterweight has been added, the crane will rest in a horizontal position.

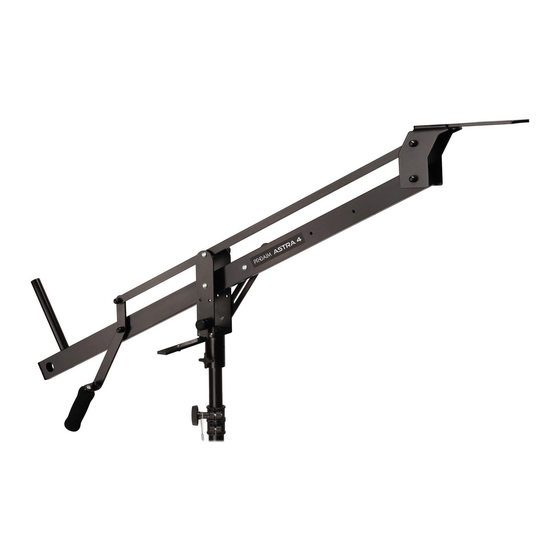

Page 4 To attach the monitor bracket, screw the knob into the threaded hole on the crane’s tripod mount. YOUR PROAIM ASTRA 4FT CAMERA JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
