1

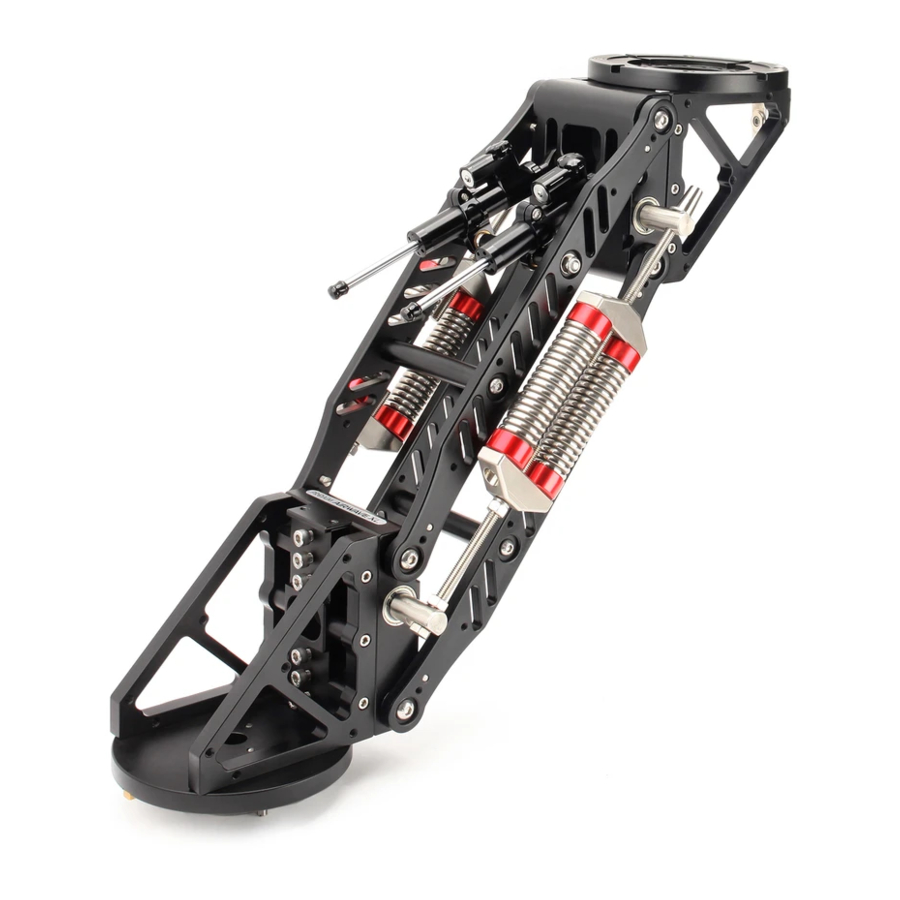

Airwave XL Shock Absorber Arm
(VI-APRO-00)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Airwave XL Dual Spring
Shock Absorber Arm
Flight Case
Base Plate
Castle Ring
Castle Nut Wrench
2x Scaff Clamps
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM Airwave XL Shock Absorber Arm
Summary of Contents for PROAIM Airwave XL Shock Absorber Arm
- Page 1 Airwave XL Shock Absorber Arm (VI-APRO-00) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Airwave Arm Setup Mount Isolator Arm onto Mitchell stand and fix it with Castle Ring by twisting. Then tighten Castle Ring with the help of provided Castle Nut Wrench. Spring Adjustment Loosen locking nuts of each spring. Turn leveling springs clockwise to add tension as well as to raise the arm, turning it anti-clockwise will release tension and lower...
- Page 3 NOTE: According to your need, you can attach your Gimbal Mount both on top and bottom of Mitchell Plate. After attaching your Ronin mount to Mitchell Plate, tighten it with Castle Nut Wrench. Then, Mount the setup, as shown in image. Attaching Base Plate NOTE: For attaching the Base Plate, firstly you need to detach Mitchell plate from Arm.
- Page 4 Then attach Shock absorbing Arm with Pole and tighten the Clamps appropriately to secure the Arm. YOUR PROAIM AIRWAVE XL SHOCK ABSORBER ARM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
