What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.

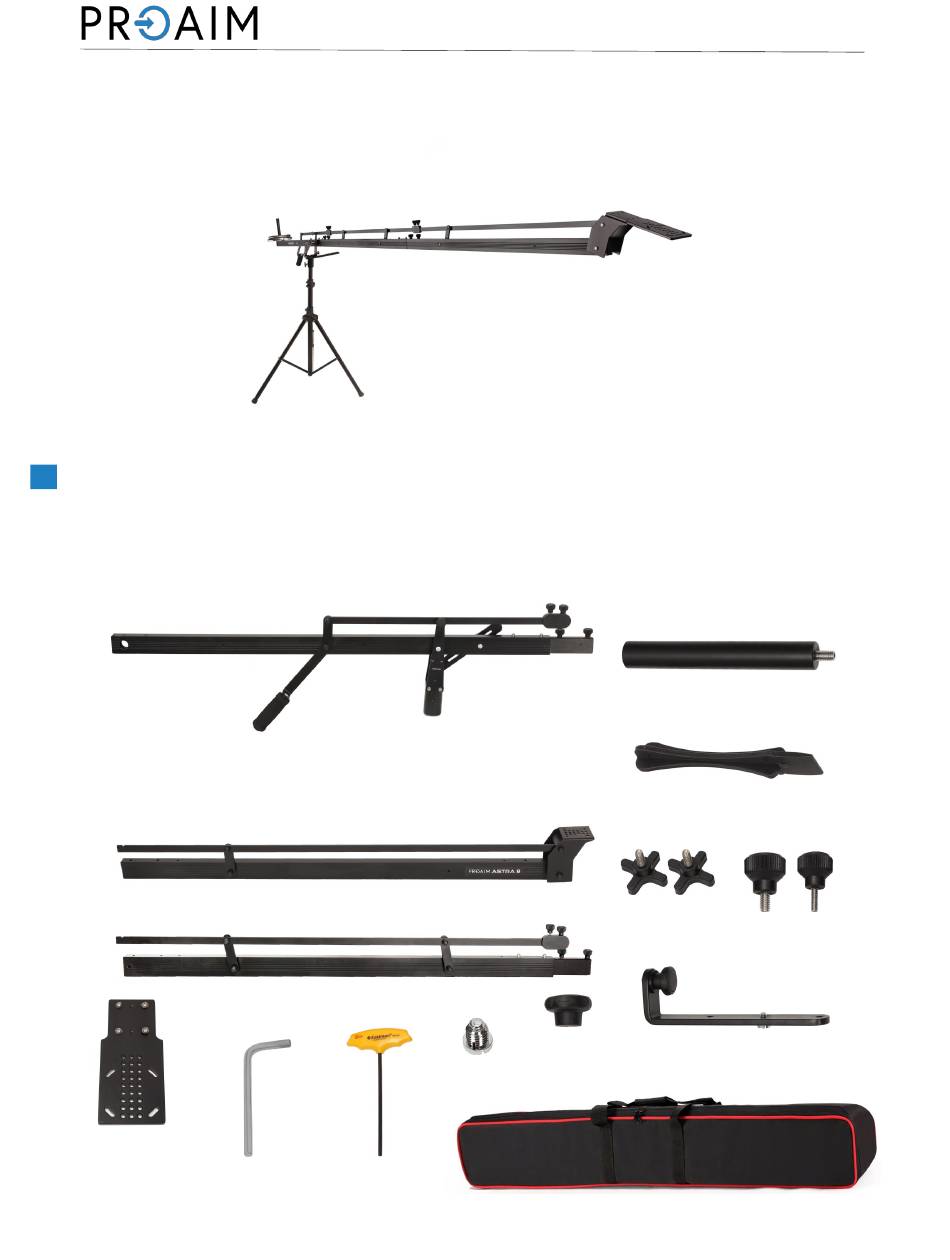

Astra comes with a back section, a front section with your
choice of camera mount, and vertical and horizontal
counterweight bars.
Camera Mount With Over Slung Mount
Extension
Camera Plate
6x10 mm
(4x screw)

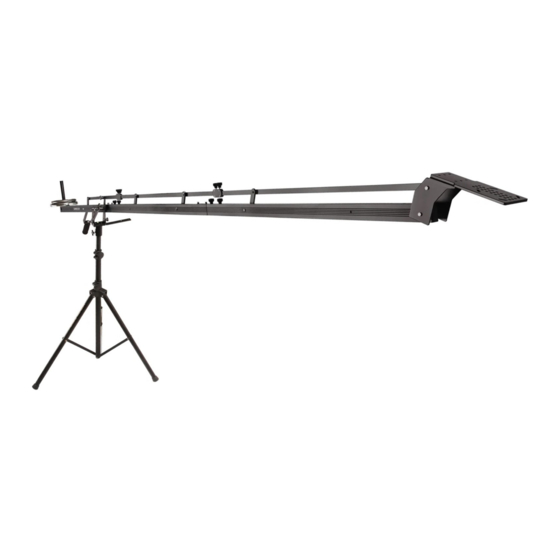

Astra Camera Jib Crane
A s s e m b l y M a n u a l
Extension Section - 4f
4mm
5mm L-type
Allen Key
Allen key
Vertical Counterweight Bar
Tightening
Female
LCD Mounting Bracket
knob
Bolt
Storage Case
(JB-AS12-00)
Plastic screw Driver
knob
Round knob
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM JB-AS12-00
Summary of Contents for PROAIM JB-AS12-00
- Page 1 Astra Camera Jib Crane (JB-AS12-00) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 3 • After inserting the connecting bar, insert the knob into the coupler and tighten it into the groove. Camera Setup • Remove the extension camera plate screw with the help of a 4mm Allen key. • Match both the threads of the camera mounting head as well as the extension camera plate properly, and secure the screw with the help of a 4mm Allen Key.
- Page 4 Counterweight Bar • Insert the counterweight bar into the weight closure present at the back end of the camera jib, and tighten the counterweight properly. • Use the weights according to your camera weight setup requirements. NOTE: When the proper amount of counterweight has been added, the crane will rest in a horizontal position.
- Page 5 LCD Mounting Bracket & LCD Monitor Setup • Remove the Female Knob and the bolt from the LCD Mounting Bracket. • To attach the mounting bracket to the jib stand, insert the bolt matching to the provided hole of the Astra camera jib. •...
- Page 6 Remove Astra Camera Jib • Remove the Astra camera jib from the jib stand, to align it on the tripod head and remove both of its screw with the help of a 4mm Allen key. • Remove the jib crane from the jib stand. Using Tripod Head Setup •...
- Page 7 • Camera (Not-Included) is properly attached with camera plate. YOUR PROAIM ASTRA CAMERA JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 8 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
