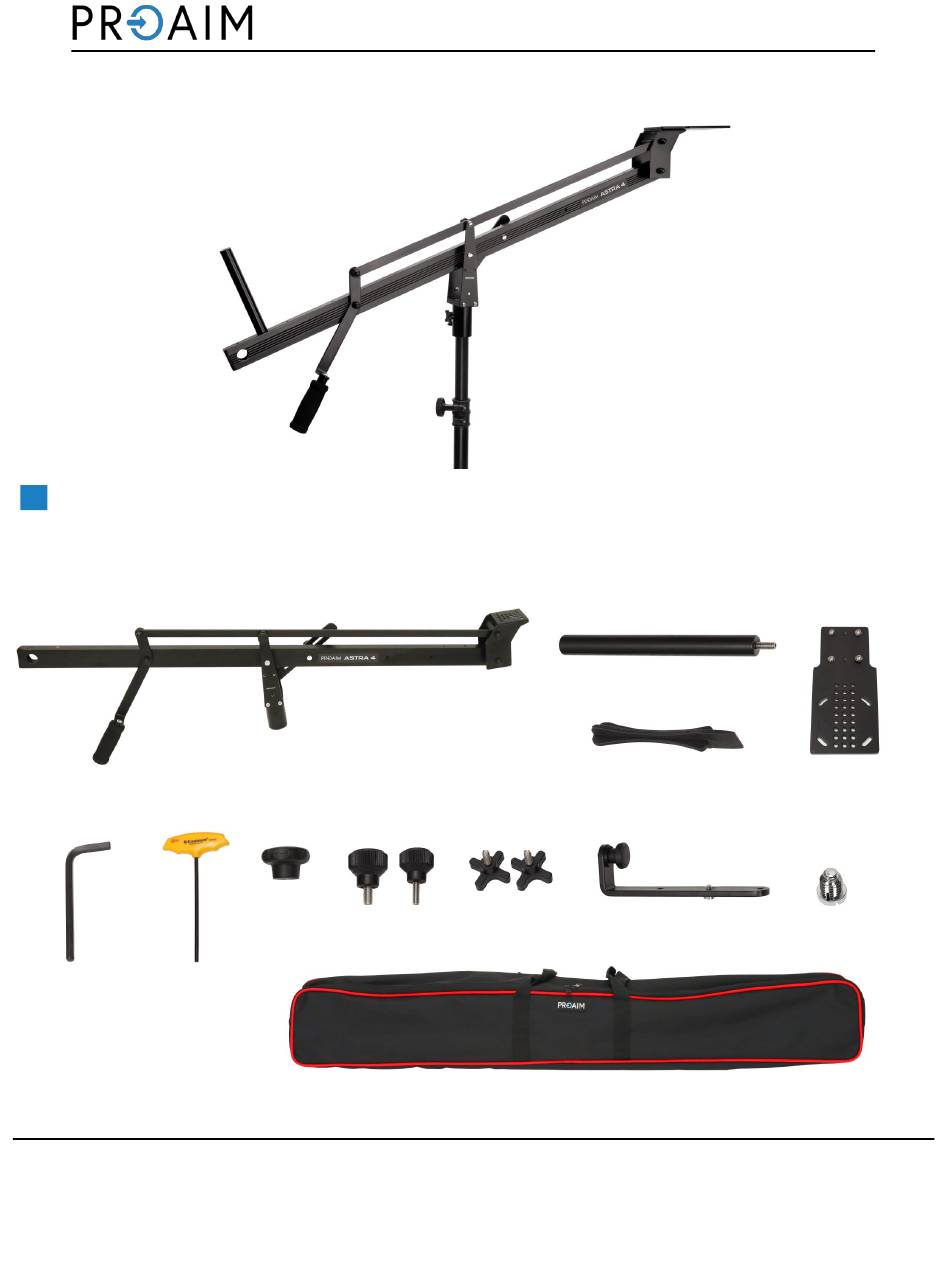

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
4mm L-type
4mm
Allen Key
Allen key
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Astra Camera Jib Crane
A s s e m b l y M a n u a l
Astra Camera Jib crane(4ft)
comes with Camera Mount Plate
Female
knob
Round knob
All rights reserved.
statutes or in writing by the Publisher.
Vertical Counterweight Bar
Plastic screw Driver
Tightening
knob
LCD Mounting Bracket
Storage Case
(JB-AS04-00)
Extension
Camera Plate
6x10 mm
(4x screw)
Bolt
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM JB-AS04-00
Summary of Contents for PROAIM JB-AS04-00
- Page 1 Astra Camera Jib Crane (JB-AS04-00) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Astra jib Setup • Mount the camera jib crane (4ft) above the stand, matching the center of the jib stand. • After the jib is aligned, tighten the jib properly with the help of the tightening knob. Camera Setup • Remove the extension camera plate screw with the help of a 4mm Allen key.
- Page 3 • Now insert the bolt (1/4”) into the thread of the Extension Camera Plate and the camera’s (Not-Included) thread hole from the bottom & properly secure it with the help of a screwdriver (Not Included). Counterweight Bar • Insert the counterweight bar into the weight closure present at the back end of the camera jib, and tighten the counterweight properly.
- Page 4 BELOW IS THE MANUAL TILT FUNCTIONALITY OF THE CAMERA WARNING: When tilted manually, always maintain a control on the camera. The front heavy camera might move forward abruptly without notice, You need to be very careful at this point. For Upper Angle For Straight Angle For lower Angle...
- Page 5 LCD Mounting Bracket & LCD Monitor Setup • Remove the Female Knob and the bolt from the LCD Mounting Bracket. • To attach the mounting bracket to the jib stand, insert the bolt matching to the provided hole of the Astra camera jib. •...
- Page 6 Remove Astra Camera Jib • Remove the Astra camera jib from the jib stand, to align it on the tripod head and remove both of its screw with the help of a 4mm Allen key. • Remove the jib crane from the jib stand. Using Tripod Head Setup •...
- Page 7 • Your Astra camera jib setup is ready. YOUR PROAIM ASTRA CAMERA JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 8 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
