18 | Piping installation

18.4.6 Step 6a: To automatically charge refrigerant

Installer and user reference guide
104
p < p >
A
b
R410A
a c

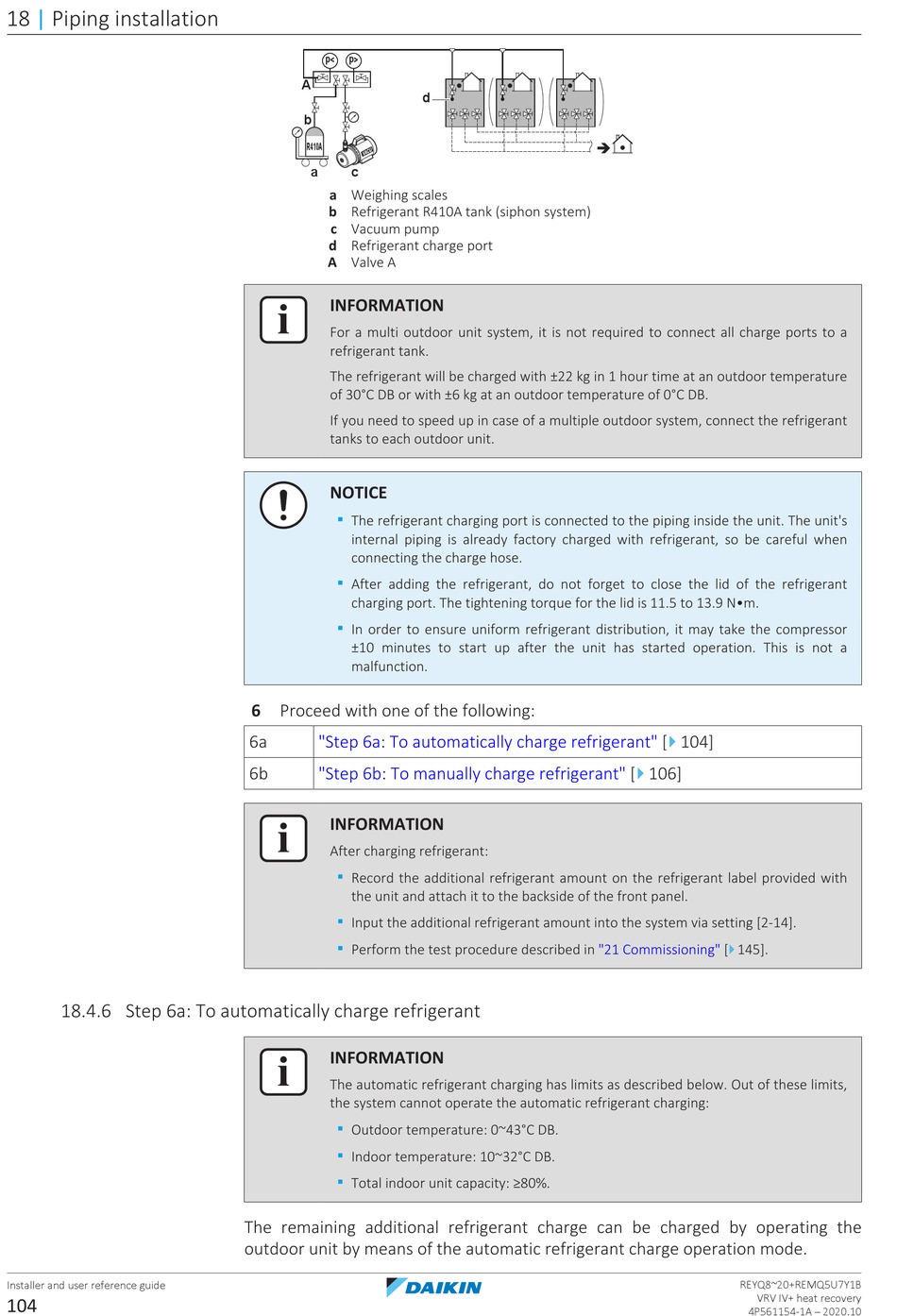

a Weighing scales
b Refrigerant R410A tank (siphon system)
c Vacuum pump
d Refrigerant charge port
A Valve A
INFORMATION
For a multi outdoor unit system, it is not required to connect all charge ports to a
refrigerant tank.
The refrigerant will be charged with ±22 kg in 1 hour time at an outdoor temperature
of 30°C DB or with ±6 kg at an outdoor temperature of 0°C DB.
If you need to speed up in case of a multiple outdoor system, connect the refrigerant
tanks to each outdoor unit.
NOTICE
▪
The refrigerant charging port is connected to the piping inside the unit. The unit's
internal piping is already factory charged with refrigerant, so be careful when
connecting the charge hose.
▪
After adding the refrigerant, do not forget to close the lid of the refrigerant
charging port. The tightening torque for the lid is 11.5 to 13.9 N•m.
▪
In order to ensure uniform refrigerant distribution, it may take the compressor
±10 minutes to start up after the unit has started operation. This is not a
malfunction.
6 Proceed with one of the following:
6a "Step 6a: To automatically charge
6b "Step 6b: To manually charge
INFORMATION
After charging refrigerant:
▪
Record the additional refrigerant amount on the refrigerant label provided with
the unit and attach it to the backside of the front panel.
▪
Input the additional refrigerant amount into the system via setting [2‑14].
▪
Perform the test procedure described in "21 Commissioning" [
INFORMATION
The automatic refrigerant charging has limits as described below. Out of these limits,
the system cannot operate the automatic refrigerant charging:
▪
Outdoor temperature: 0~43°C DB.
▪
Indoor temperature: 10~32°C DB.
▪
Total indoor unit capacity: ≥80%.
The remaining additional refrigerant charge can be charged by operating the
outdoor unit by means of the automatic refrigerant charge operation mode.
d
refrigerant" [
refrigerant" [
4
104]
4
106]
4 145].
REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10
