18 | Piping installation
To close the stop valve
To handle the stop valve cover
To handle the service port
Tightening torques
Installer and user reference guide
90

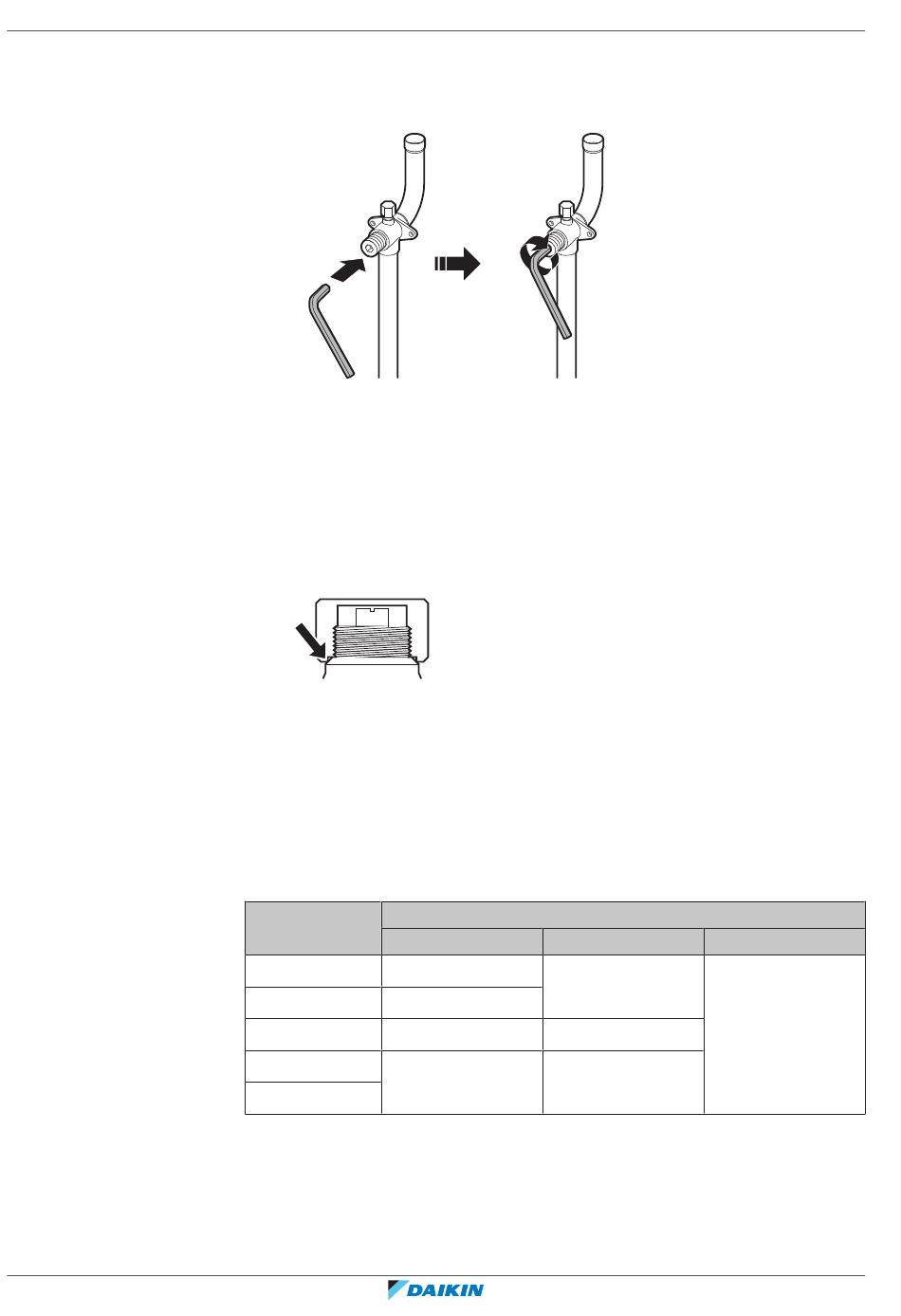

1 Remove the stop valve cover.
2 Insert a hexagon wrench into the stop valve and turn the stop valve clockwise.
3 When the stop valve cannot be turned any further, stop turning.
4 Install the stop valve cover.
Result: The valve is now closed.
▪ The stop valve cover is sealed where indicated by the arrow. Do NOT damage it.
▪ After handling the stop valve, tighten the stop valve cover securely, and check for
refrigerant leaks. For the tightening torque, refer to the table below.
▪ Always use a charge hose equipped with a valve depressor pin, since the service
port is a Schrader type valve.
▪ After handling the service port, make sure to tighten the service port cover
securely. For the tightening torque, refer to the table below.
▪ Check for refrigerant leaks after tightening the service port cover.
Stop valve size
(mm)
Ø9.5
Ø12.7
Ø15.9
Ø19.1
Ø25.4
Tightening torque (N•m) (when opening or closing)
Valve body Hexagonal wrench
5~7
8~10
14~16
19~21
Service port
4 mm 10.7~14.7
6 mm
8 mm
REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10
