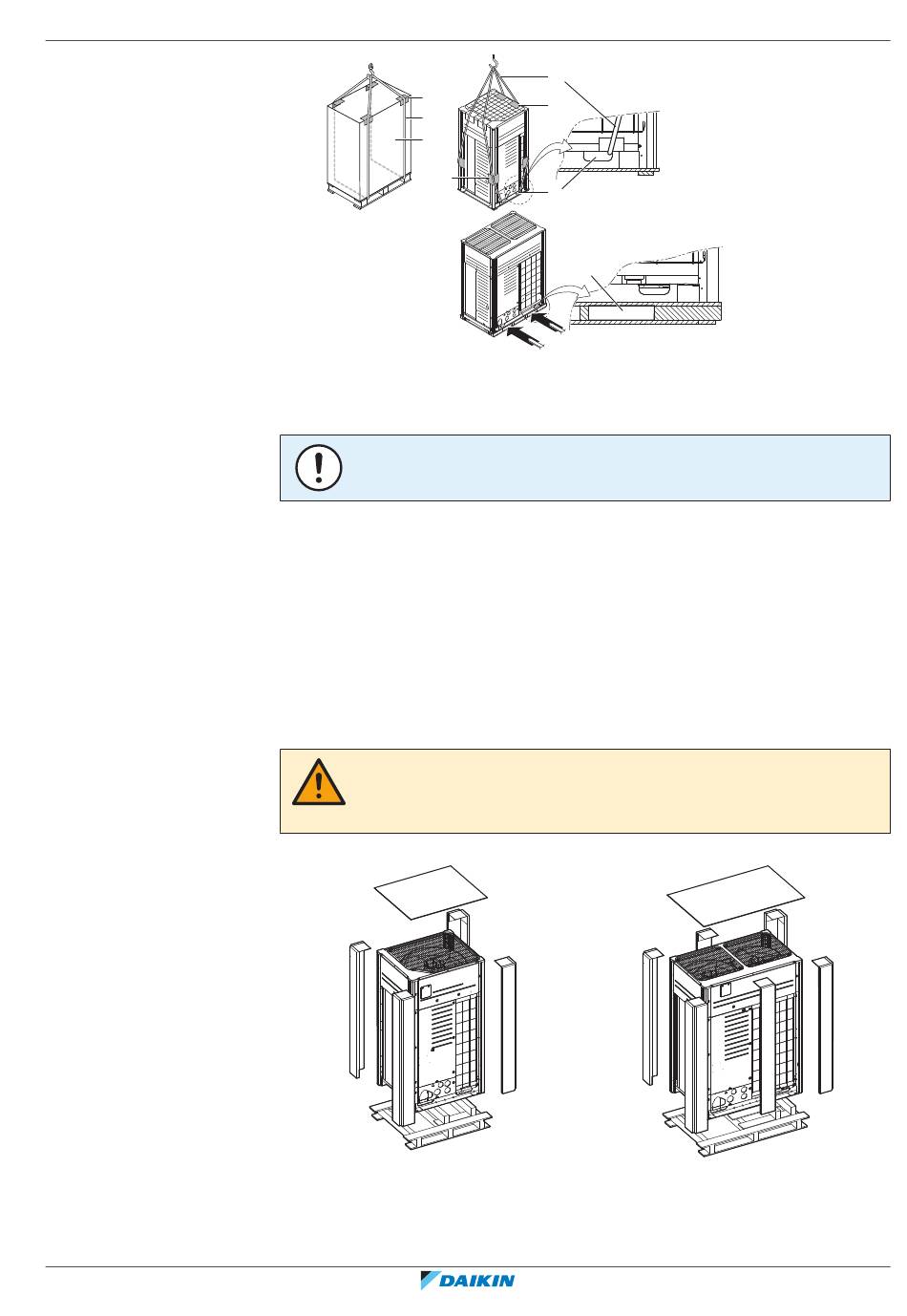

15.3 To unpack the outdoor unit

REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10
d
b
a
d
a Packaging material
b Belt sling
c Opening
d Protector
NOTICE
Use a belt sling of ≤20 mm wide that adequately bears the weight of the unit.
▪ A forklift can only be used for transport as long as the unit remains on its pallet
as shown above.
Remove the packaging material from the unit:
▪ Take care not to damage the unit when removing the shrink foil with a cutter.
▪ Remove the 4 bolts fixing the unit to its pallet.
WARNING
Tear apart and throw away plastic packaging bags so that nobody, especially
children, can play with them. Possible risk: suffocation.
5~12 HP
15
b
d
c
c
14~20 HP
