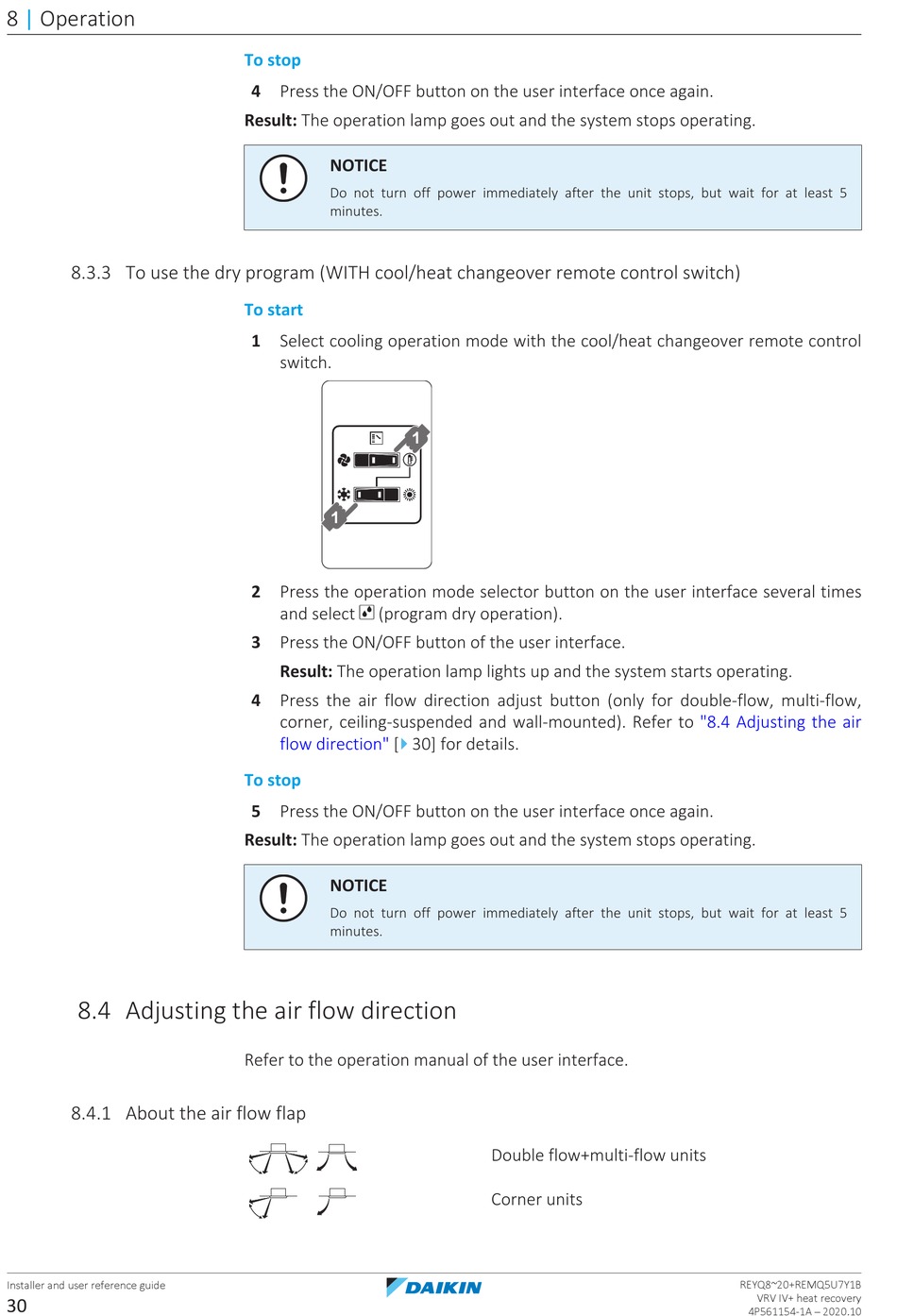

8.3.3 To use the dry program (WITH cool/heat changeover remote control switch)

8.4 Adjusting the air flow direction

8.4.1 About the air flow flap

Installer and user reference guide
30
To stop
4 Press the ON/OFF button on the user interface once again.
Result: The operation lamp goes out and the system stops operating.
NOTICE
Do not turn off power immediately after the unit stops, but wait for at least 5
minutes.
To start
1 Select cooling operation mode with the cool/heat changeover remote control
switch.
1
1
2 Press the operation mode selector button on the user interface several times
and select (program dry operation).
3 Press the ON/OFF button of the user interface.
Result: The operation lamp lights up and the system starts operating.
4 Press the air flow direction adjust button (only for double-flow, multi-flow,
corner, ceiling-suspended and wall-mounted). Refer to
4
flow direction" [ 30] for details.
To stop
5 Press the ON/OFF button on the user interface once again.
Result: The operation lamp goes out and the system stops operating.
NOTICE
Do not turn off power immediately after the unit stops, but wait for at least 5
minutes.
Refer to the operation manual of the user interface.
Double flow+multi-flow units
Corner units
"8.4 Adjusting the air
REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10
