Norac UC4 Installation Manual

Total control automatic boom height system fast retrofit fasse
Hide thumbs Also See for UC4:
Table of Contents

Advertisement

Quick Links

Download this manual
Total Control
Automatic Boom Height
Fast Retrofit Fasse
Installation Manual
Canada
NORAC Systems International Inc.
CALL TOLL FREE: 1-800-667-3921
(306) 664-6711
SHIPPING ADDRESS:
3702 Kinnear Place
Saskatoon, SK
S7P 0A6
For other service locations please view our website:
Improving the Competitiveness of Industry and Agriculture
UC
System
www.norac.ca
through Precision Measurement
4
United States
NORAC, Inc.
CALL TOLL FREE: 1-866-306-6722
(763) 786-3080
SHIPPING ADDRESS:
1290 Osborne Rd. NE, Suite F
Fridley, MN
55432-2892

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Norac UC4

Summary of Contents for Norac UC4

  • Page 1 Total Control Automatic Boom Height System Fast Retrofit Fasse Installation Manual Canada United States NORAC Systems International Inc. NORAC, Inc. CALL TOLL FREE: 1-800-667-3921 CALL TOLL FREE: 1-866-306-6722 (306) 664-6711 (763) 786-3080 SHIPPING ADDRESS: SHIPPING ADDRESS: 3702 Kinnear Place 1290 Osborne Rd. NE, Suite F...
  • Page 2 Reorder P/N: UC4-BC-FT1-INST Rev F (Fast Retrofit Fasse) NOTICE NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........................2 GENERAL SYSTEM DESCRIPTION ....................3 PARTS LIST............................4 INSTALLATION PROCEDURE ......................9 4.1 E ................9 XISTING YDRAULIC YSTEM UNCTION HECK 4.2 B .......................... 10 PEED 4.3 W ......................12 ENSOR NSTALLATION 4.4 M ................

  • Page 4: Introduction

    1 INTRODUCTION Congratulations on your purchase of the NORAC UC4 automated sprayer boom height control system. This system is manufactured with top quality components and is engineered using the latest technology to provide operating features and reliability unmatched for years to come.

  • Page 5: General System Description

    Please read this manual in its entirety before attempting installation. ATTENTION: When installing the UC4 system please be aware that at a point in the installation your sprayer booms will be inoperative until the installation is complete. Any installation procedure requiring boom movement will need to be done first.

  • Page 6: Parts List

    3 PARTS LIST The parts that come with your UC4 Sprayer Boom System are listed in Table 1. In this document, the item number shown on the left side of this table references each part. Please ensure that all parts in your kit are present before proceeding with your installation.
  • Page 7 * HYDRAULIC PARTS * V1** 44933 VALVE PACKAGE PROP STATION EXPANDABLE W/FILTER VALVE BLOCK ASSEM UC4-BC 2-STATION CC/LS 44933S VARIABLE RATE 103189 HYD HOSE END 4WC 6FJX 104578 HYD HOSE END 4WC 4FJX 100656 HYD HOSE 1/4 IN 5000 PSI...
  • Page 8 NORAC provides the alternative cables for this reason. Please refer to APENDIX A for details. ** If the part number for Item V1 (NORAC valve block) is 44933S, Items H53 are not included in the kit. The #44933S valve block has solenoid valves whose engraved part...
  • Page 9 The parts that come with your UC4 System are shown below in their general installation configuration. NOTE: Some sprayers may have a different type of valve block, which can not connect to the NORAC standard interface cables (Items and C13). NORAC provides the alternative interface cables. Please see Appendix A for details.
  • Page 10 Figure 3 – Hydraulic Plumbing Layout NOTE: If the part number of Item V1 is 44933S, Items H53 are not included in the kit.

  • Page 11: Installation Procedure

    4 INSTALLATION PROCEDURE Before installing the NORAC UC4 Boom Control System to your sprayer, it is necessary to check that all functions of the existing hydraulic system are working properly. Furthermore, it is informative to determine how quickly your sprayer booms and main (center) section are able to change their position without the UC4 System installed.

  • Page 12: Boom Speed Test

    Time” slot in Table 3. 8. These “Average Times” now represent how quickly your system can react to manual control of boom functions. In Section 4.7 Completing the Installation, this procedure is repeated with the UC4 System installed for comparison and troubleshooting purposes.
  • Page 13 Table 3 - Boom Test Record (WITHOUT UC4 System) Working RPM: Average Trial #1 Trial #2 Trial #3 Section: Time [Seconds] [Seconds] [Seconds] [Seconds] Left UP Left DOWN Right UP Right Down Main UP Main DOWN Table 4- Boom Test Record (WITH UC4 System)

  • Page 14: Wing Sensor Installation

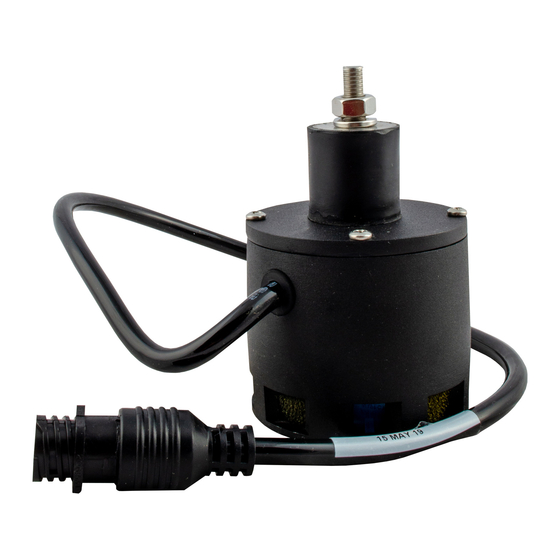

    FOLDING boom movement. 3. Mount one NORAC UC4 ultrasonic sensor (Item E2) near the tip of each boom with the brackets provided (Items B13, B14 and B15). Use the 8-mm nuts and lock washers provided with the sensor, to attach the sensor to the bracket.
  • Page 15 For this reason, you may want to avoid mounting on a breakaway section. Please refer to the UC4 system warranty at the end of the UC4 Sprayer Boom Control Operator’s Manual (Item M1) for implications. NOTE: When installing the UC4 sensors (Item E2), start with the smallest serial number on the left hand side proceeding to the largest serial number on the right hand side (Figure 4).
  • Page 16 5. The sensor cable should be run down through the tube of the mounting bracket and then behind the member the bracket is mounted onto. Cable-tie (Items M3 and/or M2) the connector in place. The cable must not be allowed to hang below the boom.

  • Page 17: Main Roll Sensor And Target Installation

    4.4 M ENSOR AND ARGET NSTALLATION 4.4.1 The Mounting Brackets The brackets are designed to be very adaptable and allow for a wide range of installations. Figure 7 – Target Bracket The Target Bracket (Item B12) can be mounted in any direction around most sizes of sprayer frame member and aimed using two ball and socket connections.

  • Page 18: Mounting On The Boom

    4.4.2 Mounting on the Boom Figure 9 – Main Roll Sensor Mounting Locations 1. When mounting the UC4 main roll sensor and target, first, determine whether your sprayer will allow the roll sensor to be mounted in front of the boom (preferred).
  • Page 19 CROP mode. NOTE: For more information, please refer to the UC4 Sprayer Boom Control Operator’s Manual (Item M1). IMPORTANT: The sensor must NOT be mounted on the same frame section as the target.
  • Page 20 Figure 11 – Installation Details...
  • Page 21 Figure 12 through Figure 15 are the examples of mounting the sensor and target. Figure 12 – Forward Sensor / Target Mounting #1 Figure 13 – Forward Sensor / Target Mounting #2 Figure 14 – Rear Sensor / Target Mounting...
  • Page 22 Cable-Tie Main Sensor and Bracket Target Bracket Figure 15 – Main Sensor Mounting Example 3. Mount the sensor and target loosely in place. The sensor should hang vertically without any stress because the sensor direction is critical. To avoid the stress, cable-tie (Items M2/M3) the cable from the sensor (and the sensor branch cable (Item C2)) to the mounting bracket tube (Figure 15) or insert them into the...
  • Page 23 9. After securing the mounting, any excess tube from the mounting bracket and excess length on the mounting bolts can be cut off. 10. The target rod can also be shortened. The target must extend at least 2” past the center of the sensor. 11.

  • Page 24: Hydraulic Installation

    1. On a clean surface remove the plastic plugs from the “A”, “B”, “P”, and “T” ports of the NORAC hydraulic valve (Item V1). Install the 6MB-6MJ fittings (Item H51) on the “P” and “T” ports and tighten to 18 ft-lbs.
  • Page 25 IMPORTANT: Check the engraved part number on the top plate of the solenoid valves (Figure 16). If the number is “105723”, proceed to Section 4.5.2 (page 24). STEP 5 through STEP 11 are required for all other part numbers. 5. Assemble the Single Acting Sandwich Block (Item H53). Remove the 2 solenoid valves from the top of the valve block by removing the 4 Hex Socket Cap Screws from each valve and discard these 2"...

  • Page 26: Valve Mounting

    4.5.2 Valve Mounting Mount the NORAC valve block (Item V1) on the sprayer. The recommended location for the valve block is on the rear of the boom main section on the horizontal cross member, near the existing valve block. NOTE: You must ensure the valve manifold, solenoids, and hoses will not interfere with any moving parts of the sprayer.

  • Page 27: Hydraulic Plumbing

    2. The “raise” lines from the side of the boom tilt cylinders, which raise the booms, should be disconnected from the sprayer valve block 3. The “raise” lines must be connected to the “B” ports of the NORAC valve block. Insert the “T” fittings (Item H5) to the sprayer block and reconnect the “raise”...

  • Page 28: Electrical Installation

    C10) to the bottom of the UC4 Control Panel. Generally, a good spot to mount the UC4 Control Panel is on the right hand side of the cab to the ROP (Roll Over Protection) Bar. Four pilot holes for the screws provided need to be drilled to facilitate the mounting of the control panel.

  • Page 29: Cable Installation

    Ensure that both plugs (P16A and P4) are connected to the panel (Figure 22). NOTE: Ensure the UC4 Control Panel’s power is OFF for the remaining installation (Bottom of switch pressed IN). Use caution when handling the 12 V power line of the sprayer wiring.
  • Page 30 NOTE: Some sprayers may have a different type of valve block, which can not connect to the NORAC standard interface cables. NORAC provides the alternative interface cables. Please see Appendix A for details.
  • Page 31 Figure 24 – Valve Cable Connections 11. Connect sensor branch cable (Item to the 4 pin AMP plug (P4) on (Figure 25). 12. If done already, route out to the wing main sensors. Connect them using the 4-pin AMP connectors. Follow existing cables...

  • Page 32: Completing The Installation

    If you still have trouble, contact NORAC for assistance. 3. Turn on the power for the UC4 Control Panel using the switch on the side of its chassis. Ensure that the display lights up to confirm that the panel has proper +12 Volt power.

  • Page 33: Electrical Reference - Cable Drawings

    5 ELECTRICAL REFERENCE – CABLE DRAWINGS 5.1 I C1: 44662B-40 – S ENSOR RUNK ABLE 5.2 I C2: 44668 – S ENSOR RANCH ABLE...

  • Page 34: Item C3: 44656 - Valve Cable (Variable Rate )

    5.3 I C3: 44656 – V ALVE ABLE ARIABLE 5.4 I C4: 44651 – V ALVE XTENSION ABLE...

  • Page 35: Item C10: 44650-35 - Power Cable Generic Pull -Type

    5.5 I C10: 44650-35 – P OWER ABLE ENERIC...

  • Page 36: Item C11: 44651-03 - Extension Cable Valve Generic

    5.6 I C11: 44651-03 – E XTENSION ABLE ALVE ENERIC...

  • Page 37: Item C12: 44658-20 - Wing Interface Cable

    5.7 I C12: 44658-20 – W NTERFACE ABLE...

  • Page 39: Item C13: 44658-19 - Main Interface Cable

    5.8 I C13: 44658-19 – M NTERFACE ABLE...

  • Page 40: Aappendix A - Alternative Cable Infomation

    Some sprayers may have a different type of valve block, which can not connect to the NORAC standard interface cables. NORAC provides the alternative interface cables: NORAC Part Number 44658-38 (C12B) and 44658-39 (C16). Please contact NORAC for further information.

  • Page 41: Cable Drawings : Alternate Cables

    A.1 C ABLE RAWINGS LTERNATE ABLES A.1.1 Item C12B: 44658-38 – DIN All Interface Cable...

  • Page 42: Item C16: 44658-39 - Din Bypass Interface Cable

    A.1.2 Item C16: 44658-39 – DIN Bypass Interface Cable...

  • Page 43: Bappendix B - Cable C14 Information

    B APPENDIX B – CABLE C14 INFORMATION The following cable is a typical add-on to allow the NORAC system to be provided with a power connection. For all C14 Power cables, the WHITE wire is connected to +12V and the BLACK wire is connected to GND.
