  • Page 1 Total Control Automatic Boom Height System Gregson Maverick 120 Series Installation Manual Canada United States NORAC Systems International Inc. NORAC, Inc. CALL TOLL FREE: 1-800-667-3921 CALL TOLL FREE: 1-866-306-6722 (306) 664-6711 (763) 786-3080 SHIPPING ADDRESS: SHIPPING ADDRESS: 3702 Kinnear Place 1290 Osborne Rd.
  • Page 2 Reorder P/N: UC4-BC-GM1-INST Rev B (Gregson Maverick 120 Series) NOTICE NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained in this manual.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........................2 GENERAL SYSTEM DESCRIPTION ....................3 PARTS LIST............................4 INSTALLATION PROCEDURE ......................8 4.1 E ................8 XISTING YDRAULIC YSTEM UNCTION HECK 4.2 B ..........................9 PEED 4.3 W ......................11 ENSOR NSTALLATION 4.4 M ................

  • Page 4: Introduction

    1 INTRODUCTION Congratulations on your purchase of the NORAC UC4 automated sprayer boom height control system. This system is manufactured with top quality components and is engineered using the latest technology to provide operating features and reliability unmatched for years to come.

  • Page 5: General System Description

    ATTENTION: When installing the UC4 system please be aware that at a point in the installation your sprayer booms will be inoperative until the installation is complete. Any installation procedure requiring boom movement will need to be done first.

  • Page 6: Parts List

    3 PARTS LIST The parts that come with your UC4 Sprayer Boom System are listed in. In this document, the item number shown on the left side of this table references each part. Please ensure that all parts in your kit are present before proceeding with your installation.
  • Page 7 44928 ORIFICE INSERT .047 IN ONE WAY 103312 COUPLING HYD 6MB 6MJ * MISC. PARTS * 446BC-MAN MANUAL UC4 BOOM CONTROL OPERATORS 100084 TIE CABLE 21 IN BLACK 100091 TIE CABLE 7.5 IN BLACK 104409 FOAM DISC 45 PPI CONDUCTIV 1/2 X 2-3/4 DIA...
  • Page 8 The parts that come with your UC4 System are listed in the above table and shown in their general installation configuration. Figure 2 – UC4-BC Components...
  • Page 9 Figure 3 – Hydraulic Components...

  • Page 10: Installation Procedure

    4 INSTALLATION PROCEDURE Before installing the NORAC UC4 Boom Control System to your sprayer, it is necessary to check that all functions of the existing hydraulic system are working properly. Furthermore, it is informative to determine how quickly your sprayer booms and main (center) section are able to change their position without the UC4 System installed.

  • Page 11: Boom Speed Test

    Time” slot in Table 3. 8. These “Average Times” now represent how quickly your system can react to manual control of boom functions. In Section 4.7 Completing the Installation, this procedure is repeated with the UC4 System installed for comparison and troubleshooting purposes.
  • Page 12 Table 3 – Boom Test Record (WITHOUT UC4 System) Working RPM: Average Trial #1 Trial #2 Trial #3 Time Section: [Seconds] [Seconds] [Seconds] [Seconds] Left UP Left DOWN Right UP Right Down Main UP Main DOWN Table 4 – Boom Test Record (WITH UC4 System)

  • Page 13: Wing Sensor Installation

    4.3 W ENSOR NSTALLATION 1. Assemble the Breakaway Sensor Mounting Brackets as shown in Figure 4 and Figure 5. Figure 4 – Breakaway Sensor Bracket Exploded View Figure 5 – Breakaway Sensor Mounting Bracket Assembly To assemble the breakaway sensor bracket: a) Assemble the bolt and nut into the collar of the bracket.

  • Page 14: I Nstallation

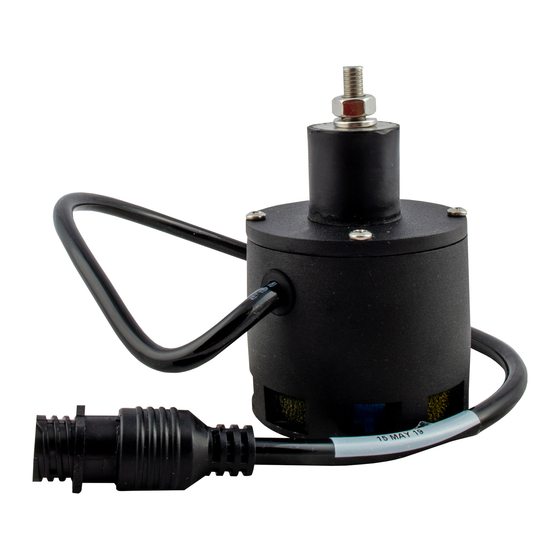

    FOLDING boom movement. 3. Mount one NORAC UC4 ultrasonic sensor (Item E2) near the tip of each boom with the brackets provided (Item B13). Using the 8-mm nuts and lock washers provided with the sensor to attach the sensor to the bracket.
  • Page 15 For this reason, you may want to avoid mounting on a breakaway section. Please refer to the UC4 system warranty at the end of the UC4 Sprayer Boom Control Operator’s Manual (Item M1) for implications. NOTE: When installing the UC4 sensors (Item E2), start with the smallest serial number on the left hand side proceeding to the largest serial number on the right hand side (Figure 6).
  • Page 16 5. The sensor cable should be run down through the tube of the mounting bracket and then behind the member the bracket is mounted onto. Cable-tie (Items M3 and/or M2) the connector in place. The cable must not be allowed to hang below the boom (Figure 8).

  • Page 17: Main Roll Sensor And Target Installation

    4.4 M ENSOR AND ARGET NSTALLATION 4.4.1 The Mounting Brackets The brackets are designed to be very adaptable and allow for a wide range of installations. Figure 9 – Target Bracket The Target Bracket (Item B12) can be mounted in any direction around most sizes of sprayer frame member and aimed using two ball and socket connections.

  • Page 18: Mounting On The Boom

    Mounting on the Boom Figure 11 – Main Roll Sensor Mounting Locations 1. When mounting the UC4 main roll sensor and target, first, determine whether your sprayer will allow the roll sensor to be mounted in front of the boom (preferred).
  • Page 19 • Do not mount the sensor and target directly behind the tire. If mounted behind the tire there will be inadequate crop canopy to reflect the unwanted ultrasonic signal causing an error when using CROP mode. NOTE: For more information, please refer to the UC4 Sprayer Boom Control Operator’s Manual (Item M1). IMPORTANT: The sensor must NOT be mounted on the same frame section as the target.
  • Page 20 Figure 13 – Installation Details...
  • Page 21 Figure 14 through Figure 16 are the examples of mounting the sensor and target. Figure 14 – Forward Sensor / Target Mounting #1 Figure 15 – Forward Sensor / Target Mounting #2 Figure 16 – Rear Sensor / Target Mounting...
  • Page 22 3. Mount the sensor and target loosely in place. The sensor should hang vertically without any stress because the sensor direction is critical. To avoid the stress, cable-tie (Items M2/M3) the cable from the sensor (and the sensor branch cable (Item C2)) to the mounting bracket tube or insert them into the tube.

  • Page 23: Hydraulic Installation

    TRANSPORT POSITION. IMPORTANT: Hydraulic component failure due to oil contamination is not covered under the warranty of your UC4 system. Therefore, it is strongly recommended that a qualified technician, using proper installation techniques, do the hydraulic installation.
  • Page 24 6. Mount the NORAC valve (Item V1) on the sprayer. The recommended location for the valve is on the top tube on the center rack. The position of the NORAC valve in relation to the sprayer valve bank is shown in Figure 19. (The picture shows an installation using two separate single valve manifolds, your system will have one dual valve manifold.)
  • Page 25 Figure 19 – Valve Mounting Example Figure 20 – Valve Mounting Location...

  • Page 26: Hydraulic Plumbing

    Figure 3. 2. Connect the NORAC supplied hoses (Items H3 and H6) to the Pressure (P) and Tank (T) ports on the NORAC valve block (V1). Route both of these lines to the sprayer valve block. 3. Connect H3 and H6 to the auxiliary Pressure and Tank ports available on the side of the sprayer valve block (Figure 21) with the 10MB-6MJ couplings (Item H2).
  • Page 27 "B" ports of the NORAC valve block. The ports on the sprayer block must then be plugged/capped with Item H1. b. The "A" ports of the NORAC block must be connected to the “lower” lines of the cylinders.

  • Page 28: Electrical Installation

    LECTRICAL NSTALLATION 6. Install the UC4 Control Panel (Item E1) in the cab of the sprayer with the supplied mounting bracket. Mount the panel where it will be clearly visible and within easy reach of the operator. The location must facilitate connecting the...
  • Page 29 4. Connect the free hanging black wire on to a good electrical ground on the sprayer. 5. Connect the 16-pin AMP plug on to the UC4 Control Panel (E1) in the sprayer cab. 6. Connect the valve extension cable (Item C4) to the 6-pin Tower connector on C10.
  • Page 30 7. Connect one end of the UC4 trunk cable (Item C1) to the UC4 Control Panel (E1). 8. Route to the rear of the sprayer where the NORAC hydraulic valves are located. 9. Connect the 6-pin Tower on the UC4 Valve Cable (Item C3) to the 6-pin Shroud at the rear of the sprayer (Figure 25).
  • Page 31 14. Start up your tractor and test the functionality of the original Flexicoil’s boom control. The UC4 Control Panel does not need to be powered up for the original switches to function. Unfold the booms and raise/lower each boom and main section.

  • Page 32: Completing The Installation

    4.7 C OMPLETING THE NSTALLATION 1. Turn on the power for the UC4 Control Panel using the switch on the side of its chassis. Ensure that the display lights up to confirm that the panel has proper +12 Volt power.

  • Page 33: Electrical Reference - Cable Drawings

    5 ELECTRICAL REFERENCE – CABLE DRAWINGS 5.1 I C1: 44662B-40 – S ENSOR RUNK ABLE 5.2 I C2: 44668 – S ENSOR RANCH ABLE...

  • Page 34: Item C3: 44656 - Valve Cable

    5.3 I C3: 44656 – V ALVE ABLE 5.4 I C4: 44651 – V ALVE XTENSION ABLE...

  • Page 35: Item C10: 44650-11 - Power Cable Gregson Maverick

    5.5 I C10: 44650-11 – P OWER ABLE REGSON AVERICK...
  • Page 36 NOTES:...
  • Page 37 NOTES:...
