Norac UC4 Installation Manual

Total control automatic boom height system for rhs bestway 1200/1600
Hide thumbs Also See for UC4:
Table of Contents

Advertisement

Quick Links

Download this manual
Total Control
Automatic Boom Height
RHS BestWay 1200/1600
Installation Manual
Canada
NORAC Systems International Inc.
CALL TOLL FREE: 1-800-667-3921
(306) 664-6711
SHIPPING ADDRESS:
3702 Kinnear Place
Saskatoon, SK
S7P 0A6
For other service locations please view our website:
Improving the Competitiveness of Industry and Agriculture
UC
System
www.norac.ca
through Precision Measurement
4
United States
NORAC, Inc.
CALL TOLL FREE: 1-866-306-6722
(763) 786-3080
SHIPPING ADDRESS:
1290 Osborne Rd. NE, Suite F
Fridley, MN
55432-2892

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC4 and is the answer not in the manual?

Questions and answers

Related Manuals for Norac UC4

Summary of Contents for Norac UC4

  • Page 1 Total Control Automatic Boom Height System RHS BestWay 1200/1600 Installation Manual Canada United States NORAC Systems International Inc. NORAC, Inc. CALL TOLL FREE: 1-800-667-3921 CALL TOLL FREE: 1-866-306-6722 (306) 664-6711 (763) 786-3080 SHIPPING ADDRESS: SHIPPING ADDRESS: 3702 Kinnear Place 1290 Osborne Rd. NE, Suite F...
  • Page 2 Reorder P/N: UC4-BC-RH1-INST Rev E (Bestway) NOTICE NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........................2 GENERAL SYSTEM DESCRIPTION ....................3 PARTS LIST............................4 INSTALLATION PROCEDURE ......................9 4.1 E ................9 XISTING YDRAULIC YSTEM UNCTION HECK 4.2 B .......................... 10 PEED 4.3 W ......................12 ENSOR NSTALLATION 4.4 M ......................

  • Page 4: Introduction

    1 INTRODUCTION Congratulations on your purchase of the NORAC UC4 automated sprayer boom height control system. This system is manufactured with top quality components and is engineered using the latest technology to provide operating features and reliability unmatched for years to come.

  • Page 5: General System Description

    Please read this manual in its entirety before attempting installation. ATTENTION: When installing the UC4 system please be aware that at a point in the installation your sprayer booms will be inoperative until the installation is complete. Any installation procedure requiring boom movement will need to be done first.

  • Page 6: Parts List

    3 PARTS LIST The parts that come with your UC4 Sprayer Boom System are listed in Table 1. In this document, the item number shown on the left side of this table references each part. Please ensure that all parts in your kit are present before proceeding with your installation.
  • Page 7 * HYDRAULIC PARTS * V1** 44933 VALVE PACKAGE PROP STATION EXPANDABLE W/FILTER VALVE BLOCK ASSEM UC4-BC 2-STATION CC/LS 44933S VARIABLE RATE 104178 COUPLING HYD QUICK PIONEER MALE TIP 8FB 101854 HYD HOSE END 6WC 8MB 100655 HYD HOSE 2 WIRE 3/8 IN...
  • Page 8 In a kit shipped prior to February 1, 2007, the part number for Item B13 is 44722. ** If the part number for Item V1 (NORAC valve block) is 44933S, Items H53 are not included in the kit. The #44933S valve block has solenoid valves whose engraved part...
  • Page 9 The parts that come with your UC4 System are shown below in their general installation configuration. Figure 2 – UC4 Boom Control Components...
  • Page 10 Figure 3 – Hydraulic Plumbing Schematic NOTE: If the part number of Item V1 is 44933S, Items H53 are not included in the kit.

  • Page 11: Installation Procedure

    4 INSTALLATION PROCEDURE Before installing the NORAC UC4 Boom Control System to your sprayer, it is necessary to check that all functions of the existing hydraulic system are working properly. Furthermore, it is informative to determine how quickly your sprayer booms and main (center) section are able to change their position without the UC4 System installed.

  • Page 12: Boom Speed Test

    4.2 B PEED IMPORTANT: Let the sprayer run for several minutes to heat up the hydraulic oil. Raise/lower the left and right booms, main and hydraulic roll sections several times to help get the system (hydraulic oil, valve solenoids) warmed up. This will simulate field conditions and makes QUITE a difference in some cases.
  • Page 13 In Section 4.7 Completing the Installation, this procedure is repeated with the UC4 System installed for comparison and troubleshooting purposes. Table 3 – Boom Test Record (WITHOUT UC4 System) Working RPM: Average Trial #1 Trial #2...

  • Page 14: Wing Sensor Installation

    4.3 W ENSOR NSTALLATION 1. Assemble the Breakaway Sensor Mounting Brackets as shown in Figure 4 and Figure 5. Figure 4 – Breakaway Sensor Bracket Exploded View Figure 5 – Breakaway Sensor Mounting Bracket Assembly...

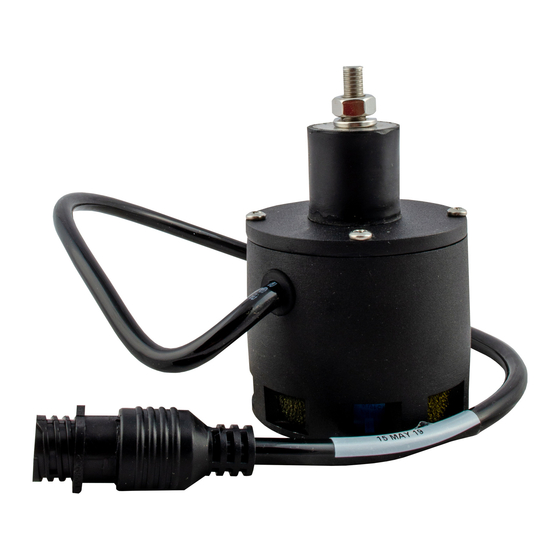

  • Page 15 FOLDING boom movement. 3. Mount one NORAC UC4 ultrasonic sensor (Item E2) near the tip of each boom with the brackets provided (Items B13 and B16). Use the nuts and lock washers provided with the sensor, to attach the sensor to the bracket.
  • Page 16 For this reason, you may want to avoid mounting on a breakaway section. Please refer to the UC4 system warranty at the end of the UC4 Sprayer Boom Control Operator’s Manual (Item M1) for implications. NOTE: When installing the UC4 sensors (Item E2), start with the smallest serial number on the left hand side proceeding to the largest serial number on the right hand side (Figure 6).
  • Page 17 4. The UC4 sensor bracket is designed to mount to the large square frame member, as shown below in Figure 7. Figure 7 – Preferred Mounting 5. The sensor cable should be run down through the tube of the mounting bracket and then behind the member the bracket is mounted onto.

  • Page 18: Main Sensor Installation

    2. Aim the sensor perpendicular to the ground. Tighten all the sensor bracket bolts. Figure 8 – Main Sensor Mounting NOTE: Please note that the standard UC4 kit will NOT provide main section automatic control. The main section sensor will ONLY assist you in monitoring the height visually on the UC4 Control Panel.
  • Page 19 CROP mode. NOTE: The standard kit will include an alignment fixture (Item M14: plastic tube). This fixture is NOT required when performing installations on sprayers that do not support boom roll movement. Discard or return M14 to NORAC.

  • Page 20: Hydraulic Installation

    TRANSPORT POSITION. IMPORTANT: Hydraulic component failure due to oil contamination is not covered under the warranty of your UC4 system. Therefore, it is strongly recommended that a qualified technician, using proper installation techniques, do the hydraulic installation.
  • Page 21 Figure 10 – Valve Block Port Assembly IMPORTANT: Check the engraved part number on the top plate of the solenoid valves (Figure 10). If the number is “105723”, proceed to STEP 13 (page 20). STEP 6 through STEP 12 are required for all other part numbers. 6.
  • Page 22 Figure 11 – Sandwich Block Installation 13. Mount the NORAC valve (Item V1) on the sprayer. The recommended location for the valve is on the horizontal cross-member located near the existing valve block, behind the chemical tank (Figure 12). NOTE: You must ensure the valve manifold, solenoids, and hoses will not interfere with any moving parts of the sprayer.

  • Page 23: Hydraulic Plumbing

    1. The “raise” lines from the side of the boom tilt cylinders, which raise the booms, must be connected to the “B” ports of the NORAC valve block. Insert the “T” fittings (Item H4) and 6MP-6MP couplings (Item H5) between the cylinders and the existing lines as shown in Figure 13.
  • Page 24 Figure 13 – Hydraulic Plumbing: Boom Cylinder 4. Connect the two remaining hoses (Item H2) to the pressure (“P”) and tank (“T”) ports on the NORAC valve block (Item V1). Use 6MJ-6FJX 90º Elbow fittings (Item H6), if necessary. 5. Route both of H2 to the sprayer’s hitch for connection with the tractor’s pressure and tank fittings.

  • Page 25: Electrical Installation

    NOTE: While installing the electrical parts of the system you may need to refer to Section 5 for identification of cables and connectors. 1. Install the UC4 Control Panel (Item E1) in the cab of the sprayer with the supplied mounting bracket. Mount the panel where it will be clearly visible and within easy reach of the operator.
  • Page 26 Make sure that any fuses can allow 10A current draw or larger for the UC4 system. NOTE: Ensure the UC4 Control Panel’s power is OFF for the remaining installation. (Bottom of switch pressed IN). Use caution when handling the +12V power line of the sprayer wiring.
  • Page 27 Figure 18 – Cable Configurations: C4 and C3, C1 and C2 8. Route from the hitch to the rear of the sprayer to the area where the NORAC hydraulic valves are located. Use cable ties (Items M3/M2) to fasten the cables to the sprayer. 9. Connect the UC4 valve cable...
  • Page 28 Also refer to 5 Electrical Reference – Cable Drawings in this manual for the electrical pin- outs of the NORAC cables. You can use this information to try to pinpoint where the problem is occurring. If you still have trouble, contact NORAC for...

  • Page 29: Completing The Installation

    NSTALLATION Figure 20 – Hitch Point 1. Turn on the power for the UC4 Control Panel using the switch on the side of its chassis. Ensure that the display lights up to confirm that the panel has proper +12 Volt power.

  • Page 30: Electrical Reference - Cable Drawings

    5 ELECTRICAL REFERENCE – CABLE DRAWINGS 5.1 I C1: 44662B – S ENSOR RUNK ABLE 5.2 I C2: 44668 – S ENSOR RANCH ABLE...

  • Page 31: Item C3: 44656 - Valve Cable Variable Rate

    5.3 I C3: 44656 – V ALVE ABLE ARIABLE 5.4 I C4: 44651 – V ALVE XTENSION ABLE...

  • Page 32: Tem C10: 44650-37 - Power Able Rhs 1200/1600

    5.5 I C10: 44650-37 – P RHS 1200/1600 OWER ABLE...

  • Page 33: Item C13: 44687 - Sensor Extension Cable

    5.6 I C13: 44687 – S ENSOR XTENSION ABLE...
  • Page 34 NOTES:...

This manual is also suitable for:
