5.3.4 Install the Rain Gauge Funnel

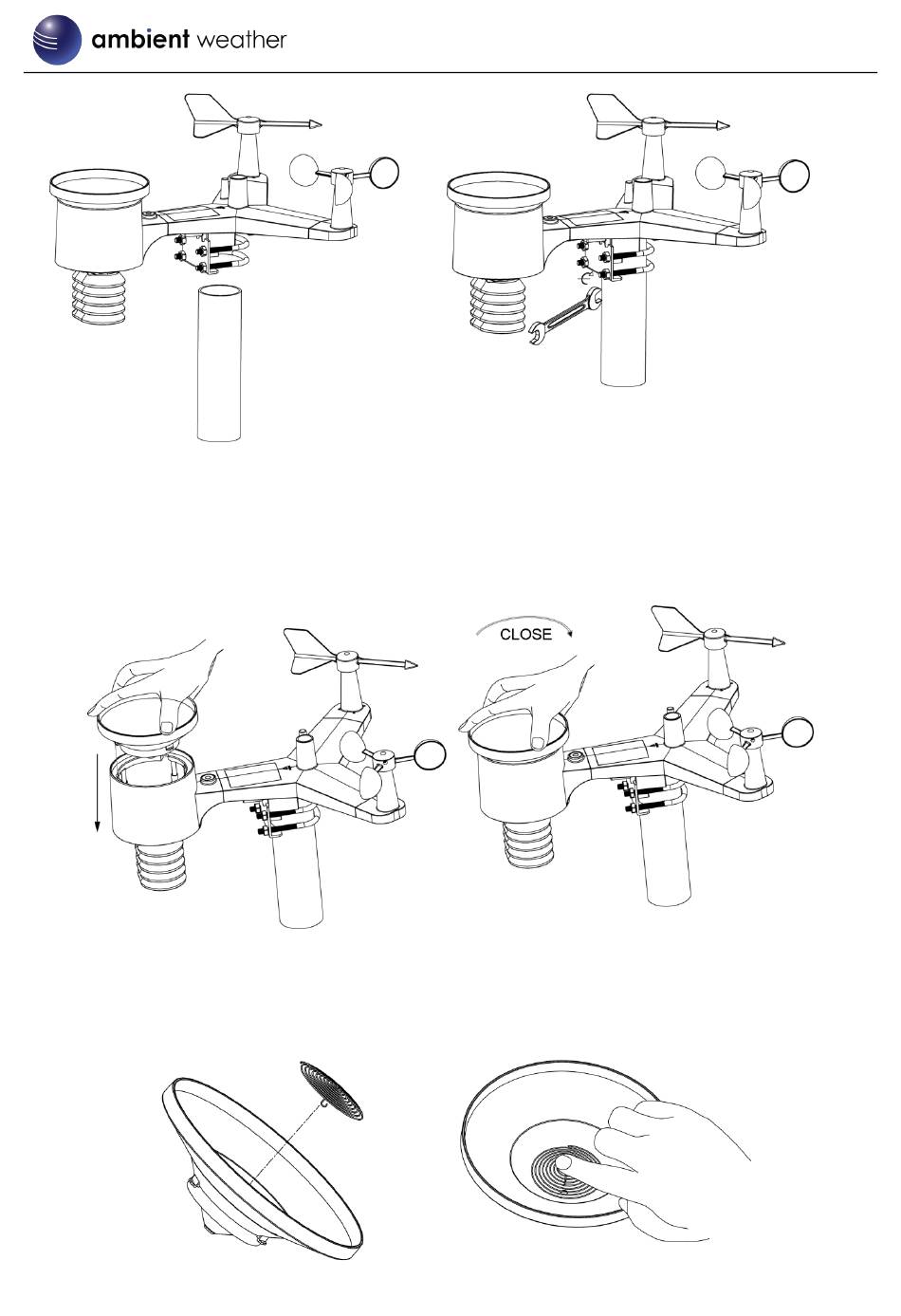

Reference Figure 5. Install the rain gauge funnel. Rotate clockwise to attach the funnel to the sensor array.

5.3.5 Install the Funnel Coil Filter

To install the funnel coil filter, press the coil until the hook is inside the hole at the bottom of the funnel, and locked in
place. The spring tension will keep the filter sit tight on the funnel.
Version 1.4
(c)
©Copyright 2019, Ambient LLC. All Rights Reserved.
Figure 4
Figure 5
(d)
Page 6
