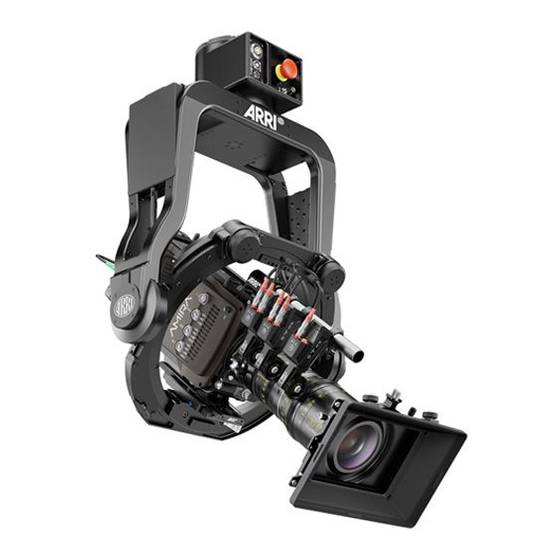

Stabilized Remote Head
SRH-3
Manual
Date 01.03.2020
Dedicated to these products
KK.0016448
Stabilized Remote Head SRH-3, Pro Set
KK.0037270
SRH-3 Stabilized Remote Head, No Radio, Set, Standard Joystick
KK.0037271
SRH-3 Stabilized Remote Head, No Radio, Set, Microforce Joystick
KK.0037272
SRH-3 Stabilized Remote Head, No Radio, Set, Broadcast Joystick
SUP 2.3

Advertisement

Table of Contents
loading

Related Manuals for ARRI SRH-3

Summary of Contents for ARRI SRH-3

  • Page 1 Dedicated to these products KK.0016448 Stabilized Remote Head SRH-3, Pro Set KK.0037270 SRH-3 Stabilized Remote Head, No Radio, Set, Standard Joystick KK.0037271 SRH-3 Stabilized Remote Head, No Radio, Set, Microforce Joystick KK.0037272 SRH-3 Stabilized Remote Head, No Radio, Set, Broadcast Joystick...
  • Page 2 In no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct, indirect, incidental, or consequential damages, including, but not limited to lost profits, lost...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1 User Advisory / Application Requirements ………………………………………………. 2 For your safety ……………………………………………………………………………… 3 Functions Head / Connectors ….………………………………………………………….. 4 Remote Head Setup / Top Down, Home Position,Tilt Lock ……..……………….……… 5 Camera Setup / Mounting the Camera / Balancing the Camera ……..…..……..…….. 10 6 Power Supply / Recommended Batteries / Wiring ………………..…………………….

  • Page 4: User Advisory / Application Requirements

    Drift is normally measured in degrees per hour. The SRH-3 remote head has a very small amount of drift that would only be noticed while the head is stationary over a long period of time. The average drift can be up to approximately 10° in 30 minutes.

  • Page 5: For Your Safety

    This product is not designed for inexperienced users and should not and must not be used without proper training. ARRI recommends that all users of the SRH-3 stabilized remote head read the manual in its entirety prior to use.
  • Page 6 DANGER DANGER Rotating Parts Rotating Parts CAUTION Keep in mind that the SRH-3 stabilized remote head is a fully stabilized Gimbal based device with a payload capacity of 30kg / 66 lb. The amount of available torque is very high.
  • Page 7 Remote Head Functions Mounting base Functions Base junction box Emergency Remote Head Front Shut OFF Switch Pan axis Onboard computer Yoke Right junction box Left junction box Tilt Lock Mount for top support Tilt motor End stop Camera dovetail plate Mounting platform Side to side adjustment clamp...
  • Page 8 Remote Head Functions Remote Head Connectors 12 Volt high capacity power out LBUS 12/24 Volt RS 24V power out HD SDI In 2 12V Aux FF CAN Bus HD SDI In 1 Right junction box Left junction box CAUTION The 12V aux power consumption should not exceed 14,4V / 5 Amps. Remote Head Base Junction Box / Rear HD SDI Out 1 Main power in...

  • Page 9: Remote Head Setup / Top Down, Home Position,Tilt Lock

    Setup Remote Head DANGER Mounting the the SRH-3 stabilized remote head to a crane, dolly, support arm or any other device, has to be done by experienced operator or grip personal. Make sure that all safety regulations have been considered.

  • Page 10: Camera Setup / Mounting The Camera / Balancing The Camera

    NOTE Only a precisely executed camera preparation will enable you to get the best performance out of the SRH-3 stabilized remote head. Camera Dovetail Plates We highly recommend to use the so called Stabilizer Adapter Mount plates: SAM-1, SAM-2, SAM-3 or the SAM-4.
  • Page 11 Remote Head Setup Step 6 Fore and Aft Balance Unlock the tilt lock mechanism first. DETAIL MAßSTAB 1 : 1 Open the clamp lever to move the dovetail plate forward or backward. Clamp Lever fore and aft Move the camera forwards or backwards until the camera remains in a horizontal position.
  • Page 12 Remote Head Setup Powering the remote head CAUTION To perform in the desired way, the stabilized remote head requires at least min. 24V / 5A over the 3pin XLR plug and min. 12V / 5A via the 4pin XLR plug. Use only suitable and recommended power cables, batteries, and power adapters.

  • Page 13: Remote Control Setup / Connecting / Emergency Shut Off / Mounting Position

    Remote Control Setup Remote Control Functions on the top CAUTION If your SRH is equipped with an internal radio system, never use the remote control without an antenna. Otherwise, you may damage the radio amplifier. Antenna Accessory Emergency Shut mounting frame OFF Switch Assignable Button B1 Assignable Button B2...

  • Page 14: Remote Control Gui

    Remote Control GUI Functions on the right and left side LBUS In ARRI Mounting Rosettes SRH-3 Remote Control / GUI (Graphical User Interface) Button B2 / Assignable Button B1 / Assignable Knob K7 / Assignable Knob K3 / Roll Angle...
  • Page 15 Remote Control GUI Step 9 Connect the remote control hardwired with the remote head Wired FS CAN Bus K2.0019300 K2.0019301 K2.0019302 K2.0033762 Step 10 Emergency Shut Off Remote Control Panel CAUTION Do not pull the Emergency Shut Off knob! This may damage the knob! NOTE To release the Emergency Shut Off Switch, carefully turn the red knob to the left.
  • Page 16 PID / Quick Setup PID / Quick Setup Step 12 Camera Weight Preselection To make setting the PID values as easy as possible, the user can select a light or heavy camera preset from the submenu. Touch PID Touch Default Select preset NOTE Low stands for a camera weight of 5 kg - 10 kg, which is used in a low dynamic setup.
  • Page 17 PID / Quick Setup Check if the camera: • stops at the selected point • whether the camera exceeds the point • whether the camera is bouncing left and right If the camera exceeds the desired point, increase the P and D values in increments of five. NOTE The D value must be min.

  • Page 18: Controls Setup / Changing Profiles / Auto Assignment / Manual Assignment / 10 Available Controllers / Changing Directions / Speed / Ramp / Default Position

    Touch the field below Pan and select the desired controller in the submenu. Available controllers Tilt Pan Roll Standard Joystick 1 SJ1T Standard J 1 Tilt DRWP DRW-1 Pan DRW-1, ARRI Wheels, Pan up/down Standard Joystick 1 SJ1P Standard J 1 Pan DRWT DRW-1 Tilt...
  • Page 19 Controls Setup 10.4 Changing Direction Standard J1 Pan Standard J1 Tilt Knob 8 This field indicates the selected direction of the assigned controller. Selecting Dir will open the Direction submenu. Selecting the field in the middle toggles between Standard and Reverse. 10.5 Standard J1 Pan Standard J1 Tilt...

  • Page 20: Additional Controls Setup / Deadband / Sensitivity / Ramp Mode / Filter / Ratio

    Additional Controls Setup Additional Controls Setup • Deadband • Sensitivity • Ramp Mode • Filter • Ratio Select Main Select Position Select the Axis 11.1 Deadband This value determines when the remote head responds after the control device (joystick) has been moved. NOTE If the DRW-1 wheels or the DEH-1 encoder head is used as a controller, Deadband must be set...
  • Page 21 Additional Controls Setup 11.3 Ramp Mode / Dynamic or Constant Selecting the field toggles between Dynamic ramp and Constant ramp. Constant Ramp (preset) will keep the adjusted ramp, regardless of the speed values. Dynamic Ramp The dynamic ramp can only be used when the controller is used in Speed Mode, like the joystick.

  • Page 22: Remote Head Setup / Pan Motor On/Off / Motor Mode / Endstops / Follow / True Horizon / High Dynamic Mode / Mounting Position

    Remote Head Setup Remote Head Setup • Pan Motor On/Off • Motor Mode • Endstops / Limits • Follow / Pan Lock • True Horizon • High Dynamic Mode • Mounting Position Select Main Select Head 12.1 Pan Motor On/Off Selecting Motor On/Off will toggle between Pan motor On and Off.
  • Page 23 Remote Head Setup 12.4 Follow / Pan Lock The Follow mode allows the horizontal Pan and the vertical Tilt movement of the remote head to be synchronized with the horizontal Pan and the vertical Tilt movement of the crane. This function is also called Pan Lock. Selecting Follow will open a new submenu.
  • Page 24 Remote Head Setup 12.5 True Horizon Sometimes the composition of the frame requires manually adjusted horizon and an easy way to get the Roll axis back to the physical Zero position. This is especially important when using wheels, or for fast True movements.

  • Page 25: Wireless Setup / Channels / Regions / Range

    KK.0016448 Stabilized Remote Head SRH-3, Pro Set is equipped with a build-in radio system. KK.0037270 SRH-3 Stabilized Remote Head, No Radio, Set, Standard Joystick KK.0037271 SRH-3 Stabilized Remote Head, No Radio, Set, Microforce Joystick KK.0037272 SRH-3 Stabilized Remote Head, No Radio, Set, Broadcast Joystick Can only be used wireless when an ERM-2400 and ERM-900 is connected to the head and the remote control panel.
  • Page 26 Wireless Setup Step 2 Select Menu Select Settings Select Radio Step 3 Select Internal Radio to activate the internal radio module. Step 4 Selecting Mode will toggle between radio On and radio Off. NOTE Once the radio module is activated, it is set to channel 13 (factory preset).
  • Page 27 2.450 GHz Make sure that the selected frequencies are not 2.455 GHz too close together to avoid interference between 2.460 GHz the SRH-3 remote control and the WCU-4. 2.465 GHz 2.470 GHz 2.475 GHz Not available channels If one of the selected channels is already being...
  • Page 28 FIZ Setup Focus - Iris - Zoom / FIZ 14.1 Introduction Using the optional internal focus wheel or the internal zoom rocker or LBUS-based controls such as Master Grips Focus and Zoom or the K0.0019595 KK.0022270 OCU-1 allows you to control the cforce mini motors or selected broadcast lenses via the LCUBE CUB-2.
  • Page 29 FIZ Setup 14.2 FIZ Controllers Adjustments • Calibration • Torque • Mode • Speed Select Menu Select FIZ 14.3 Calibration By Selecting Calibrate, every single cforce mini motor will be calibrated. NOTE Green indicates that the motor is calibrated. means that the motor needs to be calibrated. NOTE You can also calibrate the motors by pressing the calibration knob at the single cforce motor.

  • Page 30: Fine Trim

    FIZ Setup 14.6 Speed (FIZ motor in Speed Mode) NOTE In general, the speed of FIZ motors can only be adjusted while the motor is operating in Speed mode. For example, to adjust the speed of the Zoom motor touch: Menu - FIZ Selecting Speed selection will open a new touchscreen display with a slider to allow the operator to set the needed Speed...
  • Page 31 Info & Service Info / Service 15.1 Info Menu Remote / Head Hardware Type RCP-1 CCPU V 02.03.20 Serial number KCPU V 02.03.20 LCPU V 02.03.02 RCPU N/A WCPU V 01.14.00 Selecting Remote will provide information about the Mainboard, LBUS, and Expander. The Mainboard Info Screen will show the actual SUP version.

  • Page 32: Info & Service Factory Defaults / Joystick Calibration / Sensor Calibration

    Info & Service 15.3 Joystick Calibration Selecting Calibrate Joystick 1 opens a new submenu in which the internal joystick can be calibrated. 15.4 Service / Remote head Selecting Head will open the head service menu. If Factory Defaults is selected, all memory settings in the remote head will be reset to factory defaults.

  • Page 33: Profile Management

    Profile Management Profile Management 16.1 Selecting Profiles During use, all values, assignments and settings are permanently written to the selected profile. Standard J1 Pan Standard J1 Tilt Knob 8 In this case in Profile 1. Selecting Profile opens a new window where another profile can be selected. 16.2 Startup Settings To ensure that the remote head works properly when it is switched on even when the...

  • Page 34: Power Disconnection

    Appendix Power Disconnection CAUTION To disconnect the device safely from the power source, remove both cables from the SRH-3 remote control. Mount and operate the device in an orientation to ensure easy access to the connectors. Dimensions 18.1 Remote Head...

  • Page 35: Pinout

    Appendix RH Connectors Pinout Remote Head / Remote Control RH Connectors RH Connectors RH Connec or V FS CAN IN Lötseite Buchse LEMO ECG B FF CAN Lö ei e B ch e Fi cher DBP FOMA BUS Slo L CAN L FOMA BUS Slo H CAN H...
  • Page 36 Additional Joystick 2, Pan, left /right J2 V Joystick 2 V Additional Joystick 2, Tilt, up/down DRWP DRW Pan DRW-1, ARRI Wheels, Pan, Pan, left /right DRWT DRW Tilt DRW-1, ARRI Wheels, Tilt, up/down DRWR DRW Roll DRW-1, ARRI Wheels, Roll...

  • Page 37: Declaration Of Conformity

    Product Description: Camera Stabilizer System: • ARRI Stabilized Remote Head SRH-3 Pro Set including ARRI Stabilized Remote Head – SRH-3 and ARRI Remote Control Panel – Remote Control-1 + Europe Setting for Software 01.14.00 or later and Antenna Proant 333 Ex-It 2400 Foldable, Accessories regarding...
  • Page 38 Declaration of Conformity TRA
 REGISTERED No :
 SRH-3: ER72306/19 RDP-1: ER72308/19 DEALER No: DA68290/17 CMIIT ID: 2017DJ7865 (M) CMIIT ID: 2017DJ7863 (M) SRH-3 Pro Set CMIIT ID: 2018DP6608...
  • Page 39 Declaration of Conformity ETA-1386/2018/ERLO ETA-1385/2018/ERLO MIC-ID: 020-180029 020-180030 NCC: CCAH18LP0650TO
 CCAH18LP0660TO...
  • Page 40 Produktbezeichnung / Product Description: Kamerastabilisierungssystem / Camera Stabilizer System: ARRI Stabilized Remote Head SRH-3 Pro Set including ARRI Stabilized Remote Head – SRH-3 and ARRI Remote Control Panel – RCP-1 + Europa Setting der Software 01.14.00 oder höher und Antenne Proant 333 Ex-IT 2400, Zubehör gemäß...
