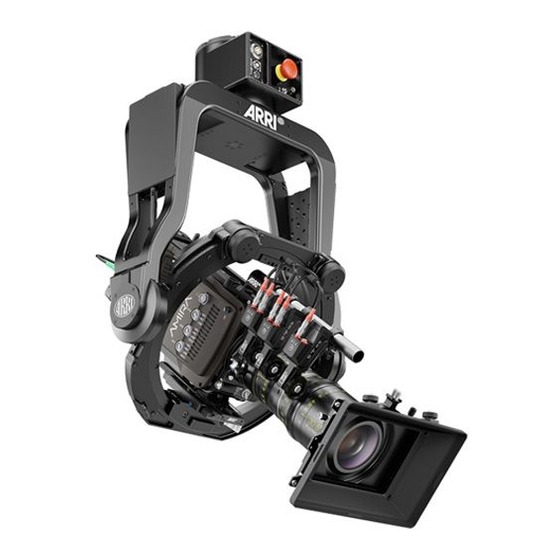

ARRI SRH-3 Troubleshooting Manual
Hide thumbs
Also See for SRH-3:
- User manual (54 pages) ,
- Manual (40 pages) ,
- Installation manual (7 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for ARRI SRH-3
Summary of Contents for ARRI SRH-3
- Page 1 SRH-3 Trouble Shooting 1.0 Date 01.12.2019...
- Page 2 In no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct, indirect, incidental, or consequential damages, including, but not limited to lost profits, lost...
- Page 3 This product is NOT designed for inexperienced users and must not be used without proper training. ARRI recommends that all users of the SRH-3 system read the manual in its entirety prior to use. All directions are given from a camera operator's point of view. For example, camera-right side refers to the right side of the camera when standing behind the camera and operating it in a normal fashion.
- Page 4 Drift is normally measured in degrees per hour. The SRH-3 has a very small amount of drift that would only be noticed while the head is stationary over a long period of time. The average drift can be up to approximately 10° in 30 minutes.
- Page 5 NOTICE Any play in the connections and attachments will generate vibrations. NOTE The SRH-3 can compensate circular movements in three axes, but all linear movements need to be covered by an Iso Damper and Spring Arm. CAUTION Each of these aspects can lead to the motor power of single axis having...
- Page 6 This will bring the head to reduce the power of position correction before the head reaches the desired framing. NOTICE BY REDUCING MOTOR POWER YOU WILL LOOSE DYNAMIC! HINT Please refer the SRH-3 SUP 2.2 manual page 16 / PID / Quick Setup...
- Page 7 Drift Drift NOTICE Before you playing around with any setting, it is important to find the source / reason causing the drift. 1. Joystick Calibration Turn the PAN Speed to 0, if the drift doesn't stop, the head gets a speed value from an input device like a Joystick.
- Page 8 Recommended power cables K2.0019306 SRH-3, Battery Power Cable, 12V/24V, 0.5m/1.64ft K2.0021427 SRH-3 High Capacity Battery Power Cable 24V, 3pin XLR, 10m/33ft K2.0021428 SRH-3 High Capacity Battery Power Cable 12V, 4pin XLR, 10m/33ft K2.0021429 SRH-3 High Capacity Battery Power Cable 24V, 3pin XLR, 20m/66ft K2.0021430...
