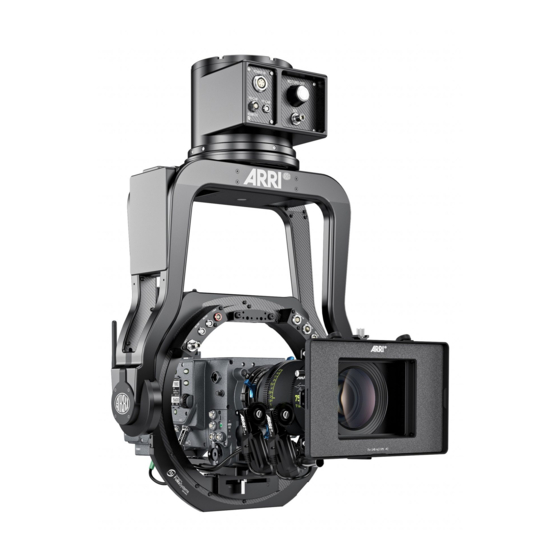

ARRI SRH-360 Series Manual

Stabilized remote head
Hide thumbs Also See for SRH-360 Series:
Table of Contents

Advertisement

Quick Links

Stabilized Remote Head
SRH-360
Manual
Date 01.08.2020
KK.0037273
SRH-36060 Stabilized Remote Head, No Radio, Set, Standard Joystick
KK.0037275
SRH-36060 Stabilized Remote Head, No Radio, Set, Microforce Joystick
KK.0037276
SRH-36060 Stabilized Remote Head, No Radio, Set, Broadcast Joystick
SUP 2.9

Advertisement

Table of Contents
loading

Related Manuals for ARRI SRH-360 Series

Summary of Contents for ARRI SRH-360 Series

  • Page 1 Stabilized Remote Head SRH-360 SUP 2.9 Manual Date 01.08.2020 KK.0037273 SRH-36060 Stabilized Remote Head, No Radio, Set, Standard Joystick KK.0037275 SRH-36060 Stabilized Remote Head, No Radio, Set, Microforce Joystick KK.0037276 SRH-36060 Stabilized Remote Head, No Radio, Set, Broadcast Joystick...
  • Page 2 In no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct, indirect, incidental, or consequential damages, including, but not limited to lost profits, lost...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1 User Advisory / Application Requirements ………………………………………………. 2 For your safety ……………………………………………………………………………… 3 Functions Head / Connectors ….………………………………………………………….. 4 Remote Head Setup / Mounting, Securing, ISO Damper ……..……………….……….. 10 5 Camera Setup / Camera Preparation, Mounting and Balancing / Tilt Lock .……..……. 12 6 Power Supply / Recommended Batteries / Wiring Diagram ………………..………….

  • Page 4: User Advisory / Application Requirements

    User Advisory User Advisory / Application Requirements The SRH-360 stabilized remote head and related products should only be used by experienced and trained operators. This product is not designed for inexperienced users, and must not be used without proper training. Stabilization of remote heads is an extremely complex and at times difficult task and therefore stabilized remote heads do have their limitations.

  • Page 5: For Your Safety

    This product is not designed for inexperienced users and should not and must not be used without proper training. ARRI recommends that all users of the SRH-360 stabilized remote head read the manual in its entirety prior to use.
  • Page 6 For your safety Safety Instructions DANGER Pay attention during setup and the entire operation that no fingers or limbs end up between the outer yoke and inner ring. A high kinetic force can result between the outer and inner ring, depending on the weight and length of the camera.

  • Page 7: Functions Head / Connectors

    Remote Head Functions Functions Mounting base for Mitchell Mount Remote Head Front Emergency Stop Switch Base junction box Pan axis Yoke Mount Onboard computer for top support Left junction box Right junction box Tilt motor Camera dovetail plate Mounting platform Side to side adjustment clamp Remote Head Back...
  • Page 8 Remote Head Functions Remote Head Connectors 12 Volt high capacity power out LBUS 12/24 Volt RS 24V power out RS 24V 12V Aux FF CAN Bus 12G HD SDI In Right junction box Left junction box CAUTION The 12V aux power consumption should not exceed 14,4V / 5 Amps. NOTICE When using a 12G video signal from the camera, only a 12G video cable may be used.
  • Page 9 Remote Head Functions Remote Head Base Junction Box / Rear Main power in Emergency Stop Switch FS CAN Bus 12 G HD SDI Out FF CAN Bus Available cables SRH Power Supply Set, 600W K0.0019478 SRH Power Supply Power and Data Cable, 12V/24V, 20m/65.6ft K2.0019303 SRH High Capacity Camera Power Cable Set K0.0012269...

  • Page 10: Remote Head Setup / Mounting, Securing, Iso Damper

    Remote Head Setup Remote Head Setup DANGER Mounting the the SRH-360 stabilized remote head to a crane, dolly, support arm or any other device, has to be done by experienced operator or grip personal. Make sure that all safety regulations have been considered. Step 1 Mounting the SRH-360 NOTICE...
  • Page 11 Remote Head Setup ISO Damper for SRH-3 & SRH-360 The vibration isolator offers Mitchell Mounts at both ends. To support fast and easy mounting of the SRH-3 and SRH-360, the shape of the lower blue Mitchell Mount is optimized for the SRH-3 and SRH-360.

  • Page 12: Camera Setup / Camera Preparation, Mounting And Balancing / Tilt Lock

    Camera Preparation Camera Preparation / Balancing NOTICE The entire balancing procedure of the SRH-360 stabilized remote head is based on symmetry and neutral balance. Only a precisely executed camera preparation will enable you to get the best performance out of the SRH-360 stabilized remote head. Step 3 The right Camera Dovetail Plates and accessories We highly recommend to use the so called Stabilizer Adapter Mount / SAM plates.
  • Page 13 Remote Head Setup Step 4 Tilt Lock Locked DANGER While camera setup the Tilt Lock needs to be engaged! (Locked) Before powering up the remote head, the Tilt Lock must be disengaged! Unlocked An engaged Tilt Lock may cause damage by overheating the tilt motors.
  • Page 14 Remote Head Setup Step 6 Fore and Aft Balance Unlock the tilt lock mechanism first. Unlocked Clamp Lever Open the clamp lever to move the dovetail (fore and aft adjustment) plate forward or backward. Move the camera fore or aft, until the camera remains in a neutral horizontal position.

  • Page 15: Power Supply / Recommended Batteries / Wiring Diagram

    Remote Head Setup Powering the SRH-360 CAUTION To perform in the desired way, the stabilized remote head requires at least min. 24V / 8A over the 3pin XLR plug and min. 12V / 5A via the 4pin XLR plug. Use only suitable and recommended power cords, batteries and power supplies. Otherwise the desired performance cannot be guaranteed.

  • Page 16: Remote Control Panel / Wiring / Functions / Emergency Stop / Mounting Position

    Ramp (assignable) (assignable) (assignable) (assignable) (assignable) (assignable) Functions on the rear Main Pwr Emergency On/Off Stop Switch 12V Pwr In 4pin XLR 2pin Mini Lemo Data Pwr Out Functions on the right and left side LBUS In ARRI Mounting Rosettes...

  • Page 17: Remote Control Gui / Factory Presets / Functions

    Remote Control GUI SRH-360 Remote Control / GUI (Graphical User Interface) Software factory presets The SRH-360 has a factory preset for the main functions such as joystick, speed and ramp. The factory preset settings ensure all necessary basic functions and enable immediate operation.
  • Page 18 Remote Control GUI Step 10 Emergency Stop remote control panel / remote head This information appears on the screen after the emergency stop switch has been triggered. The emergency stop switch can be triggered on the remote control panel and on the remote head.

  • Page 19: Changing Directions / Speed / Ramp

    Touch the field below Pan, Tilt, Roll and select the desired controller in the submenu. Available controllers Pan, Tilt, Roll Standard Joystick 1 SJ1T Standard J 1 Tilt DRWP DRW-1 Pan DRW-1, ARRI Wheels, Pan up/down Standard Joystick 1 SJ1P Standard J 1 Pan DRWT DRW-1 Tilt...
  • Page 20 Controls Setup Changing Direction The marked field indicates the selected direction. Standard J1 Pan Standard J1 Tilt Knob 8 Touching the marked field opens the Direction submenu. Touching the field in the middle toggles between Standard and Reverse. Speed (K1, K2, K3) In factory preset Speed is assigned to: Tilt Roll...

  • Page 21: Pid Setup / Quick Setup / Pid Fine Trim

    PID / Quick Setup PID / Quick Setup NOTICE It is important to understand and to accept that all necessary steps, such as setting up the camera, attaching the remote head to the crane, the quality of the crane itself and the PID settings, must be taken into account and properly performed.
  • Page 22 PID / Fine Tuning Step 14 10.3 Fine tuning of the current PID values Set the Joystick Ramp to ZERO (Pan & Tilt) (K4 & K5) Physical test to determine the necessary tilt power value. Touch the lens at the front end, slowly push the camera down and check if the tilt axis starts to slip.

  • Page 23: Drop

    Drop Drop Step 15 NOTICE Without any Drop compensation, strong vibrations occur at steep angles. At very steep angles, the weight distribution of the camera setup changes extremely. The weight of the camera remains the same during tilting, but the overall length of the weight distribution becomes shorter and shorter the steeper the tilt angle becomes.

  • Page 24: Home Position / 13 True Horizon / 14 True Tilt/Roll

    Home Position, True Horizon, True Tilt / Roll Home Position Step 16 This function moves the remote head back to its predefined starting position. By default, this function is assigned to the Touch Screen. 12.1 Setting Home Position Touching Home Position will open up a sub menu. Now use the Pan controller to move the remote head into the desired Home Position.
  • Page 25 End Stops End Stops On / Off NOTICE This Function is only available in Speed Mode. Indicates whether End Stops / Limits are active or not. By default, this function is assigned to button B5. The End Stops values can be set in the End Stops menu in the Main menu.

  • Page 26: End Stops / 16 Follow Mode

    Follow Mode / Pan Lock Follow Mode On / Off NOTICE This Function is only available in Speed Mode. Indicates if the Follow Mode is active or not. By default, this function is assigned to button B6. Follow / Pan Lock The Follow mode allows the horizontal Pan and the vertical Tilt movement of the remote head to be synchronized with the horizontal Pan and the vertical Tilt movement of the crane.

  • Page 27: Dynamic Mode

    Dynamic Modes Dynamic Modes The SRH-360 offers three different Dynamic Modes If the SRH is used on a tripod or dolly and it is important that the head drifts as little as possible, then the Low Dynamic Mode is the right choice. Standard By default, the SRH works in Standard dynamic mode, which ensures the best overall performance for the average daily shooting scenarios.

  • Page 28: Additional Controls Setup / Dead Band / Sensitivity / Filter / Ratio

    Additional Controls Settings Additional Controls Setup • Dead Band • Sensitivity • Filter • Ratio Select Main Select Position Select the Axis 18.1 Dead Band This value determines when the remote head responds after the control device (joystick) has been moved. NOTICE If the DRW-1 wheels or the DEH-1 encoder head is used as a controller, Dead Band must be set to 0!
  • Page 29 To simplify the setting, the Ratio settings is assigned to the Speed knobs K1, K2, K3. NOTE To simulate the original gear ratio of the ARRI gear head (slow, medium and fast), you need to set the speed values as shown in the list.

  • Page 30: Additional Remote Head Settings / Pan Motor On/ Off / Motor Mode

    Additional Remote Head Settings Additional Remote Head Settings • Pan Motor On / Off • Motor Mode Select Main Select Head 19.1 Pan Motor On/Off Selecting Motor On/Off will toggle between Pan motor On and Off. 19.2 Motor Mode In the Motor Mode column, the motors can be set to Speed or Angle mode.

  • Page 31: Controling External Devices / Tower

    Controling External Devices Controling External Devices 20.1 Future Feature NOTICE Future Feature. Not available in this SUP...

  • Page 32: Using External Radio Modules / Range

    Wireless Setup Wireless Setup NOTICE KK.0037270 SRH-360 Stabilized Remote Head, No Radio, Set, Standard Joystick KK.0037271 SRH-360 Stabilized Remote Head, No Radio, Set, Microforce Joystick KK.0037272 SRH-360 Stabilized Remote Head, No Radio, Set, Broadcast Joystick The listed remote heads are NOT equipped with any wireless radio transmission. To operate the listed remote heads wireless, the ERM-2400 or ERM-900 must be connected to the remote head and the remote control panel and set up in the radio menu.

  • Page 33: Fiz Setup Assigning / Available Controllers / Mode / Torque / Calibration / Speed

    FIZ Setup Focus - Iris - Zoom / FIZ Introduction Using the optional internal focus wheel or the internal zoom rocker or LBUS-based controls such as Master Grips Focus and Zoom or the OCU-1 allows you to control the cforce mini K0.0019595 KK.0022270 motors or selected broadcast lenses via the...
  • Page 34 FIZ Setup Step 1 22.4 FIZ Controllers Adjustments • Motor Mode • Calibration • Torque • Speed Select Menu Select FIZ 22.5 Motor Mode In the Motor Mode column, the motors can be changed from Position to Speed mode. Touching the marked area will toggle between Position and Speed mode.

  • Page 35: Profile Management / Selecting Profiles / Cloning Profiles

    Profile Management Profile Management 23.1 Selecting Profiles During use, all values, assignments and settings are permanently written to the Standard J1 Pan Standard J1 Tilt Knob 8 current selected profile. In this case in Profile 1. Touching Profile opens a new window where another profile can be selected. 23.2 Cloning Setting In some menus, like PID menu the values can also be...

  • Page 36: Info / Remote Control Panel / Remote Head

    Info Info Info Menu Remote / Head 24.1 Remote (RCP) Selecting Remote will provide information about the Mainboard, LBUS, and Expander. 24.2 Mainboard The Mainboard Info Screen will show the actual SW version. 24.3 LBUS The LBUS Info Screen will show the actual SW version of the connected LBUS controller.

  • Page 37: Service / Remote Control Panel / Remote Head

    Service Service Touching Service opens a new submenu in which you can carry out calibrations and restores for the remote control panel and the remote head. 25.1 Remote Control Panel Selecting Remote will open the remote control panel Service menu. 25.2 Calibrate By selecting Calibrate, internal controllers such as the...
  • Page 38 Choose Gyro Calibration in order to perform the Camera Gyro calibration. NOTICE Secure the camera. Since the motors are switched off during the calibration, it may be that the camera tilts over the tilt axis. 25.9 Factory Only an ARRI service technician can access this function.

  • Page 39: Power Disconnection

    Appendix Power Disconnection CAUTION To disconnect the device safely from the power source, remove both cables from the SRH-360 remote control panel. Mount and operate the device in an orientation to ensure easy access to the connectors. Dimensions 27.1 Remote Head Stabilized Axes 3 (Pan, Tilt, Roll) Max.

  • Page 40: Pinout

    Appendix Pinout Remote Head / Remote Control Panel 12 Volt high capacity power out LBUS 12/24 Volt RS 24V power out RS 24V 12V Aux FF CAN Bus 12G HD SDI In Main power in Emergency Stop Switch FS CAN Bus 12 G HD SDI Out FF CAN Bus RH Connectors...
  • Page 41 Additional Joystick 2, Pan, left /right J2 V Joystick 2 V Additional Joystick 2, Tilt, up/down DRWP DRW Pan DRW-1, ARRI Wheels, Pan, Pan, left /right DRWT DRW Tilt DRW-1, ARRI Wheels, Tilt, up/down DRWR DRW Roll DRW-1, ARRI Wheels, Roll...

  • Page 42: Declaration Of Conformity

    Product Description: Camera Stabilizer System: • ARRI Stabilized Remote Head SRH-360 Pro Set including ARRI Stabilized Remote Head – SRH-360 and ARRI Remote Control Panel – Remote Control-1 & 2 + Europe Setting for Software 01.14.00 or later and Antenna Proant 333 Ex-It 2400 Foldable, Accessories...
  • Page 43 Produktbezeichnung / Product Description: Kamerastabilisierungssystem / Camera Stabilizer System: ARRI Stabilized Remote Head SRH-3 Pro Set including ARRI Stabilized Remote Head – SRH-3 and ARRI Remote Control Panel – RCP-1 + Europa Setting der Software 01.14.00 oder höher und Antenne Proant 333 Ex-IT 2400, Zubehör gemäß...
  • Page 44 Declaration of Conformity...

This manual is also suitable for:

Srh-36060Kk.0037273Kk.0037275Kk.0037276Srh-3Srh-360
