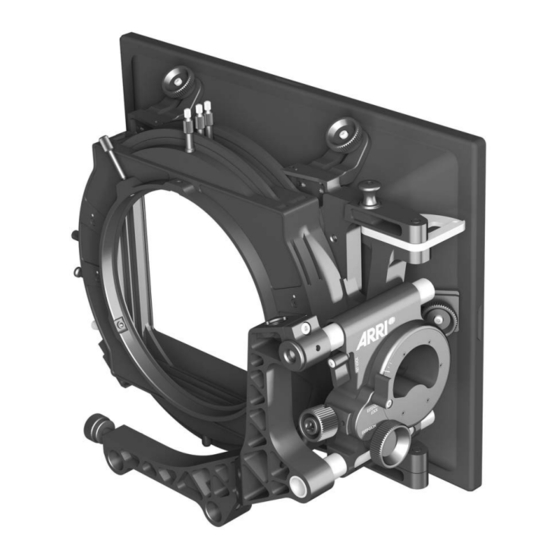

STUDIO MATTE BOX SMB-1
STUDIO MATTE BOX SMB-1
U S E R
U S E R
G U I D E
G U I D E
17 December 2014
17 December 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMB-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARRI SMB-1

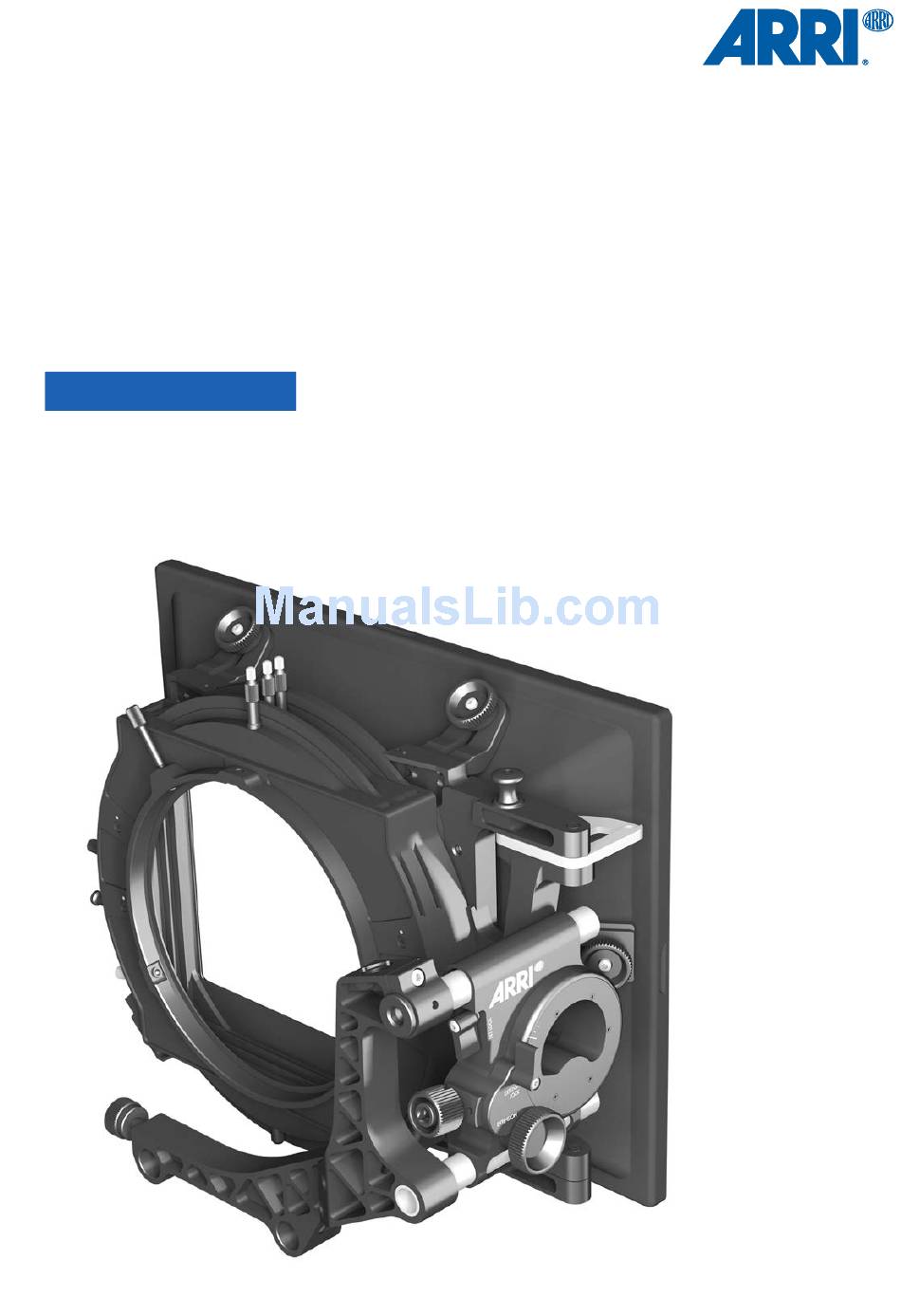

  • Page 1 STUDIO MATTE BOX SMB-1 STUDIO MATTE BOX SMB-1 U S E R U S E R G U I D E G U I D E 17 December 2014 17 December 2014...
  • Page 2 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. Specifications are subject to change without notice. Errors, ommissions, and modifications excepted. Original version. For further assistance Arnold & Richter Cine Technik GmbH & Co. Betriebs KG Tuerkenstr. 89 D-80799 Munich, Germany E-mail: service@arri.com www.arri.com/service Document revision history Version Release Date 80.0003786...
  • Page 3: Table Of Contents

    Contents Contents Risk levels and alert symbols..............5 Introduction.................... 6 Available versions................. 7 Accessories.................... 8 Compatibility..................11 Tooling....................12 Sunshade....................13 Mounting/Removing a sunshade............13 Anamorphic sunshade.................14 Swing-away system................15 Opening a matte box with swing-away system........15 Studio Arm................... 16 Mounting/Removing a matte box studio arm........16 Fitting a matte box on rods..............
  • Page 4 Contents Accessory adapter................30 14.1 Mounting/Removing an accessory adapter......... 30 14.2 Adapter operation................31 6" Tilting filter ring................32 15.1 Mounting/Removing the 6" tilting filter ring..........32...
  • Page 5: Risk Levels And Alert Symbols

    Risk levels and alert symbols Risk levels and alert symbols Safety warnings, safety alert symbols, and signal words in these instructions indicate different risk levels: CAUTION! CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE NOTICE explains practices not related to physical injury.
  • Page 6: Introduction

    Introduction Introduction The Studio Matte Box SMB-1 supports filter sizes up to 6.6" x 6.6". It is designed for use with bigger wide-angle prime lenses and also with zooms. The SMB-1 Tilt has an exclusive integrated tilt module and all versions benefit from stackable filter stages, allowing quick reconfiguration.
  • Page 7: Available Versions

    Available versions Available versions SMB-1 Tilt K2.66262.0 SMB-1 Basic K2.0001516...
  • Page 8: Accessories

    Accessories Accessories Extension Module K2.0001519 Tilt and Extension Module K2.0001520 Top/Bottom Flag K2.66273.0 Side Flags (pair) K2.66274.0 Side Flags ANAM (pair) K2.0001173...
  • Page 9 Accessories 1-Filter Stage incl. 1 x Filter Frame, non- K2.0001462 geared 2-Filter Stage incl. 1 x Filter Frame, non K2.0001465 geared and 1 x Filter Frame, geared Sunshade ANAM K2.0001466 Mattes SPH K2.66267.0 Mattes SPH/ANAM K2.0001161 Mattes ANAM K2.0000676...
  • Page 10 Accessories 6" Tilting Filter Ring Ø150 mm K2.0001174 19 mm Studio Arm K2.66280.0 15 mm Studio Arm K2.0000646 Case for SMB-1 K2.0002669 Accessory Adapter K2.0001172 Flexible Shaft K2.34890.0 Top/Bottom Flag Holders (pair) K2.0001517...
  • Page 11: Compatibility

    Compatibility Compatibility The Studio Matte Box is compatible with the following ARRI accessories: • All R1 rings 165 mm - check details online with ARRI Configuration Overviews • All F1 filter frames - check details online with ARRI Configuration Overviews...
  • Page 12: Tooling

    All fastening screws necessary for matte box operation are fitted with a 3 mm Hex driver. The dismantling of matte box components fastened with Torx head screws is not covered in this manual. We recommend contacting an ARRI Service partner. Tools needed •...
  • Page 13: Sunshade

    Sunshade Sunshade The sunshade of the matte box can be removed for special applications. An optional sunshade designed for anamorphic filming is available (K2.0001466). This sunshade is part of the Anamorphic Upgrade Set (K0.0001676). Mounting/Removing a sunshade Remove the sunshade in order to fit the anamorphic sunshade or for special applications when no sunshade is desired, such as with macro shots.
  • Page 14: Anamorphic Sunshade

    The standard 4:3 ratio sunshade covers the full ALEXA sensor and permits repositioning in post-production. The optional Anamorphic Upgrade Set comprises a 2:1 ratio sunshade, a pair of side flags and a set of mattes matching the 2:1 ratio sunshade. SMB-1 Anamorphic Upgrade Set K0.0001676 Sunshade ANAM K2.0001466 Side Flags ANAM (pair) K2.0001173...
  • Page 15: Swing-Away System

    Swing-away system Swing-away system To facilitate lens change, you can open the matte box. The swing-away system locks automatically in a closed and opened position. This reduces the probability of lens damage during lens change. Opening a matte box with swing-away system 1.
  • Page 16: Studio Arm

    Studio Arm Studio Arm The Studio Matte Box is available with 19 mm and 15 mm matte box studio arms. NOTICE The matte box can only be supported on 19 mm and 15 mm studio rod systems. A 15 mm lightweight support is not compatible. Mounting/Removing a matte box studio arm 1.
  • Page 17: Fitting A Matte Box On Rods

    Studio Arm Fitting a matte box on rods The Studio Matte Box fits 19 mm or 15 mm studio camera systems. NOTICE Before fitting the matte box, install all rod-related accessories. Please ensure that fitting the matte box is the last step. 1.
  • Page 18: Filter Stages

    Filter stages Filter stages SMB-1 filter stages come in 1-filter and 2-filter modules. • 1-filter stage modules come with one filter frame 6.6" x 6.6" (non-geared) and cannot accept geared filter frames. • 2-filter stage modules come with two filter frames (one geared, one non- geared).
  • Page 19: Separating Two Filter Stages

    Filter stages 10.2 Separating two filter stages 1. Pull the respective release plunger (1) . 2. Lift up and remove the redundant filter stage. 3. Reattach the back plate (2) to the remaining filter stage.
  • Page 20: Rotating The Filter Stages

    Filter stages 10.3 Rotating the filter stages The filter stages can rotate independently. Note: Filter frames in 2-filter stages rotate in pairs. NOTICE The filter stage features an anti-friction coating and should not be greased or oiled. 1. Fit the matte box to the camera rods. 2.
  • Page 21: Geared Filter Frame

    Filter stages 10.4 Geared filter frame Graduated filters can be precisely adjusted by using the geared filter frames. 1. Place a graduated filter in the front filter frame (1) of a 2-filter stage module with the gear facing left. 2. Turn the graduated filter frame wheel (2) located on the side of the 2-filter stage under the stackable stage release plungers.
  • Page 22: Tray Catcher

    Filter stages 10.5 Tray catcher The tray catchers secure filter frames during intense filming such as vehicles and special effect shots. NOTICE Do not force filter frames down when tray catchers are in use. This could result in damage to the matte box. 1.
  • Page 23: Tilt And Extension Module

    Tilt and extension module Tilt and extension module The Studio Matte Box Basic is fitted with an extension module with no tilt function. The Studio Matte Box Tilt is fitted with an integrated tilt and extension module. NOTICE The integrated extension module of the basic version has no integrated tilt function. 11.1 Tilt module NOTICE The tilt module features self lubricating components and should not be greased or...
  • Page 24: Extension Module

    Tilt and extension module 11.2 Extension module Fig.: SMB-1 Basic Fig.: SMB-1 Tilt 1. Fit the matte box to the camera rods. 2. Unlock the extension module (1). 3. Move the matte box forward by turning the extension control (2) clockwise.
  • Page 25: Flags

    Flags Flags Articulated flags help to prevent stray light creating artifacts on the final image. The top/bottom flag fits to the top and bottom flag attachment of the matte box. Both sets of side flags fit to the side flag attachment. 12.1 Mounting/Removing the top/bottom flag NOTICE In order to fit the top/bottom flag at the bottom position, you should use the optional...
  • Page 26: Mounting/Removing A Side Flag

    Flags 12.2 Mounting/Removing a side flag NOTICE The following instruction is valid for both spherical and anamorphic side flags. 1. Open the flag holder nut (1) slightly until a gap of around 4 mm is visible. 2. Engage the side flag cut-out (2) in the flag holder. 3.
  • Page 27: Quick Adjust

    Flags 12.3.1 Quick adjust 1. Lift the flag adjuster from its space-saving position (2). 2. Support the moving part of the flag with a hand. 3. Depress the quick adjust button (1) and keep depressed. 4. Adjust the flag angle to the desired position. 5.
  • Page 28: Mattes

    2. Place the matte (1) of your choice at the front of the sunshade (2). The labelling of the matte must face away from the matte box with the ARRI logo on top. 3. Engage the matte (1) by pressing on the four catches (3) around the sunshade until they audibly lock.
  • Page 29: Fitting A Protective Cover (Matte #0)

    Mattes 13.2 Fitting a protective cover (matte #0) To protect the lens, e.g., if moving the camera between shots or if leaving the camera unattendend, each matte set includes a protective cover. 1. Fit the matte box to the camera rods. 2.
  • Page 30: Accessory Adapter

    An optional accessory adapter fits directly onto the matte box body. It can be used for french flag arms and incorporates a 3/8" - 16" sliding mount (e.g., for ultrasonic sensors such as the ARRI UDM-1). 14.1 Mounting/Removing an accessory adapter 1.
  • Page 31: Adapter Operation

    Accessory adapter 14.2 Adapter operation 1. Unlock the 3/8" mount lock (2). 2. Slide the mount (1) to the desired position. 3. Lock the 3/8" mount lock (2). Sprung ball bearings are located on each side of the accessory mount, preventing the accessory adapter to fall off.
  • Page 32: 15 6" Tilting Filter Ring

    6" Tilting filter ring 6" Tilting filter ring A special rubber filter ring accompanys the matte box tilting module. The tilting filter ring comes as two similar size bellows that can be used as a single unit or stacked together for withstanding greater tilting angles. The filter ring can hold a round 6" filter and is compatible with Ø150mm (R8) screw-in rings.
