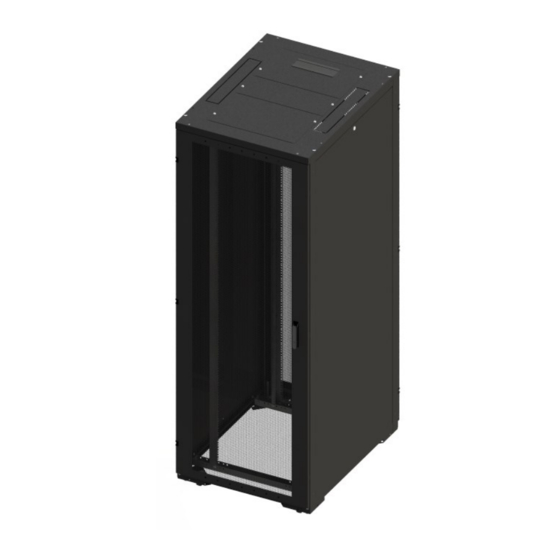

  • Page 1 Installation Guide REC Series Rack Installation Guide ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 2: Table Of Contents

    SAFETY WARNINGS 600 WIDE EXPLODED VIEW 800 WIDE EXPLODED VIEW SWITCHING DOOR HANDING STABILIZING BAYING THE ENCLOSURE SIDE PANEL RACK MOUNT ADJUSTMENT RACK EARTH BONDING AISLE CONTAINMENT ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 3: Safety Warnings

    When lifting heavy components or electronic equipment, ensure that all safety regulations are observed. WARNING! The REC Series enclosure is designed to support a Static Load of 1100kg or a Dynamic Combined Load of 200kg. Dynamic Combined Load is the combined weight of the rack and installed equipment.
  • Page 4 Installation Guide 2. 600 WIDE EXPLODED VIEW ITEM DESCRIPTION Vented Door Assembly Option Enclosure Frame Roof Panels Side Panel ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 5 3. 800 WIDE EXPLODED VIEW ITEM DESCRIPTION Vented Door Assembly Option Double Vented Door Assembly Option Enclosure Frame Vented Door Assembly Option Double Vented Door Assembly Option Side Panels Roof Panels ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 6: Switching Door Handing

    8. Remove and rotate the door handle 180 degrees. 9. Replace the fixing plate and two screws (Fig 3). 10. Tighten the two screws which secure the locking rods (Fig 3). ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 7: Stabilizing

    Using a level, adjust the leveling feet as required to level the enclosure. For enclosures that have casters, extend the leveling feet so that the casters are approximately 3 mm off the floor. ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 8: Baying The Enclosure

    Bolt the adjacent frames together with the four nuts, bolts and washers included in the baying kit, part number NRA BTK. IMAGE WITH DOORS AND SIDE PANELS REMOVED FOR CLARITY ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 9: Side Panel

    1. Align the two holes on the bottom of the side panel with the two pins on the enclosure frame. (Fig 2) 2. Then lower the side panel on to the pins. 3. Lock the side panel with the key supplied (Fig 1). ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 10: Rack Mount Adjustment

    1. Loosen the four bolts using a 5mm Allen key, do not remove the bolt (Fig 1). 2. Slide rails to desired location. 3. Ensuring the rails are vertical, tighten the bolt with 5mm Allen key (Fig 1). ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 11: Rack Earth Bonding

    M6 Plain Washers M6 Serrated Hexagonal Flange Nut Earth Lead 500mm Earth Lead 350mm TOOLS REQUIRED:  SPANNER (WRENCH) - 10mm (x2)  ALLEN KEY - 4mm ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 12 M6 Shake proof washer ensure that the components are M6 Thread forming screw earthed to the rack frame. ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 13 Tighten to 12Nm. Repeat this step at the rear of the rack. Fig 1.0 M6 x 25 Setscrew M6 Shake proof washer M6 Serrated hex flange nut ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 14 Fig M6 Earth lead (350mm) - connect to corner gusset M6 Shake proof washer M6 X 12 Setscrew M6 Plain washer M6 Serrated hex flange Fig 3.0 ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 15 - To 19-inch rails Fig 6.0 M6 Earth lead (500mm) - To side panels M6 Serrated hex flange nut M6 Plain washers (X2) M6 Earth lead (350mm) - To doors ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 16: Aisle Containment

    1800mm wide aisles. Kit height will cover both 42U and 47U  SPANNER (WRENCH) - 10mm REC racks.  Roof panels should be ordered separately .  ALLEN KEY - 5mm  CROSS HEAD SCREWDRIVER ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 17 Step – 1  Ensure cabinets are aligned, level and the correct distance apart (either 1200mm or 1800mm, depending on the aisle configuration) as shown in diagram below; FLOOR ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 18 SCREW M6 x 16mm CAGE NUT M6 HINGES SCREW M5 X 8mm FOR HINGES CLAMP PLATE BRUSH (FOR DOOR BOTTOMS) DOOR (PAIR) Master Door Slave Door Doors viewed from inside ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 19  Fit the brush (Item 12) to the brush carrier on the door bottom by pushing it into place (this is easier be- fore doors are hung). ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 20 M6 x 16mm CLAMP PLATE SCREW 7 CABINET VERTICAL Step – 7  Fit roof panel using 4 off M6 x 16mm screws, item 7. ROOF PANEL DOOR FRAME ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 21 3 to 4mm all around. The hinge adjusting screws are accessed from the rear of the frame and doors (inside the aisle). DOOR HINGE ADJUSTMENT SCREWS. ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
  • Page 22 (refer to images below), and push master door to the open position. Release latch shown in Closed position Release latch shown in open position STEP 1 PULL STEP 2 LIFT ©2015 Eaton Corporation REC Series Enclosure Installation Guide _issue 4 All rights reserved...
