Summary of Contents for Yealink ZVC Series
-
Page 2: Table Of Contents
| Contents | ii Contents Introduction....................5 Hardware Overview..........................5 MCore............................5 UVC80............................. 6 UVC50............................7 UVC30 Room..........................8 CP960............................8 MShare(Optional)........................9 Related Documentations........................10 Technical Specifications........................11 Deployment and Connection..............12 ZVC800 Zoom Rooms Kit......................... 13 ZVC500 Zoom Rooms Kit......................... 14 ZVC300 Zoom Rooms Kit......................... - Page 3 Changing the Time and Date Format................... 32 Changing the Screen Backlight Brightness and Time..............33 Changing the Screen Saver Type and Waiting Time...............33 Setting the Signal Port of Yealink Plugin..................33 Using the CP Wireless Expansion Mic CPW90........34 Registering the CPW90........................34 Unregistering the CPW90.........................
- Page 4 The display does not display the shared content..............40...
-
Page 5: Introduction

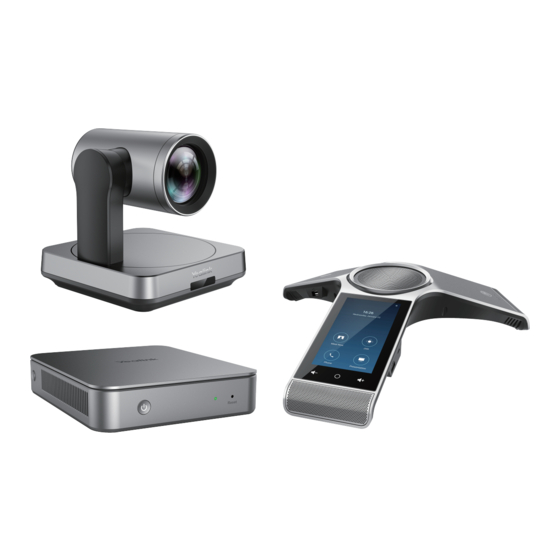

The Yealink ZVC series of video solution is designed for immersive (intelligent) Zoom meetings in various sizes meeting rooms. The ZVC series is a bundle video solution that includes everything you need to seamlessly and smartly meet, connect, and collaborate with internal and external users. The ZVC series delivers premium audio and video quality thanks to its Yealink audio devices and UVC series of optical PTZ cameras. -
Page 6: Uvc80
| Introduction | 6 Port Name Description Power Powers on or powers off. ① Reset Key ② Reset the MCore to factory defaults. HDMI Connects to a display. ③ USB 3.0 Port ④ • Connects to the UVC80/UVC50/UVC30 Room. • Connects to a wireless USB dongle to use the wireless keyboard or the mouse. -
Page 7: Uvc50
| Introduction | 7 Port Name Description Line Out Connects to an audio output device using a ① 3.5mm audio cable, for example MSpeaker Ⅱ. Line In ② Connects to an audio input device using a 3.5mm audio cable. USB(Optional) ③... -
Page 8: Uvc30 Room
| Introduction | 8 Port Name Description USB(Optional) ① Microphone Connects to a microphone. ② Video Out Connects to a PC as a video output. ③ Line In ④ Connects to an audio input device using a 3.5mm audio cable. Line Out Connects to an audio output device using a 3.5mm ⑤... -
Page 9: Mshare(Optional)
| Introduction | 9 Item Description Three Internal Provide 20-feet and 360-degree coverage to transmit sound to other Microphones phones. Mute Touch Keys Toggle mute feature. Speaker Provides hands-free (speakerphone) audio output. Touch Screen Allows you to select items and navigate menus on the touch- sensitive screen. -
Page 10: Related Documentations
Indicates the status of MShare connected to the WPP20. ⑤ Connects to MCore. ⑥ Related Documentations The following related documents are available: Yealink ZVC Series Zoom Rooms Kit Quick Start Guide (EN, CN) • Yealink UVC80 Quick Start Guide(EN&CN) • Yealink UVC50 Quick Start Guide(EN&CN) •... -
Page 11: Technical Specifications
(2 x 4GB) Ports • 2 x HDMI video output • Bluetooth and Wi-Fi • 1x Yealink VCH port, for connecting MTouch II • 4 x USB3.0 Type-A • 1 x 10/100/1000M Ethernet port • 1 x Power port •... -
Page 12: Deployment And Connection
Noise suppression (NS) Deployment and Connection The following contents describe the deployment and connection of Yealink Solution for Zoom Rooms, which consists of CP960, UVC80/UVC50/UVC30 camera, and MCore. The CP960 with Zoom Rooms version, can communicate with the MCore connected to the same LAN and can be used as Zoom Rooms controller, speaker, and microphone. -
Page 13: Zvc800 Zoom Rooms Kit
| Deployment and Connection | 13 ZVC800 Zoom Rooms Kit Note: For more information about the installation and deployment of accessories (for example, the installation of MCore or UVC80 camera), refer to the Quick Start Guide of the corresponding accessory. -
Page 14: Zvc500 Zoom Rooms Kit
| Deployment and Connection | 14 ZVC500 Zoom Rooms Kit Note: For more information about the installation and deployment of accessories (for example, the installation of MCore or UVC50 camera), refer to the Quick Start Guide of the corresponding accessory. -
Page 15: Zvc300 Zoom Rooms Kit
Recommendations of MCore Installation • Conference Room Wiring • Deployment Solutions of Different Meeting Rooms Yealink ZVC Zoom Rooms system supports different camera devices (UVC80/UVC50/UVC30 Room) according to the conference requirements. Deployment solutions for different camera devices are as follows:... - Page 16 | Deployment and Connection | 16 Medium-to-large room Small-to-medium Focus and small meeting room room(2-7 People) (8-18 People) (5-11 People) (2-7 People) ZVC800 Zoom Rooms Kit ZVC500 Zoom Rooms Kit ZVC300 Zoom Rooms Kit For Focus and small room(2-7 People) For Small conference room (5-11 people) For Medium-to-large conference room (8-18 people)
-
Page 17: Camera Installation
| Deployment and Connection | 17 • CPW90 wireless microphones support 360-degree audio pickup at a radius of up to 3 meters. • Place the CPW90 wireless microphones on a stable surface and keep them away from obstacles, so that they can pick up sounds effectively. Camera Installation You can mount the UVC80/UVC50 on the top of the TV, on the wall, on the ceiling, or onto a TV Stand or a Tripod. - Page 18 | Deployment and Connection | 18 For UVC30: Recommendations of Camera Installation • Recommendations of Camera Installation The following is an example of installing UVC80: • Install the LCD TV and video camera relative to the center of the participants. Ensure that the participants face the camera and LCD TV directly during calls.
-
Page 19: Recommendations Of Mcore Installation
Recommendations of MCore Installation You can mount the MCore on the wall near the TV, or stick it to the table or the backside of the TV cart. Yealink Mcore Quick Start Guide (EN,CN). For more information on how to install the MCore, please refer to Conference Room Wiring If the conference room has a dedicated routing channel, you can follow the way as it is. -
Page 20: Zoomrooms Account
| Wireless Network Connection for CP960 | 20 Note: Starting the MCore for the first time may take a long time to configure the Windows system and we recommend using the wireless mouse and keyboard to complete the Windows configuration. ZoomRooms Account •... -
Page 21: Using Cp960 As An Audio Input And Output Device
| Using CP960 as an Audio Input and Output Device | 21 Procedure 1. After the MCore is powered on, the Zoom Rooms app will be started automatically. The pairing code will be displayed on the screen. Otherwise, you need to open the Zoom Rooms app manually. - Page 22 | Using CP960 as an Audio Input and Output Device | 22 3. Tap the Microphone field and then select Echo Cancelling Speakerphone (Yealink CP960 Speakerphone) as your audio input device from the SOURCE field.
- Page 23 | Using CP960 as an Audio Input and Output Device | 23 4. Tap the Speaker field and then select Echo Cancelling Speakerphone (Yealink CP960 Speakerphone) as your audio output device from the SOURCE field.
-
Page 24: Using Cp960 As Zoom Rooms Controller
| Using CP960 as Zoom Rooms Controller | 24 Using CP960 as Zoom Rooms Controller After your phone is paired with theMCore, it can be used as a Zoom Rooms controller. Signing Into Your Zoom Rooms Account • Signing Out of Your Zoom Account from Your Phone •... -
Page 25: Signing Out Of Your Zoom Account From Your Phone
| Using CP960 as Zoom Rooms Controller | 25 Signing Out of Your Zoom Account from Your Phone Procedure > Sign Out on the touch screen. 2. Enter the room password to sign out. 3. Tap OK. If you have disabled the Lock Settings before, the account will be signed out directly once you tap Sign Out. -
Page 26: Controlling Uvc80/Uvc50/Uvc30 Camera
For more information on how to configure camera parameters on the Yealink RoomConnect plug-in, Yealink RoomConnect User Guide. -
Page 27: Controlling Uvc80/Uvc50/Uvc30 Room Camera Position
| Using CP960 as Zoom Rooms Controller | 27 3. Tap the Camera field and then select Yealink UVC80/UVC50/UVC30 Camera as your default camera from the SOURCE field. Controlling UVC80/UVC50/UVC30 Room Camera Position Procedure 1. During a meeting, tap Camera Control. -
Page 28: Resetting The Preset Position For Uvc30
| Using CP960 as Zoom Rooms Controller | 28 5. If the Lock Settings is enabled, enter the room passcode. 6. Long tap the corresponding preset and then select Save position. Resetting the Preset Position for UVC30 Procedure 1. During a meeting, tap Camera Control. 2. -
Page 29: Content Sharing
1. Connect the WPP20 wireless presentation pod to your computer. 2. If the WPP20 is first connected to the computer, you need to manually start the Yealink Wireless Presentation Pod software from This PC in Windows 10 or from My Computer in Windows 7 and then... -
Page 30: Stopping Sharing Content Via Wpp20
Note: After stopping content sharing, you can start presenting again as you need. Using Hybrid Mode Yealink Solution for Zoom Rooms supports the hybrid mode that allows you to switch between SIP mode and Zoom Rooms mode to experience Zoom video conferences as well as SIP calls and conferences. -
Page 31: Enabling The Hybrid Mode
Changing the Screen Backlight Brightness and Time • Changing the Screen Saver Type and Waiting Time • Setting the Signal Port of Yealink Plugin • Setting the Language Procedure 1. Swipe down from the top of the screen to enter the device setting screen. -
Page 32: Setting The Input Method
| Basic Settings on the Phone | 32 Setting the Input Method Before using the on-screen keyboard to enter data, you can set the input method. The CP960 supports the English (US)-Android Keyboard (AOSP) input method and Google Pinyin input method. Procedure 1. -
Page 33: Changing The Screen Backlight Brightness And Time
2. Tap Settings > Basic Settings > Display > Screen Saver. 3. Tap the Screensaver Waiting Time field and select the desired time from the pop-up menu. 4. Select the desired background. 5. Save the change. Setting the Signal Port of Yealink Plugin... -
Page 34: Using The Cp Wireless Expansion Mic Cpw90
| Using the CP Wireless Expansion Mic CPW90 | 34 Before you begin Make sure that the signal port of Yealink Plugin you set on the phone is the same as the Yealink Plugin on your MCore. Procedure 1. Swipe down from the top of the screen to enter the device setting screen. -
Page 35: Viewing Cpw90 Information
| Switching Between ZoomRooms Account And ZoomRoomsAdmin Account | 35 Viewing CPW90 Information When the CPW90 is registered with the IP phones, you can view CPW90 status on the phone. Procedure 1. Swipe down from the top of the screen to enter the device setting screen. 2. -
Page 36: Logging Into Yealink Management Cloud Service/Yealink Device Management Platform
ZoomRoomsAdmin Sign-in Troubleshooting This section describes solutions to common issues that may occur while using the Yealink CP960-UVC Zoom Rooms kit. Upon encountering a case not listed in this section, contact your Yealink reseller for further support. Upgrading System Software •... -
Page 37: Upgrading System Software
UVC80/UVC50/UVC30 and the MShare). After switching the user account to ZoomRoomsAdmin, you can enable Windows Update service to update the devices. You can also upgrade the devices on the Yealink RoomConnect plug-in under Windows or on the Yealink Management Cloud Service/Yealink Device Management Platform. -
Page 38: Upgrading The Cp960
Cloud Service • Update the firmware manually Yealink RoomConnect plug-in Note: For more information on how to update a batch of phones on the Yealink device Yealink device management platform or Yealink Device Management Cloud Service, refer to management platform Administrator Guide... -
Page 39: Firmware For Each Device
After the update, the CP960 will reboot automatically. Firmware for Each Device The firmware of the CP960, MShare, Yealink Plugin for Zoom Rooms plug-in and the Yealink RoomConnect plug-in the ZVC series Zoom Rooms Kit must match each other. The following table lists the associated and latest firmware name for each device:... -
Page 40: General Issues
The display does not display the shared content • Make sure you have signed in the ZoomRooms account • Make sure the Yealink UVC80/UVC50/UVC30 Camera is set as the default camera Related tasks Signing Into Your Zoom Rooms Account Setting the UVC80/UVC50/UVC30 as the Default Camera...
